Main Features

1. Large meter display for easy reading
2. Forward RF power measurement (switchable between average power and Peak Envelope Power (PEP) for SSB and AM transmitters)
3. Reverse RF power measurement
4. VSWR reading
5. Illuminated meter with backlight
6. User-friendly control layout for simple operation
7.


Specifications

• Type: SWR / Power Meter
• Frequency Range: 1.6–60 MHz
• Power Ranges: 30W / 300W / 3000W
• Insertion Loss: < 0.1 dB
• Impedance: 50 ohms

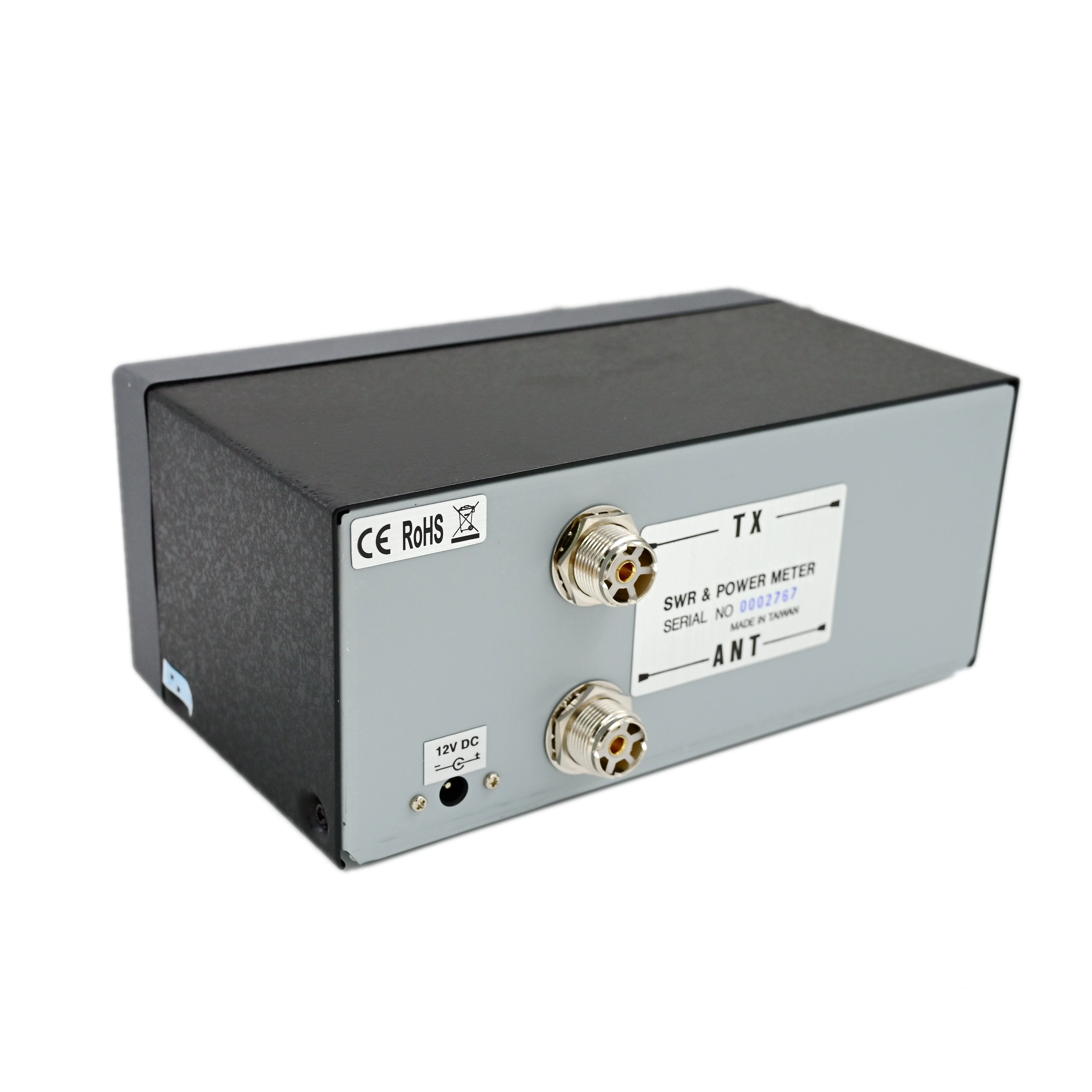

• Connectors: 2 × SO-239
• Dimensions (W×H×D): 190 × 85 × 135 mm (7.48 × 3.35 × 5.32")
• Weight: 780 g (1.72 lbs)
• Accuracy: ±10–15% of full scale
• Backlight: 13.8 VDC
• Manufactured: Taiwan
