This is a bundle comprising of a set of brand new Lazer Sentinel lamps, along with a wiring kit, a free beanie, and covers. It consists of two 9 inch Lazer Sentinel lamp part number 0S9-PL-SM x2, plus two black lamp covers, a complete wiring kit, and a Lazer beanie. All in stock and ready to ship free of charge, on a next day service with DPD. We offer five different Sentinel bundles. Two with 7 inch lamps and two with 9 inch lamps (see the chart above). This bundle uses the lamp with position lights - four small LEDs built into the lamp that are wired up to the sidelights of the vehicle that glow amber or white depending on your preference. The lamps are phenomenally powerful, road legal, E-Marked and approved. They also come with a facility to easily switch them to off-road use and in this boost mode they are even brighter but not road legal. The adjuster is easily used and located on the rear of the lamp. Wiring is straightforward and full instructions are provided.

Certain modern vehicles use an electrical system called CANBUS. In this case you will need to use the new Lazer Canny device to wire up your new Lazer lamps; we stock these and they can ordered by contacting us.

Large trucks that operate a 24 volt system are also fine but will need to simply replace the 12 volt relay for a 24 volt version. Again, these are available from Carnoisseur. Other accessories including mounting brackets and anti-theft kits are also available. Full technical information can be found below for the enthusiast.

What's Included?

This Lazer Sentinel bundle includes:

2x 9 inch Lazer Sentinel LED Lamps (0S9-PL-SM)
1x Wiring Kit (2L-LP-PL-120)
2x 9 inch Lazer Lamp Covers - black with Lazer logo (LC-BLK-0S9)
2x Lazer Slim Mount Kits (1141K)
1x Lazer Beanie
Installation instructions

Technical Information

IP68 watertight – 1.5m submersion (30 mins). Every single lamp is tested in the UK factory.
Made in the UK
5 year guarantee
Supplied with pre-wired male/female 3-pin Superseal connectors
'Unbreakable' polycarbonate lens with hardcoat lacquer
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
E Boost mode for off road additional power
Combination of 20 premium 'bin' LEDs
Stealth black internal appearance

For more technical information see our Notes section.

DHL Van

Free and Fast UK Delivery

We offer free delivery of Lazer Lamp bundles to all areas of the United Kingdom, including Northern Ireland!

Simply order before 12am and we will dispatch on the same day. Most areas of the UK can expect delivery on the next working day. Deliveries to the Highlands and Islands, and Northern Ireland, can expect delivery within 2 to 3 days.

Once your order has dispatched you will receive tracking information via email.

Please note that deliveries are made on weekdays only.

DHL Plane

International Delivery

We ship Lazer Lamp bundles worldwide. If you are outside of the UK and would like a shipping quote, please email your address details to sales@carnoisseur.com and we will be happy to assist you.

Extras

The following optional extras are also available, contact us if you are interested in ordering any of them with your lamp bundle.

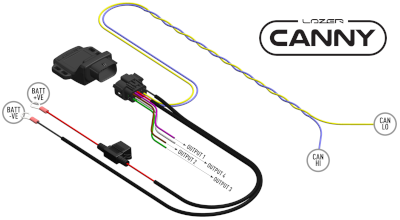

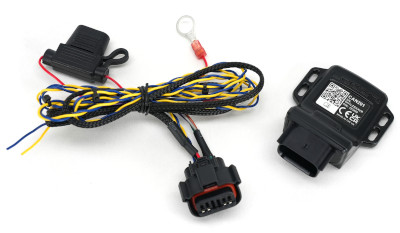

Lazer Canny

IP68 Waterproof CANNY dongle with Molex connector terminal
Suitable for both engine-bay or in-car mounting
Connects to vehicle CAN wires (locations of CAN wires and connection methods supplied via vehicle specific instructions, downloadable through app, after purchase)
Activates up to 4x different output (e.g. High Beam, Position Light, Reverse, Ignition)
Bluetooth (over the air) updates via CANNY app – available on Android and iOS
Technical Support from UK Sales Team
Compatible with Lazer wiring harness kits
Fast and user-friendly installation procedure

A list of vehicles that use this system can be accessed by clicking HERE.

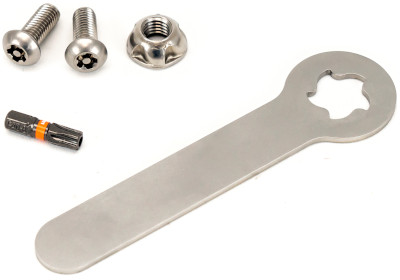

Lazer Anti-Theft Kit

Security solution to protect against theft
Supplied with side-mount M6 security bolts, and M10 locking nut
Made from A2 stainless steel

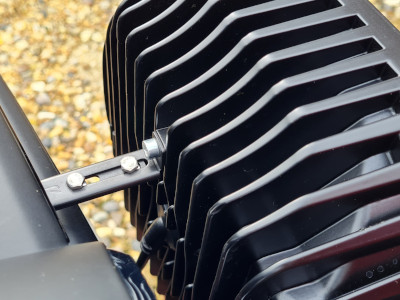

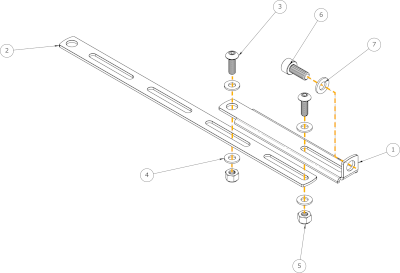

Lazer Stabilising Kit

Reduces vibration, stress, and movement on LED lamp installations
Compatible with Sentinel LED lamps
Pre-drilled mounting hole with thread forming bolt
Made from A2 stainless steel
PTFE coated for excellent corrosion resistance

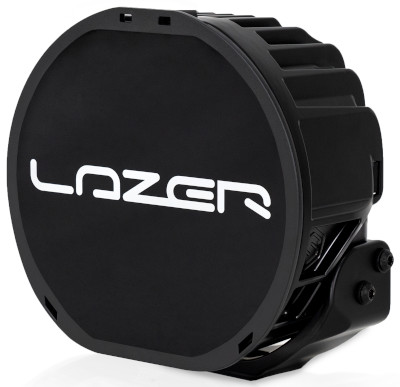

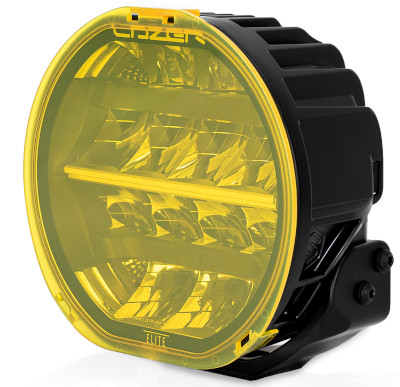

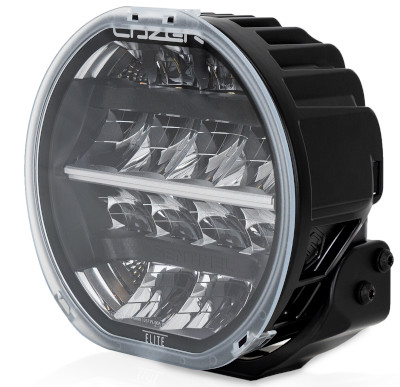

Lazer Lamp Covers

Black, Amber, and Clear clip-on lens covers
Black cover included free in the bundle, extras are available using the dropdown box above
Designed for use with Sentinel LED lamps
Made from polycarbonate
Secures using 3-point clipping mechanism

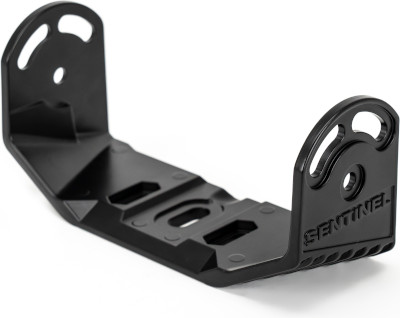

Lazer Wide Mount Kit

Sentinel mounting bracket with a more ‘heavy-duty’ appearance
Made from diecast aluminium
Automotive grade corrosion resistance
Satin black powder coat finish
Stamped Sentinel logo branding

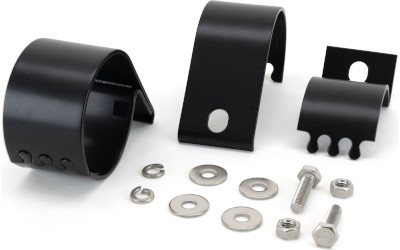

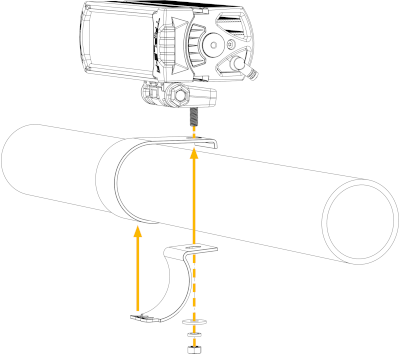

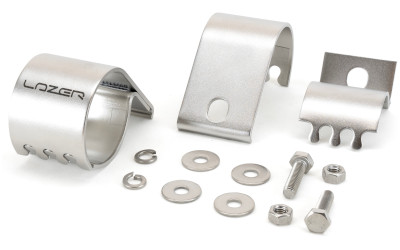

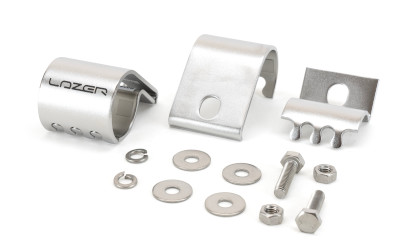

Lazer Tube Mounting Brackets

Made from stainless steel
Simple installation of Lazer Sentinel Lamps to horizontal bars
Contemporary electro-polished matt effect finish (42mm and 60mm only)
Lazer logo etched into design (42mm and 60mm only)
Hand-polished matt black effect (76mm only)
Universal compatibility - fits any vehicle
Available in 3 different sizes
Supplied as a pair

Specifications

	Boost Mode	Low Output Mode
Voltage Range (DC)	10-32V
LED Life	50,000 hrs

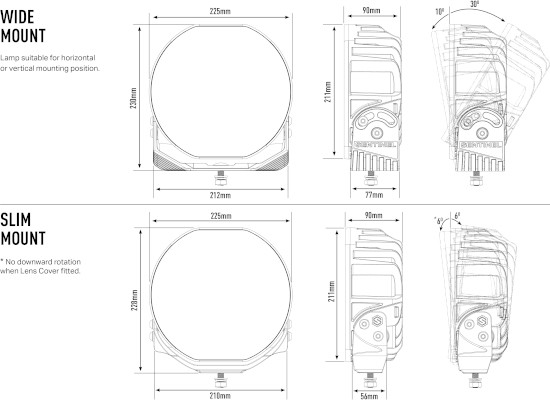

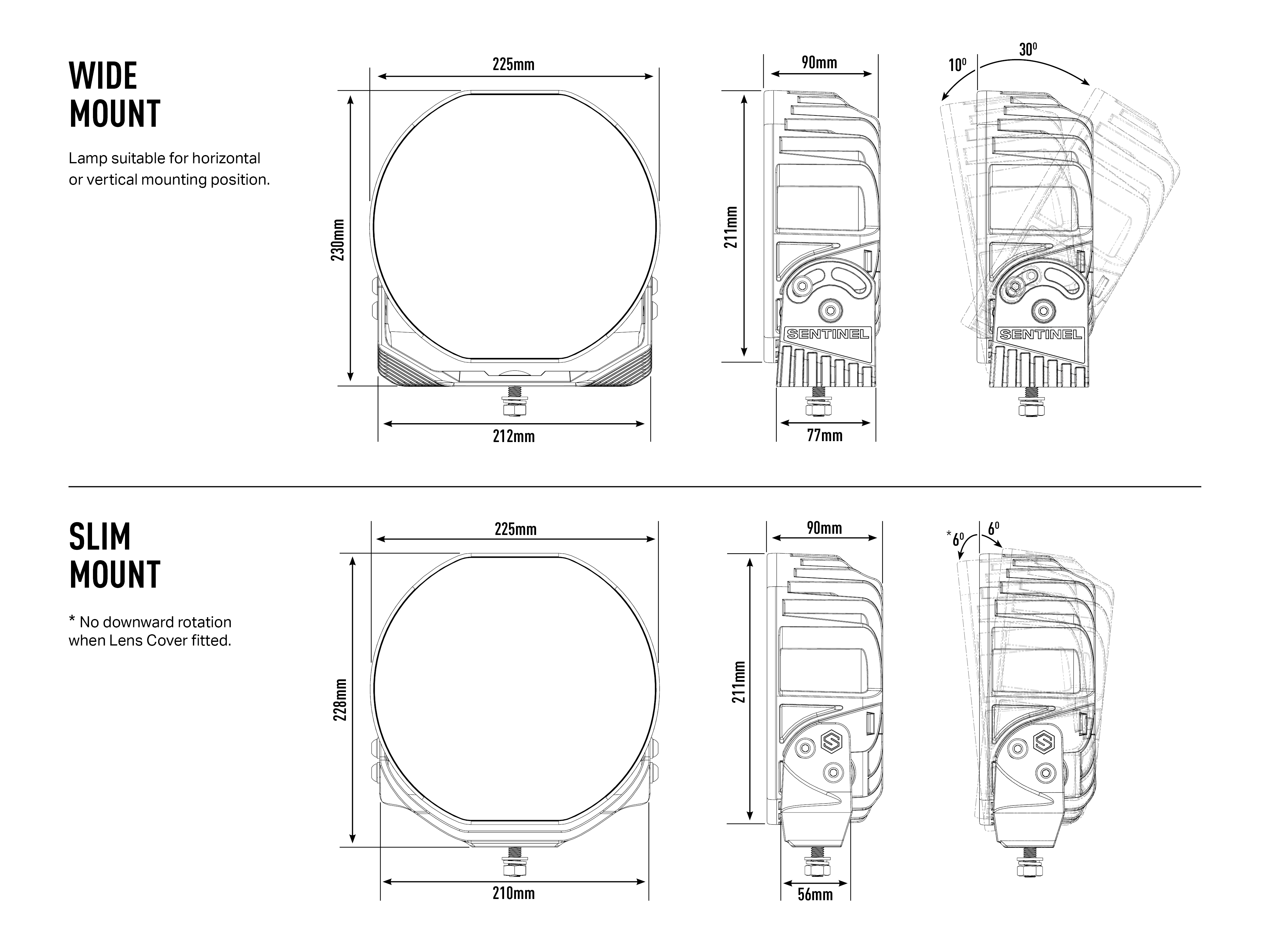

Weight	2.5kg
Width	225mm
Height	230mm
Depth	90mm
High Beam Function
Total Luminous Flux	9520 Lm	1904 Lm
Total Driver 'FOV' Flux	5588 Lm	1118 Lm
Colour Temperature	5000k	5000k
Number of High Output LEDs	20	20
Power Consumption	87 Watts	17 Watts
Current Draw (at 14.4V)	6 Amps	1.2 Amps
Certification
High Beam	N/A	ECE R112
E-Mark Ref	N/A	20
Position Light (White)	ECE R7	ECE R7

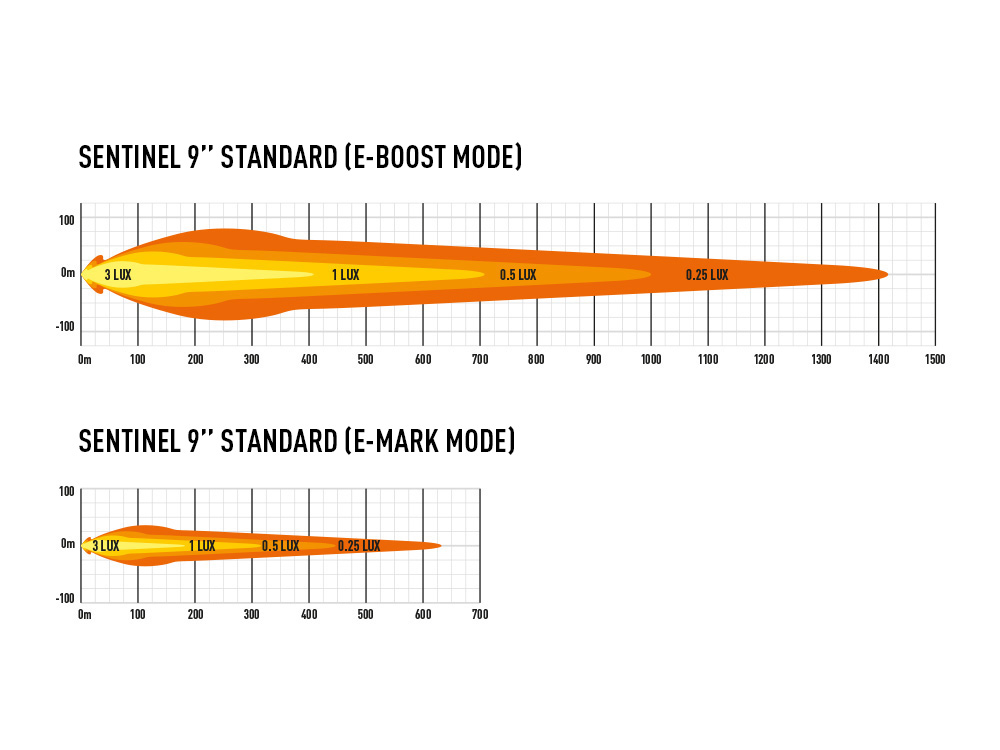

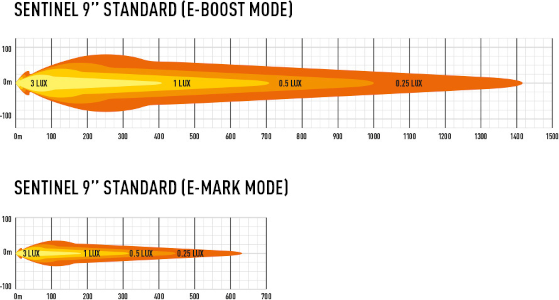

Photometric Data
Horiz Beam Angle	52 Deg	52 Deg
0.25 lx Line	1414 metres	632 metres
0.5 lx Line	1000 metres	447 metres
1 lx Line	707 metres	316 metres
3 lx Line	408 metres	183 metres

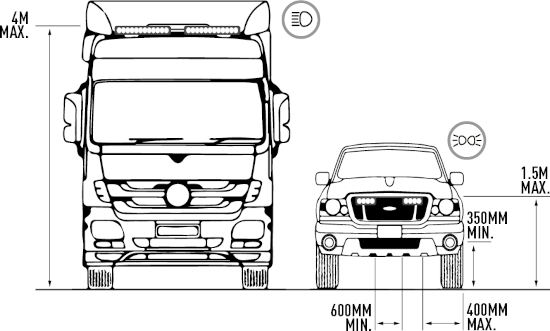

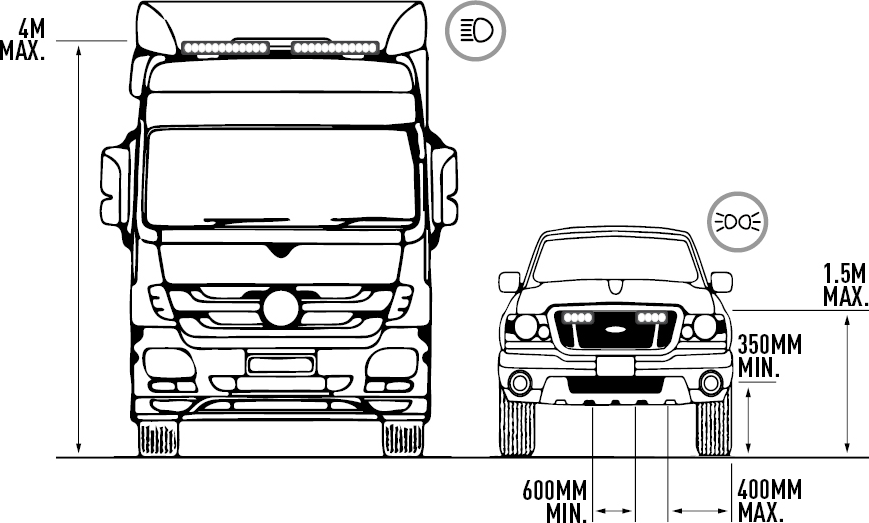

Legal requirements for headlight positioning
