A 4 point road harness from TRS, specifically made for Mazda MX-5 (a.k.a. Miata/Eunos), from 1989 to 2005. With shorter shoulder straps designed to wrap around a roll bar or harness bar, these harnesses are ideal for use in your MX-5 for road use or track days.

As standard they feature shoulder straps manufactured to the correct length, ready to wrap around your roll bar or harness bar, and lap straps which adjust by pulling down to tighten. A harness bar manufactured specifically for the Mk1 and Mk2 MX-5 can also be supplied if required. Please use the dropdowns to order.

Key Features

• 4 fixing points
• Shoulder straps wrap around roll bar or harness bar (harness bar available as an option, see below).
• Shoulder straps are manufactured for the MX-5 to exactly the correct length to wrap around the harness bar or roll bar without excess webbing.
• Please note the length of the shoulder straps is 122cm from the adjuster to the end of the strap. Once the webbing has been wrapped around this will leave a maximum length of approximately 70cm from the adjuster to the roll / harness bar.
• Lap straps have snap hook fixings. 7/16" UNF eye bolts and instructions are included. The lap strap eyebolts screw into the original mounting points on the sill and on the seat runners. If you have replaced or are thinking of replacing the seats with Cobra Monacos, or other base mounted seats that retain the original runners, then this is still the case. If you have seats fitted with side mounts a new fixing point will be required to the centre of the car, on the tunnel. Please select the harness stress plates from the dropdown to facilitate this requirement. All FIA seats will require this type of fixing.
• Road legal 16.06
• 50mm (2") shoulder straps
• 50mm (2") lap straps
• 75mm (3") lap pad
• Standard colours are Red, Blue, and Black. Yellow, Green, Grey/Silver, Orange, Pink, and Miami Blue are special order (see dropdown above)
• Push button release buckle
• Made in England

---

Shoulder Straps

• Shoulder straps are approximately 105cm from the adjuster to the end of the strap
• The adjustment range of the lower shoulder strap is between 10cm and 40cm
• These harnesses are supplied ready to wrap around a roll or harness bar. They cannot be fitted without these.
• Once the webbing has been wrapped around this will leave a maximum length of approximately 55cm from the adjuster to the roll / harness bar

Want to find out more about how to correctly wrap harness shoulder straps around a harness or roll bar? Click here to read our brief guide: How To Wrap Your Harness Around a Roll Cage

---

Options

Free Keyring With Every TRS Order!

Exclusive offer for Carnoisseur customers! We are now giving away a free TRS keyring worth £12.95 with every order for TRS harnesses!

This superb keyring from TRS is made from the same high quality webbing as their harnesses, and is available in the same range of colours too: Black, Red, Blue, Yellow, Green, Grey/Silver, Orange, Pink, Miami Blue, and Purple. Made in the UK at the TRS factory, the keyring is 10cm in length, and is a great looking, practical accessory for all motorsport enthusiasts.

The keyring supplied will be the same colour as the harness ordered. If you'd prefer a different colour, get in touch to let us know.

Please note that just one keyring is provided per order.

---

Webbing Colour

TRS Harnesses are available in 10 different webbing colours: Red, Blue, Black, Yellow, Green, Grey/Silver, Orange, Pink, Miami Blue, and Purple.
Red, Blue, and Black harnesses are the most common colours, so harnesses in those colours are usually in stock, if you need your harnesses in a hurry.

---

Adjusters

You can upgrade the harnesses to the Superlite or Ultralite versions. As standard TRS harnesses use steel anti-creep adjusters. Also available are premium aluminium alloy adjusters, which in addition to being lightweight, offer a smoother and faster adjustment. The Superlite harnesses use these lightweight aluminium adjusters on the shoulder straps, and the Ultralite harnesses use them on both the shoulder and lap straps.

They are highly recommended for vehicles being shared between multiple drivers, and in general we always recommend upgrading to the aluminium adjusters due to their premium look and feel.

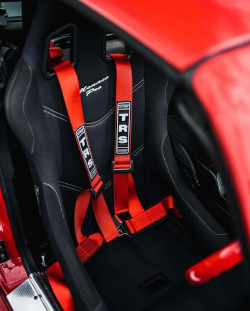

Please note the main product image of the harnesses shown at the top of the page features the Ultralite aluminium adjusters.

---
