Swimline® Above Ground Swimming Pool Sand Filter System w/ Dual Speed Pump - (Choose Size)
Our Swimline® HydroTools™ Above Ground Sand Filter System w/ Dual Speed Pump - is designed to provide the cleanest water quality through optimized filtration, consistent performance, and efficient backwashing. The included pump features a professional-grade impeller motor with extra-wide openings to maximize flow, minimize noise, and prevent clogging. An extra-large, industrial strainer basket effectively captures leaves, hair, and other debris to allow extra time between cleaning cycles and optimal energy efficiency. Its clear lid makes it easy to see when cleaning is required.

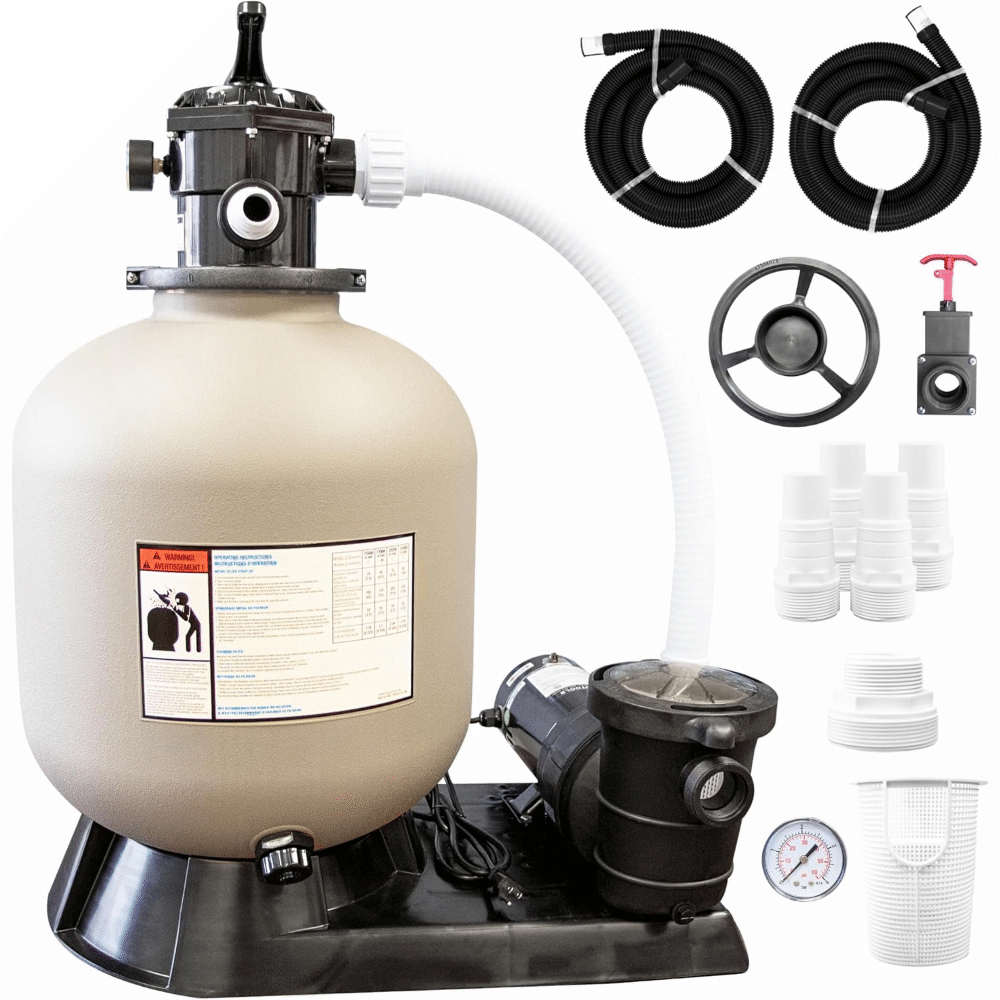

Note: Filter system includes the following: Pump w/ base, Pressure Gauge, Hoses (qty 2), Hose Clamps, Teflon
Features:
- Ready to install sand filter system
- Blow-molded, double-reinforced PE tank
- Complete debris trap with removable debris basket and see-through lid
- 7-way valve for Filter, Backwash, Rinse, Waste, Recirculate, Winter, and Closed operations
Benefits:
- Efficient Water Filtration: Swimline® HydroTools™ holds sand at the most efficient position for optimized filtration, consistent performance, and efficient backwashing.
- Oversize Capacity: The double-reinforced PE tank can hold up to 100 lbs of sand, or 2 boxes of Rx Clear® Luster Filter Media. (Note: Media sold separately)
- Complete Package: This system includes a fully integrated pool sand filter, pump, pressure valve, and stand.
Features of the 16' Tank w/ 1 HP (1 THP) Pump:
- 16" Diameter Tank
- Max Tank Pressure PSI: 50 PSI
- 48 GPM
- 7-Way Valve
- 110V / 60 Hz Motor w/ Cord
- Dual Speed Motor
- Filter Area: 1.35 sqft
- Filter Holds 100 lbs of Sand
Features of the 19' Tank w/ 1 HP (1 THP) Pump:
- 19" Diameter Tank
- Max Tank Pressure PSI: 50 PSI
- 70 GPM
- 7-Way Valve
- 110V / 60 Hz Motor w/ Cord
- 9.8/3.9 Amps
- Dual Speed Motor
- Filter Area: 2.0 sqft
- Filter Holds 175 lbs of Sand
Features of the 22' Tank w/ 1 HP (1 THP) Pump:
- 22" Diameter Tank
- Max Tank Pressure PSI: 50 PSI
- 88 GPM
- 7-Way Valve
- 110V / 60 Hz Motor w/ Cord /
- 9.8/3.9 Amps
- Dual Speed Motor
- Filter Area: 2.64 sqft
- Filter Holds 250 lbs of Sand
Features of the 24' Tank w/ 1 HP (1 THP) Pump:
- 24" Diameter Tank
- Max Tank Pressure PSI: 50 PSI
- 88 GPM
- 7-Way Valve
- 110V / 60 Hz Motor w/ Cord /
- 9.8/3.9 Amps
- Dual Speed Motor
- Filter Area: 3.14 sqft
- Filter Holds 250 lbs of Sand
| Filter Model: | ||||
| Media Required: | ||||
| FILTER SAND | LUSTER MEDIA* | ZEO CLEAR** | FILTER GLASS*** | |
| LBS | BOXES | LBS | LBS | |
| Swimline® 12-Inch Sand Filter | 42 | 1 | 21 | 34 |
| Swimline® 14-Inch Sand Filter | 60 | 1½ | 30 | 48 |
| Swimline® 16-Inch Sand Filter | 100 | 2 | 50 | 80 |
| Swimline® 19-Inch Sand Filter | 175 | 3½ | 87.5 | 140 |
| Swimline® 22-Inch Sand Filter | 250 | 5 | 125 | 200 |
| Swimline® 24-Inch Sand Filter | 300 | 6 | 150 | 240 |
|
| * 1 Box of Luster = 50lbs. of Sand | ** Comes in 50lb Boxes | *** Comes in 40lb Boxes |
DO NOT INSTALL OR OPERATE THIS PUMP UNLESS YOU HAVE READ AND FOLLOWED THE OWNER’S MANUAL, WHICH IS INCLUDED WITH THIS PUMP AND WHICH IS PUBLISHED ON THIS WEBSITE BY CLICKING ON THE LINK BELOW OR UNDER “MANUALS AND FORMS”. THE OWNER’S MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. FAILURE TO FOLLOW ALL INSTRUCTIONS IN THE OWNER’S MANUAL COULD RESULT IN SERIOUS INJURY, INCLUDING ELECTRICAL SHOCK, SUCTION ENTRAPMENT, AND EXPOSURE TO PRESSURE FIRE AND BURN HAZARDS. CHILDREN SHOULD BE SUPERVISED TO ENSURE THEY DON’T CLIMB ON THE PUMP.
THIS PUMP SHOULD BE INSTALLED AND SERVICED ONLY BY A QUALIFIED PROFESSIONAL. ALL WIRING MUST BE DONE BY A LICENSED ELECTRICIAN TO ENSURE COMPLIANCE WITH ALL STATE AND LOCAL CODES. FAILURE TO WIRE THE PUMP CORRECTLY COULD CAUSE AN ELECTRICAL SHOCK, DAMAGE THE PUMP MOTOR, AND VOID THE WARRANTY.
