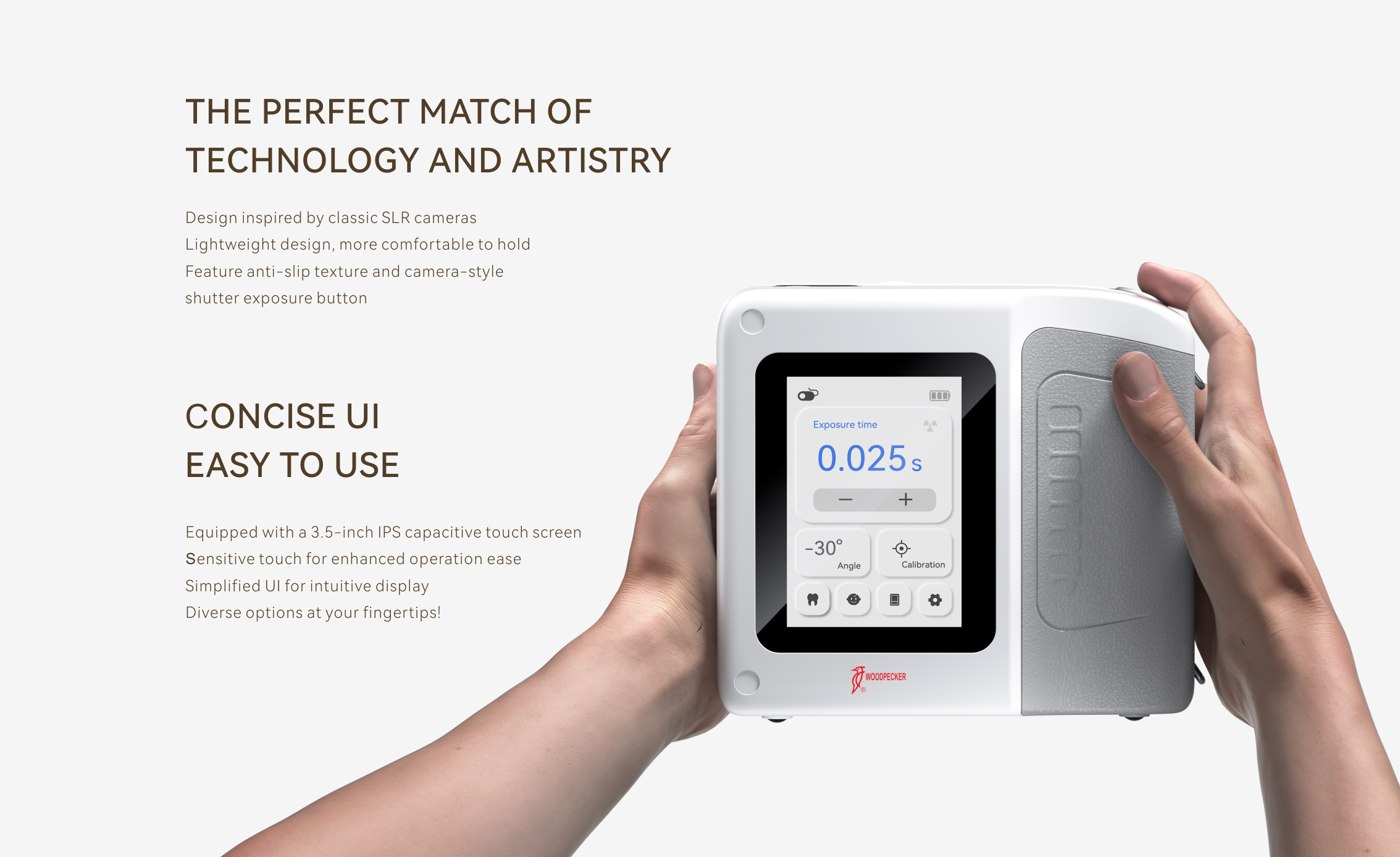

Master Ray is a Compact, Lightweight, Powerful Camera Style Digital Machine, with 2 Year Warranty
Primary Technical Parameters:

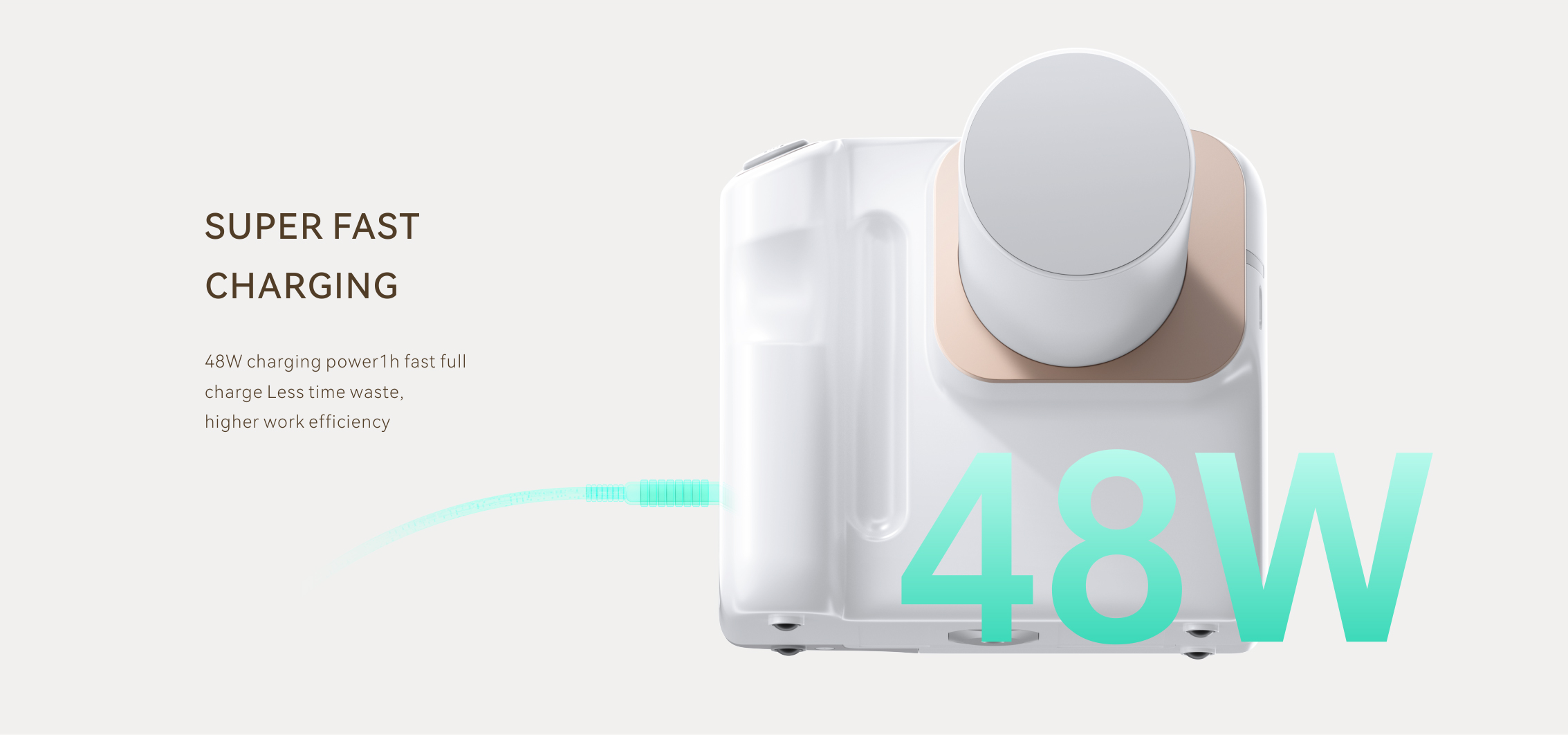

1. Power adapter input:
Power adapter model: UES48-150320SPA1
Power input: 100-240V~ 50/60Hz 1.1A

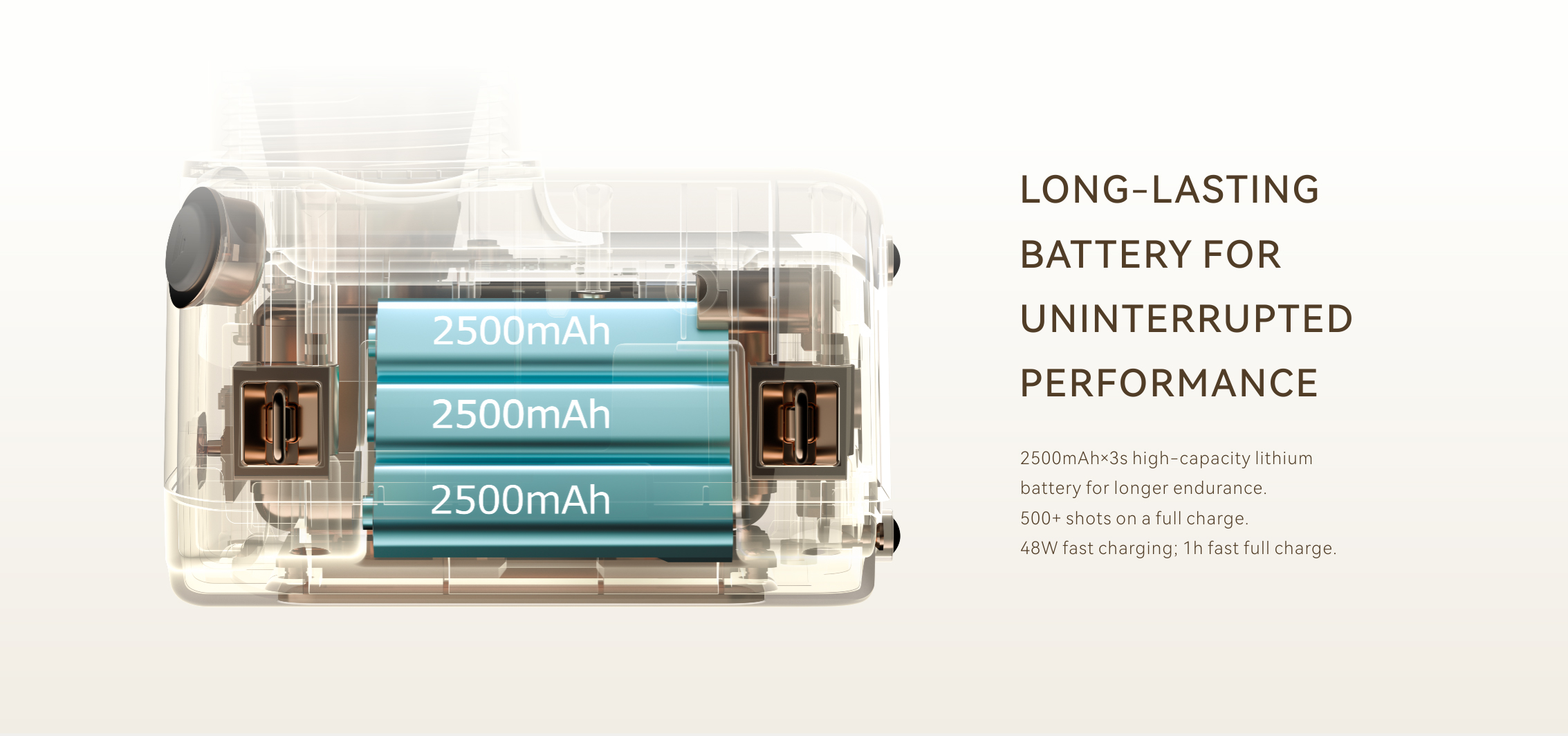

2. Internal power supply: DC 10.8V
3. Power adapter output: DC 15.0V 3.2A
4. Electric power:
Maximum output electric power: 0.14kw (70kV, 2mA)
Nominal electric power: 0.14kw (70kV, 2mA, 0.1s)
5. Tube voltage: tube voltage output is fixed at 70kV
