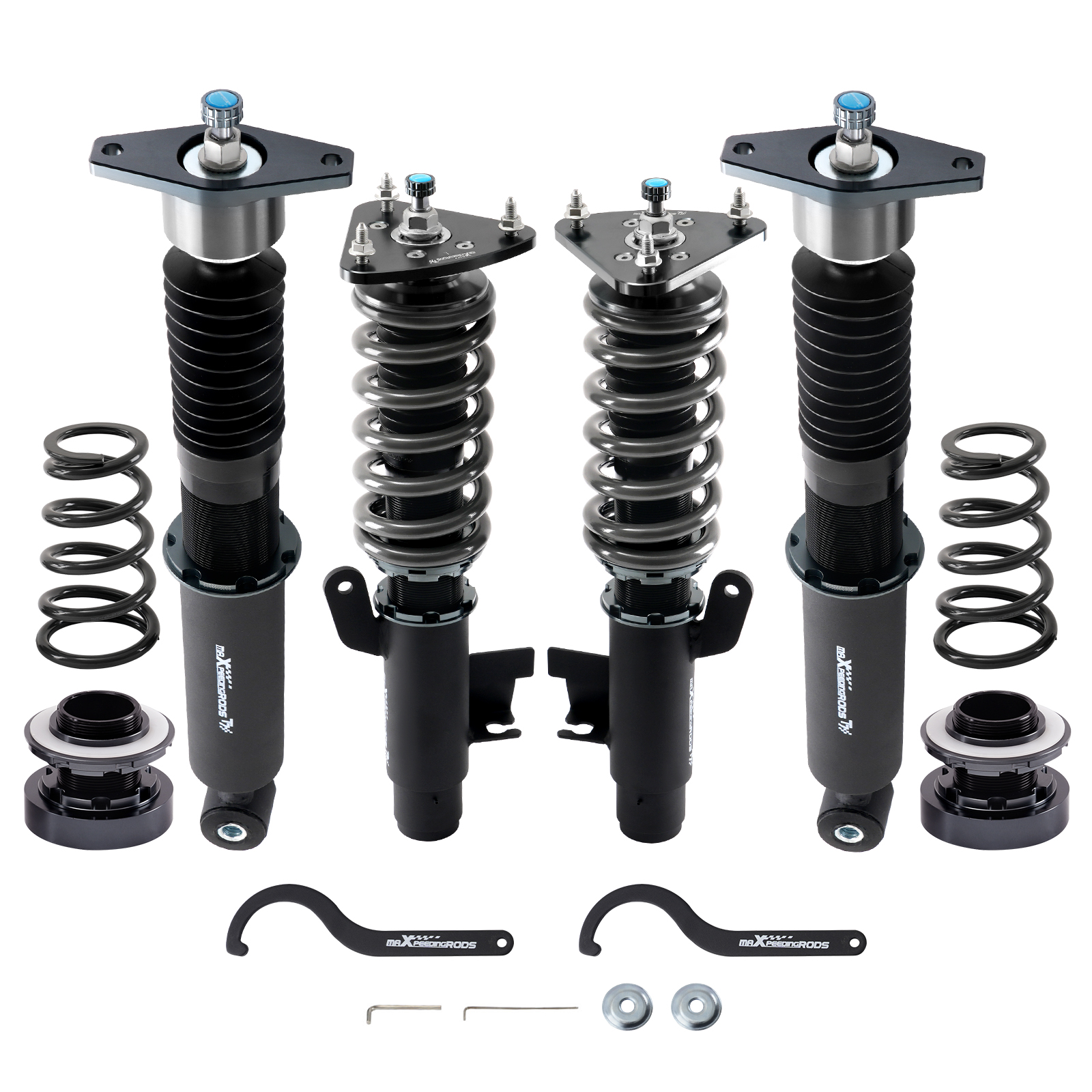

24 Ways Damper & Height Adjustment Coilover For Mazda 3 BK 2004-2009 BL 09-2013



All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Competition-Grade Damper Oil For Consistent Track Performance

High-precision Pillow Ball Top Mount with Premium-Grade Sealed Spherical Bearings.

Improved Cornering Stability & Reduced Body Roll

Optimized For Mountain Driving & Spirited Road Use

MaXpeedingrods T7 Performance Coilovers | Track-Proven, Street-Ready

Engineered for performance enthusiasts who demand race-ready precision without sacrificing daily drivability, the MaXpeedingrods T7 Coilovers deliver track-honed handling, sharp responsiveness, and uncompromising cornering stability—perfect for carving canyons, attacking hairpins, or pushing limits on the track.


Performance Tunability for Superior Cornering

Unparalleled adjustability to fine-tune grip and control for any scenario:

⚫ 24 Stage Damping Adjustability: Dial in stiffness for track use (max tire grip) or canyon roads (grip over uneven pavement), ensuring instant suspension response for tight, technical corners.

⚫ Adjustable Spring Preload: Reduce body roll and chassis shake, delivering sharper turn-in, less understeer, and maximum tire contact—letting you carry more speed through corners with confidence.

⚫ 25–75mm Performance Lowering: Lowers center of gravity for enhanced stability and cornering grip, minimizing weight transfer and keeping the vehicle balanced during high-speed bends.

Specifications


Height adjustable Yes, lowering 25-75mm depending on the vehicle models
Damping adjustable Yes, 24 levels of rebound damping force
Front Spring length 200 mm
Rear Spring length 194 mm
Front spring length 10 kg/mm (560 lbs/in)
Rear spring length 7 kg/mm (392 lbs/in)
Front top mount structure Pillow ball
Rear top mount structure Rubber
Front Damper Body Diameter Φ55mm (2.17")
Rear Damper Body Diameter Φ55mm (2.17")
Package Including 2 Front + 2 Rear
Warranty 2 Years



Application

For Mazda 3 (BK) 2004-2009 (Includes Mazdaspeed 3 / Mazda3 MPS)

For Mazda 3 (BL) 2009-2013 (Includes Mazdaspeed 3 / Mazda3 MPS)

For Mazda 5 (CR) 2006-2010



Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-5 months will keep it smooth and clean, which helps to extend the lifetime.
