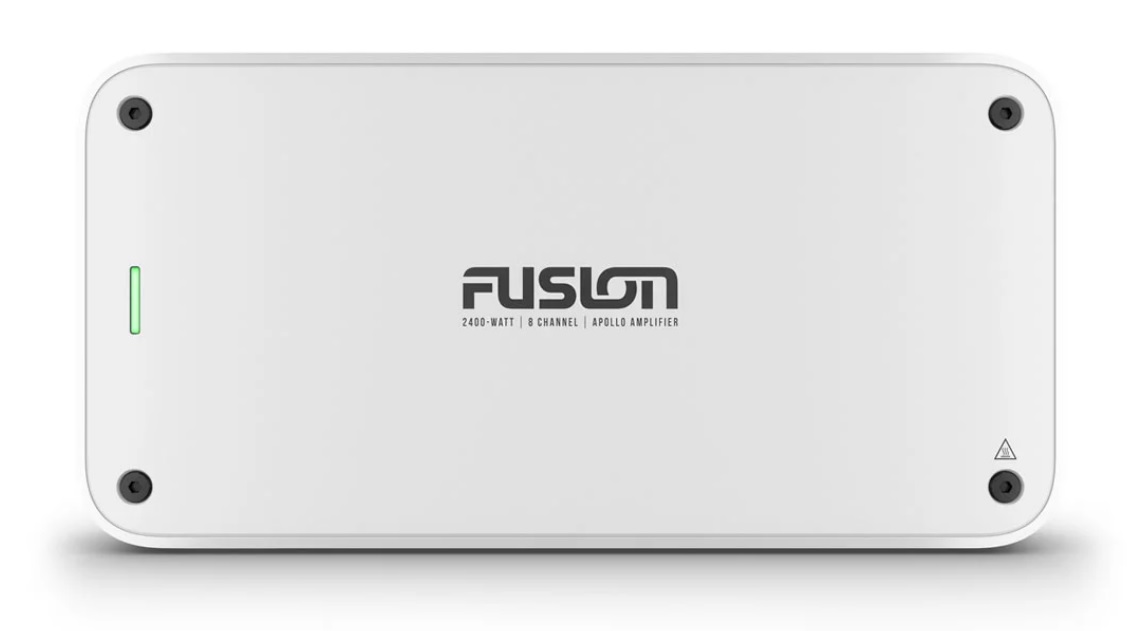

Fusion Apollo 8 Channel Amplifier 2400 Watt 12v
Fusion Apollo 8 Channel Marine Amplifier (150-watt RMS per Channel)
Model: 010-02284-85The Apollo amplifiers are designed to produce impressive power with less drain on your battery. The monoblock produces 650-watt RMS and the 4/6/8 channel amplifiers produce 150-watt RMS per channel.
These amplifiers use the Easy Tune feature, which automatically regulates audio settings. So, you can get the best quality sound without making manual adjustments.
Some amplifiers distort audio when they add power. Ours are specifically designed with minimal distortion and noise, so you can enjoy high-quality audio, even at higher volumes.
Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts as well as temperature.
Easily install the amplifiers on board with the included mounting brackets.
The ignition protected design helps prevent potential damage from overheating.
The amplifier’s circuit board has been specially coated to provide extra protection from the marine elements.
You can connect up to two speakers per channel, increasing setup options.
The amplifiers are designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration and UV.
Specifications| General | |
| Physical dimensions without bracket (LxWxH) | 14.13" x 7.06" x 1.75" (359 x 180 x 45 mm) |
| Physical dimensions with bracket (LxWxH) | 14.13" x 7.06" x 2.13" (359 x 180 x 50 mm) |
| Weight | 6.94 lb (3.15 kg) |
| Water Rating | IPX2 |
| Amplifier class | Class-D |
| CEA-2006 power rating | 150 watt RMS x 8 @ 14.4 V input - 4 ohm < 1% THD |
| Total rated power output - 2 ohm (watts) | 290 watt RMS x 8 @ 14.4 V input - 2 ohm < 1% THD |
| Total rated power output - 4 ohm Bridged (watts) | 580 watt RMS x 4 @ 14.4 V input - 4 ohm Bridged < 1% THD |
| Peak power (watts) | 2400 watts |
| Input sensitivity | 1.6 V RMS |
| Input impedance | 22k ohm |
| Operating voltage | 10.8 V - 16 V DC |
| Current draw, in standby/off using amplifier on wire | < 5 mA @ 14.4 V input |
| Current draw, on, no audio | < 1.60 A @ 14.4 V input |
| Fuse rating | 125 A electronic fuse (no replacement neccessary) |
| Power-cable fuse model and rating | Bussmann™ BK/AMI-030 30 A fast-acting |
| Ignition Safety Protected (SAE J1171) | Yes |
| Protection circuits | Reverse voltage Input under/over voltage Over temperature Output short circuit |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
