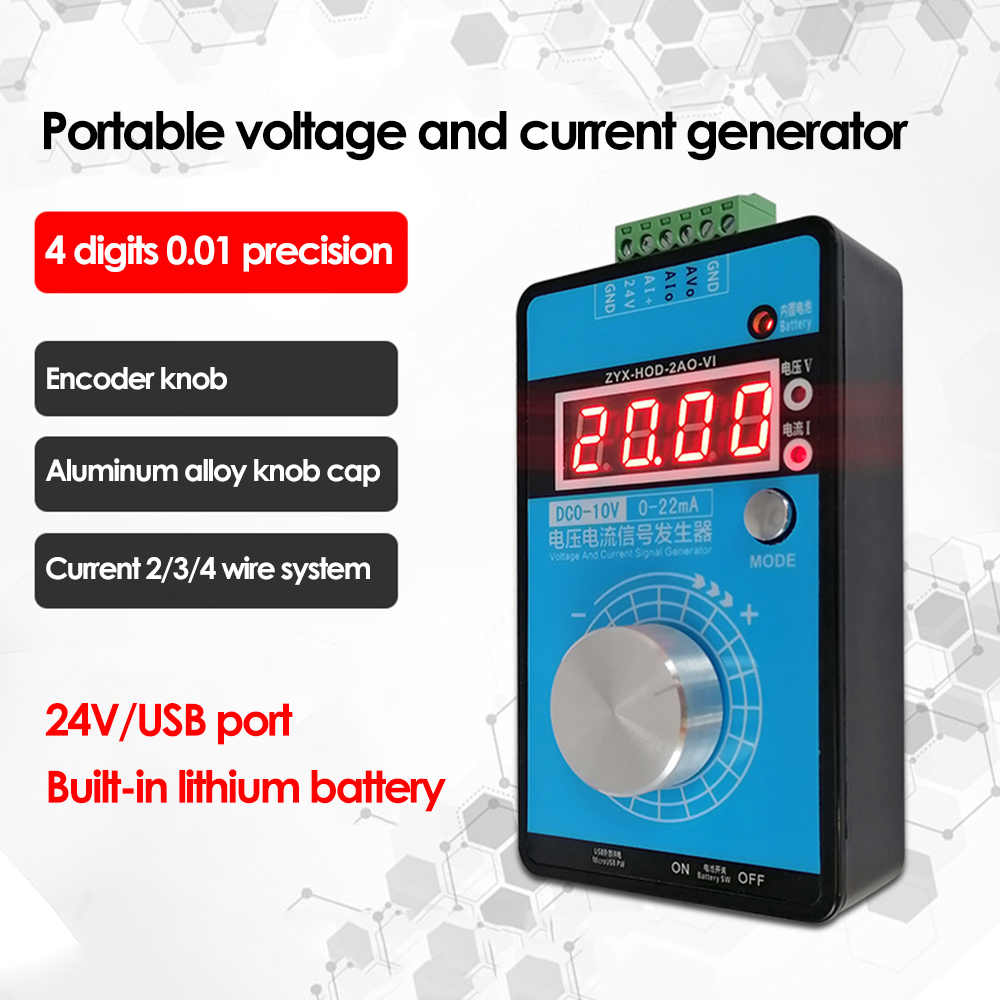

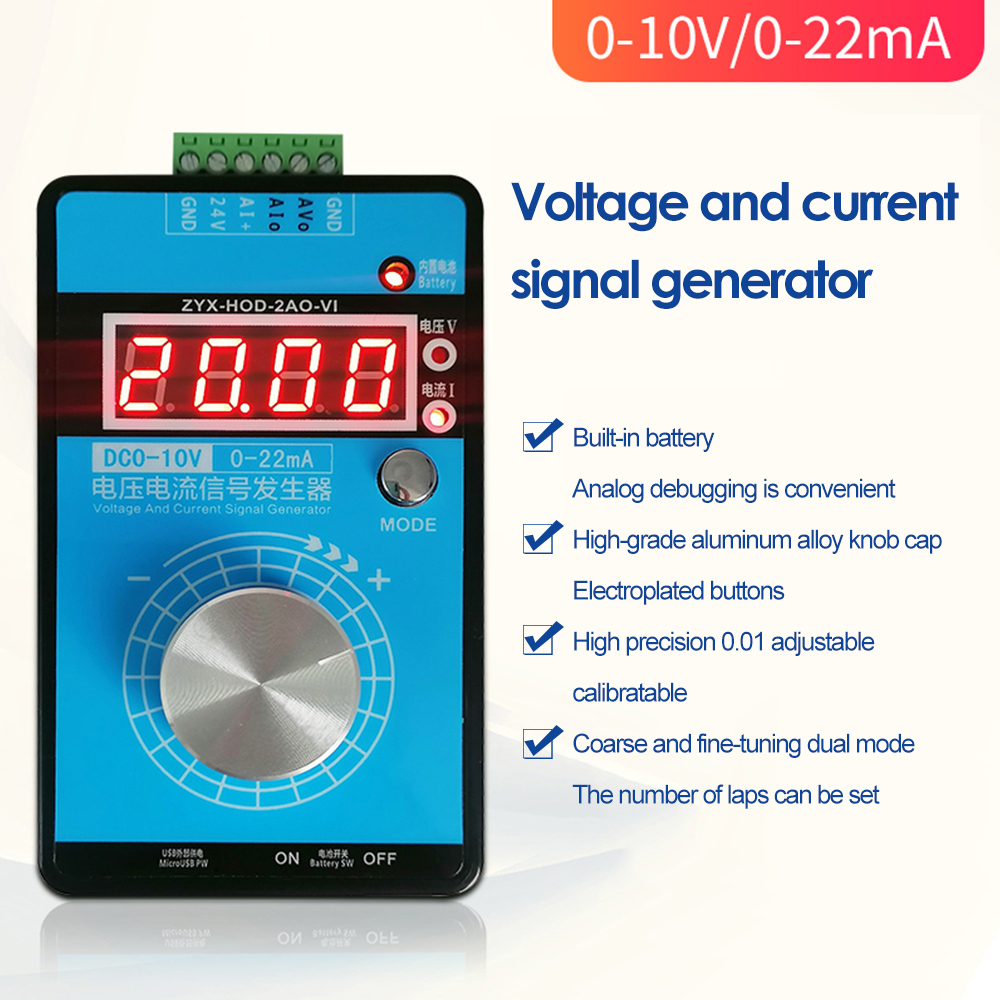

Handheld DC0-5V-10V Voltage 0-4-20mA Current Signal Generator Process Calibrator

Product Description:
1. 3.8mm high-quality terminals, long-term non-slip wire plug-in type for easy wiring
2. Various tests: lithium battery power supply accuracy test, DC24V power supply accuracy test, USB power supply accuracy test
3. One machine in hand, worry-free on site
4. The built-in battery analog is easy to debug

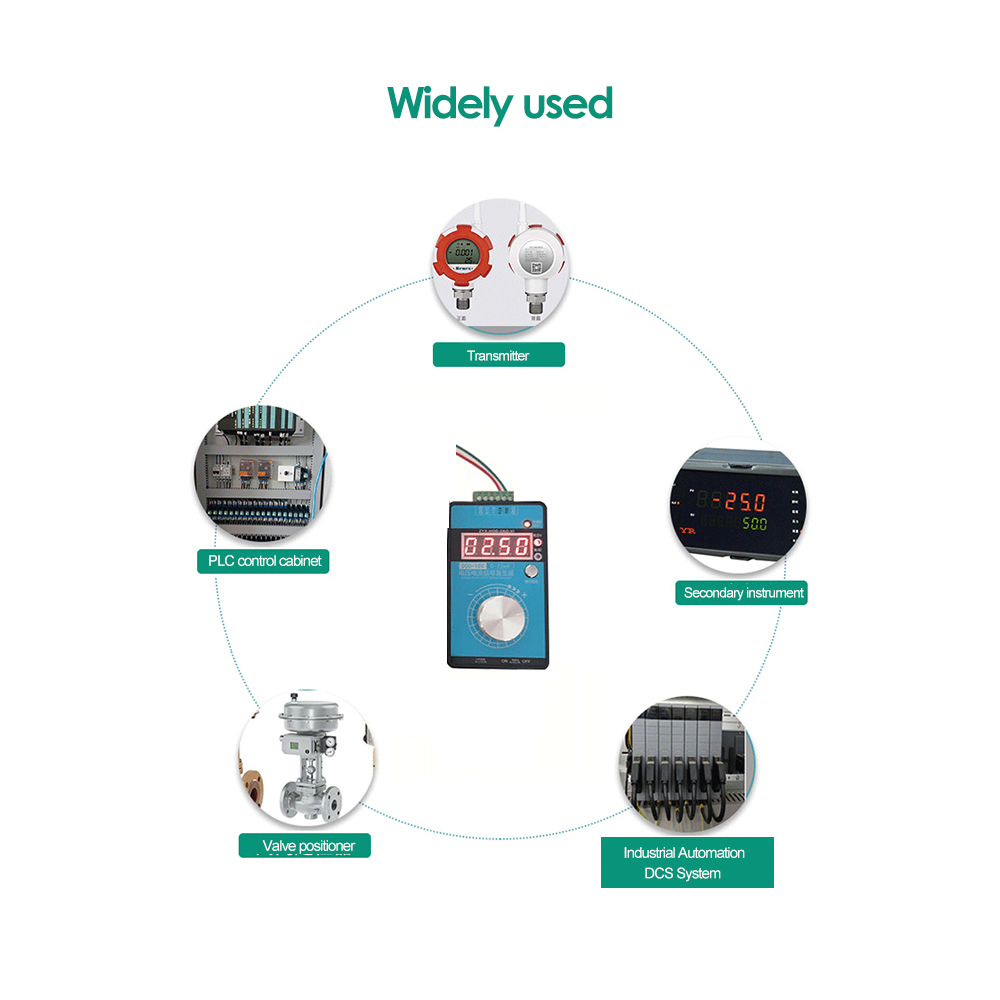

5. Widely used in: transmitters, secondary instruments, PLC control cabinets, valve positioners, industrial automation DCS systems, etc.
6. High-grade aluminum alloy knob cap electroplating button
7. High precision 0.01 adjustable and calibratable
8. Coarse and fine-tuning dual-mode travel circles can be set

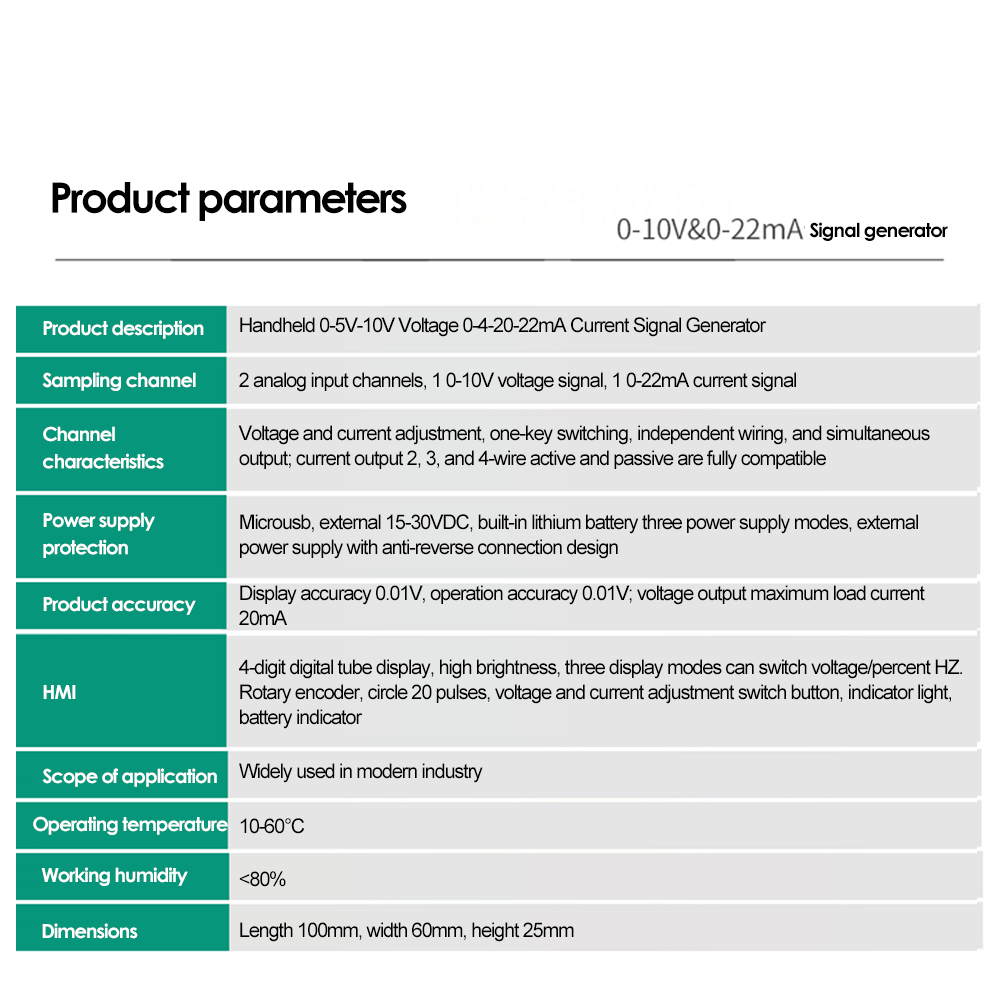

Product parameters and product main technical description:
A Power supply mode: external power supply DC15‐30V, external microUSB‐5V, 3.7V lithium battery capacity 1000mAh (optional)
B. Voltage output: 0-10V adjustable, the accuracy after calibration is 0.01V, the maximum current is 20mA
C. Current output: 0-22mA adjustable, the accuracy after calibration is 0.01mA, the load equivalent resistance ≤ 500 ohms
D. Power consumption parameters: external power supply DC15-30V, power 1W (not charging)/5W (charging)
External microUSB‐ 5V, current 0.2A (not charging)/1A (charging)
Built-in 3.7V lithium battery, power 1W, maximum charging current 0.8A (optional) e display element: 4-digit 0.4-inch digital tube
E. Setting button: rotary encoder, 20 pulses per circle
F. Optional type: only USB/DC24V power supply model without lithium battery, built-in lithium battery model
Precautions:
3 power supply modes, only 1 channel can work, and can also be connected at the same time

Package List:
1x Current signal generator*1+data cable*1+screwdriver
