Features:
1: Wide range of applications
2: Simple operation
3: Long service life
4: Ultra-long transmission distance, the farthest transmission distance in the open field: 2 kilometers
1: Wide range of applications
2: Simple operation
3: Long service life
4: Ultra-long transmission distance, the farthest transmission distance in the open field: 2 kilometers
Product name:

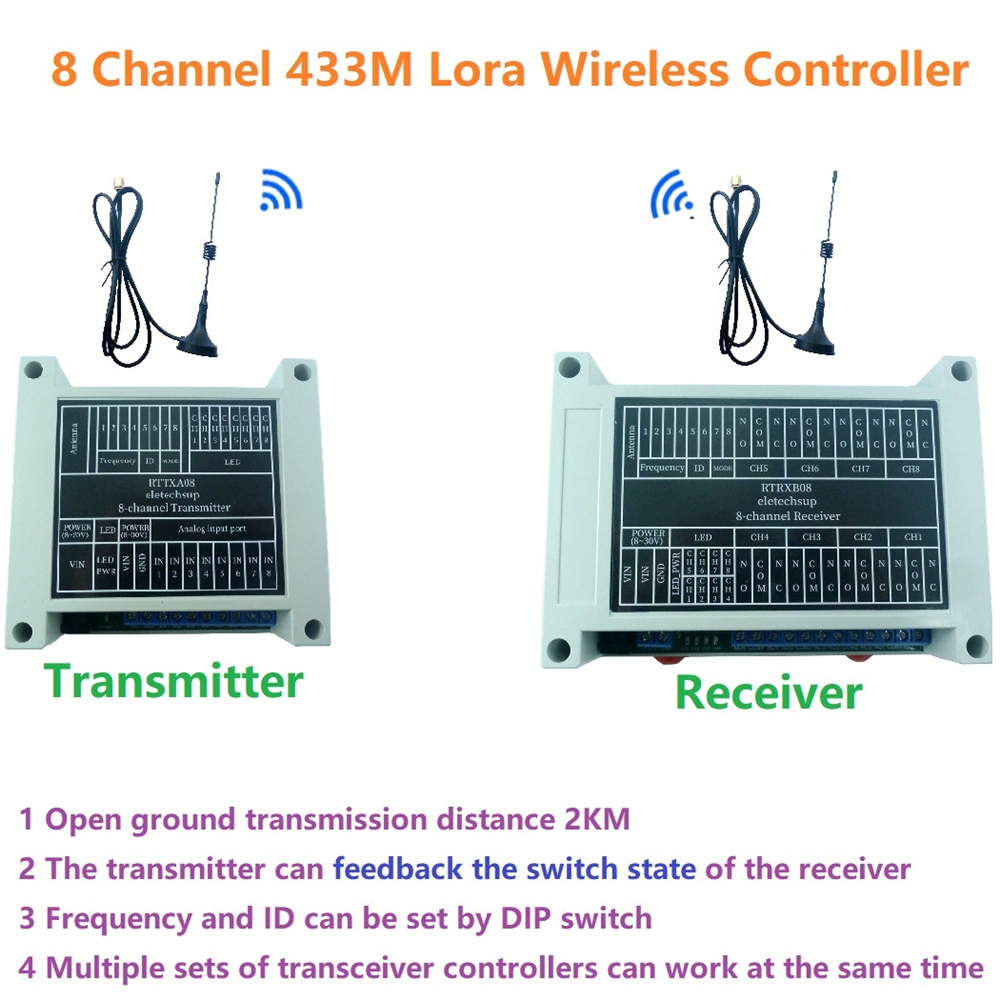

8 Channel 433M Lora remote control feedback point-to-point wireless IO switch relay module for smart home PTZ
(recommended to purchase both transmitter and receiver)
(recommended to purchase both transmitter and receiver)

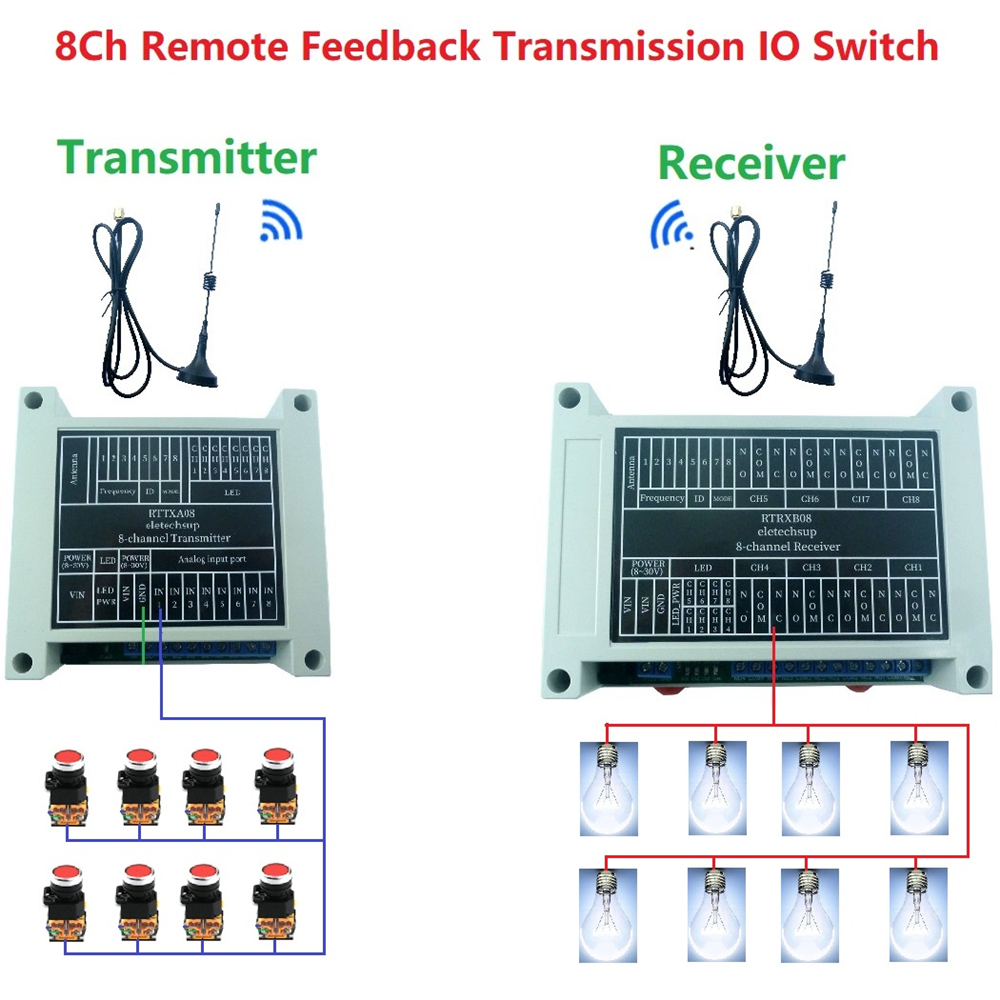

This is a wireless remote control switch with feedback function, no configuration is required, as long as the transceiver "band and ID" settings are consistent, it can be controlled. With feedback function, the LED indicator on the transmitter will indicate the switch status of the receiver.

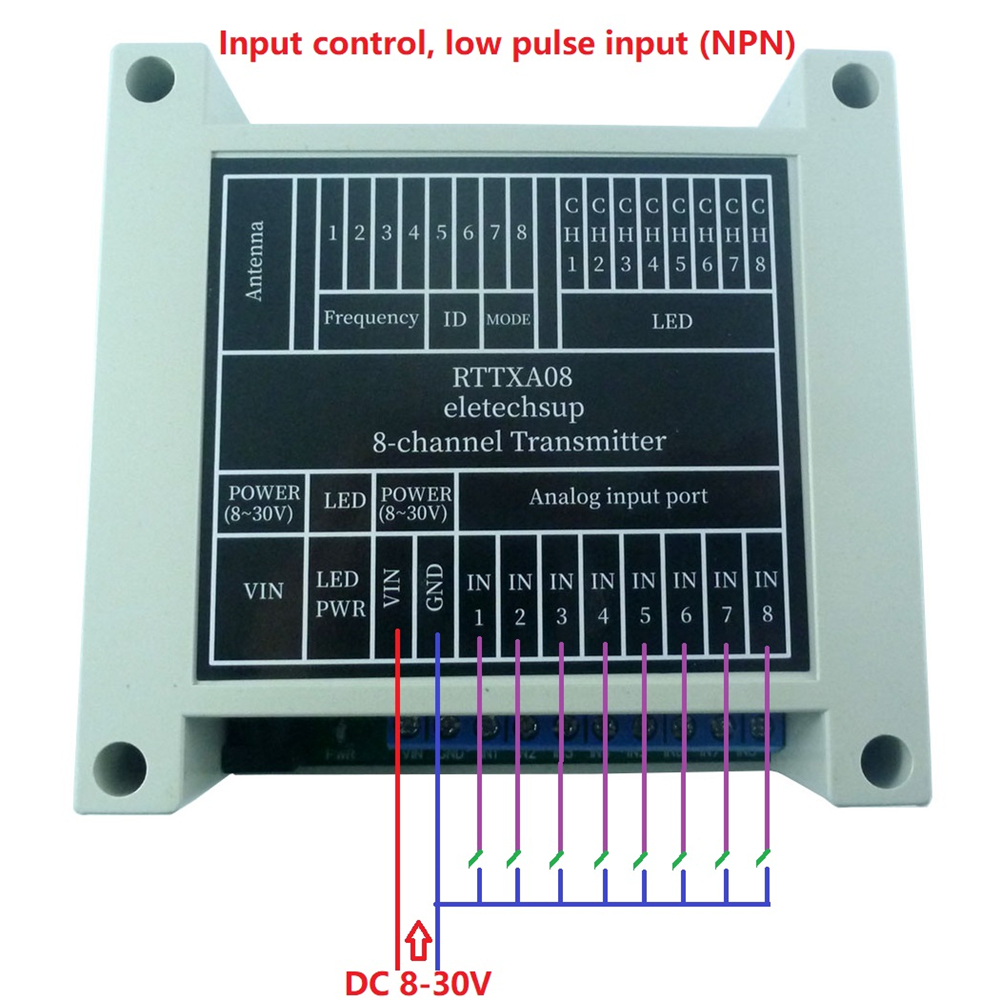

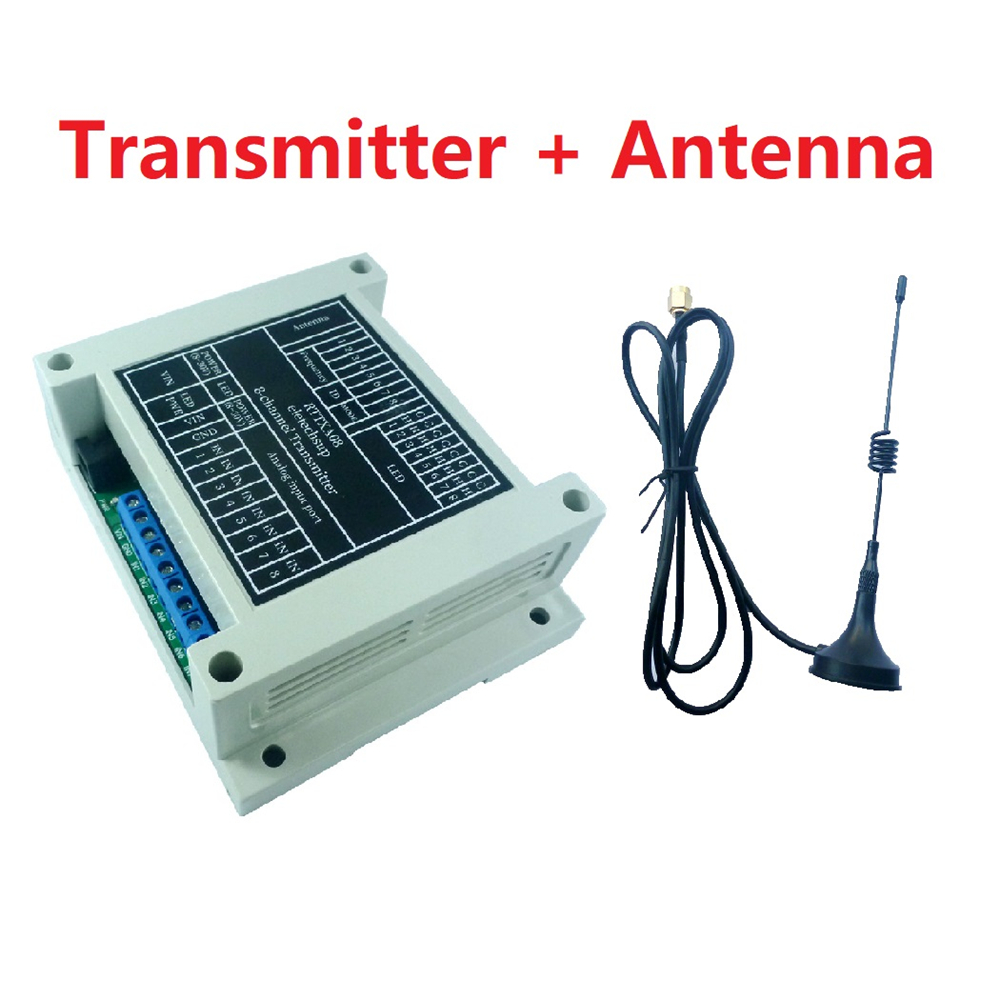

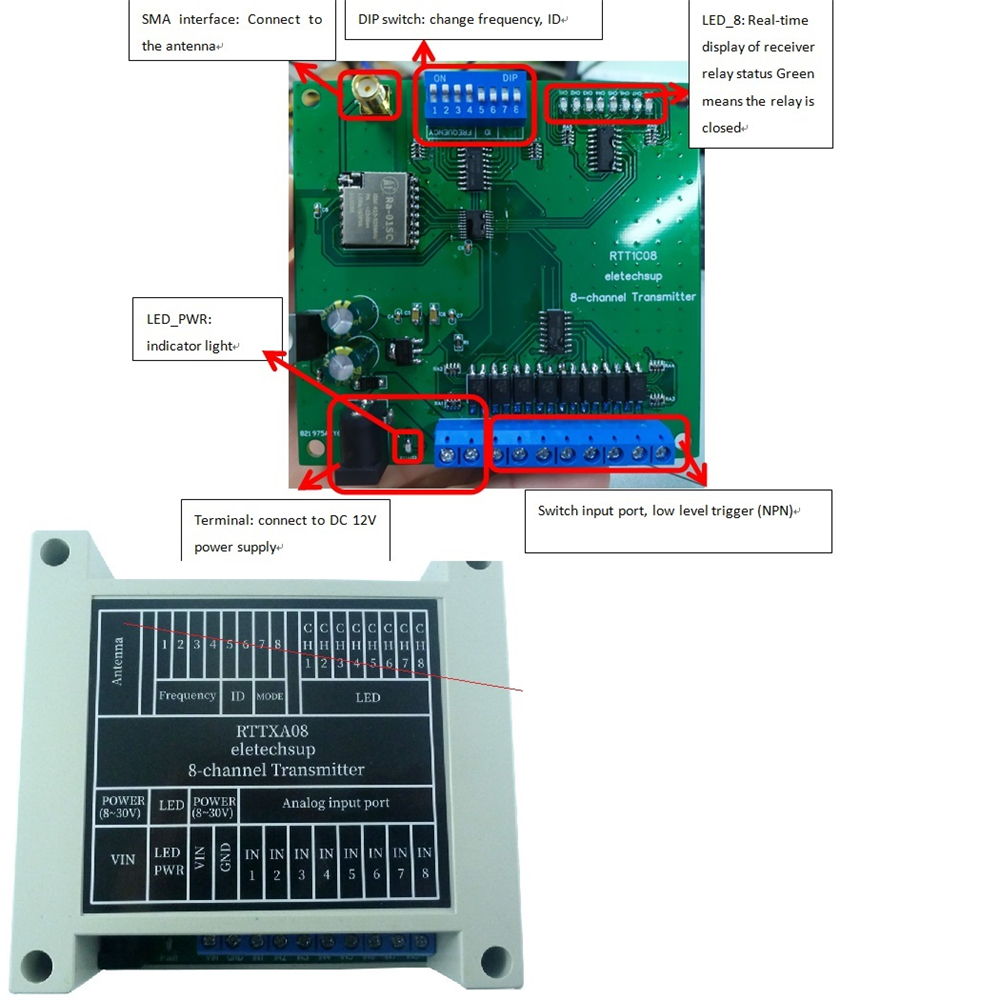

Transmitter:
1. Working voltage: DC 12V (8-30V)
2. Working current: 12-30MA
3. input channels: 8 channels, low pulse trigger (NPN)
4. Transmit power: 22dBm

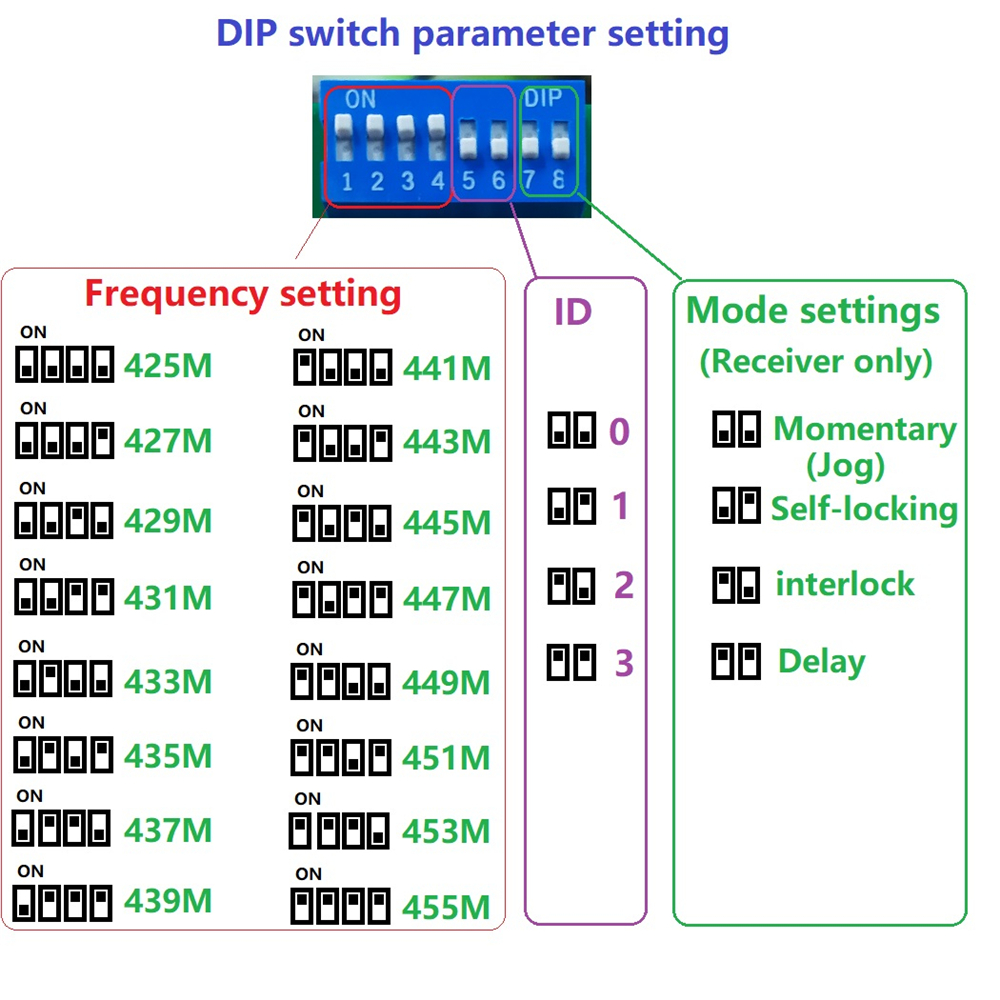

5. Working frequency band: 425~455MHz (can be set by DIP switch)
6. The farthest transmission distance in the open field: 2 kilometers
7. Size: 115x90x40mm (with shell)
8. Weight: 49g (without case) 120g (with case)
1. Working voltage: DC 12V (8-30V)
2. Working current: 12-30MA
3. input channels: 8 channels, low pulse trigger (NPN)
4. Transmit power: 22dBm
5. Working frequency band: 425~455MHz (can be set by DIP switch)
6. The farthest transmission distance in the open field: 2 kilometers
7. Size: 115x90x40mm (with shell)
8. Weight: 49g (without case) 120g (with case)

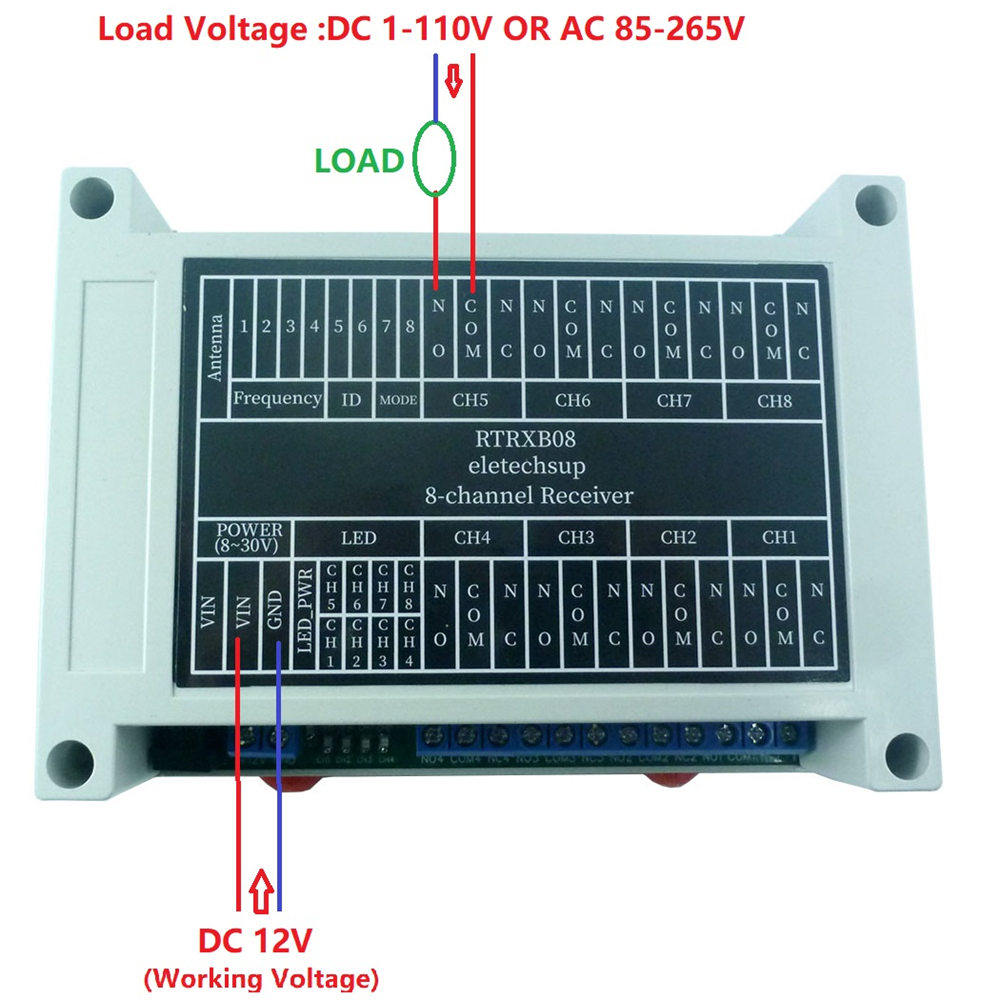

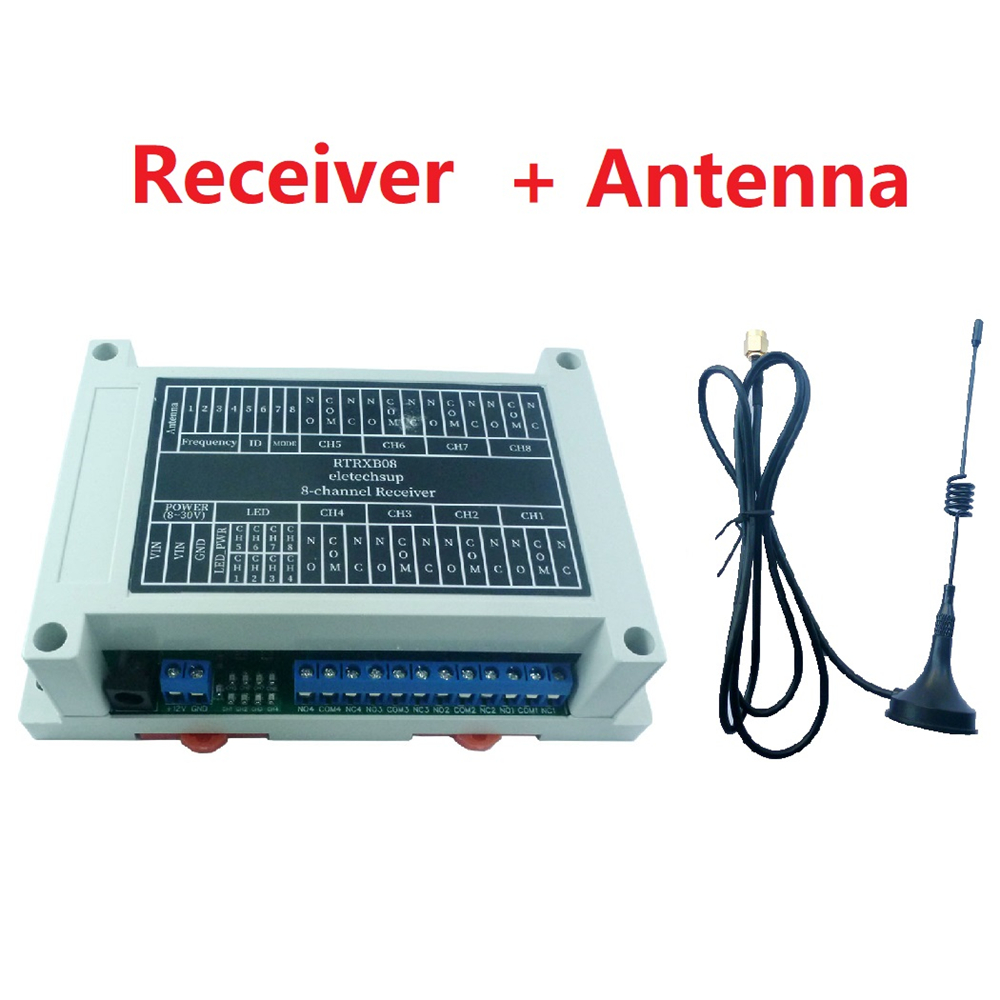

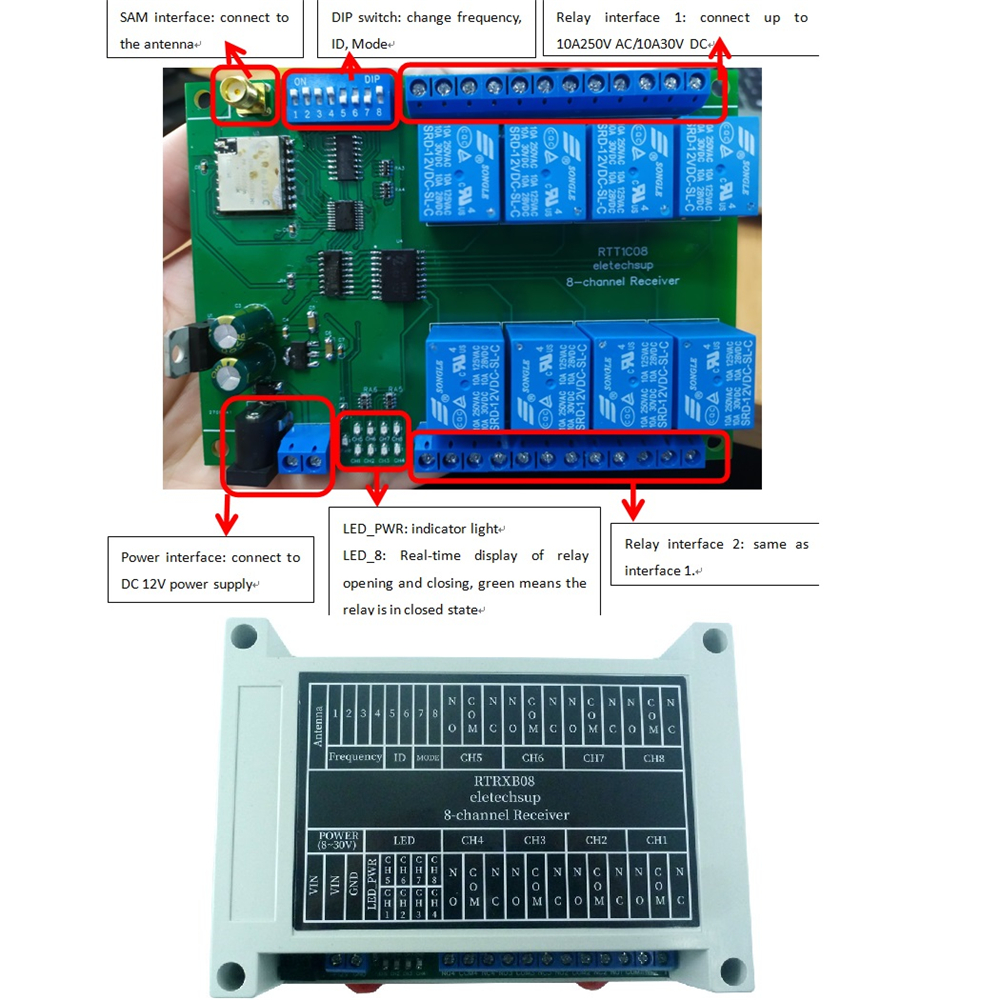

Receiver:
1. Working voltage: DC 12V (11-15V)
2. Working current: 12-260MA
3. output channels: 8 channels 10A relay output
4. Working frequency band: 425~455MHz (can be set by DIP switch)
6. The longest transmission distance in open field: 2 kilometers
6. Working modes: instantaneous (jog), self-locking, interlocking, delay (can be set
7. Dimensions: 145x90x40mm (with case)
Weight: 134g (without case), 200g (with case)
8. Maximum load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC
1. Working voltage: DC 12V (11-15V)
2. Working current: 12-260MA
3. output channels: 8 channels 10A relay output
4. Working frequency band: 425~455MHz (can be set by DIP switch)
6. The longest transmission distance in open field: 2 kilometers
6. Working modes: instantaneous (jog), self-locking, interlocking, delay (can be set
7. Dimensions: 145x90x40mm (with case)
Weight: 134g (without case), 200g (with case)
8. Maximum load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC

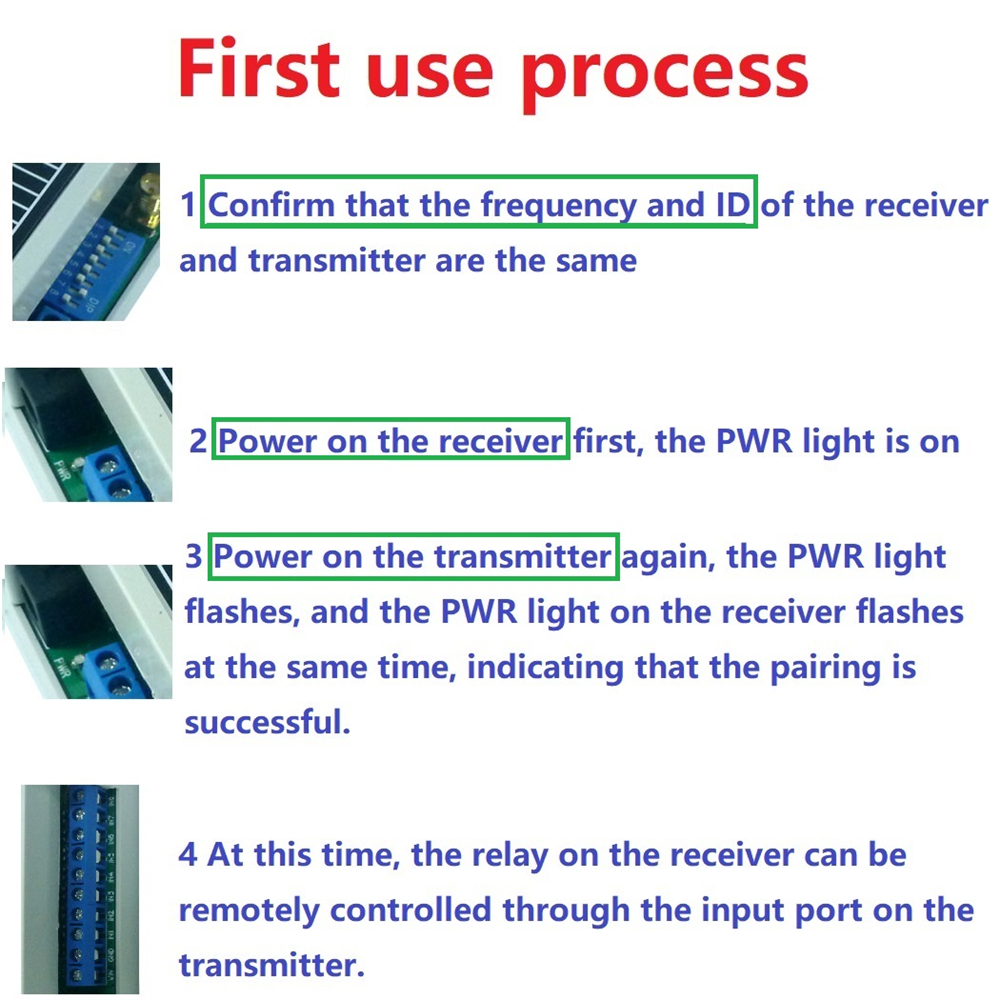

The first use process:
1. Confirm that the frequency and ID of the receiver and transmitter are the same
2. Power on the receiver first, the PWR light is on
3. Power on the transmitter again, the PWR light flashes, the PWR light lights up and the receiver flashes at the same time, indicating that the pairing is successful.
4. At this point, the relay on the receiver can be remotely controlled through the input port on the transmitter.
1. Confirm that the frequency and ID of the receiver and transmitter are the same
2. Power on the receiver first, the PWR light is on
3. Power on the transmitter again, the PWR light flashes, the PWR light lights up and the receiver flashes at the same time, indicating that the pairing is successful.
4. At this point, the relay on the receiver can be remotely controlled through the input port on the transmitter.
Notice:
To install the antenna, remove the housing top cover and
The frequency or ID number cannot be the same when using two transmitters at the same time
The frequency or ID number cannot be the same when using two receivers
To install the antenna, remove the housing top cover and
The frequency or ID number cannot be the same when using two transmitters at the same time
The frequency or ID number cannot be the same when using two receivers

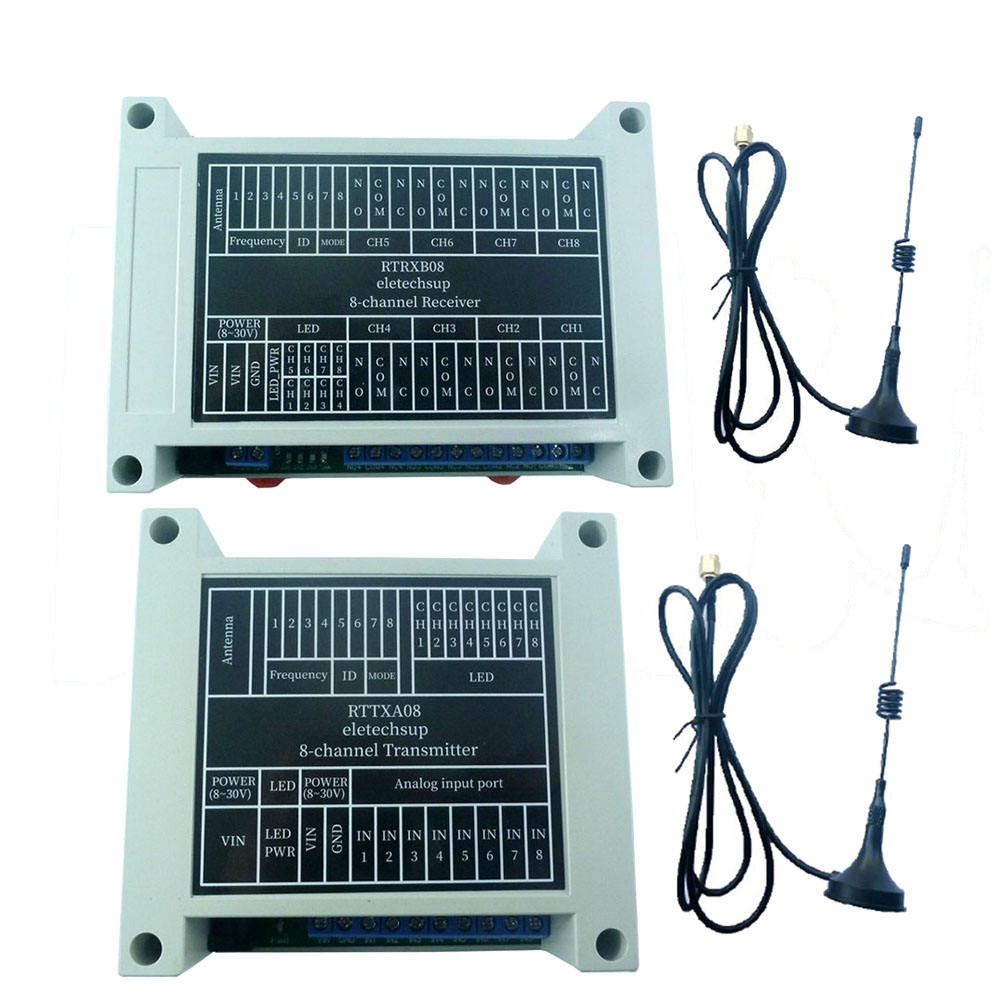

Package list:
1*Transmitter
1*Receiver
2*Antenna
2*Antenna
