Features

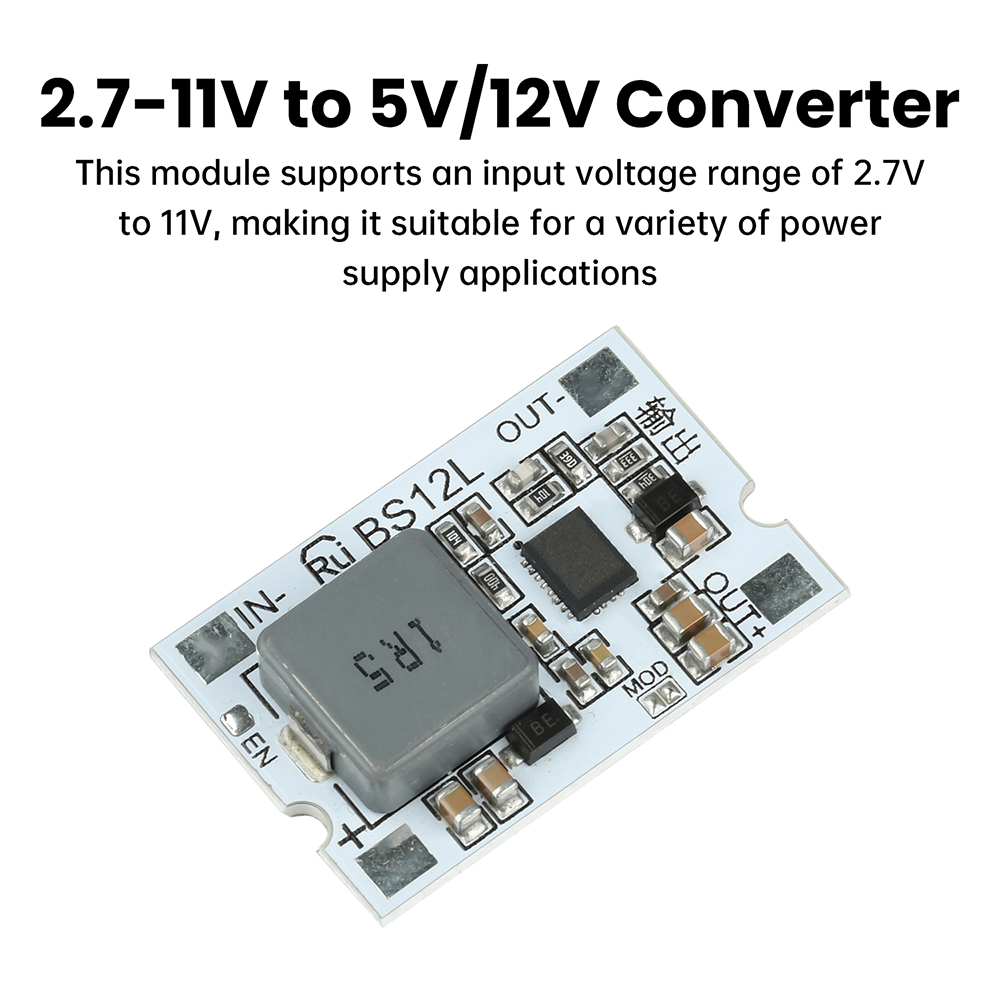

1. Supports input voltage range of 2.7V to 11V, suitable for diverse power supply applications

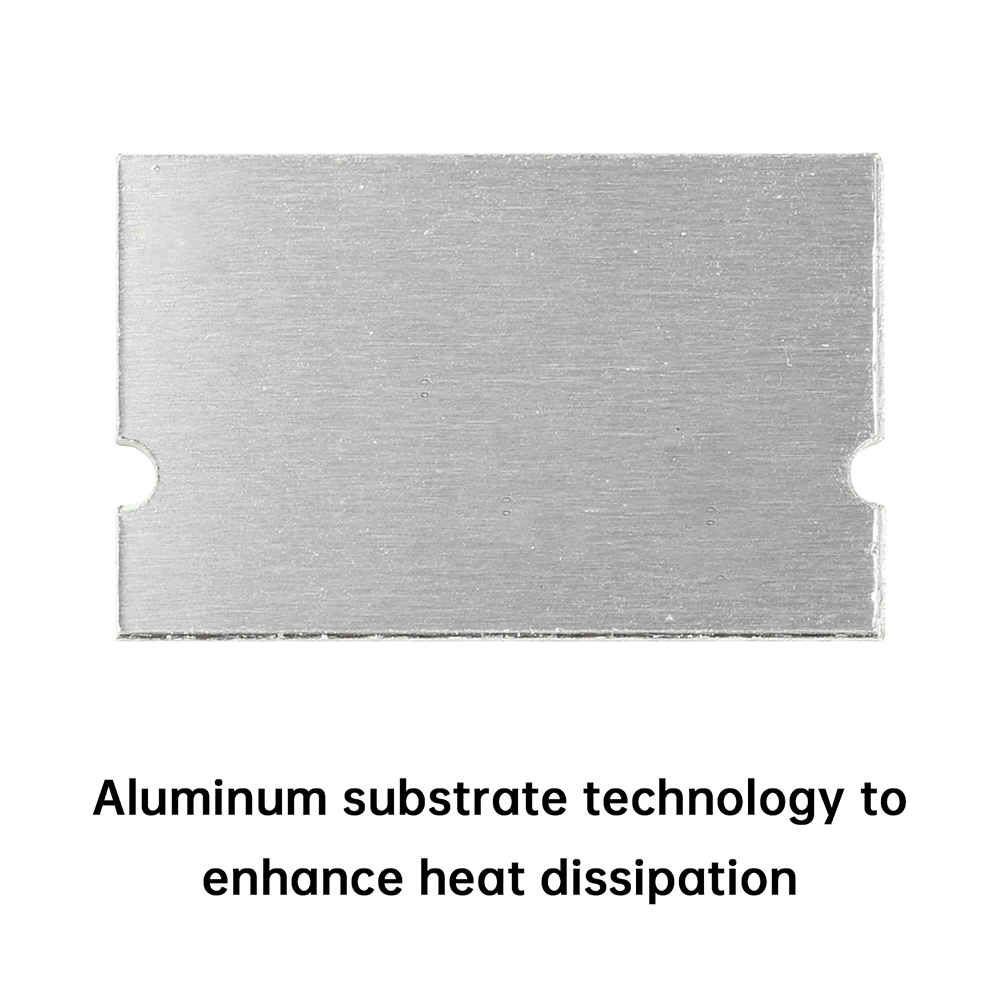

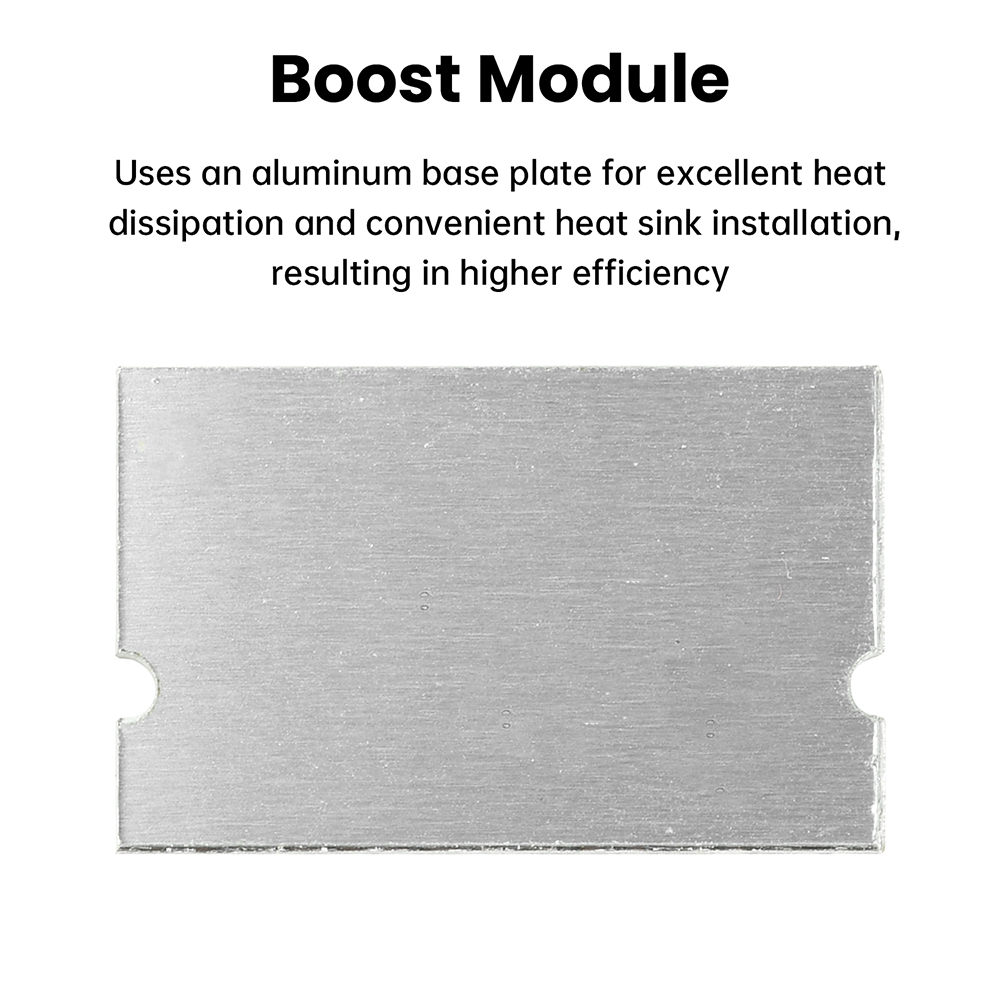

2. Utilizes aluminum substrate for superior heat dissipation and easy heatsink attachment, enhancing efficiency

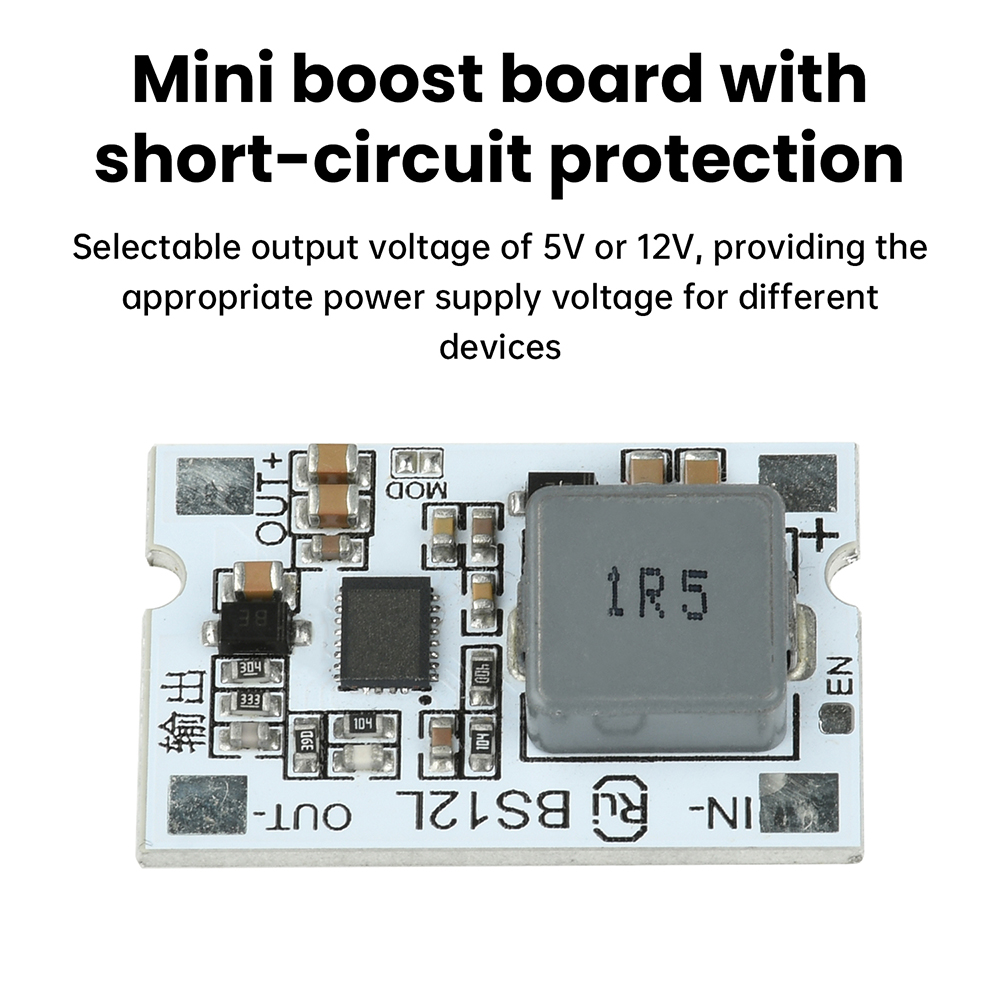

3. Selectable output voltage of 5V or 12V to provide optimal power for different devices

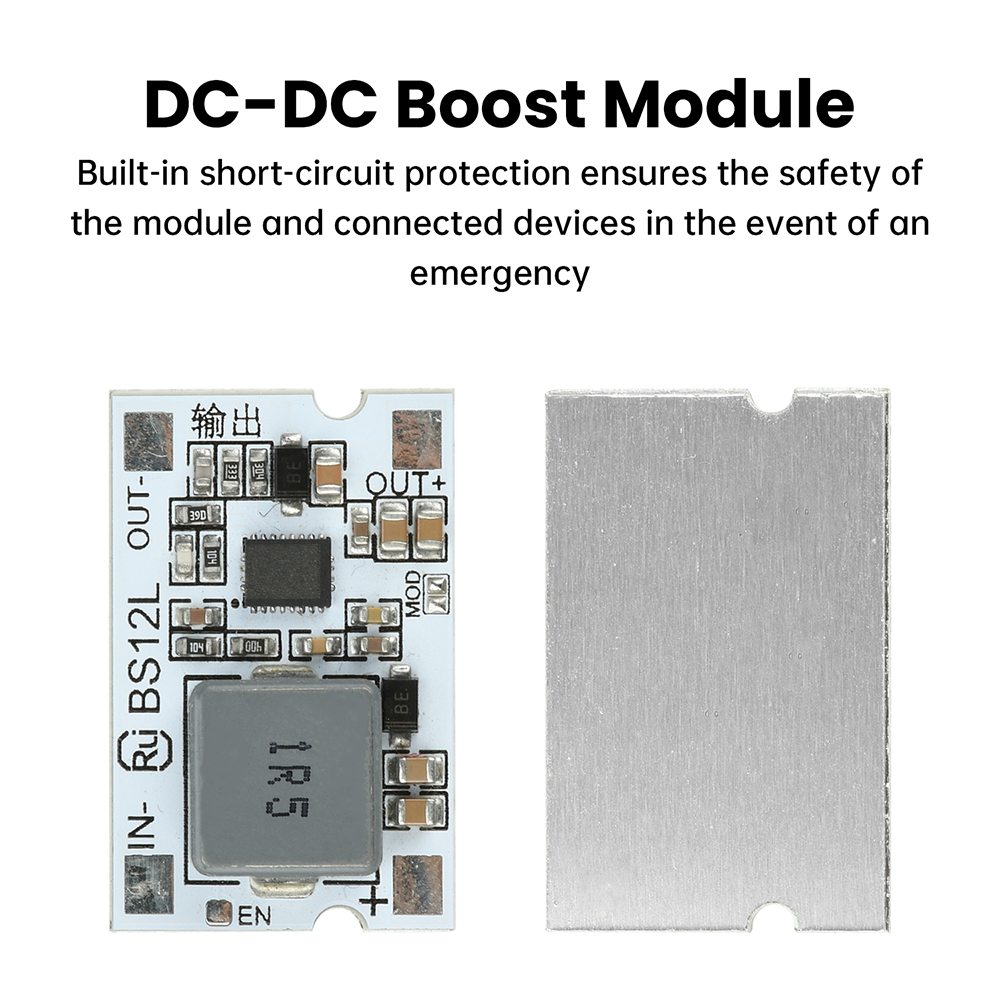

4. Built-in short-circuit protection mechanism ensures safety for the module and connected devices under abnormal conditions

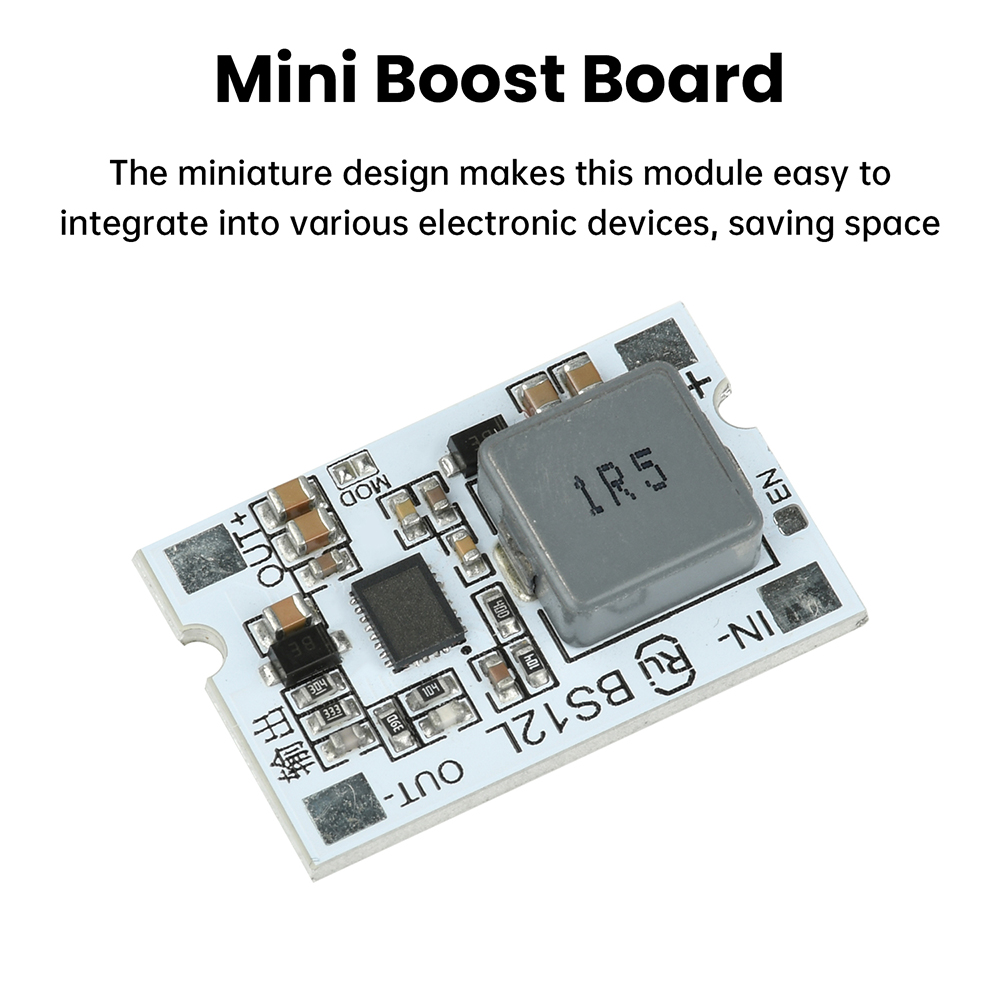

5. Compact design facilitates integration into diverse electronic devices, saving space

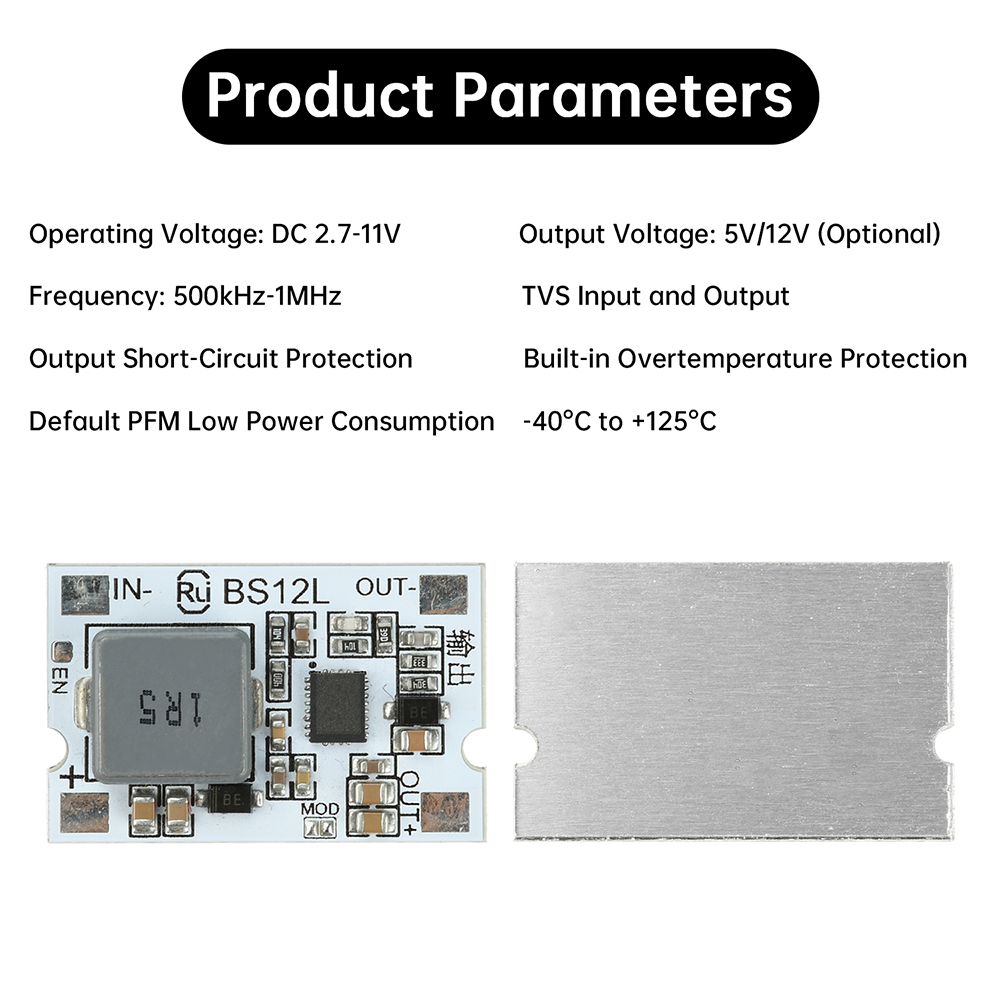

Parameter
Operating Voltage: DC 2.7-11V
Output Voltage: 5V/12V (selectable)
Frequency: 500K-1MHz
Input/Output TVS Protection
Output Short-Circuit Protection
Built-in Over-Temperature Protection
Default PFM Low Power Mode
Operating Temperature: -40℃ to +125℃

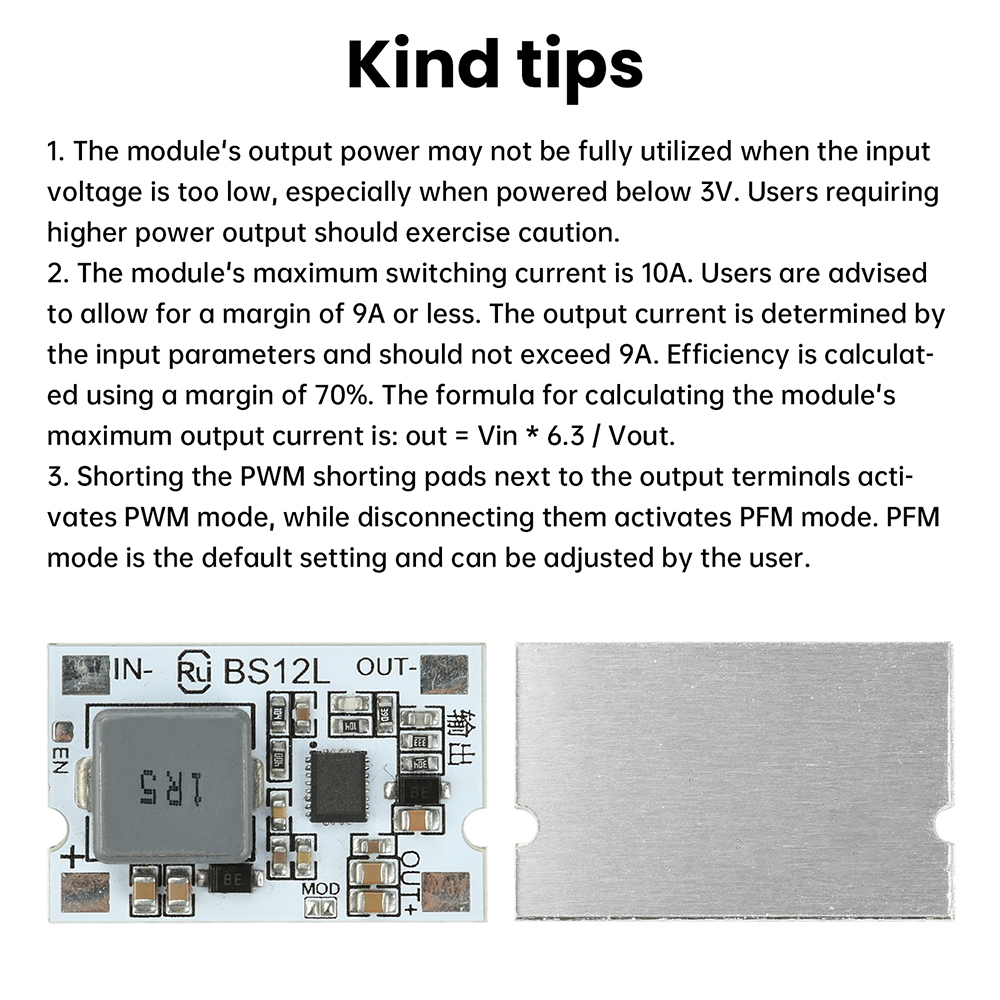

Important Notes
1. The module cannot deliver full output power at excessively low input voltages, particularly noticeable below 3V. Users requiring higher output power should take this into consideration.
2. The module's MAX switching current is 10A. Users should operate within 9A to allow headroom. Output current is determined by input parameters; input current must not exceed 9A. Calculate efficiency at 70% (allowing headroom). Formula for module MAX output current: out = Vin * 6.3 / Vout
3. Shorting the PWM pad adjacent to the output terminals enables PWM mode; disconnecting it activates PFM mode. Default is PFM mode, adjustable by the user.

Package include
Module*1 (Model optional)
