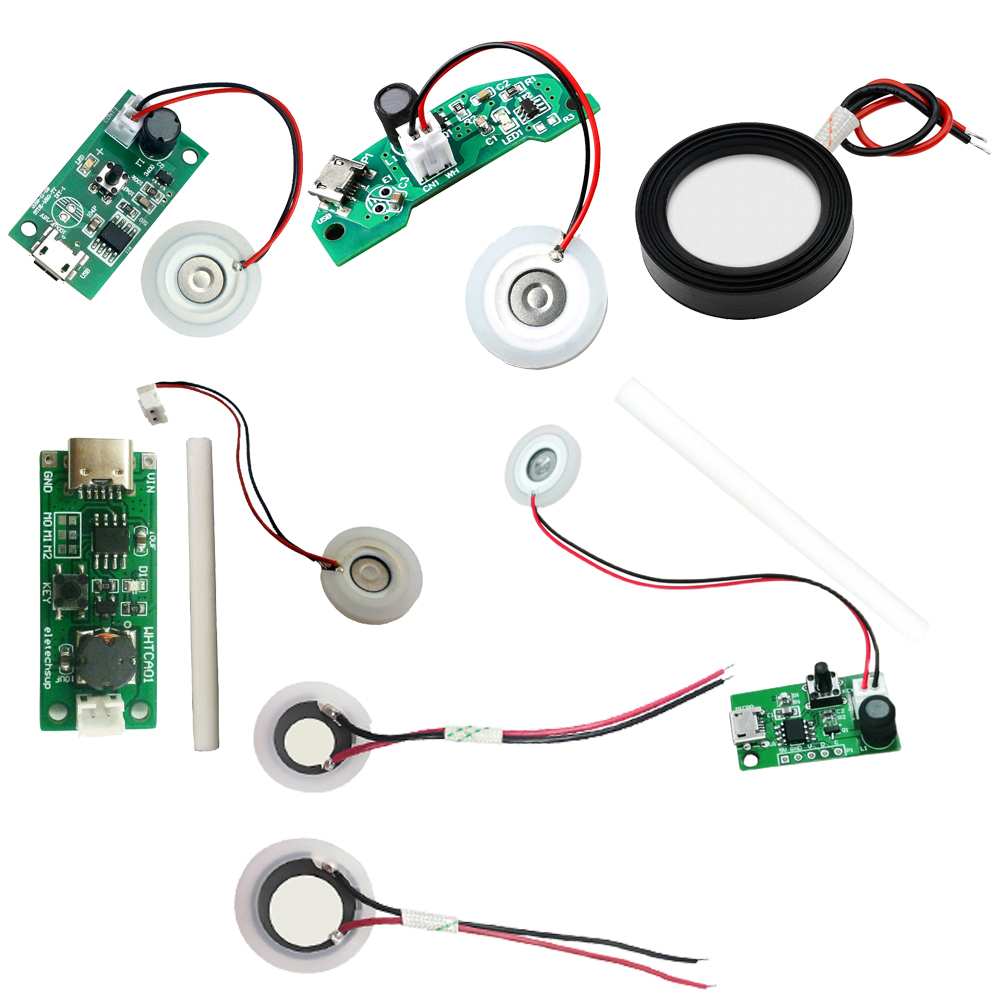

Ultrasonic Mist Maker Atomizing Fogger Ceramic Humidifier Module for DIY

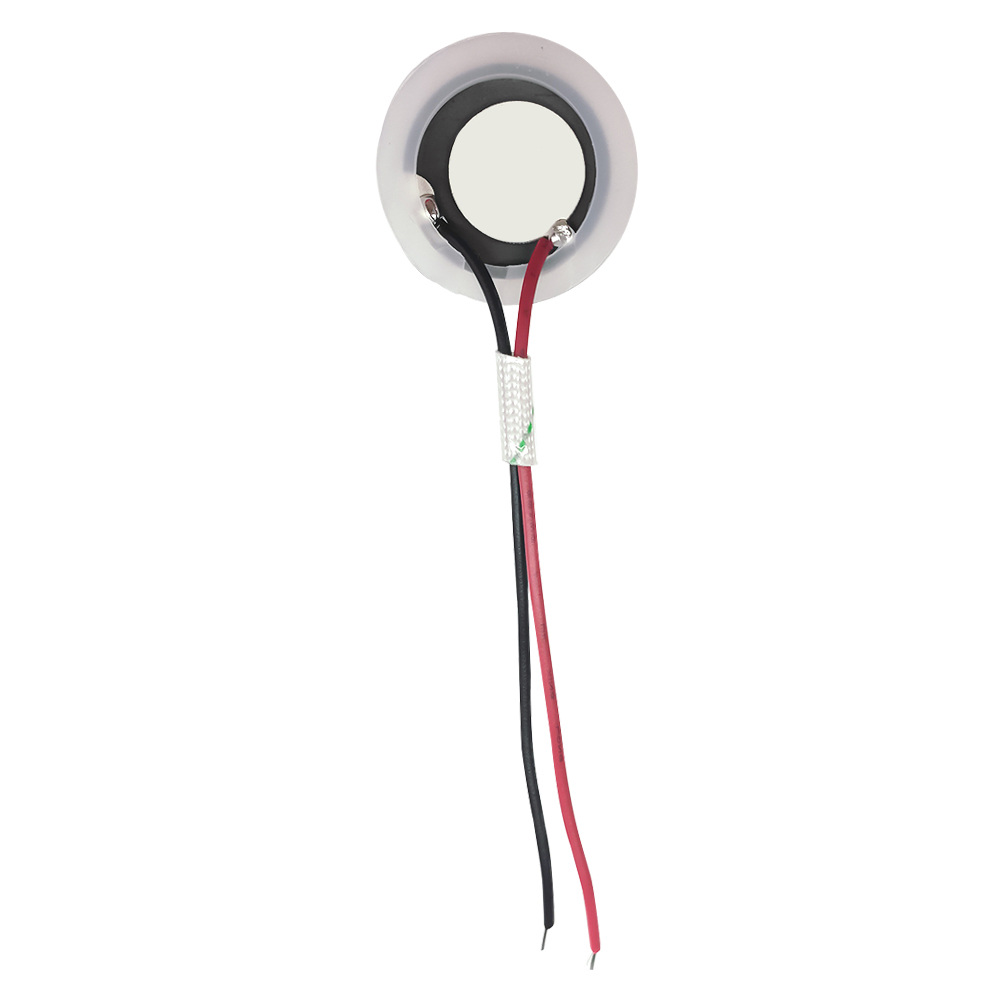

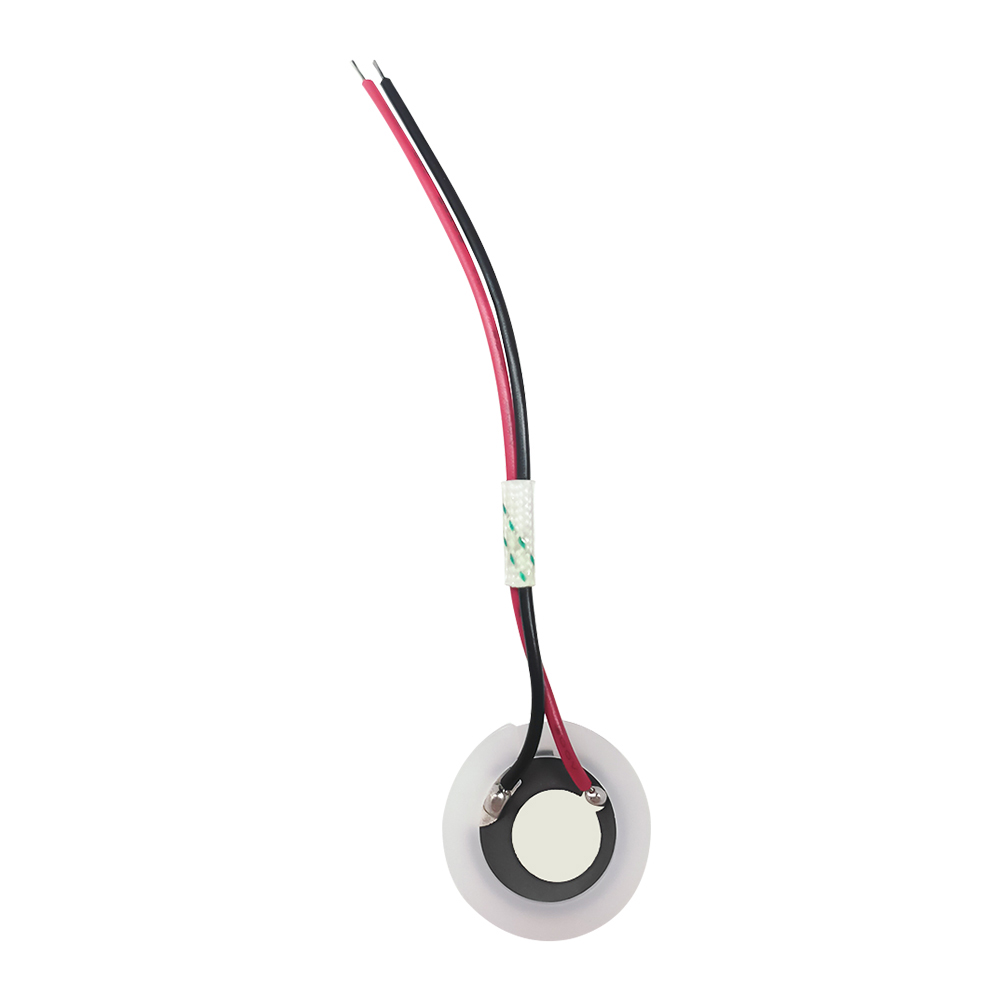

  • Type A:
  • Product Introduction:
  • 1.Diameter:20mm
  • 2.Operating Voltage:3.7-12V
  • 3.Frequency:113+/-3KHz
  • 4.Quiescent Capacitor:3000+/-15%PF
  • 5.Rated Voltage:70V (max)
  • 6.Rated Power:2.5W (normal use 1.5W)
  • 7.Applications:for medical micro atomization,USB humidifier perfume atomizer etc
  •
  • Package Include:
  • 1x D20mm 113KHz Ultrasonic Mist Maker Atomizing Fogger Ceramic Humidifier Module
    •

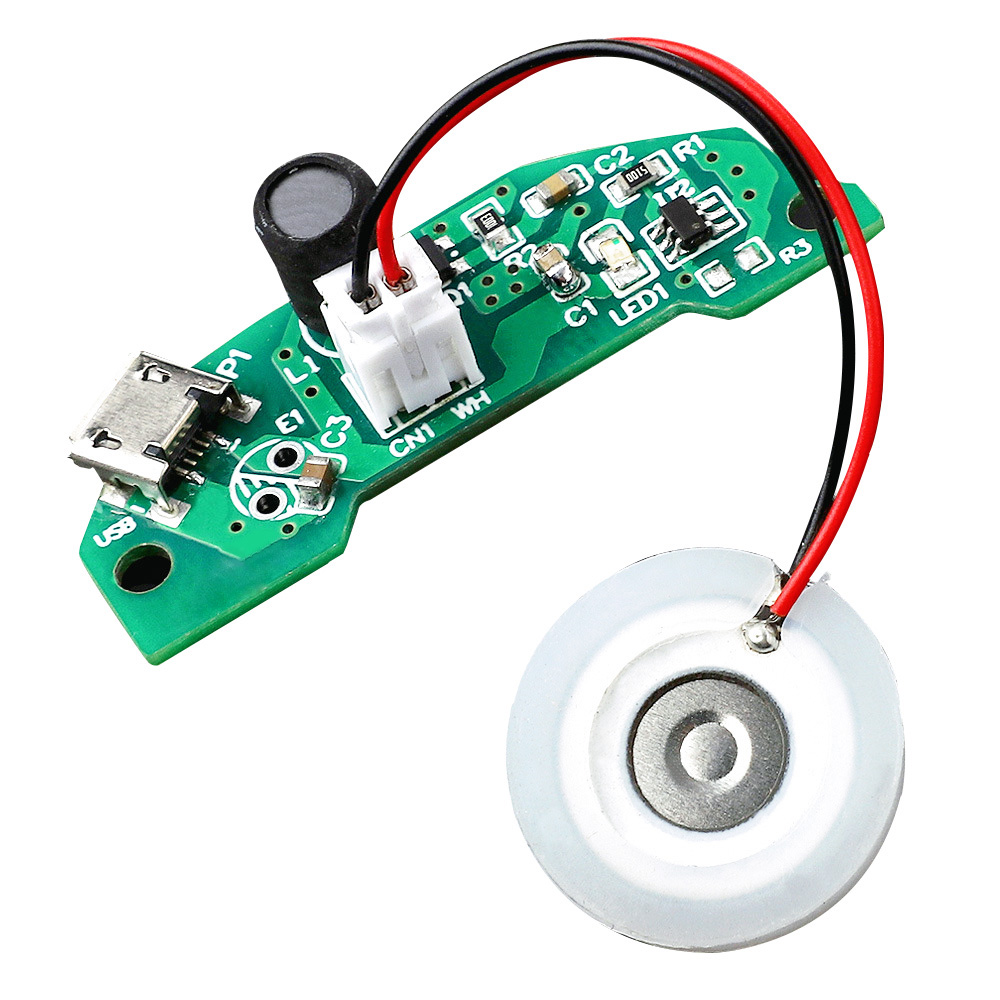

    Type B:
    Product Specifications:
    Voltage: DC 5V
    Rated power: 1.5-2W
    Function: Ultrasonic
    Shape: round
    Power supply: USB
    Noise: below 36dB
    Diameter: 16mm

    Package List:
    DC5V USB plug-in 16mm semicircle circuit board atomizer module* 1

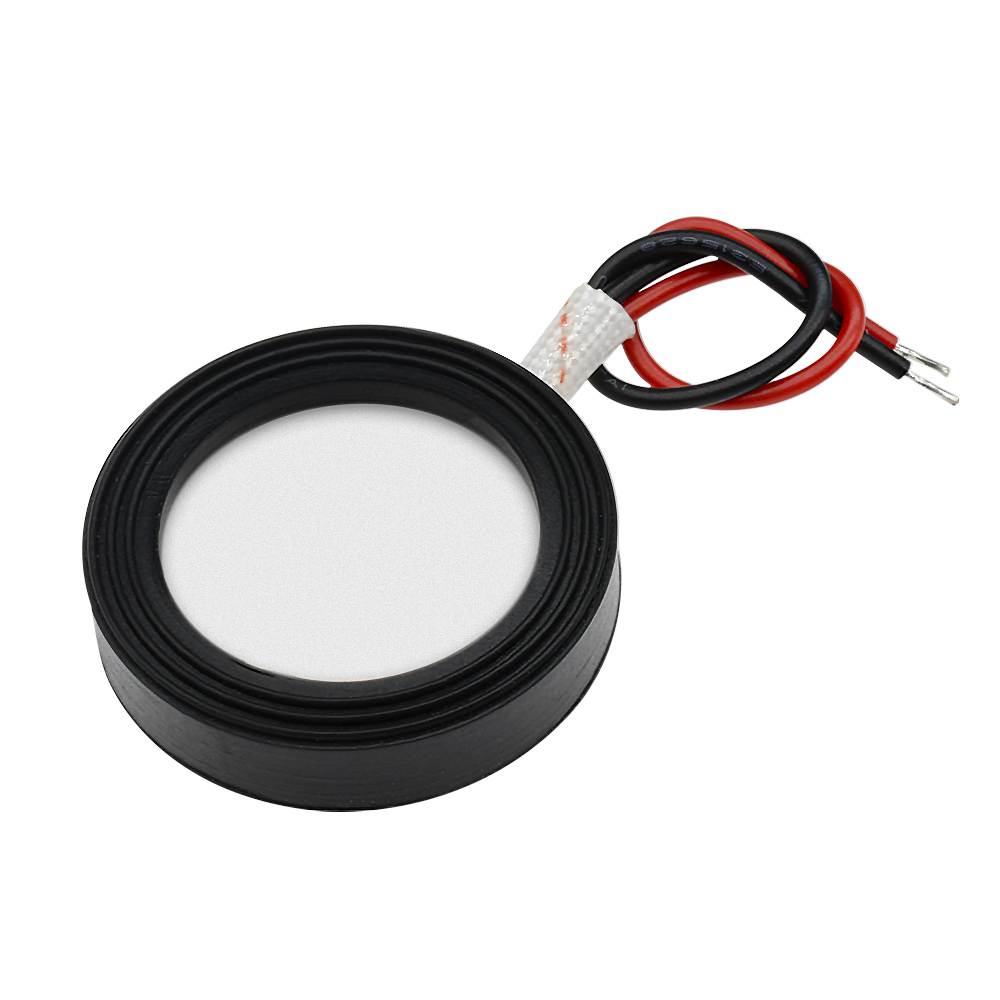

    Type C:
    Specifications
    Size: 25x1.2mm
    Resonant frequency: 1.70MHz
    Resonance Impedance: <2 ohm
    Coupling coefficient:> 52%
    Capacitance: 1800pF
    The amount of atomization: 380ml / h
    Quantity:1Pc

    Note:
    Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.
    And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

    Package Included:
    1PC*Ultrasonic Humidification Atomization 25mm Ceramic Piezoelectric Humidifier Accessories
    Type D:
    Describe:
    Working voltage: DC 3.7-5.5V (5V recommended)
    Working current: 330mA
    Standing current: 21uA
    Power supply interface: Type-C USB
    Humidifier interface: pH2.0 terminal
    Frequency: 108kHz
    Multiple function modes: uninterrupted work/intermittent work/timed work
    Dimensions: 40 x 16.5 x 9 mm
    Weight: 4.5 grams

    Application:
    Smart home, home automation
    Household atomizer/humidifier
    Electronic DIY
    Small USB device
    Select different function modes by welding the M2, M1, and M0 ports

    Package Include:
    1x TYPE-C atomizer/humidifier controller
    1x atomizing film
    Type E:





    Microporous atomized sheet
    Voltage: 5V
    Current: 300mA
    Frequency: 110KHz
    Power: 2W
    Aperture: 5um
    The number of holes is 740 holes,
    The wire is 10cm long.
    The diameter of the atomized steel sheet is 16mm,
    Outer diameter of rubber ring 20mm

    Package list
    1* Humidifier module
    1* Atomization film
    1* Humidifying cotton swab
    Type F&G
    Features:
    1. DIY atomizing accessories with super large amount of fog
    2. The fog volume is stable, not easy to block, and the spray is high
    3. Wide applicability, high conversion efficiency, large amount of atomization, high atomization height
    4. Small aperture, fine spray particles, not wet desktop
    5. Low noise, comfortable use environment
    Product Specifications:
    Voltage: DC 24V
    Frequency: 2.4 MHz

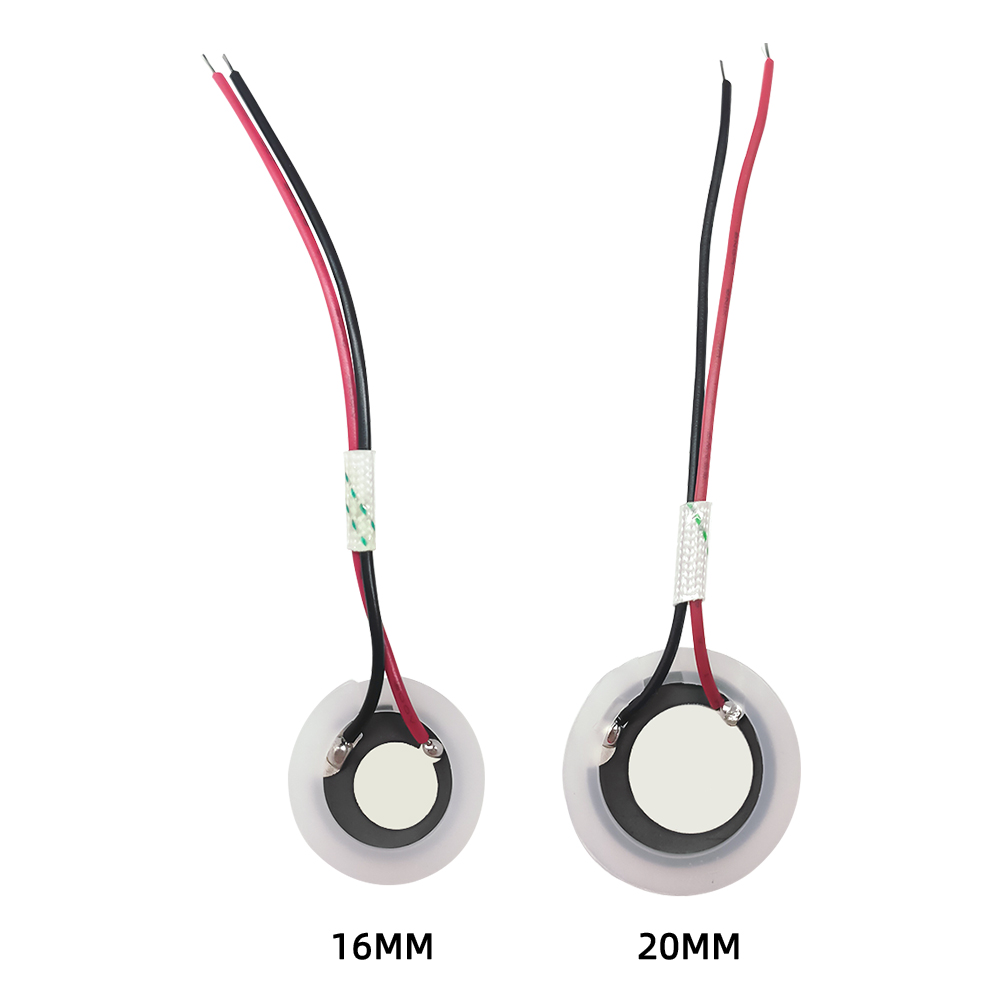

    Specifications: 16mm/20mm (optional)
    Base temperature: 26℃

    Packing list:
    Type F 16mm Ultrasonic Atomizer Sheet Humidifier Sheet Ceramic Lead Spray Sheet* 1
    Type G 20mm Ultrasonic Atomizer Sheet Humidifier Sheet Ceramic Lead Spray Sheet* 1
