Features
1.Measure weak signals at millivolt level, support 20M bandwidth limitation for power ripple measurement.
2. Efficient operation: switch the trigger mode according to the actual needs, so that every measurement is accurate, so that every detail jumps to the fore!

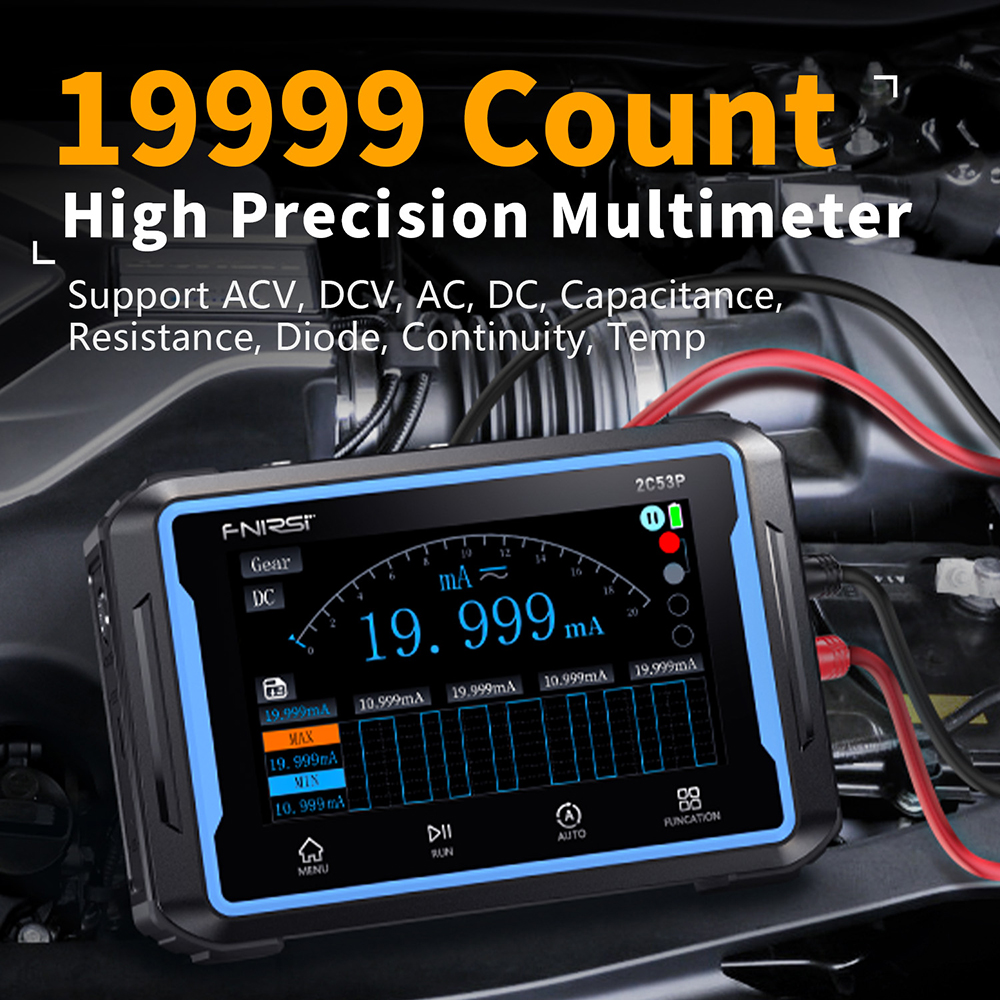

3.High-precision 4.5-digit true RMS multimeter: 4.5-digit high-precision, with full auto range

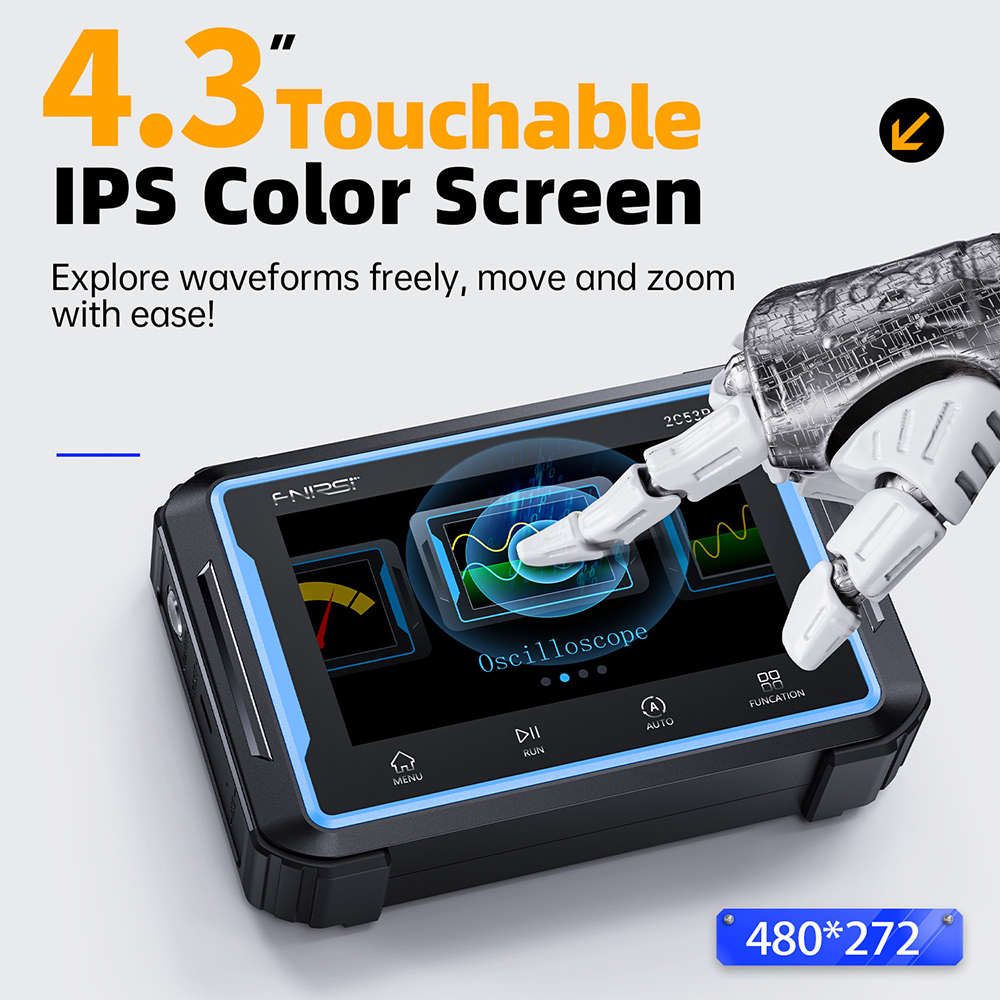

4.4.3 inch high definition touch screen, precision and operation display is very powerful
5. Real-time capture and display the changes of various measurement parameters to form a clear and concise data trend graph. Also has the ability to retain up to 5 groups of measurement data, at a glance!
6. Intelligent anti-burning, wrong gear does not burn the meter. Dual current fuse to prevent burning the meter safer
Basic parameters:
Backlight: backlight brightness can be set
Power supply: Type-C (5V/2A)
Battery: 4000mAh lithium battery (built-in)
2. Efficient operation: switch the trigger mode according to the actual needs, so that every measurement is accurate, so that every detail jumps to the fore!
3.High-precision 4.5-digit true RMS multimeter: 4.5-digit high-precision, with full auto range
4.4.3 inch high definition touch screen, precision and operation display is very powerful
5. Real-time capture and display the changes of various measurement parameters to form a clear and concise data trend graph. Also has the ability to retain up to 5 groups of measurement data, at a glance!
6. Intelligent anti-burning, wrong gear does not burn the meter. Dual current fuse to prevent burning the meter safer
Basic parameters:
Backlight: backlight brightness can be set
Power supply: Type-C (5V/2A)
Battery: 4000mAh lithium battery (built-in)
Oscilloscope parameters:
Channel: dual-channel
Real-time sampling rate: 250MSa/s
Time base range: 10ns/div-10s/div
Waveform display mode: YT/XY/Scroll
Input impedance: 1MΩ
Probe attenuation factor: 1x/10x
Trigger type: rising edge/falling edge
Trigger level range: 8 cells (positive and negative)
Storage space: 13M
Bandwidth: 50MHZ
Storage depth: up to 64kByte
Vertical Sensitivity: 10mv/div-10v/div
Vertical Resolution: 8 bits
Bandwidth Limit: Supports 20MHz limit
Input coupling: AC/DC
Peak voltage: ±400V
Trigger mode: automatic/normal/single

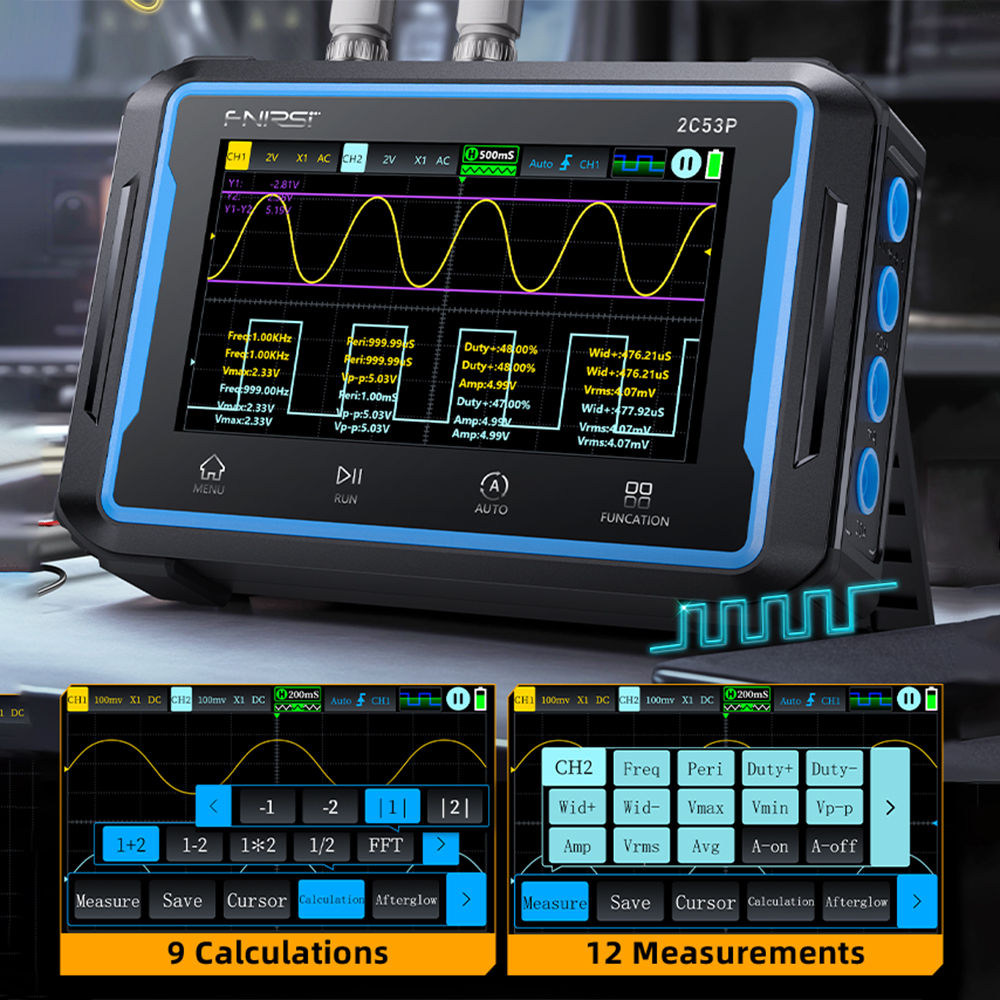

Measurement data: period, frequency, peak-to-peak, maximum value, minimum average value, RMS value, amplitude, duty cycle, pulse width
Channel: dual-channel
Real-time sampling rate: 250MSa/s
Time base range: 10ns/div-10s/div
Waveform display mode: YT/XY/Scroll
Input impedance: 1MΩ
Probe attenuation factor: 1x/10x
Trigger type: rising edge/falling edge
Trigger level range: 8 cells (positive and negative)
Storage space: 13M
Bandwidth: 50MHZ
Storage depth: up to 64kByte
Vertical Sensitivity: 10mv/div-10v/div
Vertical Resolution: 8 bits
Bandwidth Limit: Supports 20MHz limit
Input coupling: AC/DC
Peak voltage: ±400V
Trigger mode: automatic/normal/single
Measurement data: period, frequency, peak-to-peak, maximum value, minimum average value, RMS value, amplitude, duty cycle, pulse width
Signal generator parameters:
Different waveform output frequency: sine wave: 10MHZ, other waveforms 5MHZ
Waveform frequency: 0-10MHz
Waveform amplitude: 0.1V-3.0V
Duty cycle of square wave: 0-100%
Different waveform output frequency: sine wave: 10MHZ, other waveforms 5MHZ
Waveform frequency: 0-10MHz
Waveform amplitude: 0.1V-3.0V
Duty cycle of square wave: 0-100%

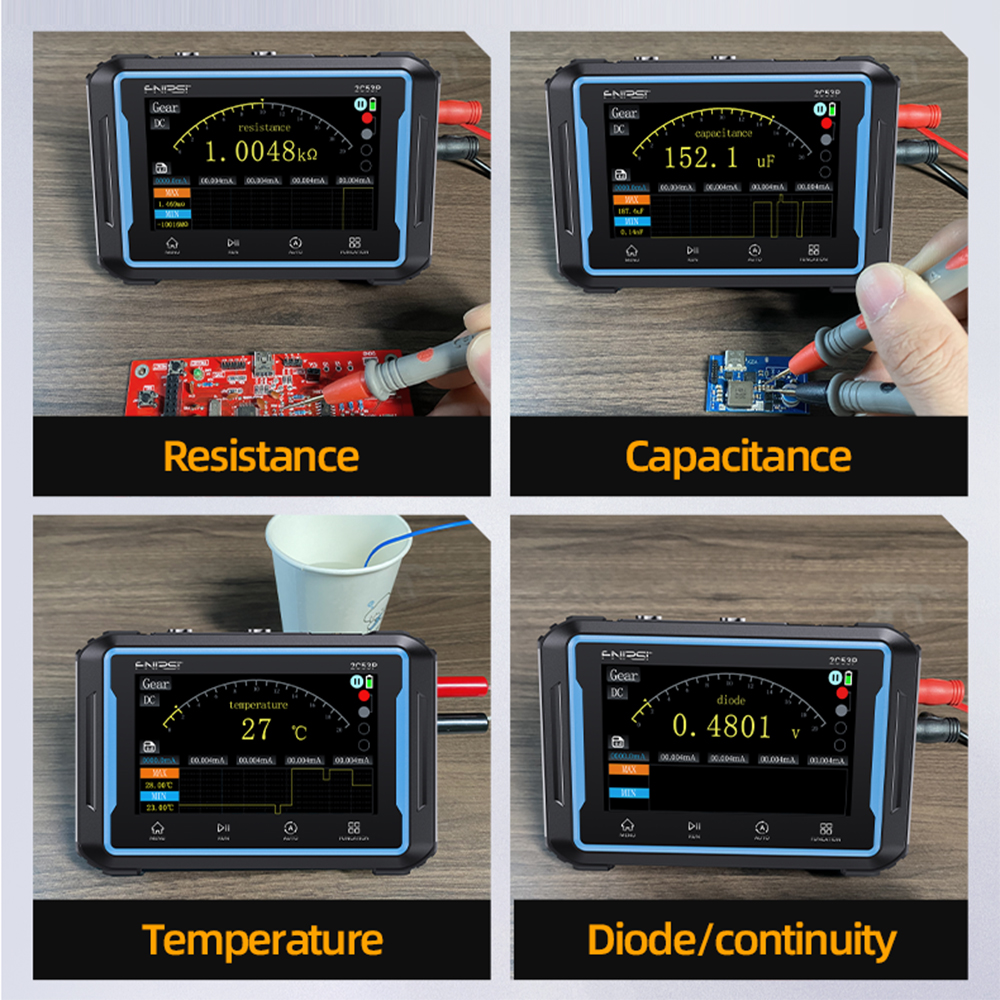

Multimeter parameters:
DC voltage: 1.9999V/19.999V/199.99V/1000.0V, accuracy ± (0.5%+3)
AC voltage: 1.9999V/19.999V/199.99V/760.0V, accuracy ±(1%+3)
DC current: 19.999mA/199.99mA/1.9999A/9.999A, accuracy ±(1.2%+3)
AC Current: 19.999mA/199.99mA/1.9999A/9.999A, accuracy ±(1.5%+3)
Resistance: 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ/, accuracy ±(1.5%+3)
1.9999KΩ/199.99Ω, accuracy ±(0.5%+3)
Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF, accuracy ±(2.0%+5)
9.999mF/99.99mF, accuracy ±(5.0%+20)
Temperature: -55~1300℃/-67~2372℉, accuracy ±(2.5%+5)
Diode/On/Off: √
DC voltage: 1.9999V/19.999V/199.99V/1000.0V, accuracy ± (0.5%+3)
AC voltage: 1.9999V/19.999V/199.99V/760.0V, accuracy ±(1%+3)
DC current: 19.999mA/199.99mA/1.9999A/9.999A, accuracy ±(1.2%+3)
AC Current: 19.999mA/199.99mA/1.9999A/9.999A, accuracy ±(1.5%+3)
Resistance: 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ/, accuracy ±(1.5%+3)
1.9999KΩ/199.99Ω, accuracy ±(0.5%+3)
Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF, accuracy ±(2.0%+5)
9.999mF/99.99mF, accuracy ±(5.0%+20)
Temperature: -55~1300℃/-67~2372℉, accuracy ±(2.5%+5)
Diode/On/Off: √

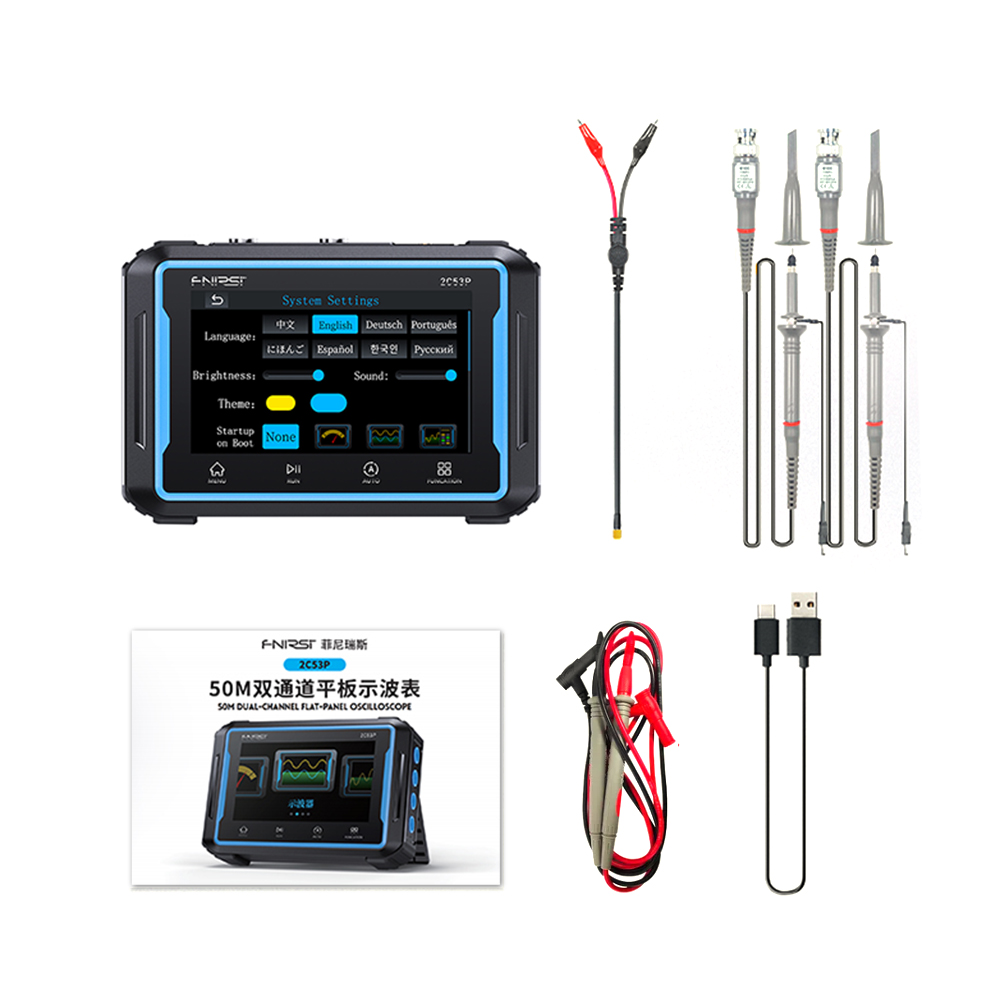

List
1 x Tester
1 x Instruction Manual
2 x P6100 Probe
1 x Type-C Data Cable
1 x Multimeter Pen
1 x Alligator Clip Probe
1 x Tester
1 x Instruction Manual
2 x P6100 Probe
1 x Type-C Data Cable
1 x Multimeter Pen
1 x Alligator Clip Probe
