Application
1. Suitable for Door Dimensions: thickness>45mm, width<1000mm.
2. Two hinges together can support up to 177pounds and provide a 180-degree opening angle.

Specification
Size: 7*2.8*1 inch
Mounting Type: Door Mount
Weight Limit: 177 Pounds
Material: Aluminium Alloy
Item Weight: 3.72 pounds
Thickness of Door: >45mm
Width of Door: <1000mm
Max Load-bearing: Up to 177lbs/2 Hinges

Feature
- Made of high quality Zinc Alloy and Aluminum Alloy core material, coated with matte sliver finish.
- 180 degree opening hinges, Corrosion resistant and rust proof, more durability.
- 3-Way Adjustable Butt Hinge, the invisible door hinge can be adjust as you need, inward or outward.
- Three-dimensional Adjustable (vertical ±3mm, horizontal ±2mm and depth ±1 mm).  Do not have to remove the door if you need adjustment.

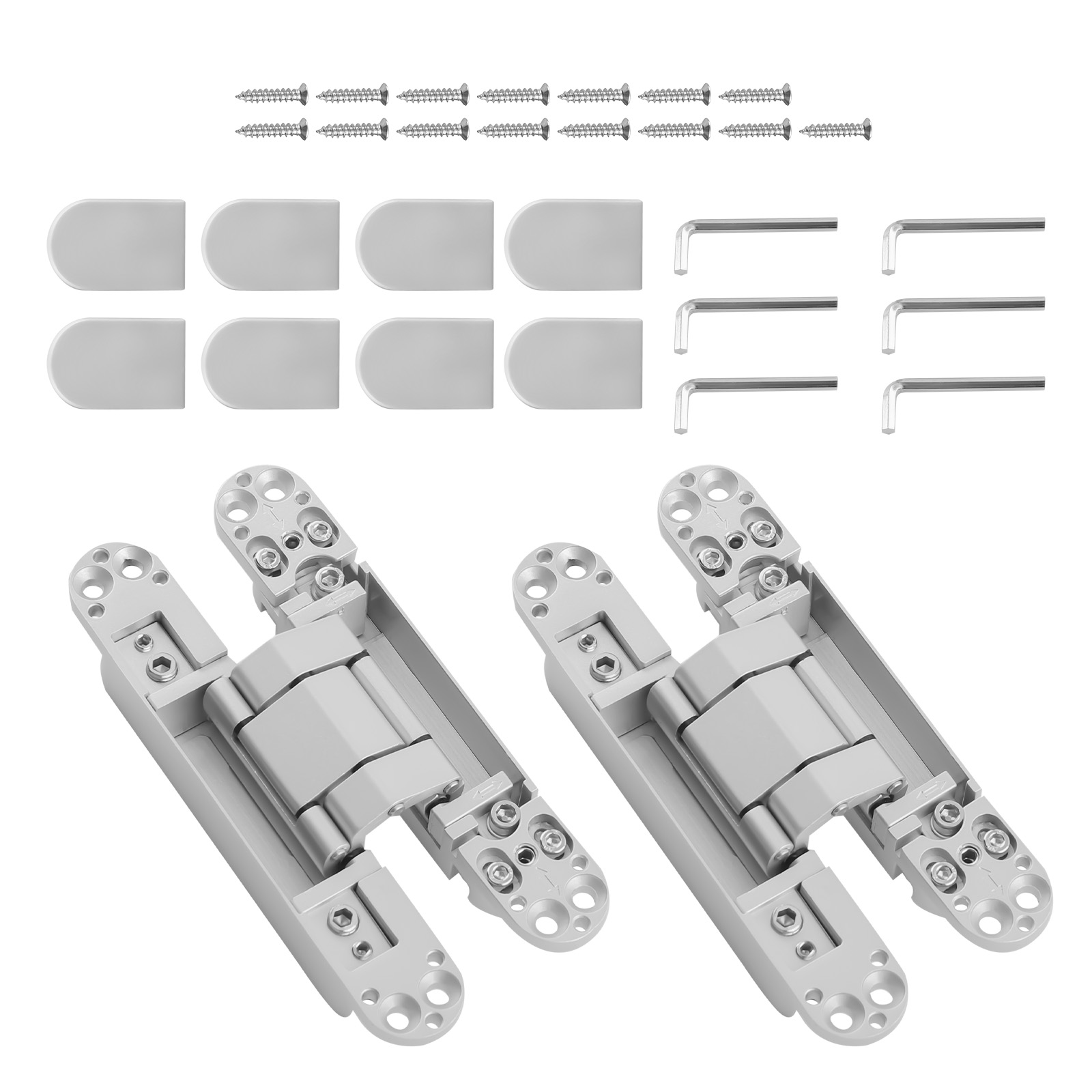

Package Included
2x 7inch Hinges
8x Decorative Covers
16x Screws
6x Wrenchs
(Showing as the picture）

Note

- No Installation Instruction included, Professional installation is highly recommended
