You are bidding on a Brand New Southwest Speed Universal Steering Shaft & Steering Universal Joint Kit.
Kit Includes:

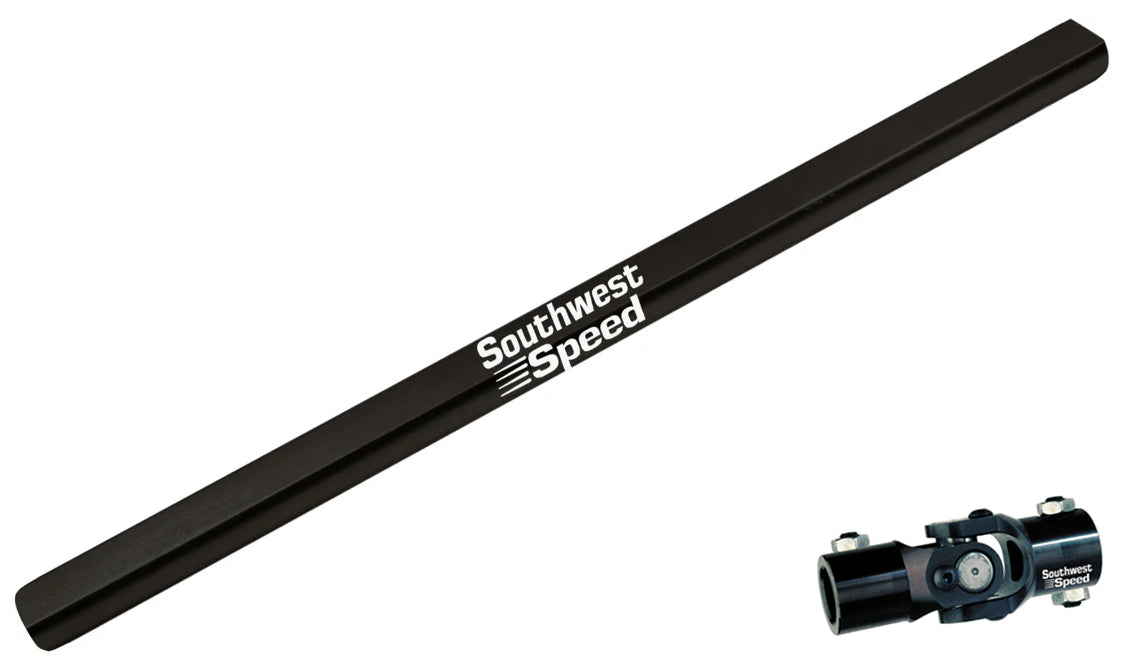

- Southwest Speed Universal Steering Shaft - 18" Long - 3/4" Double D (Part #150-2879):

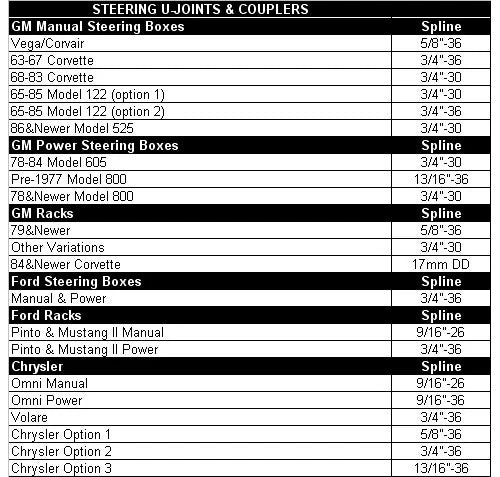

- Southwest Speed Universal Steering Shafts are manufactured using the highest quality materials available, and are built to handle the abuse from high horsepower applications. This is an inexpensive way of Replacing your steering shaft or adding a steering shaft. This shaft can be cut down to the correct length you need. We offer a variation of different length steering shafts to fit nearly every application, refer to the chart below to decide which universal joint will fit your application.
- Raw Finish
- Cut-to-Length Intermediate steering shaft designed to fit most applications
- Fabricated from CNC Machined High Strength Steel
- 3/4" Double D Steering Shaft
- 18 Inches Long but can be cut shorter if needed
- Built to handle the abuse from racing applications
- Southwest Speed Steering Universal Joint - 3/4" DD to 9/16"-26 Spline (Part #105-9256):
- It is always a good idea to replace the universal joint when doing any work on the steering system. Southwest Speed Steering Universal Joints are manufactured using the highest quality materials available, and are built to handle the abuse from high horsepower applications. Replacing the universal joints is an inexpensive way to refresh the steering system.
- High strength needle bearings
- Built to handle the vibrations from racing applications
- Working angle up to 30 degrees
- High quality fasteners designed for better attachment & upgraded safety
- Side #1: 3/4" Double D
- Side #2: 9/16"-26 Spline
- Pinto & Mustang II Manual Racks (9/16"-26 Spline)
Note: When using more than two universal joints in a system, a support heim must be used.
Note: Increasing a U-Joint's angle of operation beyond 30° dramatically increases the stress on the joint, weakening the entire steering mechanism. If a greater angle is needed, add another u-joint.
In order to determine which shaft and u-joint combination you need, you can follow these steps:
- Determine which style steering shaft you need for your specific application
- Measure the distance from the column to the steering gear box to determine which length shaft you need.

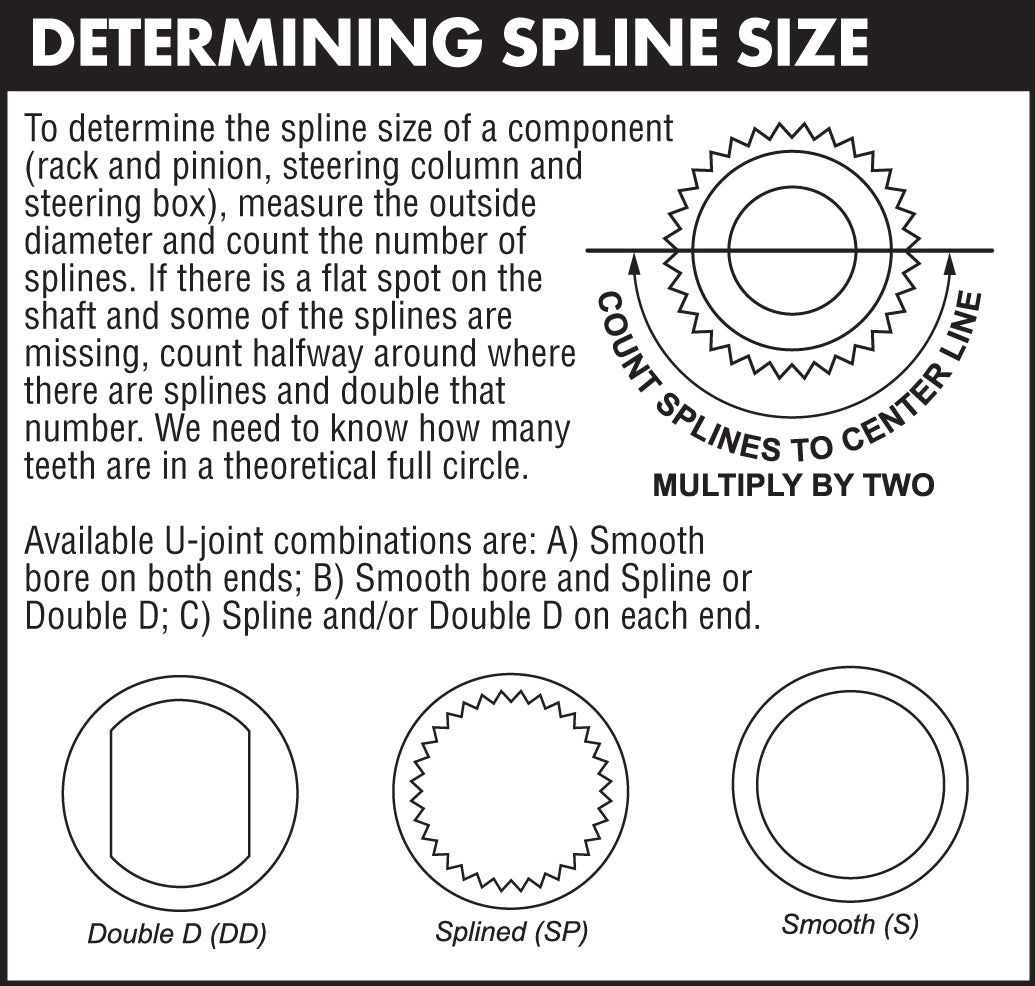

- Determine which spline is on your steering box or rack. You can measure and count, using the spline charts for reference.
We offer Steering Shaft & U-Joint kits in other variations:
- Kits with 18" Long 3/4" DD Raw Finish Shaft
- Kits with 18" Long 3/4" DD Nickel Plated Shaft
- Kits with 18" Long 3/4" DD Chrome Plated Shaft
- Kits with 36" Long 3/4" DD Raw Finish Shaft
- Kits with 36" Long 3/4" DD Nickel Plated Shaft
- Kits with 36" Long 3/4" DD Chrome Plated Shaft
We make several other combinations of Universal Joints, which are available in our Ebay store.
We also have thousands of other High Performance Parts in our store.
