SUBARU / ROBIN EX27 ENGINE — BY PART NUMBER ONLY:
• This starter fits Subaru/Robin EX27 engine applications by part number
• Verify your equipment uses ACQD190B or 1ACQD190B before ordering

120V AC ELECTRIC START SYSTEM:
• Powered by standard 120V AC household electrical outlet (USA plug)
• Provides electric start for cold weather snowblower/equipment starting
• Connects via power cord — NOT battery powered

SUBARU / ROBIN EX27 ENGINE SPECIFICATIONS:
• Type: 4-Stroke OHC (Overhead Camshaft) Single-Cylinder
• Displacement: 265cc / 16.17ci
• Bore x Stroke: 75mm x 60mm (2.95" x 2.36")
• Compression Ratio: 8.3:1
• Power: 9.0HP (6.6kW) @ 4000 rpm
• Torque: 18.6 N·m / 13.7 lb-ft @ 2500 rpm
• Air-Cooled / Horizontal PTO Shaft / Chain-Driven OHC
• Cast Iron Cylinder Sleeve / Splash Lubrication
• Transistorized Magneto Ignition / Float Carburetor
• Rotation: CCW (from PTO shaft side)

TYPICAL EQUIPMENT USING EX27:
• Snow Blowers / Snow Throwers (primary application for 120V starter)
• Generators / Water Pumps / Pressure Washers / Lawn Equipment

NOTES:
• Robin brand now manufactured under Subaru Industrial Power Products
• 120V US plug version — European 230V variant (EX27/230V) is different part
• Some industry listings cite "287cc" — actual EX27 displacement is 265cc per OEM

FITS / Replacement Part Numbers:

OEM / CROSS-REFERENCE PART NUMBERS:
• ACQD190B / 1ACQD190B
• EX27/120V
• SCH0071

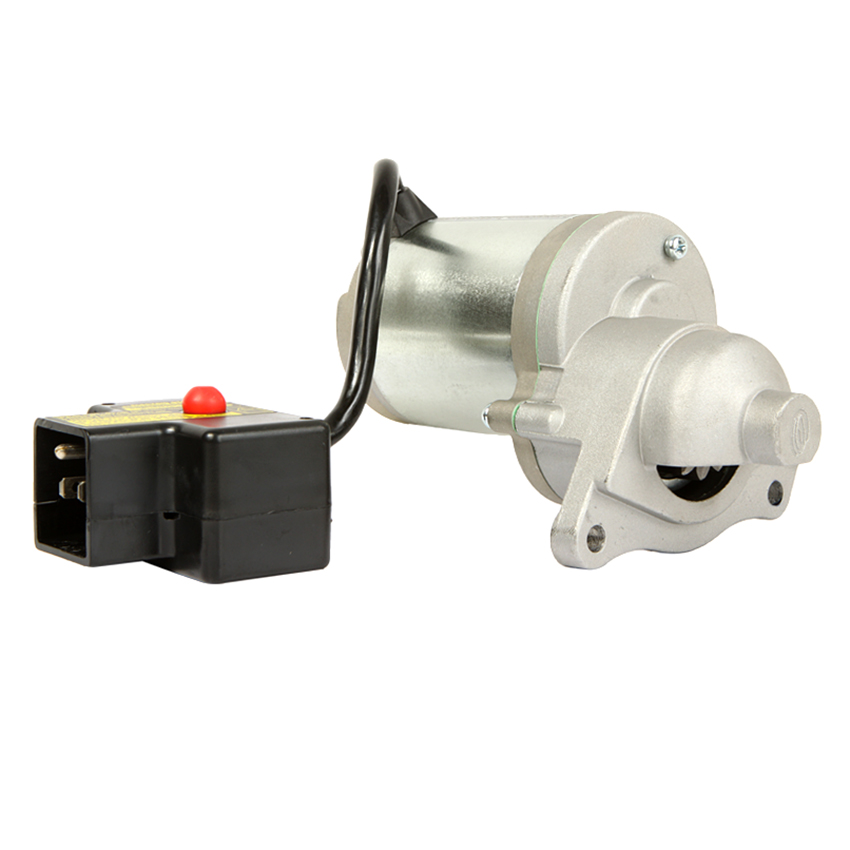

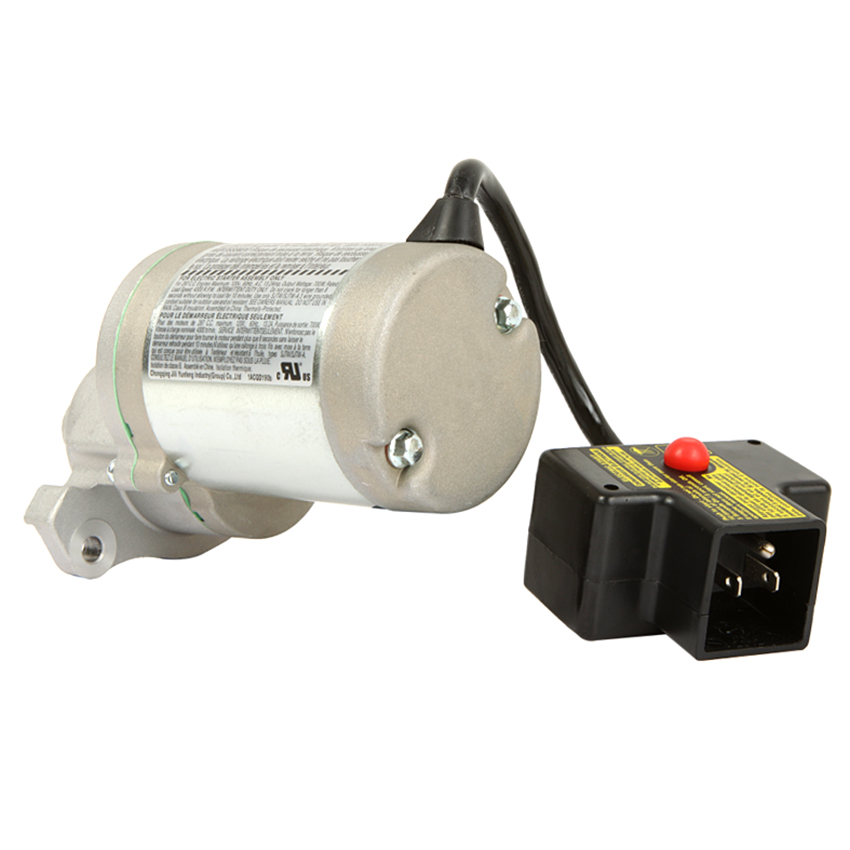

SPECIFICATIONS:
• Type: OSGR (Offset Gear Reduction)
• Voltage: 120V AC (US Household Outlet)
• Plug Type: Standard US 120V Grounded
• Rotation: CCW (Counter-Clockwise)
• Teeth: 12
• Length: 7.531in / 191.3mm
• Mounting: Dual 8.5mm Unthreaded Ears
• Mounting Ear C-to-C: 3.504in / 89mm
• Weight: 5.88 lbs / 2.67 kg
• Condition: New

ENGINE APPLICATION:
• Subaru / Robin EX27 — 265cc OHC Single-Cyl Air-Cooled 9HP
• Used primarily on snow blowers with 120V AC electric start
• Fits by part number only — verify ACQD190B or 1ACQD190B
