Notice: Please double-check the OE number before purchase to ensure fitment. You may provide last 8 digits of your VIN to a local authorized dealer on your own to help confirm OE reference number, if available.

Application:

for Dodge Pickup Truck 5.9L Diesel 24 Valve Engine 1998.5

for Dodge Ram 2500 3500 Truck 5.9L Diesel 24 Valve Engine 1998.5

OE/Part number:

40-30135, 3539343, 3539344, 3593887, 3593888, 3595019, 3598125, 3598126, 3802946, 4033608, 4033630, 65.091007054, 65.09100-7054, 65.091007075, 65.09100-7075, 65091007075

Specification:

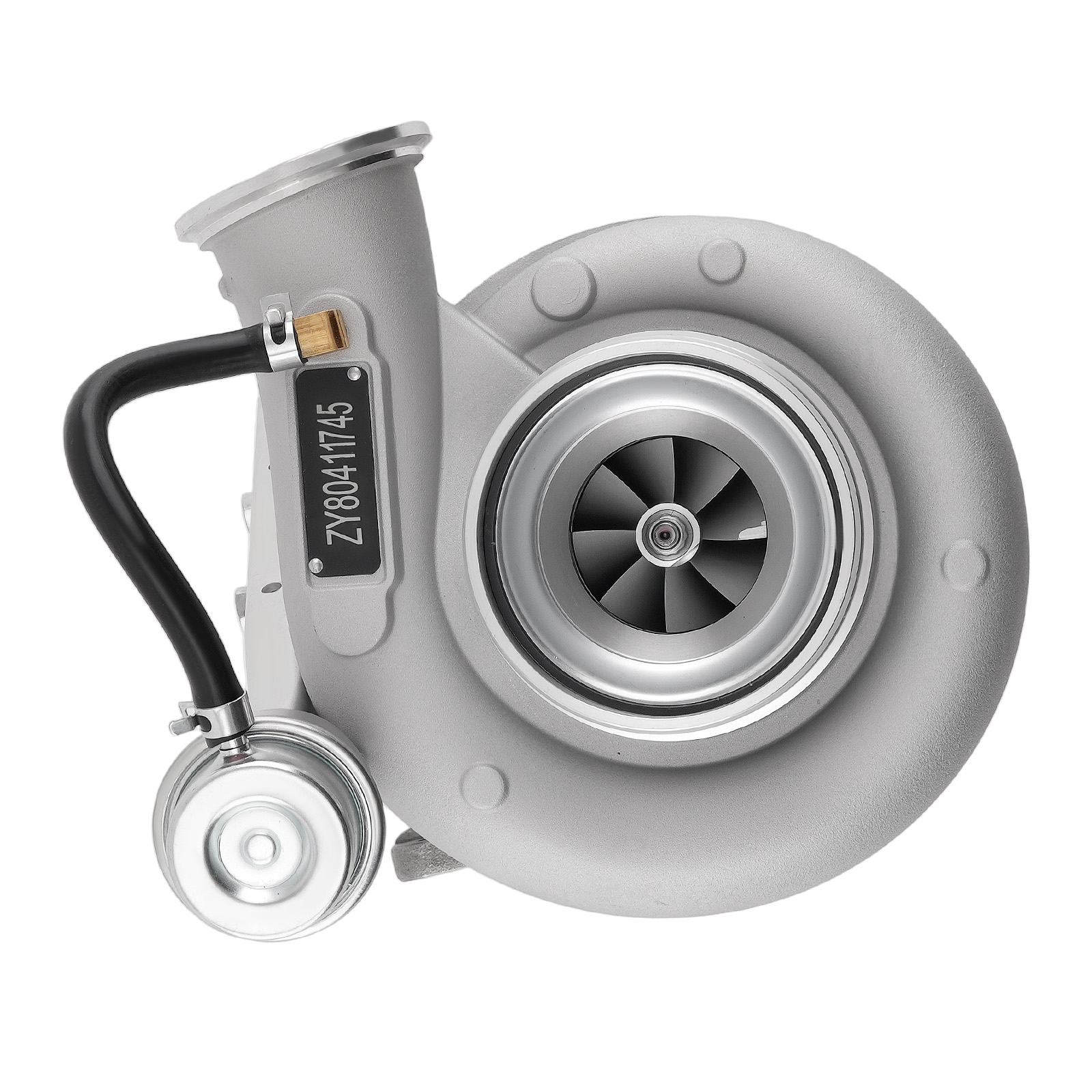

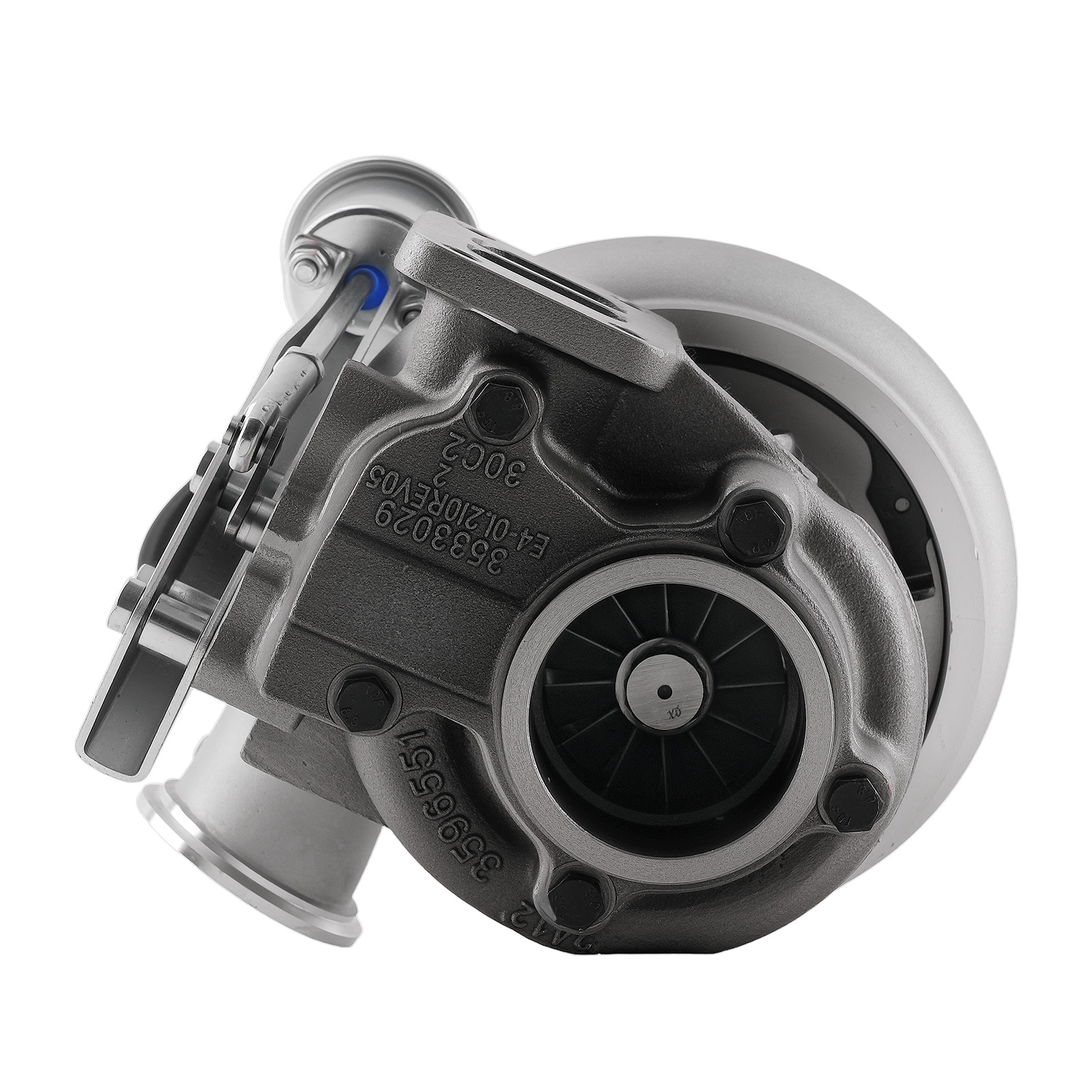

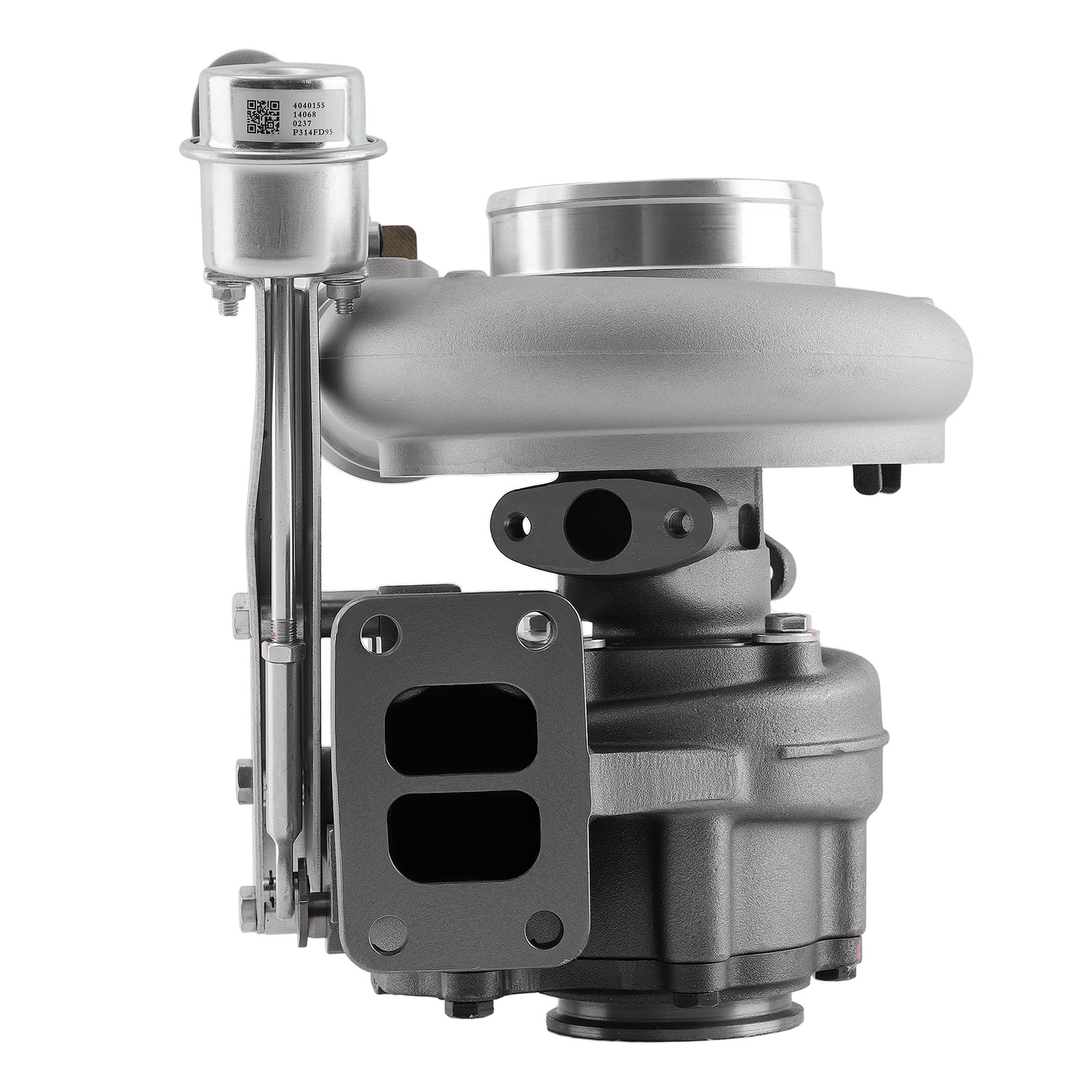

Turbo Model: HX35W-E7755M/E12BC11, HX35W

Cooling Type: Oil Cooling

Fuel Type: Diesel

Turbo Type: Twin-Scroll

Condition: 100% Brand New

Accessories: You will get what you can see in the pictures exactly

Package Size: 29*26*30cm

Package Weight:13.3kg

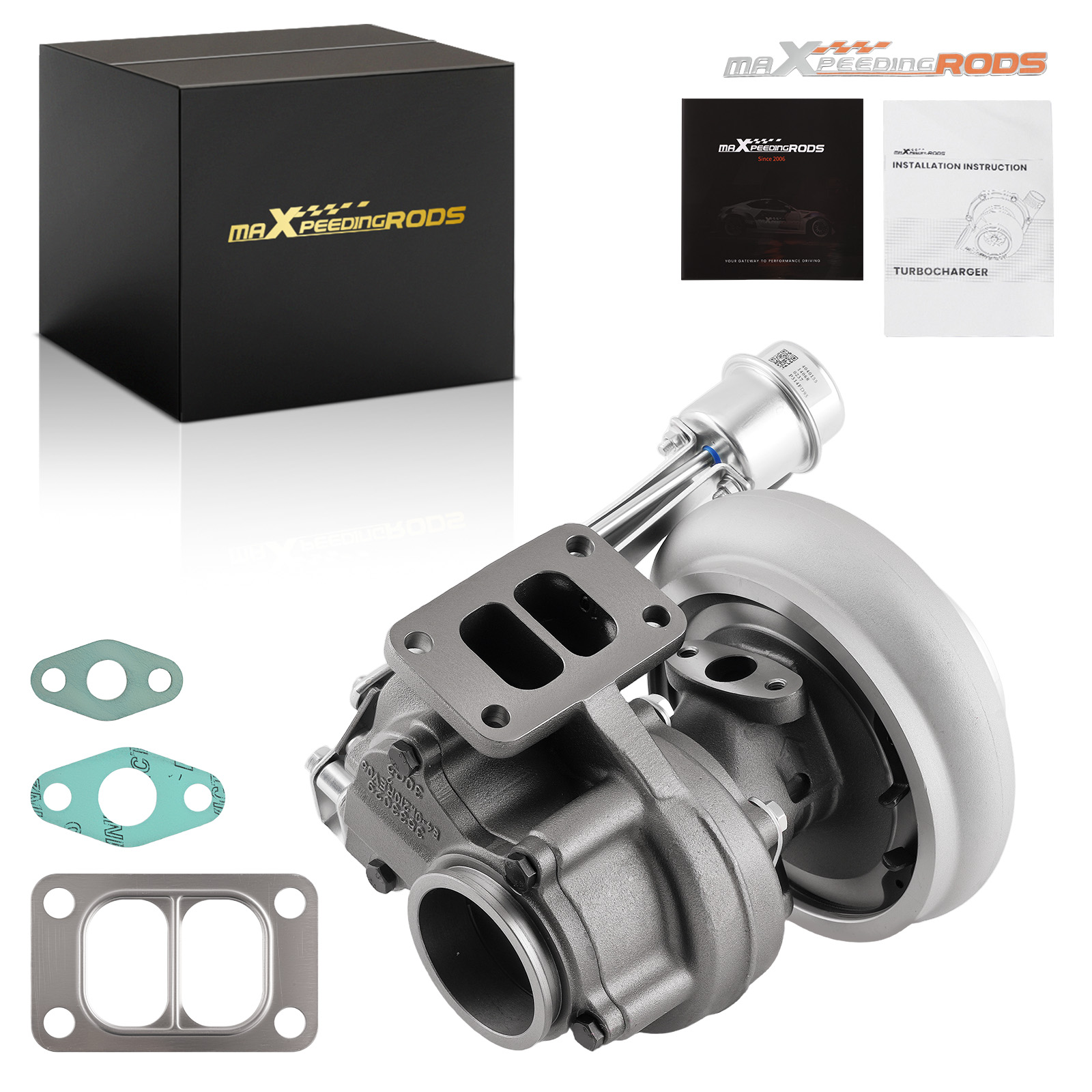

Package included:

1x Turbocharger

1x Manual

1x Brochure

1x Sticker

Feature:

* Product Material

1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃

2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃

3. Compressor housing: ZL104 aluminum with lightweight

4. Compressor wheel: Cast aluminium blades – superior air tightness & corrosion resistance

* Product

1. OEM-quality and size with little modification

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS VSR3

2. G3-min-Flow VNT Turbo testing

3. Advanced Actuator Tester/Programmer

Note:

* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
