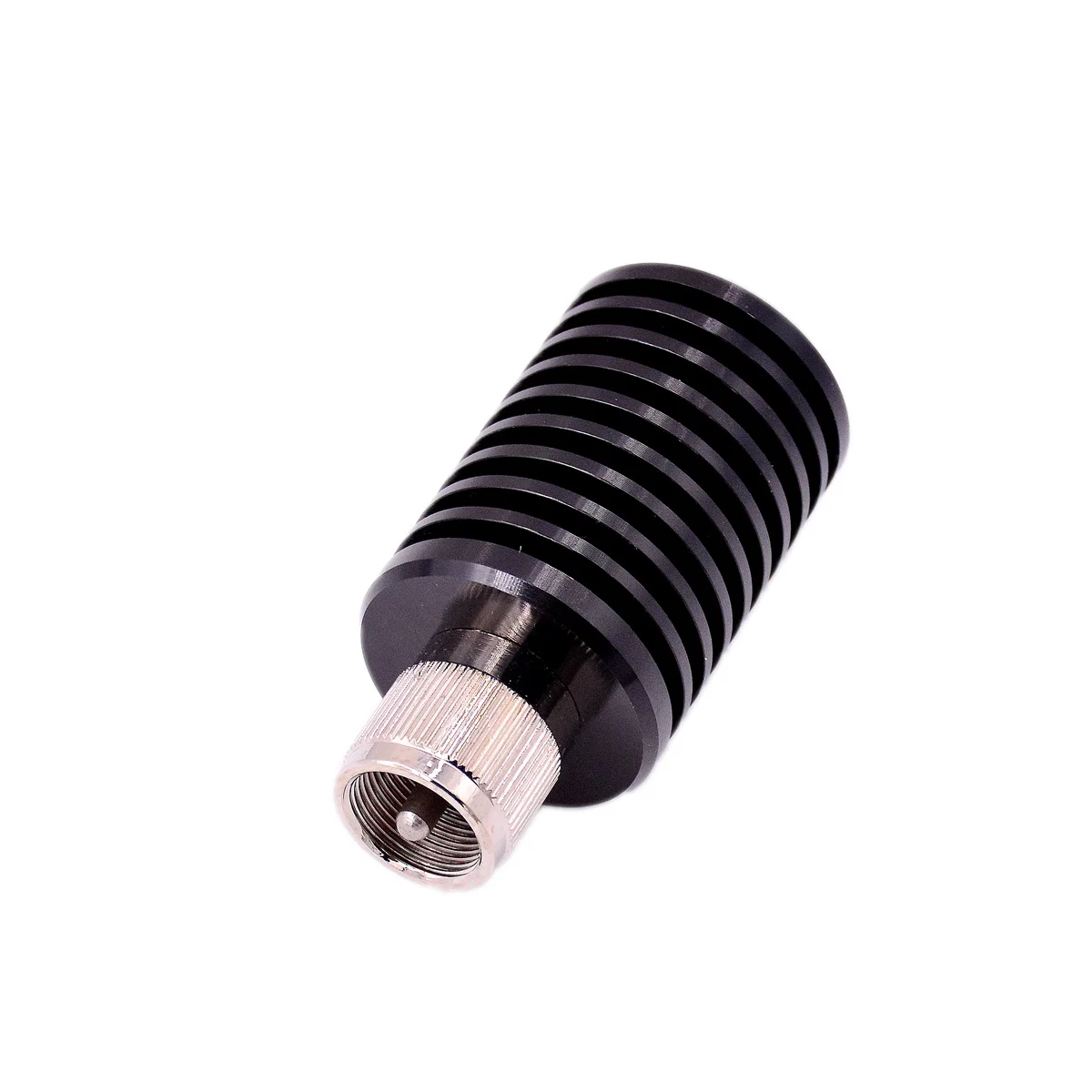

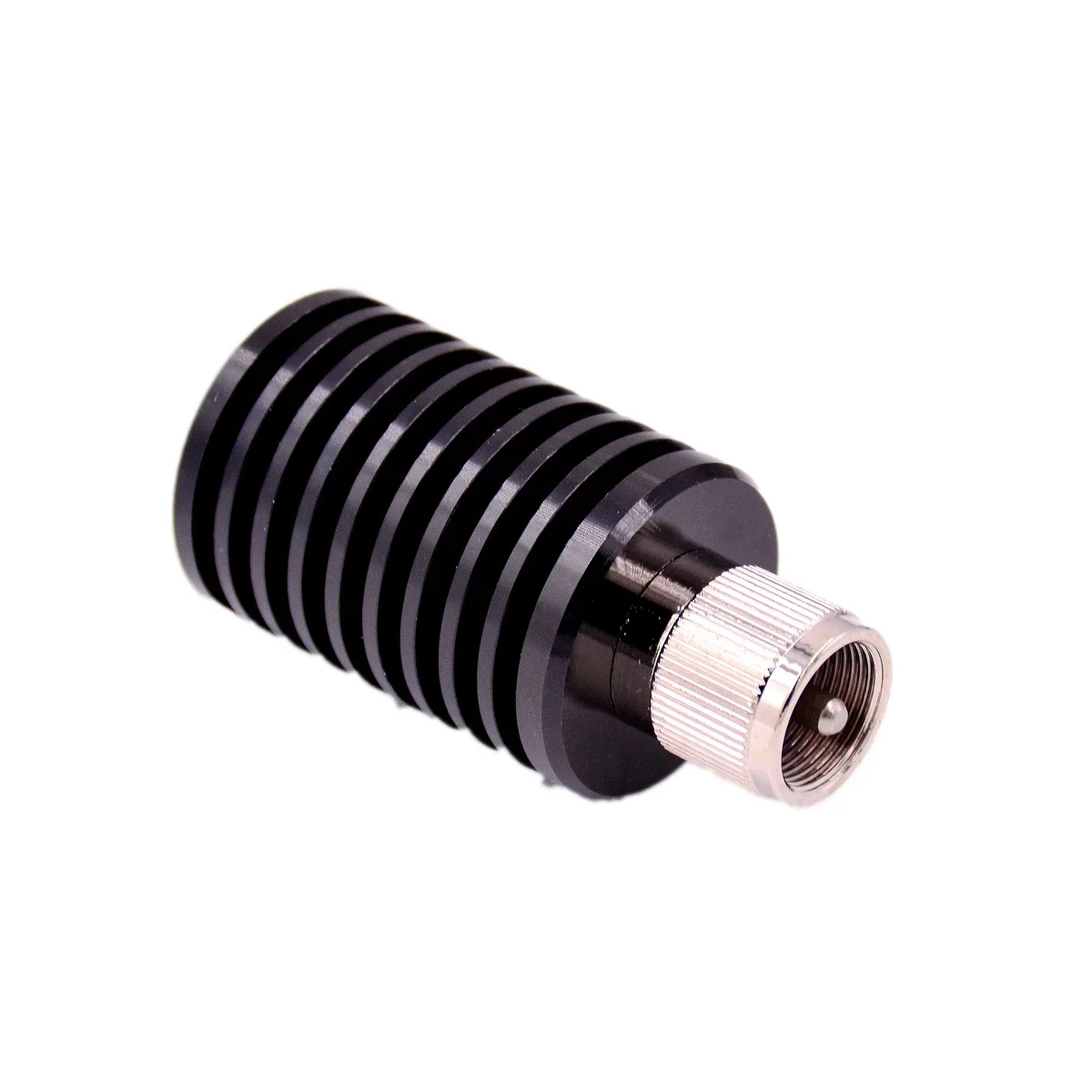

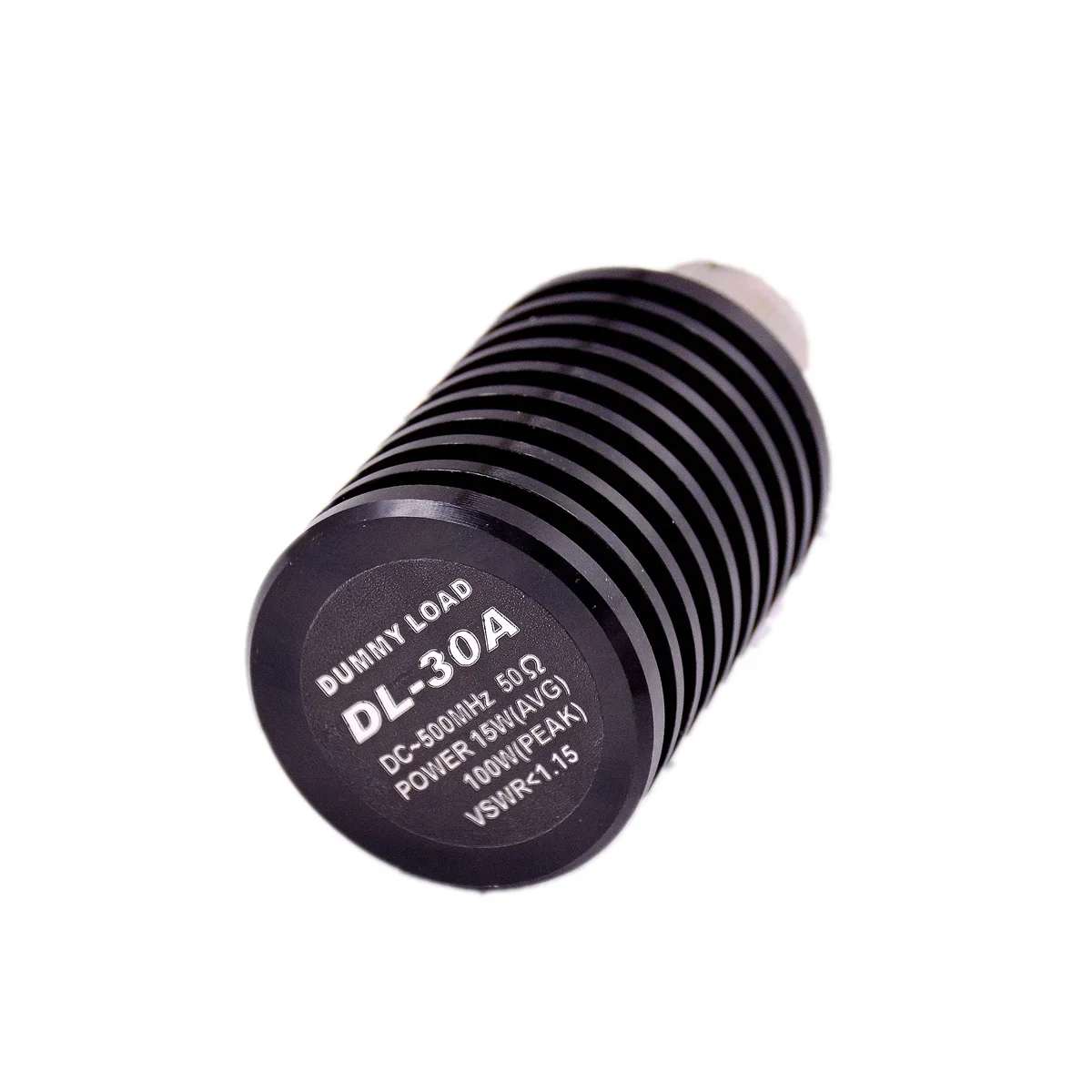

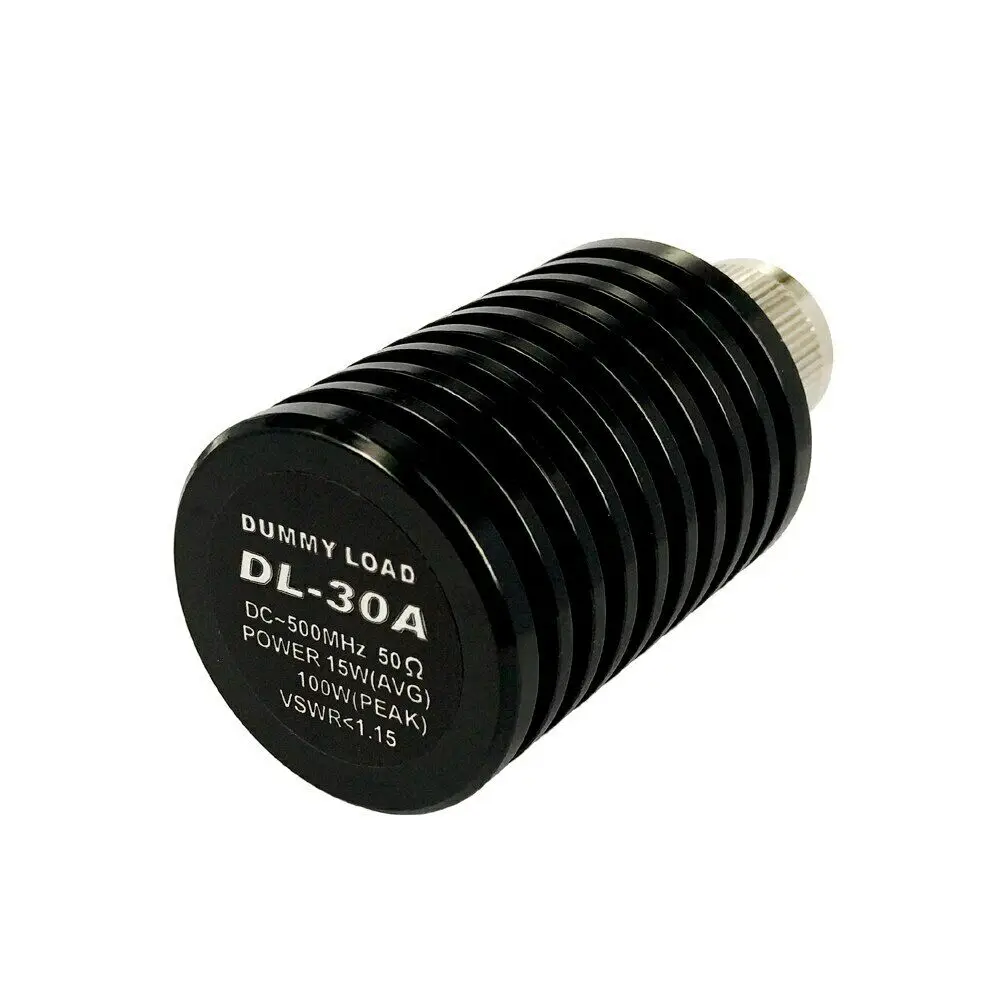

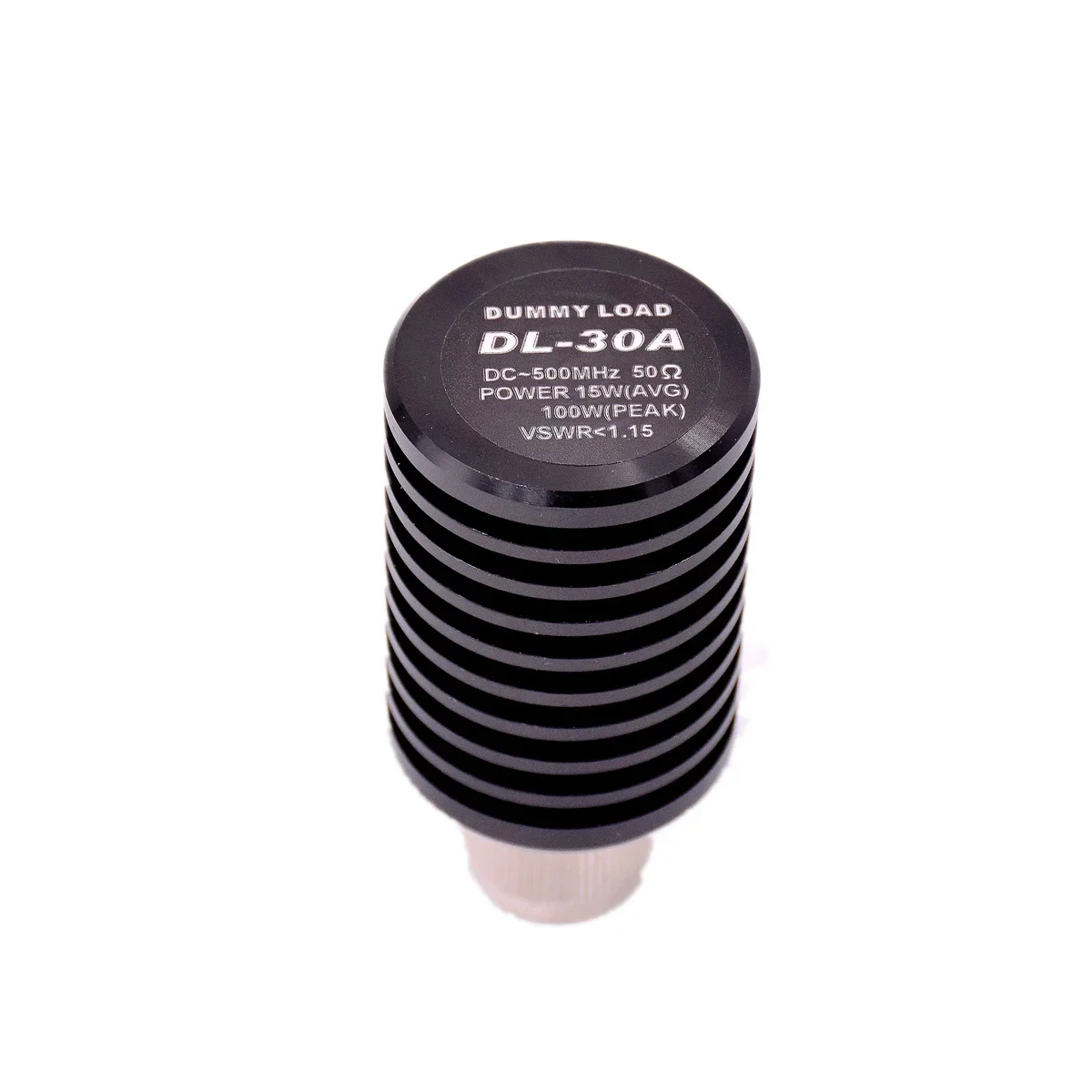

DL-30A Dummy Load: Product Details & Specifications
Key Features
- Wide Frequency Range: Covers 0 to 500MHz, suitable for diverse interphone testing scenarios.
- Reliable Power Handling: Supports 15 watts (average power) and 100 watts (peak power) for stable performance.
- Standard Resistance: 50 ohms, matching common interphone antenna impedance requirements.
- Low Standing Wave Ratio (SWR): Less than 1.15, ensuring minimal signal reflection and accurate testing results.
- Compact Design: Measures 30mm in diameter × 72mm in length (note: unified for consistency with specification data), easy to install and store.
- Specialized Application: Designed exclusively for interphone dummy load antenna testing, ensuring precise performance verification.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | DL-30A |
| Frequency Range | 0 - 500MHz |
| Power Handling | 15W (AVG) / 100W (Peak) |
| Resistance | 50 ohms |
| Standing Wave Ratio (SWR) | ≤ 1.15 |
| Dimensions (D×L) | 30mm × 72mm |

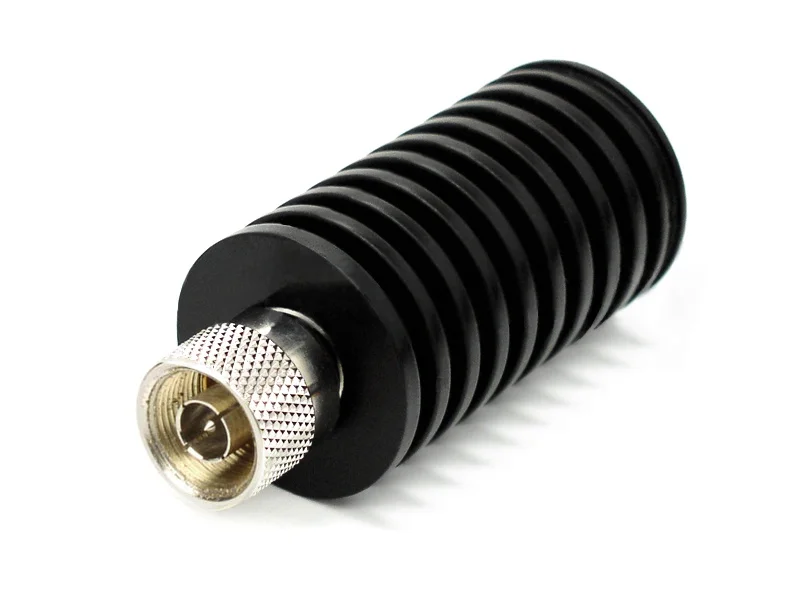

| Connector Type | Optional (M Jack / PL259 / N Jack) |
Package List
- 1 × DL-30A Dummy Load (Connector type selected by customer)
