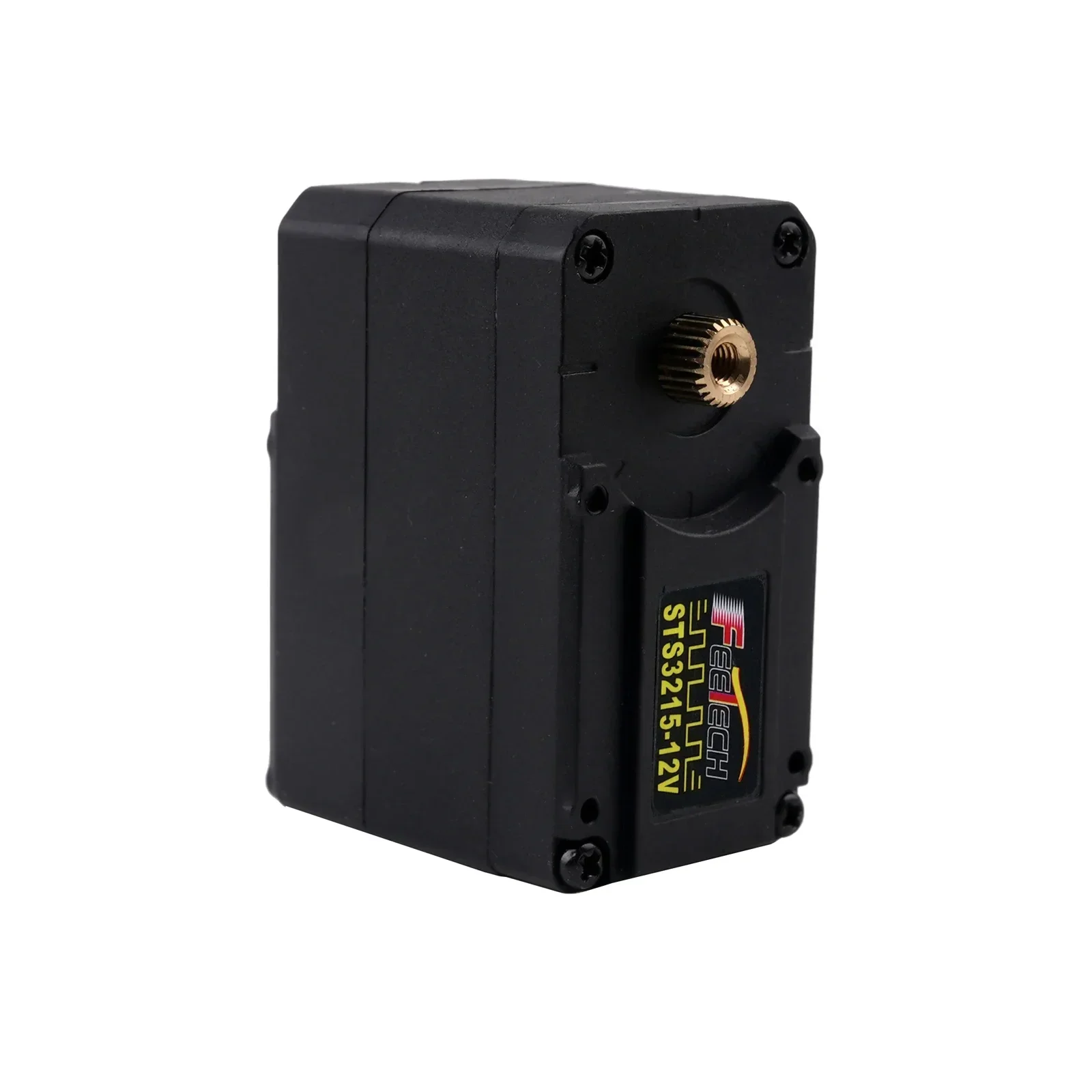

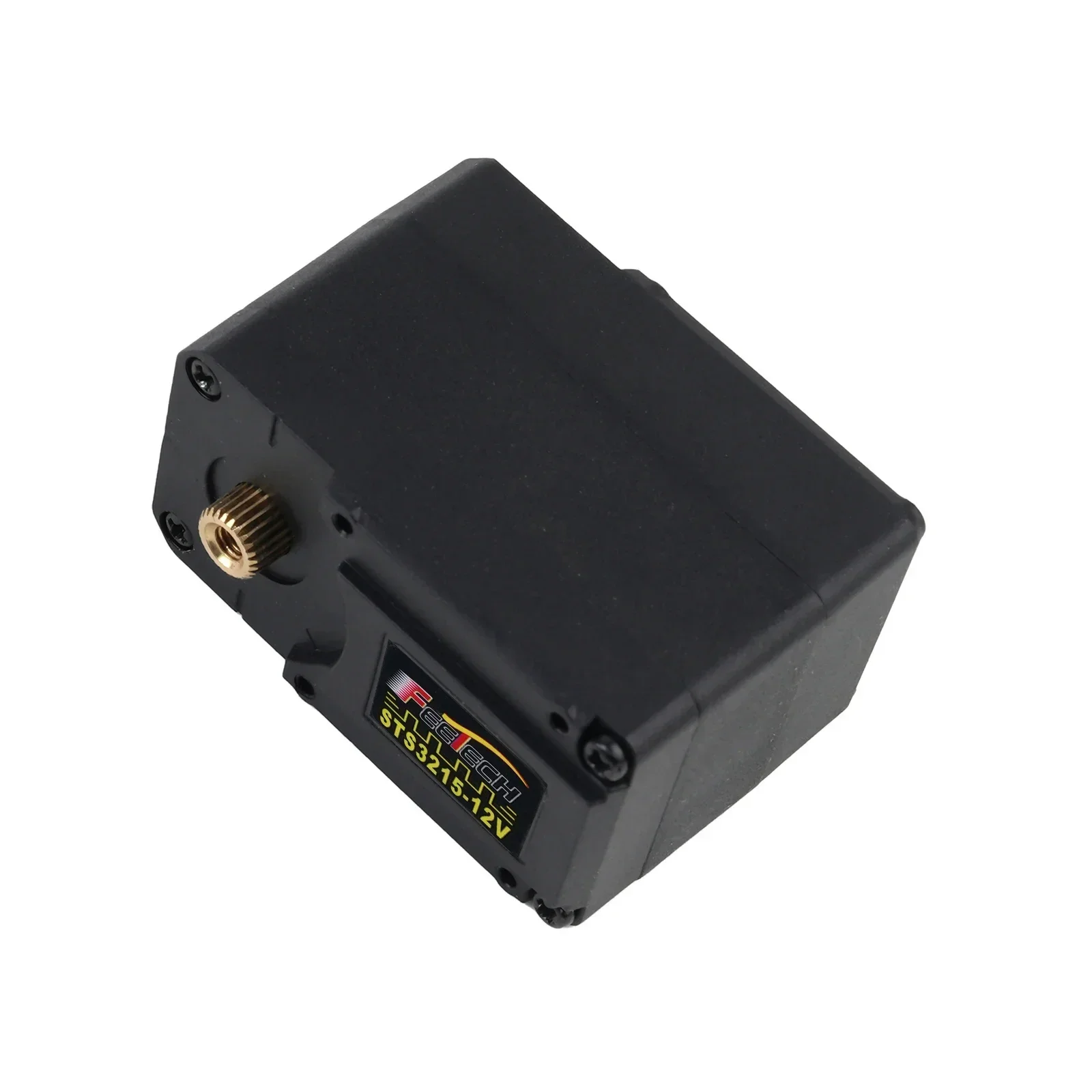

6PCS Feetech STS3215 12V 30KG High Torque Smart RC Servo TTL Serial Bus Robot Servo for SO-ARM100 Teaching Robotic Project

Feature:
*Heavy Load Capacity: Stall torque is up to 30Kg.cm at 12V.
*Wider Rotation Angle: Controllable angle range from 0 to 360 degrees, high torque and high precision gear make small vibration.
*Reliable Quality: Full steel gear with higher durability. Higher voltage saves more current and improves robot endurance. You can use it longer.

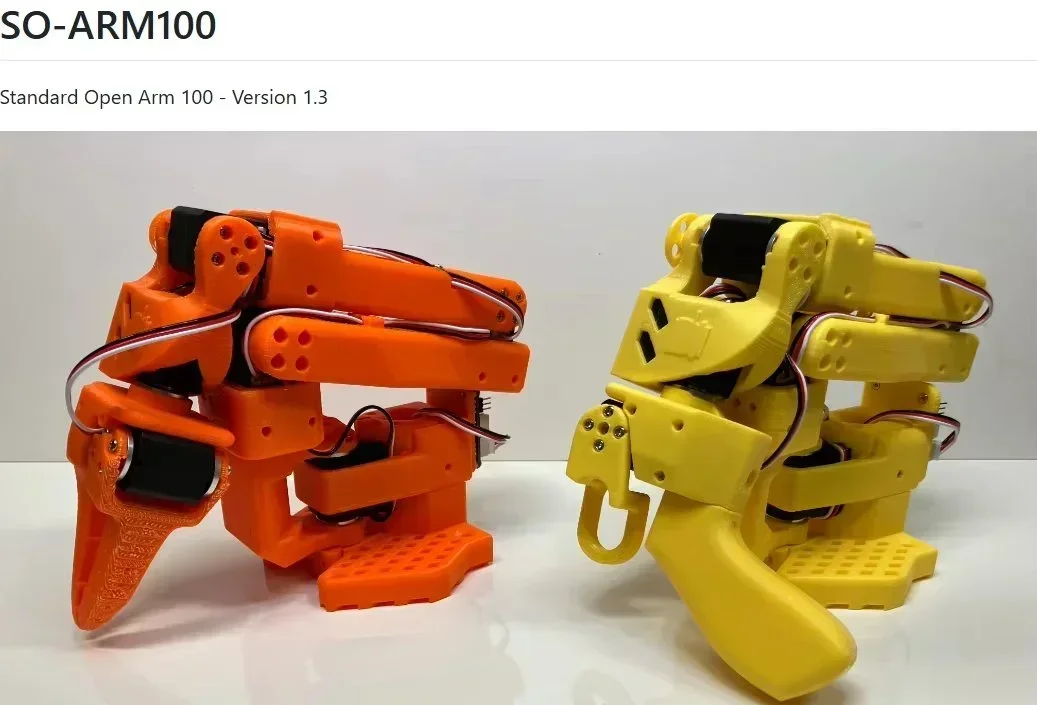

*Wide Applications: Attaching other brackets or servos, you can DIY an advanced robot (bipedal robot, spider robot, etc.), SO-ARM100 Teaching robot arm, PTZ cameras, wheel-drives on robots, and other mechanical projects that require more torque.

Servo Parameter:
Weight: 55g

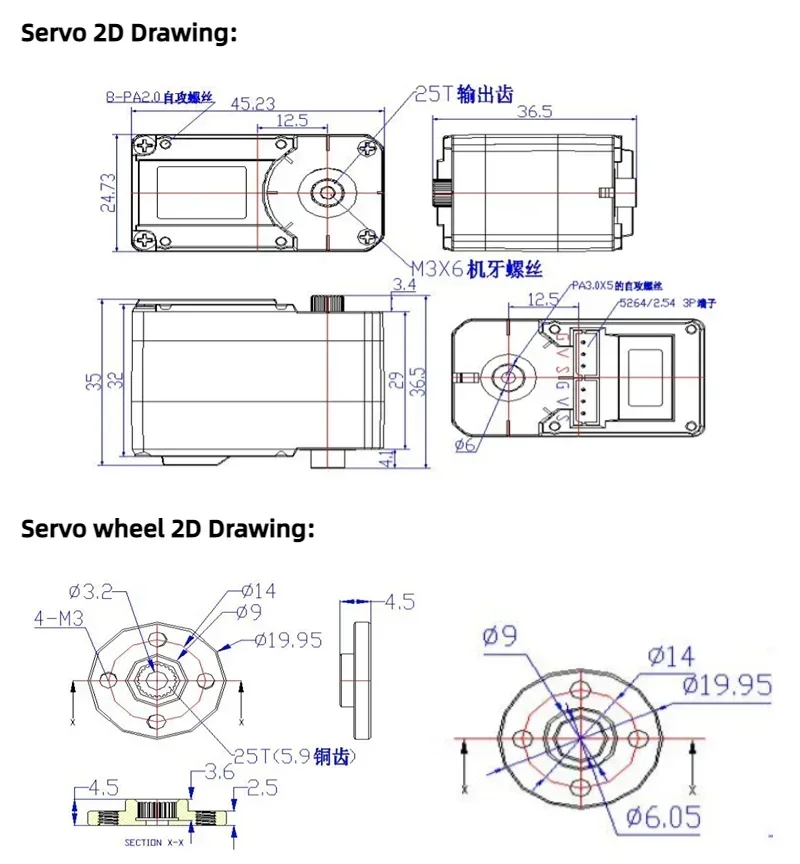

Size: 45.2X24.7X35mm
Gear: metal gear
Motor: core motor
Gear ratio: 1/345
Horn type: 25T/OD5.9mm
Connector and cable: 15cm with 5264-3p
Operating temperature: -20℃～60℃
Angle senor: 12Bits magnetic coding
Opearing voltage: 6-14V
No load speed: 0.22s/60°/12V
No load current: 200mA
Stall torque: 30kg.cm/12V
Stall current: 2.7A
Idle current: 30mA
Kt constant: 10kg.cm/A
Running angle: 360°（0-4096）
Neutral position: 180°(2048)
Electronic protection: Over hot/voltage/current/load protection
Feedback: Load/ position/ voltage/ current/ speed/ temperature feedback

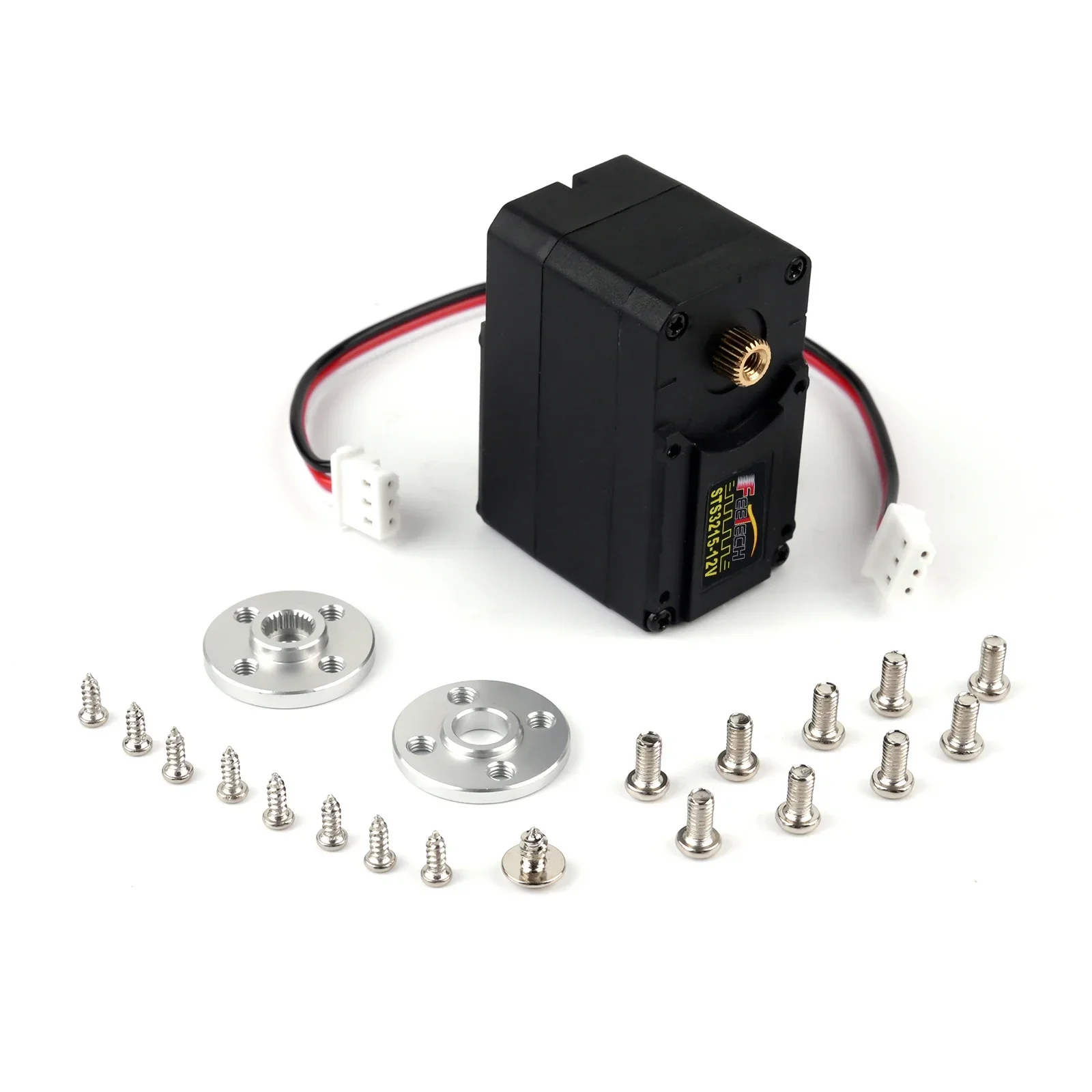

Package :
