YAMAHA HPDI 3.3L V6 2-STROKE OUTBOARD ENGINES (2003-2015):

200HP HPDI MODELS:
• Yamaha Z200 HPDI 3.3L V6 (2006-2012)
• Yamaha LZ200 HPDI 3.3L V6 (2006-2012)
• Yamaha VZ200 HPDI 3.3L V6 (2006-2012)
• All 20-inch and 25-inch shaft lengths

225HP HPDI MODELS:
• Yamaha Z225 HPDI 3.3L V6 (2003-2015)
• Yamaha LZ225 HPDI 3.3L V6 (2003-2015)
• Yamaha VZ225 HPDI 3.3L V6 (2003-2015)
• All 20-inch and 25-inch shaft lengths

250HP HPDI MODELS:
• Yamaha Z250 HPDI 3.3L V6 (2003-2015)
• Yamaha LZ250 HPDI 3.3L V6 (2003-2015)
• Yamaha VZ250 HPDI 3.3L V6 (2003-2015)
• All 20-inch and 25-inch shaft lengths

300HP HPDI MODELS:
• Yamaha Z300 HPDI 3.3L V6 (2004-2009)
• Yamaha LZ300 HPDI 3.3L V6 (2004-2009)
• All 20-inch and 25-inch shaft lengths

ENGINE SPECIFICATIONS:
• Configuration: 76-Degree V6
• Displacement: 3.3L (3352cc)
• Bore x Stroke: 3.660" x 3.228"
• Fuel System: HPDI (High Pressure Direct Injection)
• Engine Type: 2-Stroke

NOTES:
• This is a PORT SIDE piston kit
• Kit is for ONE cylinder — order 3 for complete port bank rebuild
• Order 6 total (3 port + 3 starboard) for a complete V6 powerhead rebuild
• Verify OEM part number before ordering

FITS / Replacement Part Numbers:

OEM CROSS-REFERENCE PART NUMBERS:
• 60V-11631-01-85
• 60V-11636-01-00
• 60V-11642-01-85
• 60V-11646-01-00
• 6D0-11631-00-85
• 6D0-11631-02-84
• 6D0-11631-02-85
• 6D0-11636-00-00
• 6D0-11636-01-00
• 6D0-11642-00-85
• 6D0-11642-01-85

SPECIFICATIONS:

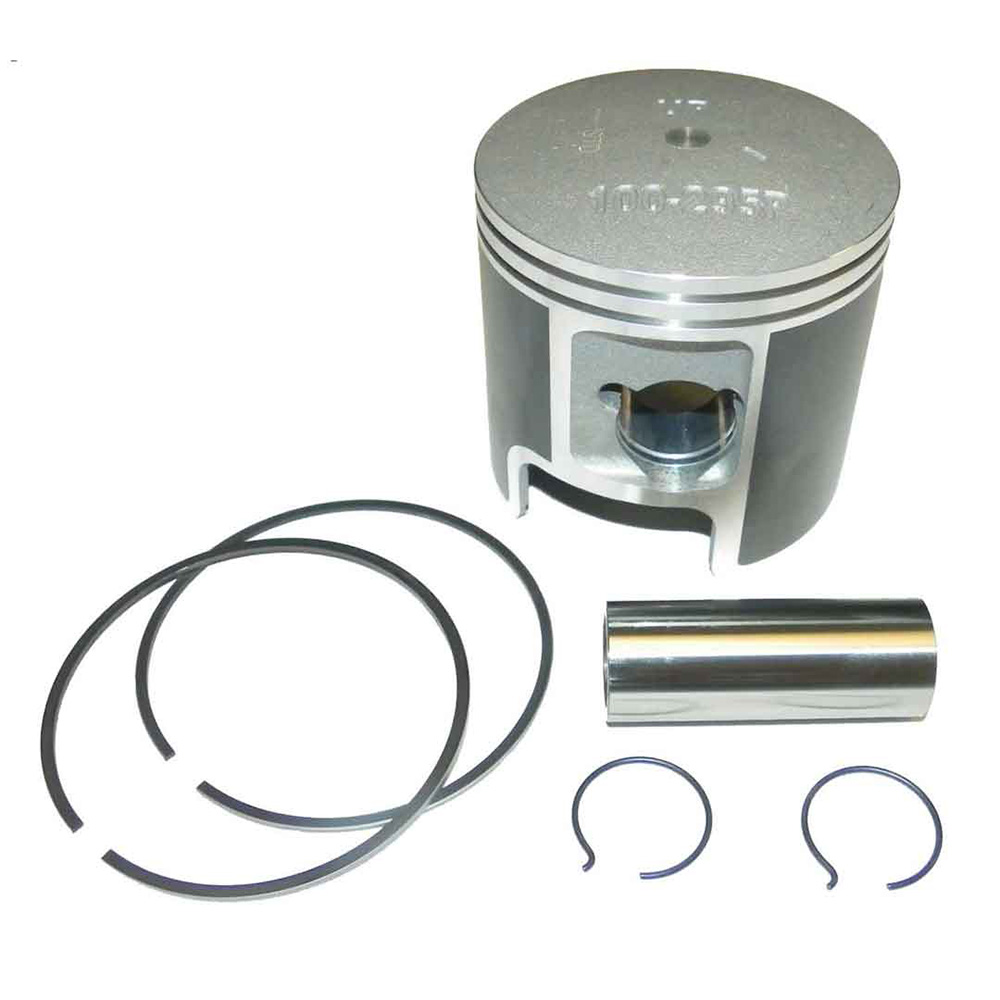

• Type: Port Side Piston Kit with Rings, Wrist Pin, and Pin Clips
• Oversize: .040 Over
• Standard Bore: 3.660"
• Finished Bore: 3.700"
• Configuration: V6 76-Degree
• Engine Type: 2-Stroke HPDI (High Pressure Direct Injection)
• Displacement: 3.3L (3352cc)
• Horsepower: 200HP, 225HP, 250HP, 300HP
• Material: Cast Aluminum Alloy
• Kit Quantity: 1 Cylinder (order 3 for port bank, 6 for complete V6)

COMPATIBILITY:
• 2006-2012 Yamaha Z/LZ/VZ 200HP HPDI 3.3L V6
• 2003-2015 Yamaha Z/LZ/VZ 225HP HPDI 3.3L V6
• 2003-2015 Yamaha Z/LZ/VZ 250HP HPDI 3.3L V6
• 2004-2009 Yamaha Z/LZ 300HP HPDI 3.3L V6
• All shaft lengths and control variants
