Tefen barb connectors are push fit connectors (no need for hose clamp), designed to operate with all PE tubes class 2.5-4 PN, at the range. Can work with other flexible plastic and rubber pipes. The fittings and sealing mechanism are based on a barb that holds the tube from the inside diameter. Fittings size indicate the nominal outside diameter of the tube. For example; 5/8" barb fitting, fits a 5/8" irrigation tube class 2.5, with inner diameter of 1/2".
- Strong and durable
- High impact resistance
- UV resistant
- TSCA compliant
* Please note - if ordering the sample product, then you do so on the understanding that you will not be sent the smallest size in this range and the 99p sample is just that, a sample of a clamp unrelated to this product range. Don't order the sample if you need a specific size and product!
- Fits Hose/Tube OD mm (Irrigation) 12.0
- Male (M) BSPT inch 1/4

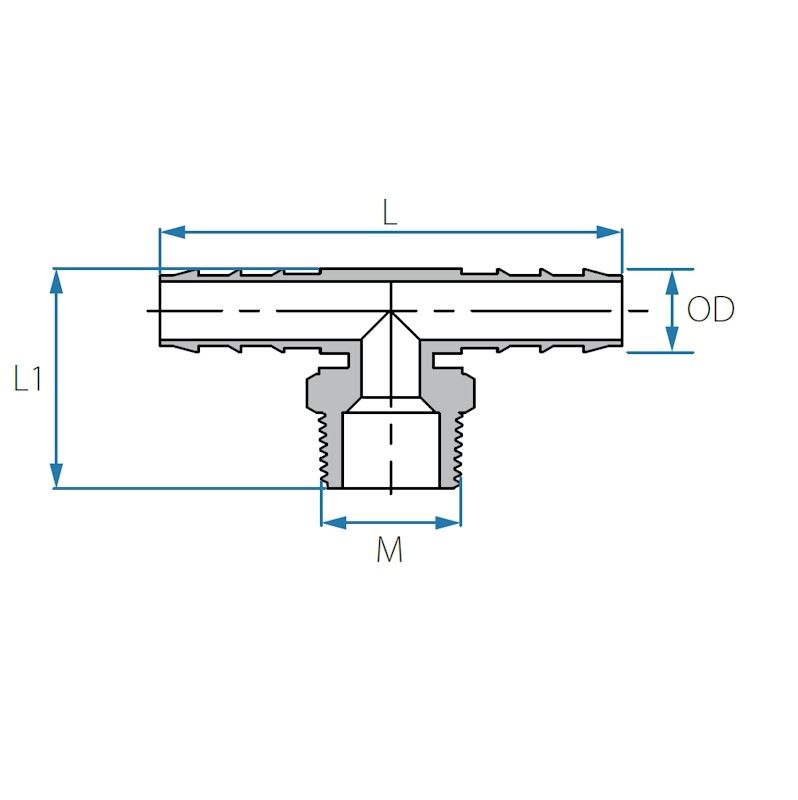

- Length (L) mm 84.7
- Length (L1) mm 34.1
- Working Pressure 14 Bar/200 PSI (@20°C)
- Min Temp °C 4
- Max Temp °C 90
- Material Polypropylene
- Manufactured By Tefen
- Fits Hose/Tube ID - refers to the inner Diameter of the Hose/Tube you are using with the Tefen Fitting
- Fits Irrigation Hose/Tube OD - refers to the Outer Diameter of commonly used irrigation hoses

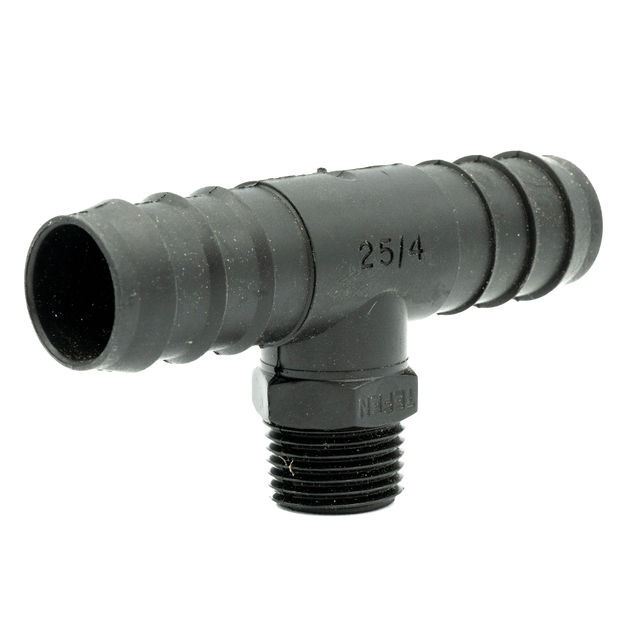

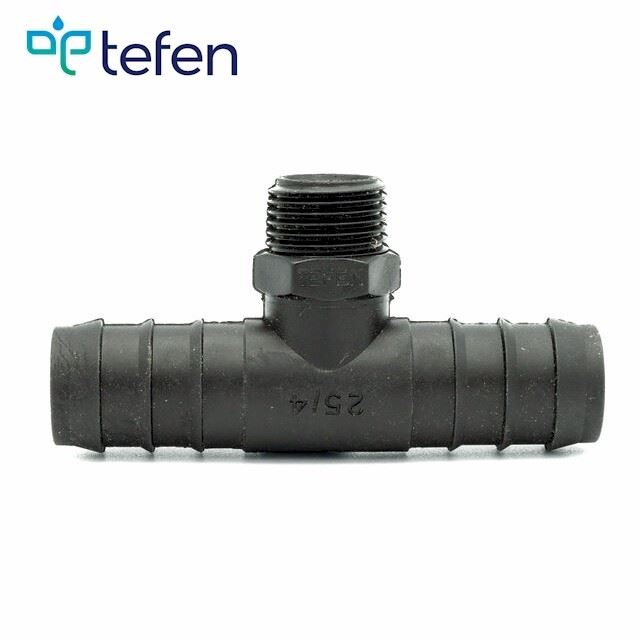

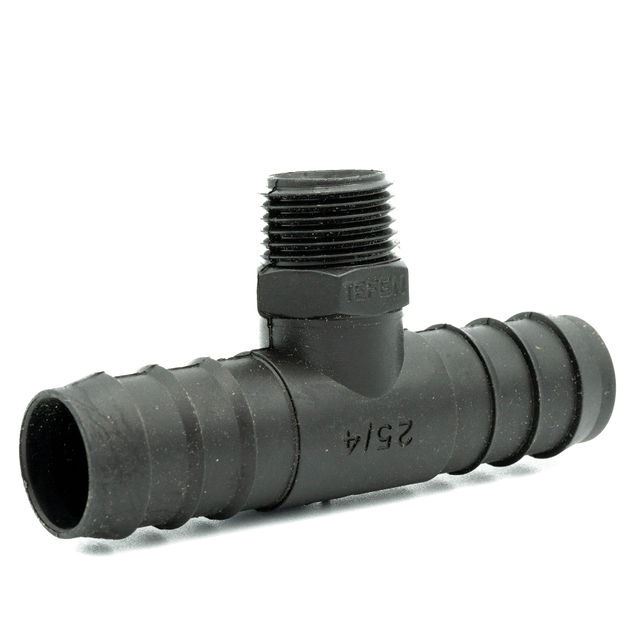

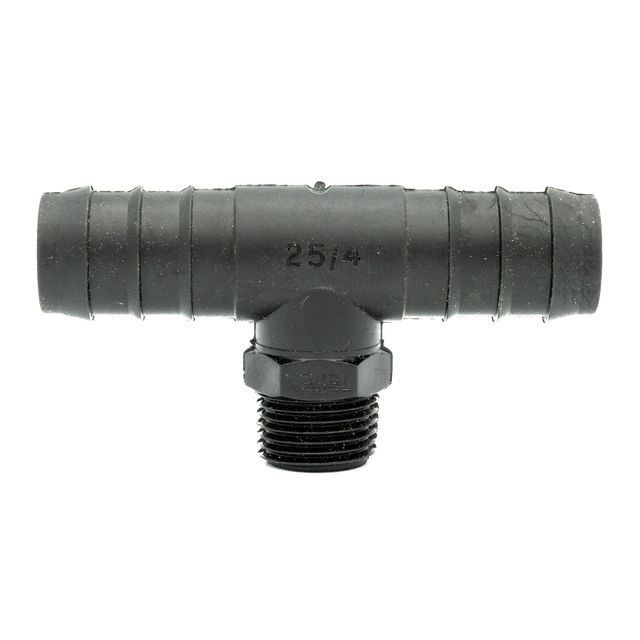

Barb Male T Connector Tefen BSPT Plastic Black OD Hose Fitting Multipack Set
