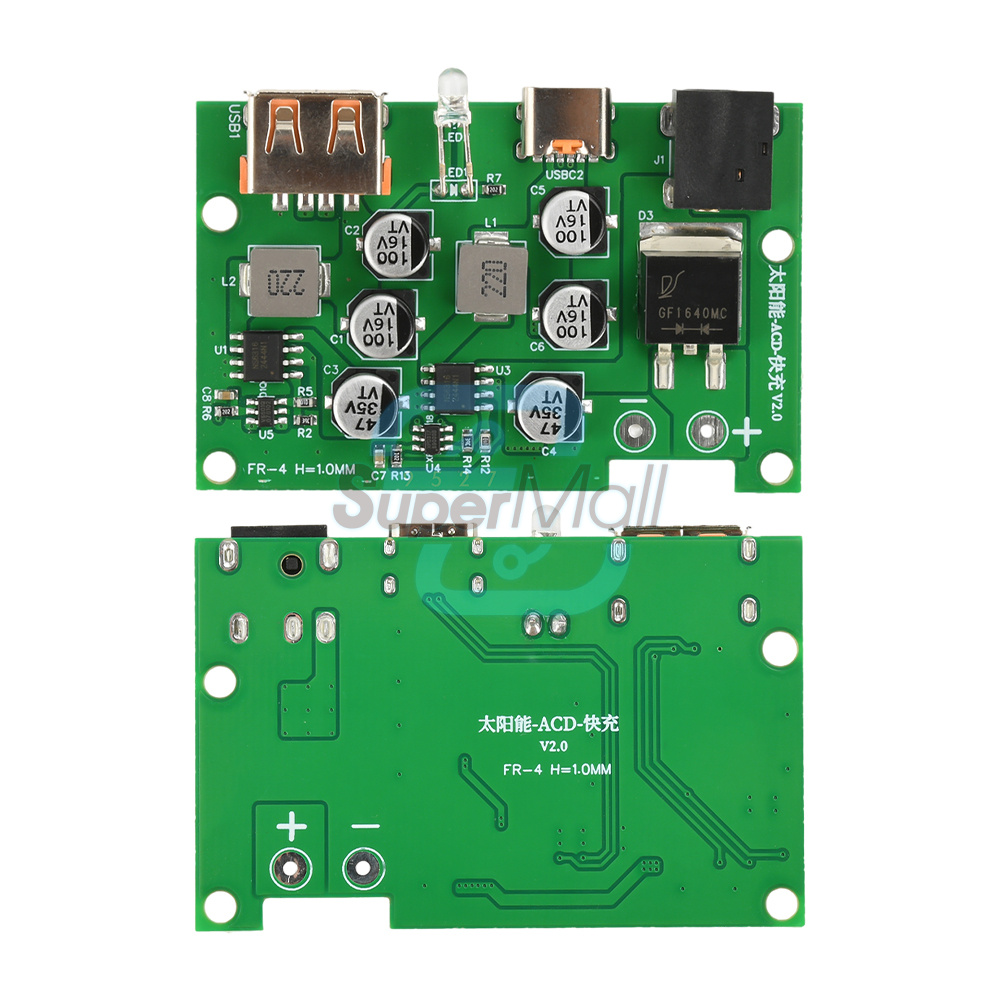

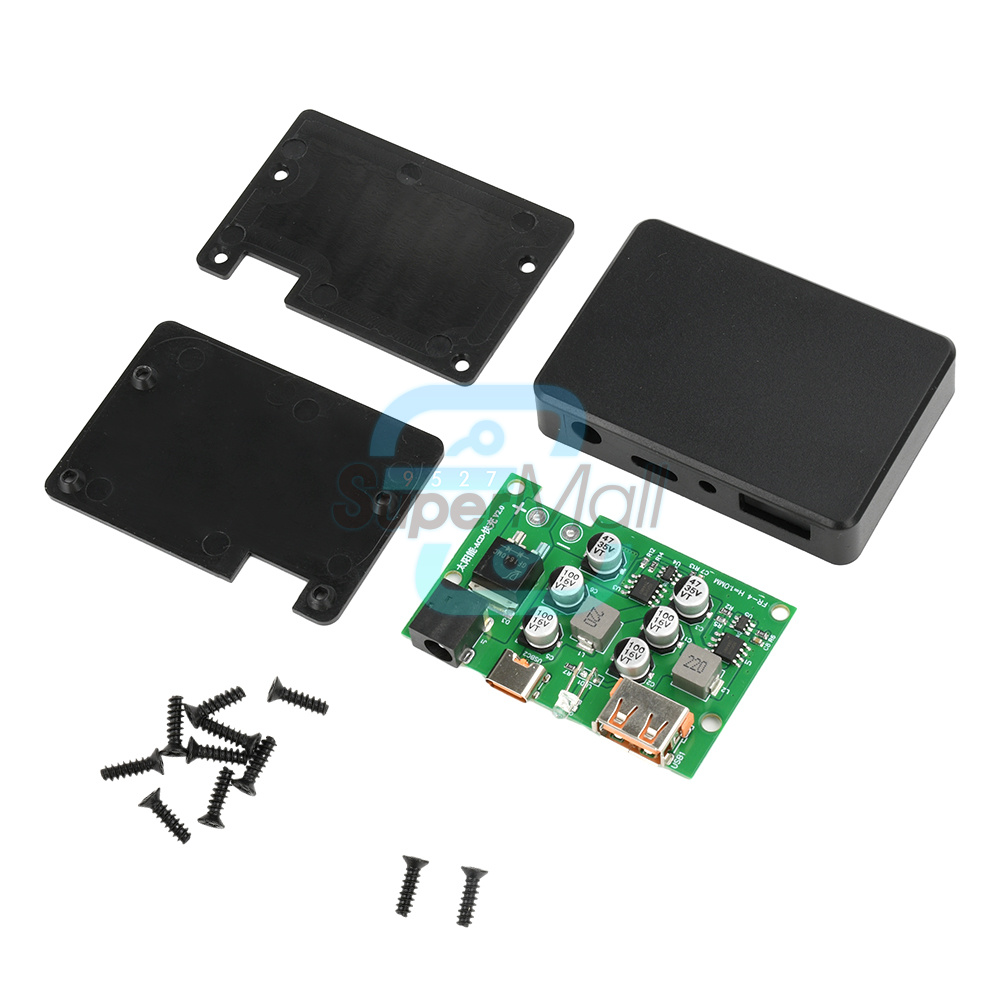

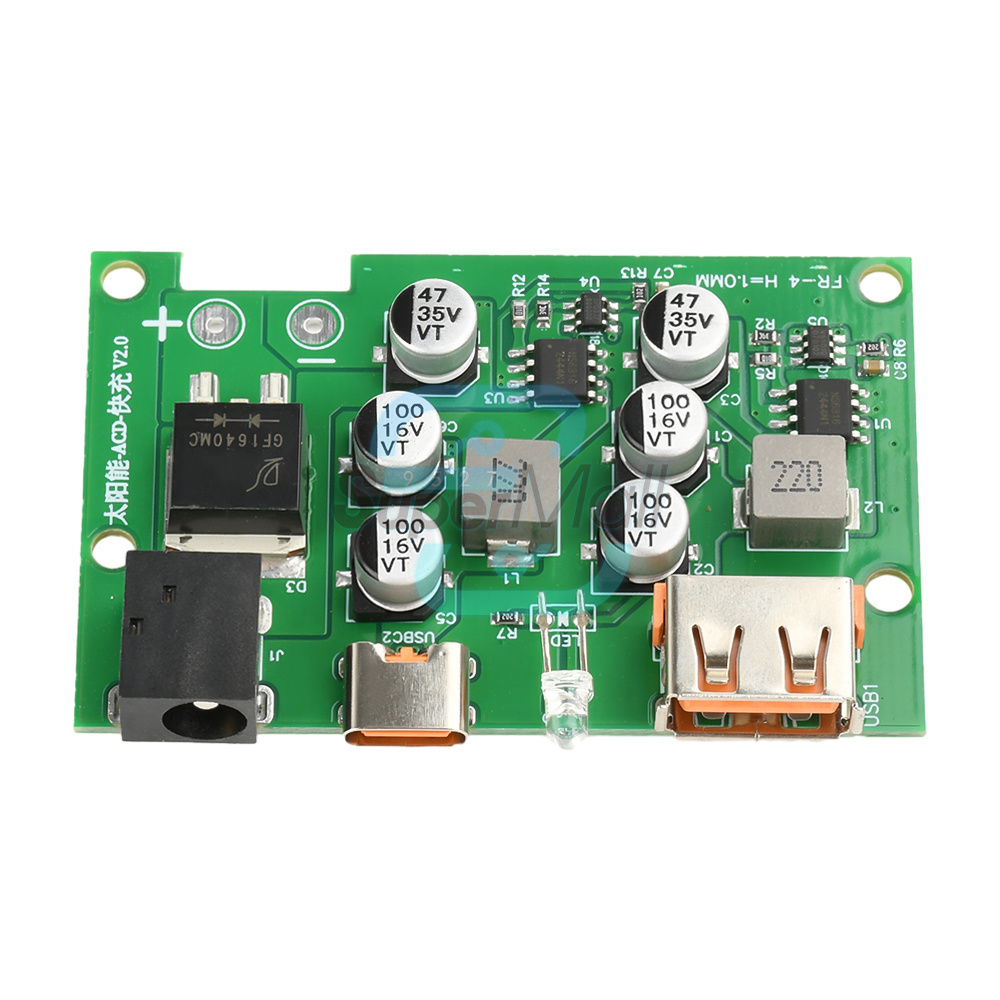

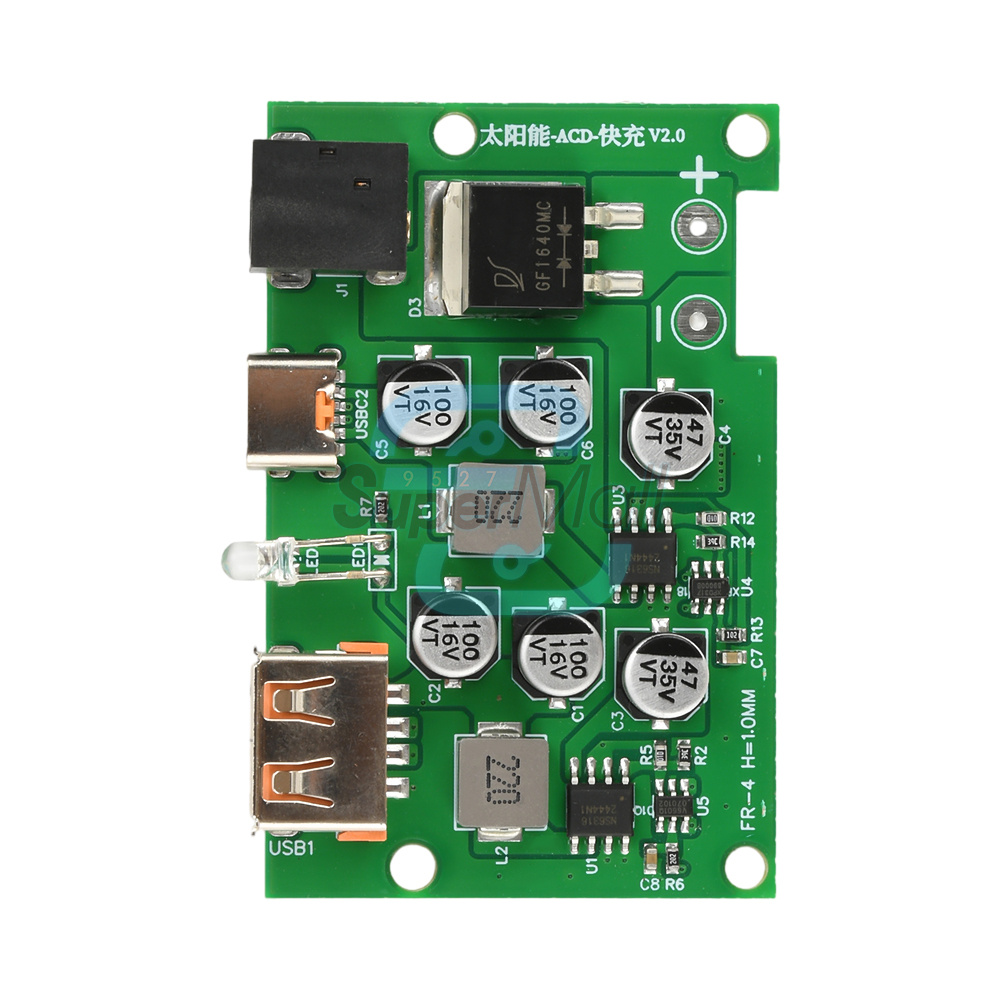

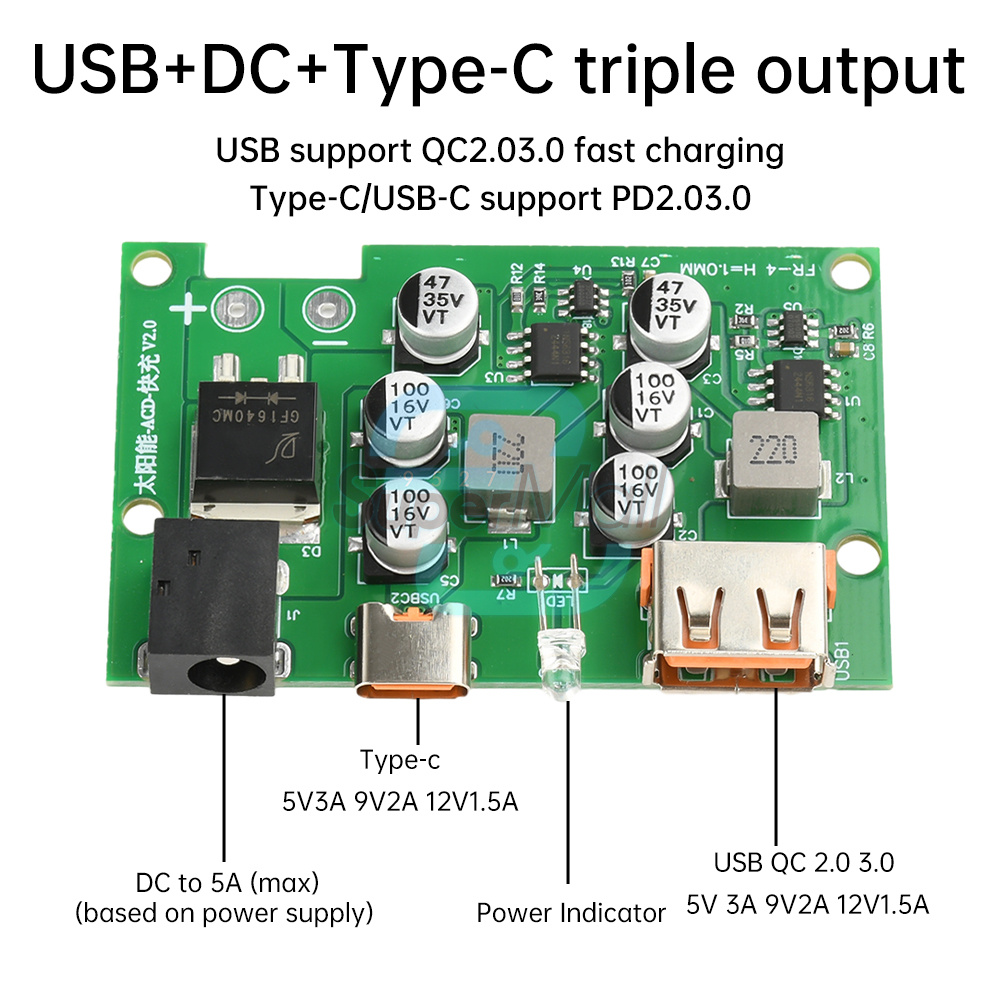

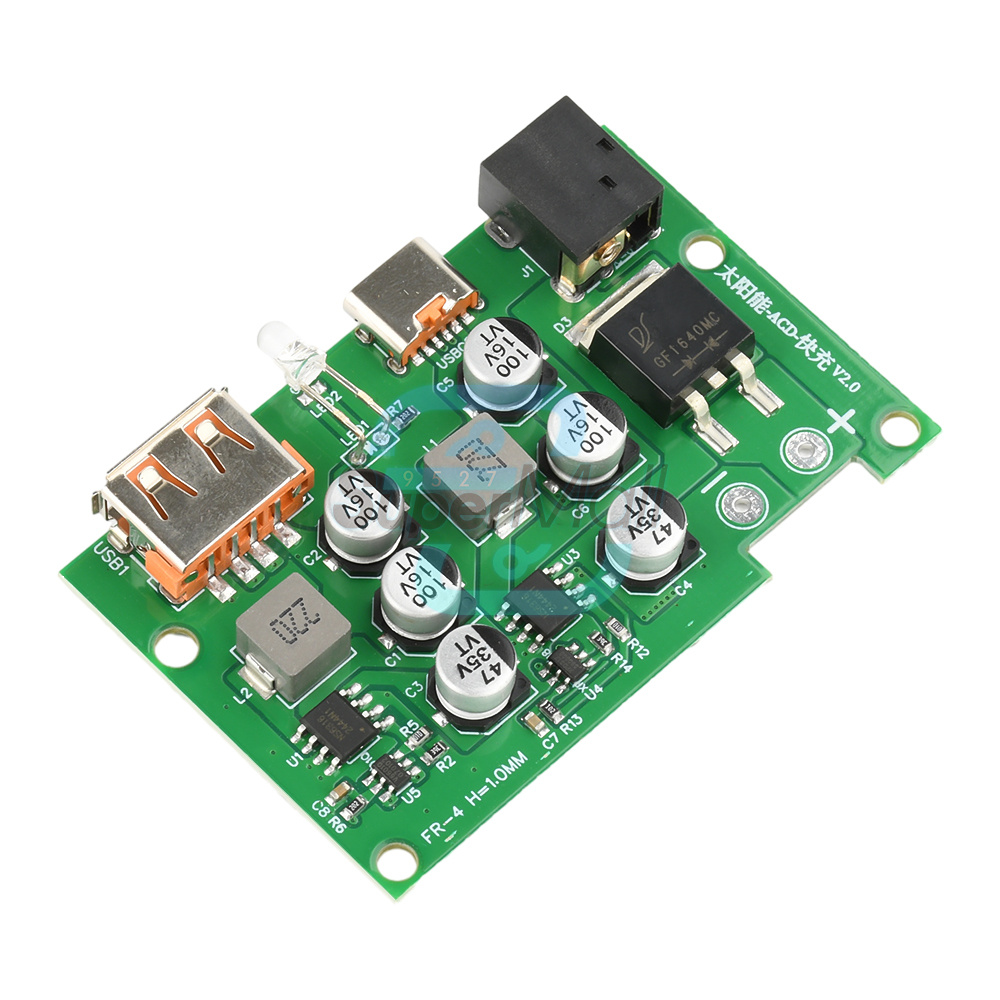

USBA+Type-C+DC

Features:
1.Equipped with USBA, Type-C and DC ports to meet the charging needs of multiple devices
2.Compatible with QC2.0/3.0 and PD2.0/3.0, providing fast and stable charging experience
3.Built-in high-efficiency voltage regulator circuit to ensure stable output voltage and protect the safety of the device.
4. Designed for solar panels, maximize the use of solar energy and enhance power generation efficiency.
5. Modular design, easy to install and debug, suitable for DIY enthusiasts to assemble by themselves.

Parameter:
Material: ABS
Input: 9-30V
Output: USB: 5V3A, 9V2A, 12V1.5A
Type-C: 5V3A, 9V2A, 12V1.5A
DC: Maximum 5A
Interface: Single USBA+Type-C+DC
Temperature range: -40℃～+85℃
Supported protocols: for Type-C PD outputs
Applicable to BC1.2, Apple protocols
Applicable to QC2.0 and QC3.0
Applicable to FCP/SCP/AFC/SFCP

Package include:
Circuit board *1

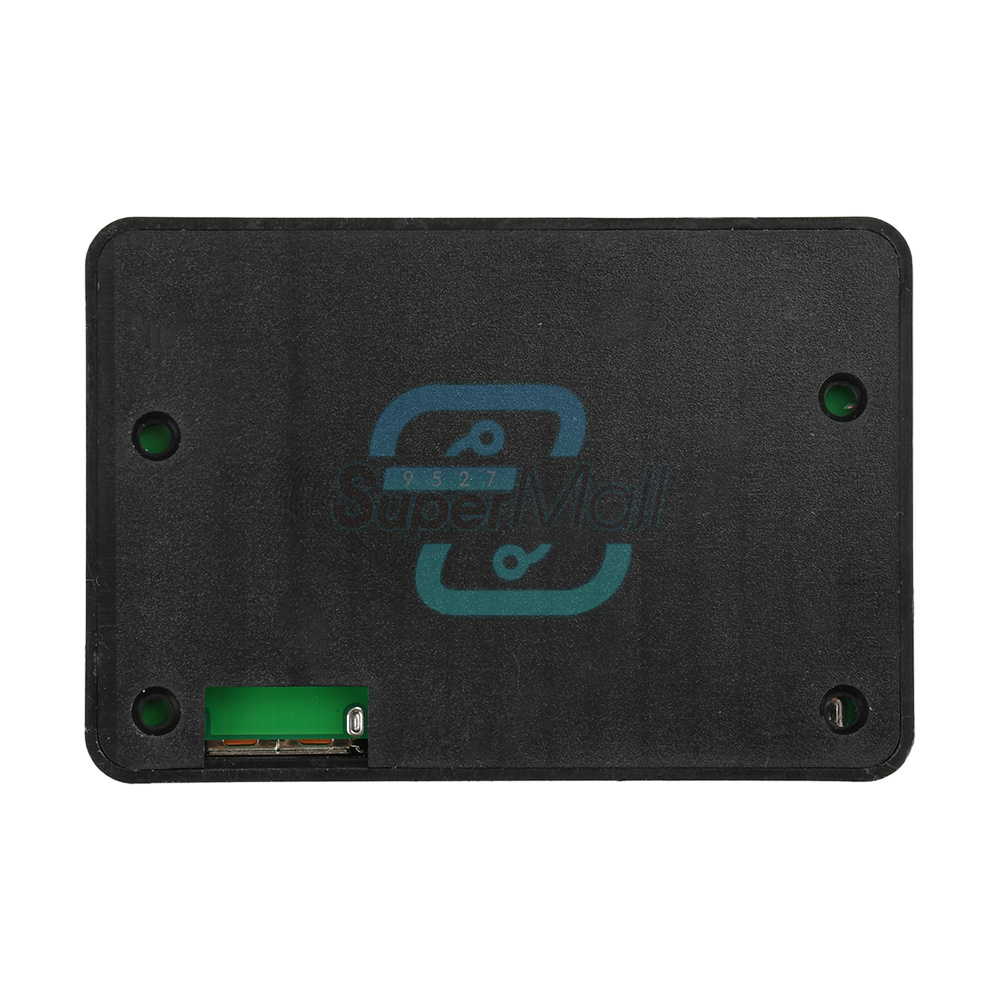

Case *3
Screw package*1 (quantity not fixed)



---

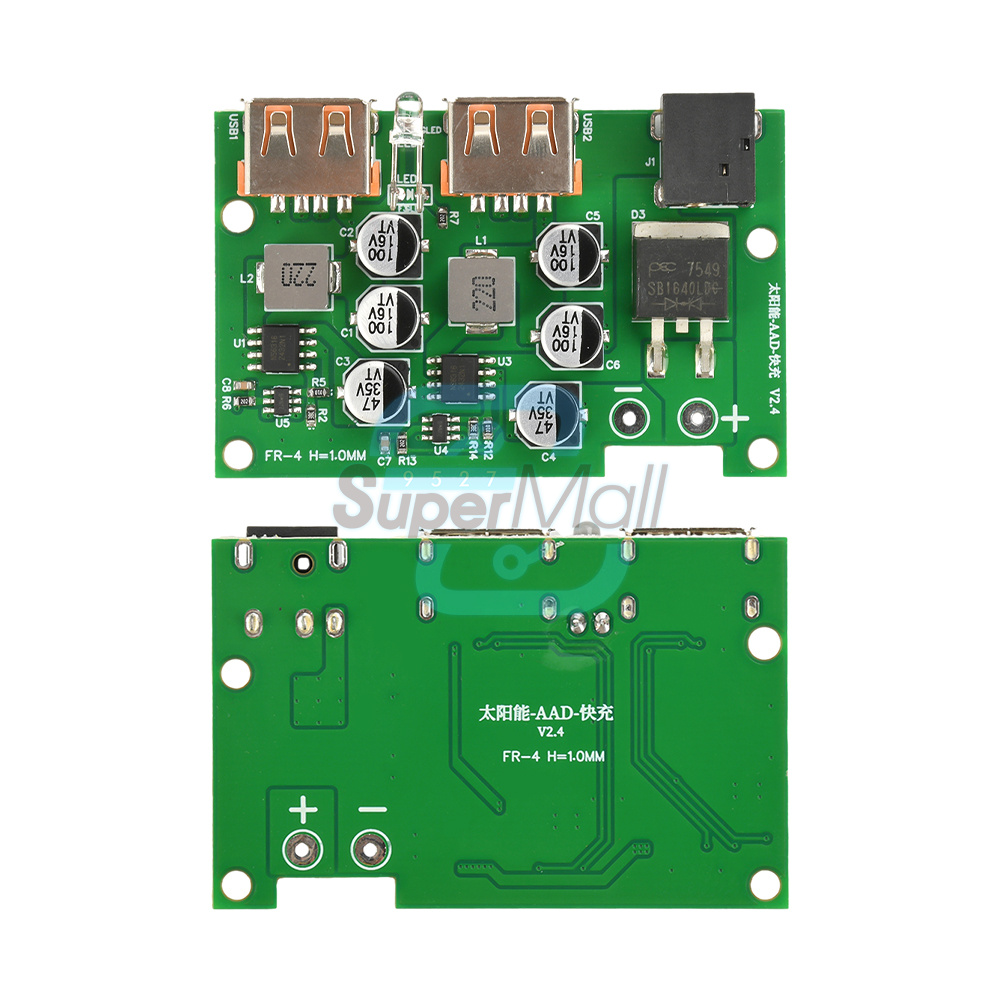

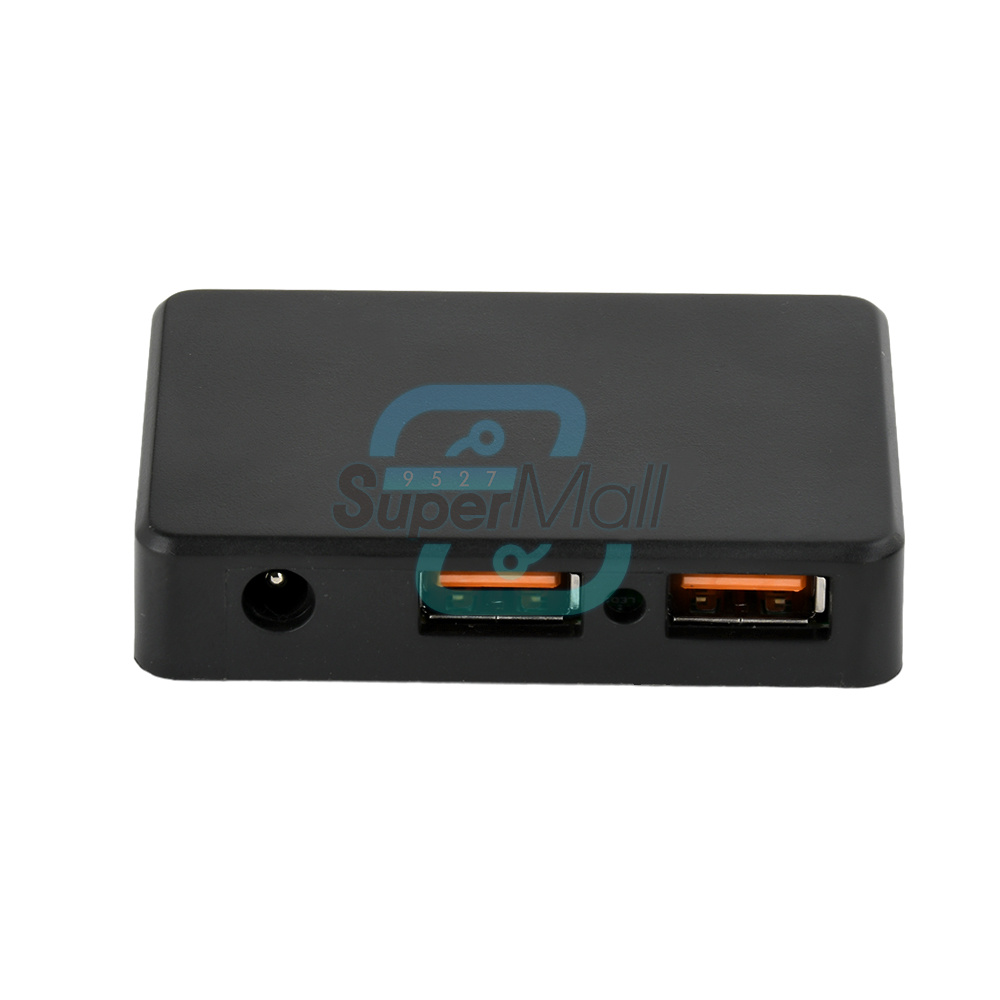

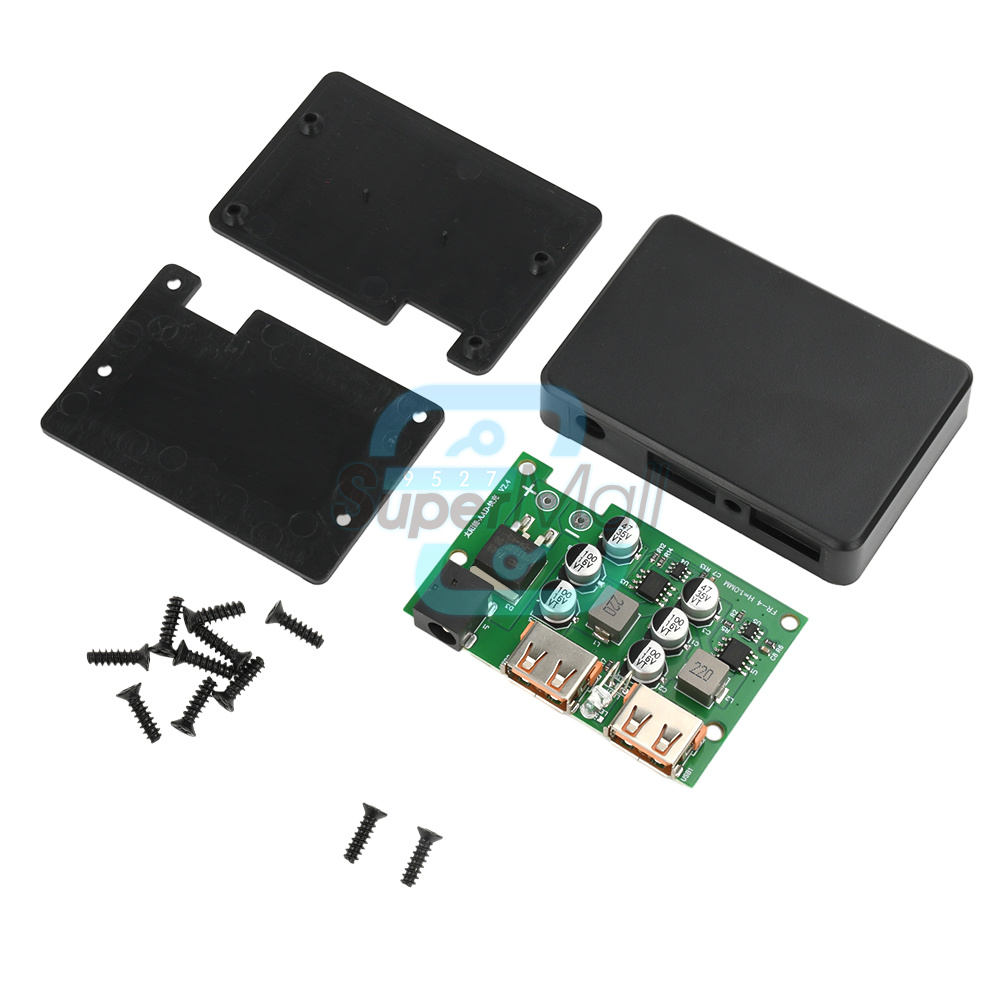

Dual USBA + DC

Features:
1. Equipped with USBA and DC interfaces to meet the charging needs of a variety of devices
2. Built-in high-efficiency voltage regulator circuit to ensure stable output and protect the safety of the equipment.
3.Support 9V-30V wide voltage input, adapt to the power needs of different environments.
4. Designed for solar panels, maximize the use of solar energy, enhance power generation efficiency
5. Modular design, easy to install and debug, suitable for DIY enthusiasts to assemble by themselves.

Parameter:
Material: ABS
Input: 9-30V
Output:
USB1 : 5V 3A, 9V 2A, 12V 1.5A
USB2 : 5V 3A, 9V 2A, 12V 1.5A
DC : Maximum 5A
Interface : Dual USBA+DC
Temperature range: -40℃～+85℃

Package include:
Circuit board *1
Shell *3
Screw package *1 (the number is not fixed)



---

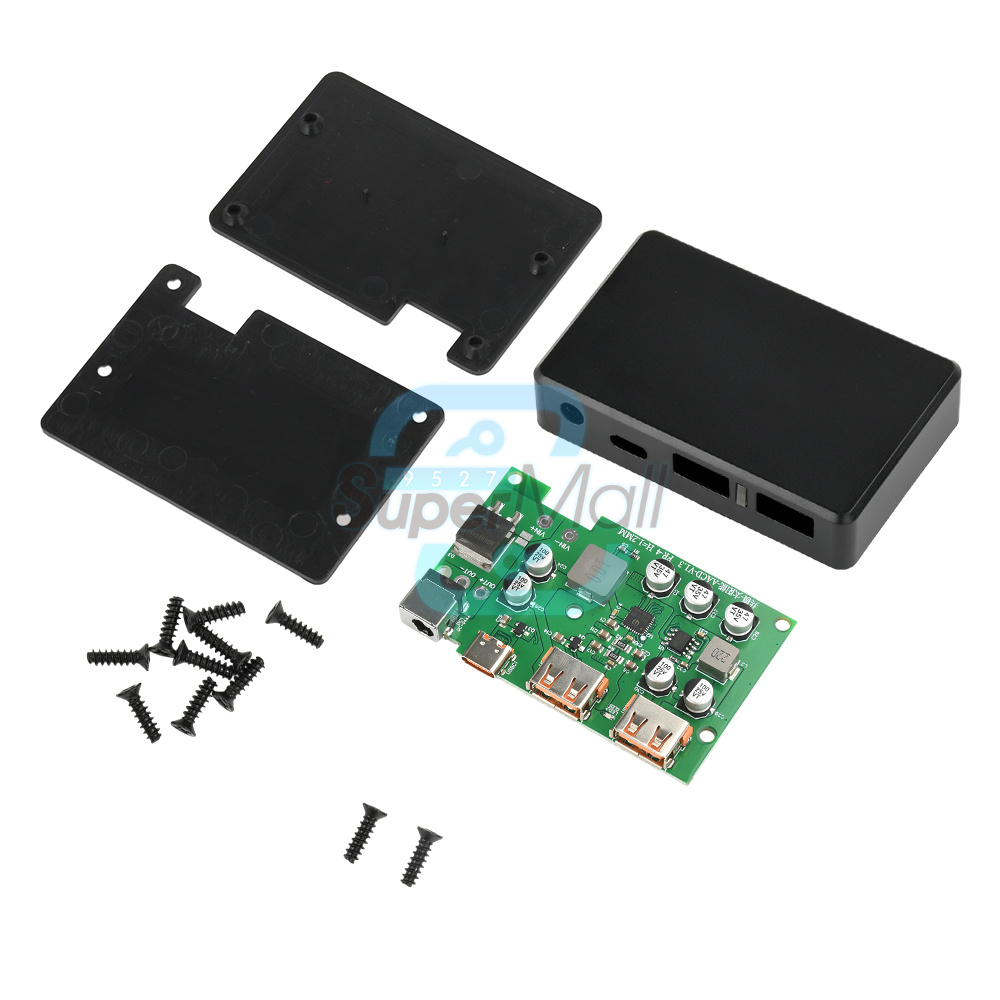

Dual USBA+Type-C+DC

Features:
1.Dual USB+Type C+DC output to meet the charging needs of a variety of devices
2.Support QC3.0 and PD2.0 fast charging protocols, providing an extremely fast charging experience
3.Built-in high-efficiency voltage regulator circuit to ensure stable output and protect the safety of the device.
4. Designed for solar panels, maximizing the use of solar power generation.
5. Automatically recognizes the type of equipment, matches the optimal charging power and improves charging efficiency.

Parameter:
Input voltage: DC12-30V
Output current: 3A
Conversion efficiency up to 95
Interface: Dual USBA+Type-C+DC

Type C port protocol: 5V3A, 9V3A, 12V2.25A, 15V2.25A, 20V2.25A
Support: Type-C PD
Support: BC1.2, Apple and AFC protocols
Support: QC2.0 and QC3.0 protocols
Support: MTK PE+1.1 and MTK PE+2.0 protocols
Support: FCP, SCP protocol
Support: SFCP protocol

USB-A1 port protocol: 5V3A, 9V3A, 12V2.25A, 15V2.25A, 20V2.25A
Support: BC1.2, Apple and AFC protocols
Support: QC2.0 and QC3.0 protocols
Support: MTK PE+1.1 and MTK PE+2.0 protocols
Support: FCP and SCP protocols
Support: SFCP protocol

USB-A2 port protocol: 5V3A, 9V2A, 12V1.5A
Support: BC1.2, Apple and AFC protocols
Support: QC2.0 and QC3.0 protocols
Support: FCP protocol

Package include:
Circuit board *1
Case *3
Screw package *1 (variable quantity)
