Sport Coilover Suspension for Holden Commodore VE Sedan Wagon 06-13 Lowering Kit








Introduction



MXR-B3 is based on MXR-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.



Package included

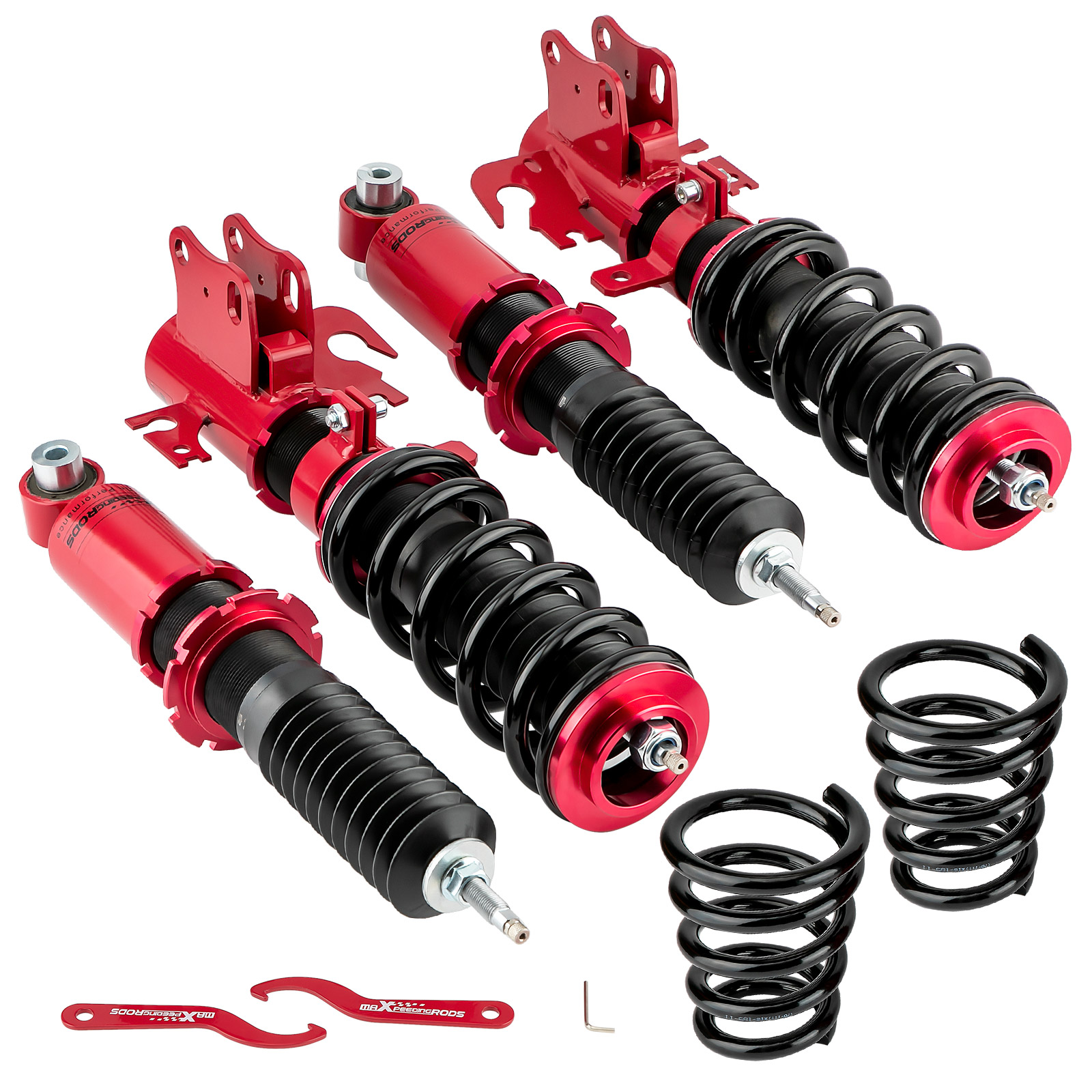

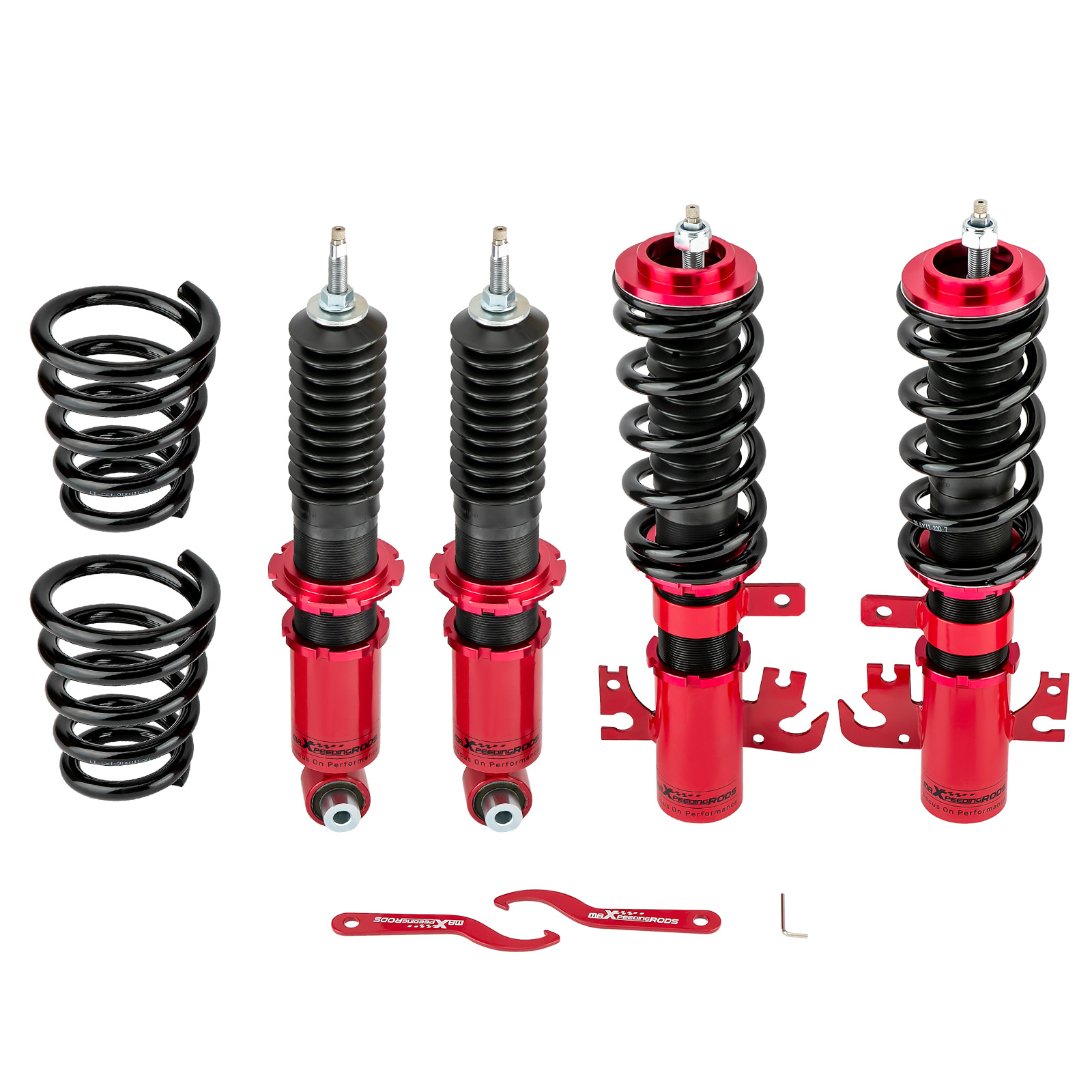

  • 1 x Set of Coilover Spring Kit (2 Front + 2 Rear)
  • 1 x Pair of wrenches for height adjustment
  • (Note: no top mounts included)



Application

  • For Holden Commodore VE Sedan 2006-2013
  • For Holden Commodore VE Wagon 2008-2013
  • For Holden Commodore VE  Ute   2007-2013

Standard Technical Specifications


Top mounts Front and rear OE top mounts required
Damping adjustable Available, 24 levels of rebound damping force
Spring rate Front 7 kg/mm (392 lbs/in)
Spring rate Rear 8 kg/mm (448 lbs/in)
Spring Preload advised 7-10 mm
Adjustable Height Yes, lowering 25-75mm depending on the vehicle models
Camber adjustable Not available
Coilover overall length Front 430mm-510mm
Coilover overall length Rear 405mm-445mm
Spring length Front 200mm
Spring length Rear 185mm

Details









































Feature

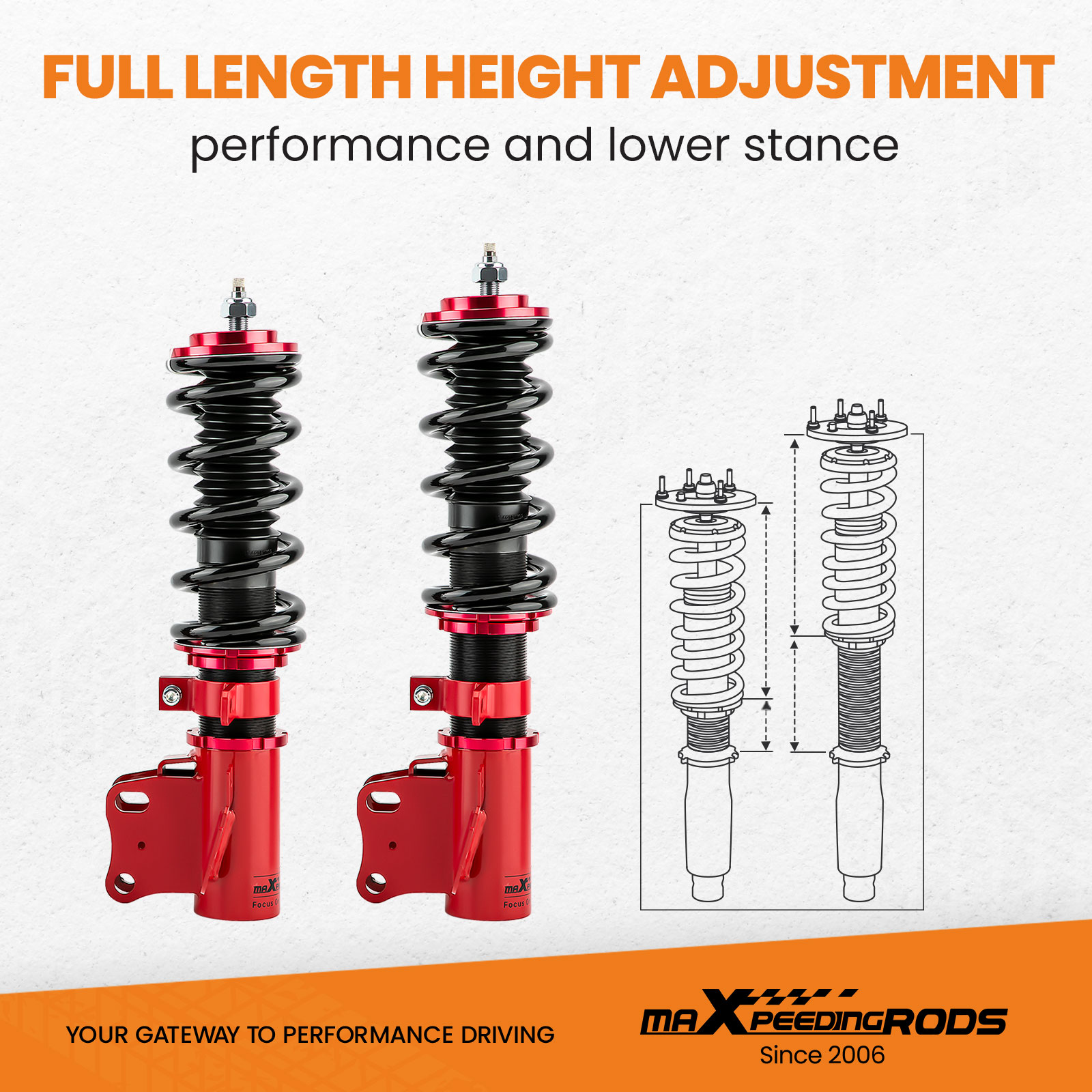

  1. Lowered height adjustment from 25-75mm (depends on vehicle models) which allows a lower center of gravity and also adds a more aggressive stance
  2. 24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
  3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

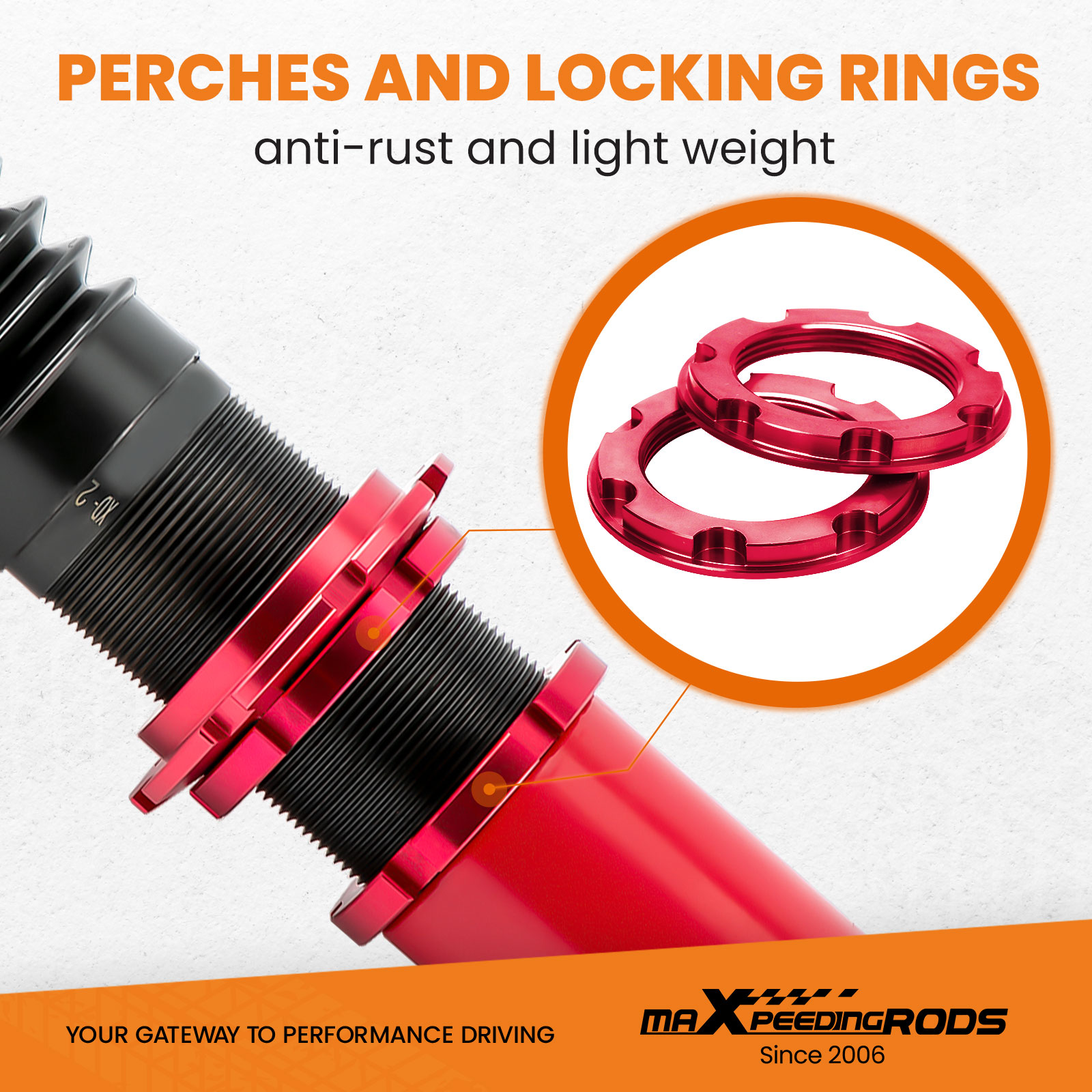

  4. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight

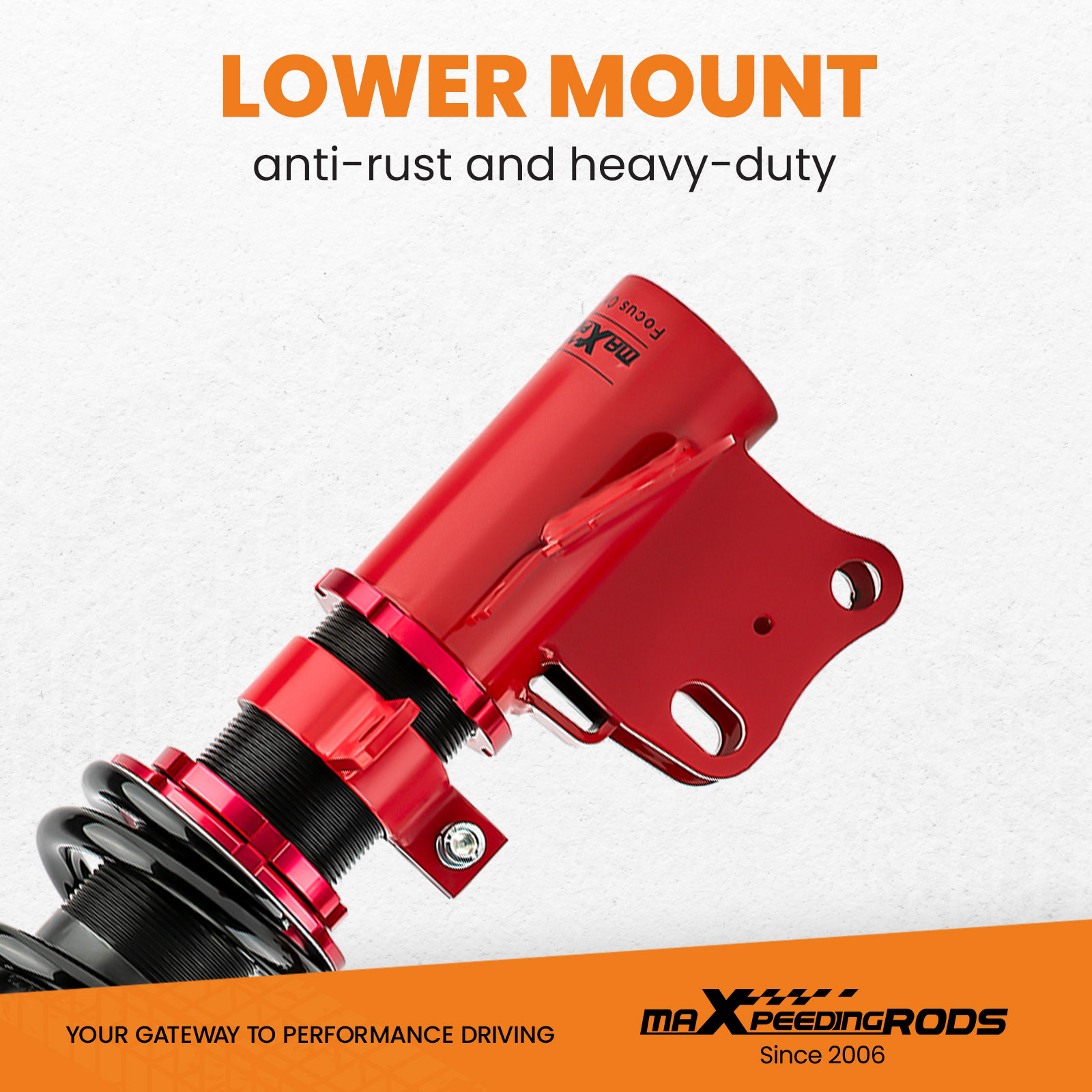

  5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

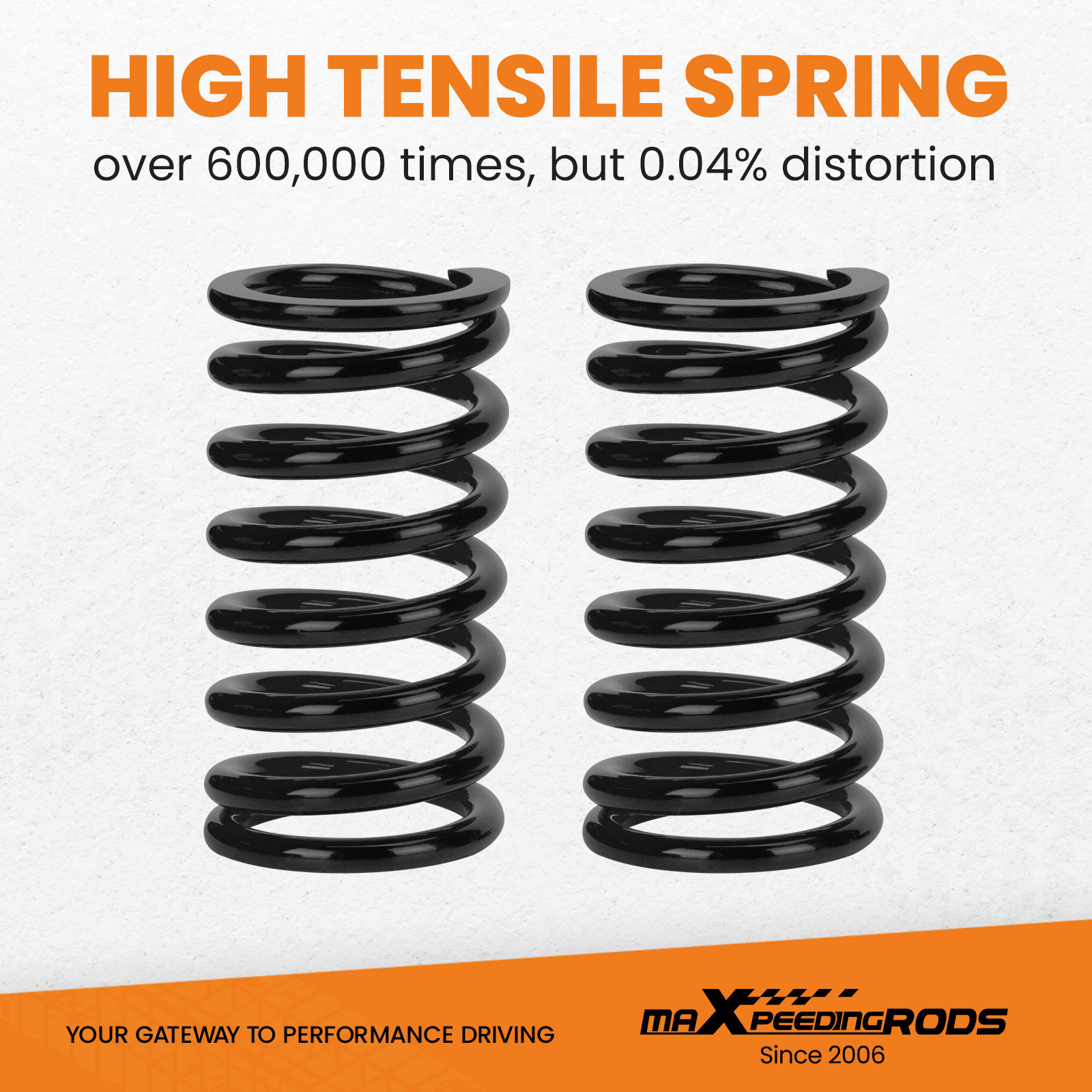

  6. High tensile spring---  600,000 times continuously test to assure its high tensile strength.
  7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
  8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
  9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

B2

See Details

B3

See Details

T6

See Details

T7

See Details
Application Scene
Street Basis Street Basis Street Performance Occasional Racing Use & Street Hight Performance
Damper Adjustable
No 24 levels rebound damping adjustable 24 levels rebound damping adjustable 24 levels rebound damping adjustable
Height Lowering Range
25-75mm 25-75mm 25-75mm 25-75mm
Damping oil
Standard damping oil Standard damping oil Standard damping oil Racing damping oil which maintains a stable viscosity
Spring Rate
F:7kg/mm ; R:8kg/mm F:7kg/mm ; R:8kg/mm F:7kg/mm ; R:8kg/mm F:7kg/mm ; R:8kg/mm
