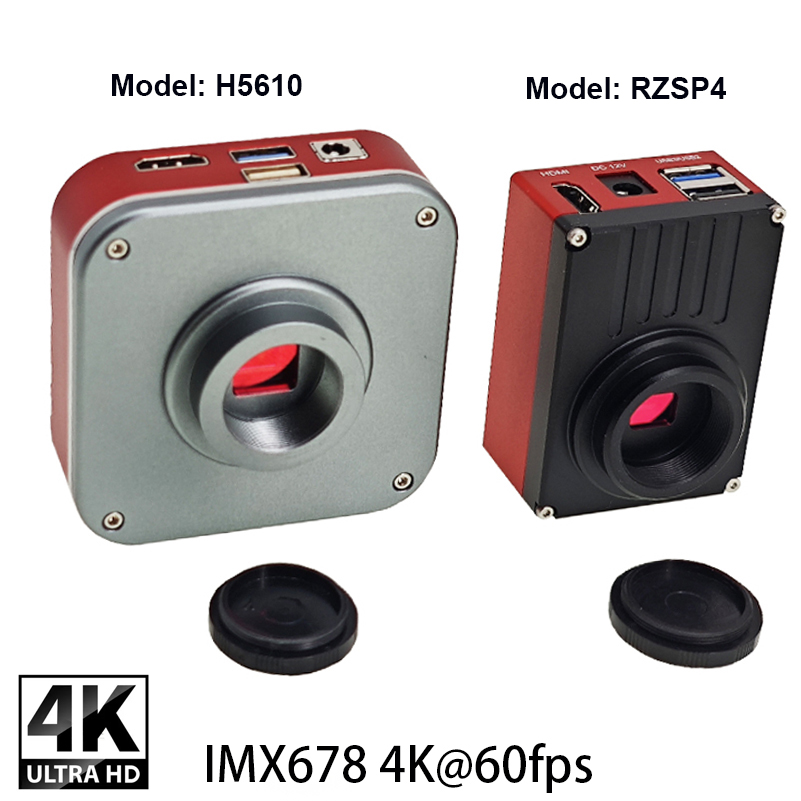

1/1.8" Big Size SONY IMX678 COMS
8.4MP 3840*2160 Photo, 4K Video HDMI Industrial Microscope Camera Support TF Card Storage Picture Mouse Operation with Measurement Function





Feature:

  • 1, Multifunction measurement function
  • 2, 1920*1080/3840*2160(4K) HDMI output (Long press the 5 second photo key to convert 1080P 4K)

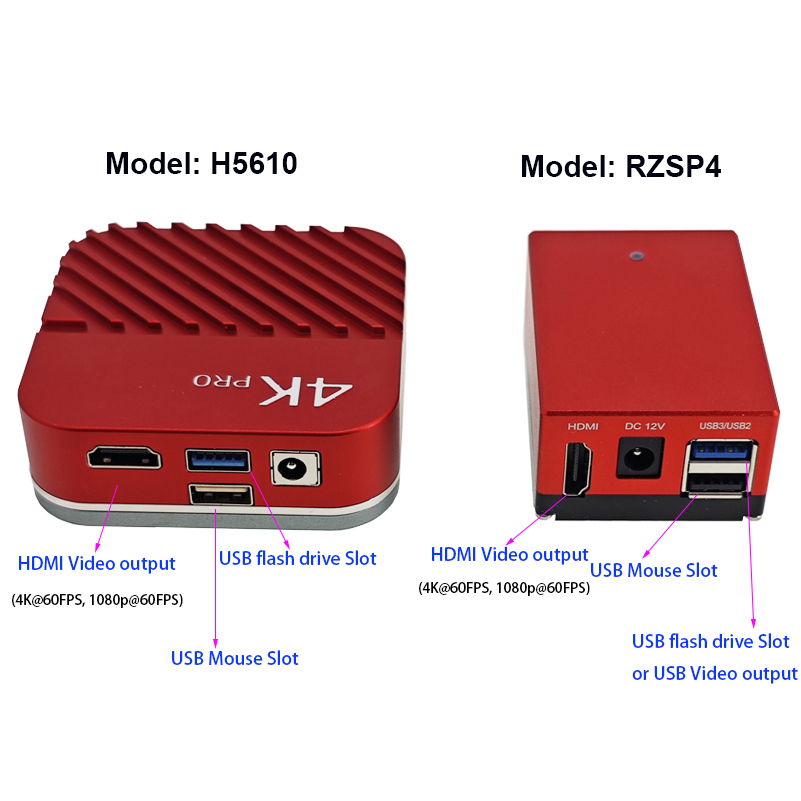

  • 3, Two USB interfaces (one USB mouse, one U disk).
  • 4, Save the picture (picture) to the U DISC or browse the pictures in the U DISC
  • 5. Cross lines: 1-12 groups, color is optional, size adjustable.
  • 6. Freeze function: two split screen, four split screen
  • 7. Scale: any number of scale pixels can be adjusted arbitrarily.
  • 8. Measure function: distance between two points, rectangle, circle, angle, etc.





















Specification:

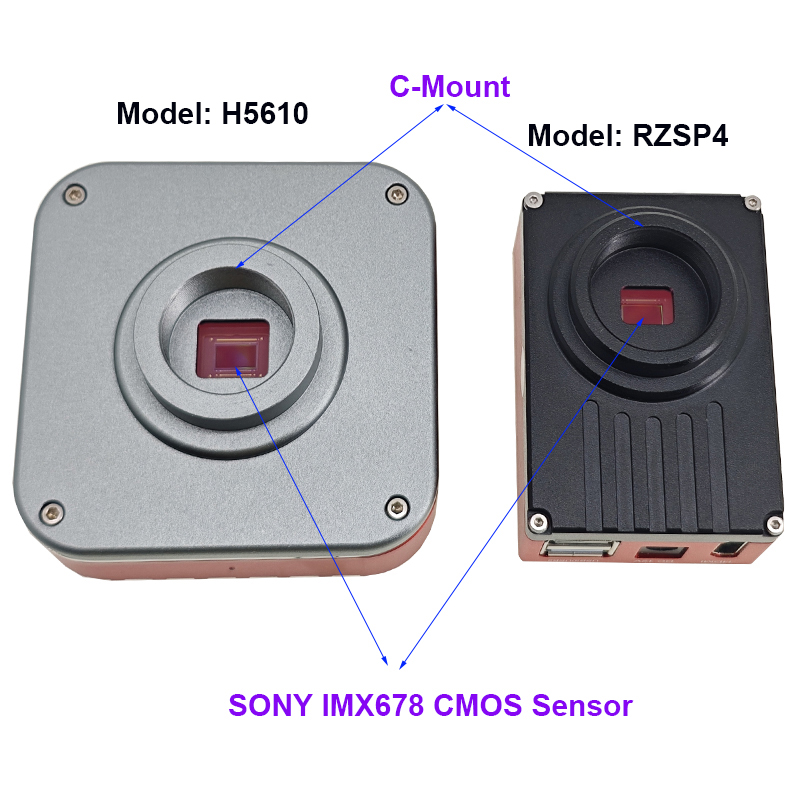

  • Sensor type: SONY IMX678 8.29 million pixels, 1 / 1.8 "CMOS color
  • Effective pixels: 3840*2160
  • Pixel size: 2.0*2.0μm
  • Number of data bits: 10bit
  • Frame rate: 1920*1080 60 frames / sec . 3840*2160 60 frames / sec
  • Scan mode: progressive
  • Shutter Type: Electronic Shutter
  • Dynamic range> 90dB
  • Signal to noise ratio: 55dB
  • Sensitivity: 2.0 V / lux-sec (550 nm)
  • Exposure method: manual / automatic
  • White Balance: Auto / Manual
  • Lens Interface: C / CS
  • Video interface: standard HDMI interface
  • HDMI output resolution: 3840*2160@60FPS , 1920*1080@60FPS
  • USB output resolution: 3840*2160@20FPS , 1920*1080@60FPS
    (only RZSP4 Camera Supply USB Video output, USB and HDMI  Simultaneously Output video, when open the UVC Model on the menu)
  • Support USB Disc saving function







Measuring Feature:

  • UI Digital design, mouse operation, humanized design
  • Labeling functions:  Point coordinates, cross lines, coordinate systems, text annotations
  • Length measurement:  Line length, line length, curve length, parallel line distance, point line distance
  • The center distance:  The radius fixed circle, two points setting circle, three points setting circle
  • Geometric measurement:  Line length, radius fixed circle, two point fixed circle, three point fixed circle, concentric circles
  • The geometric area:  Polygon, square

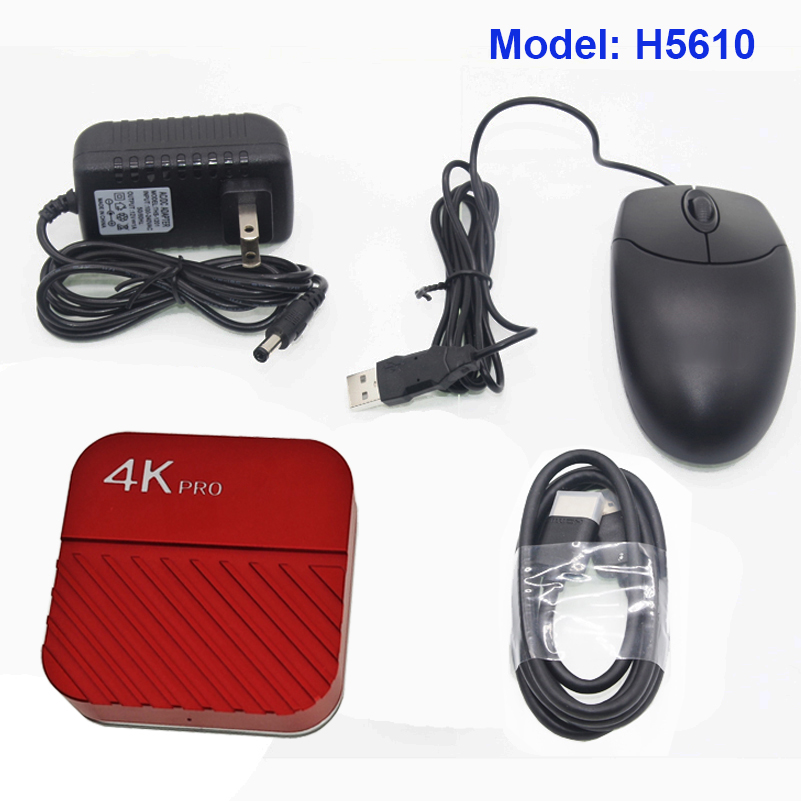

Package including:

  • 1 x 4K Digital Camera (option)
  • 1 x HDMI Cable
  • 1 x USB Mouse
  • 1 x 4GB U-Disc
  • 1 x Power Adapter

-------------------------------------------------------------------------------------------------------------------
