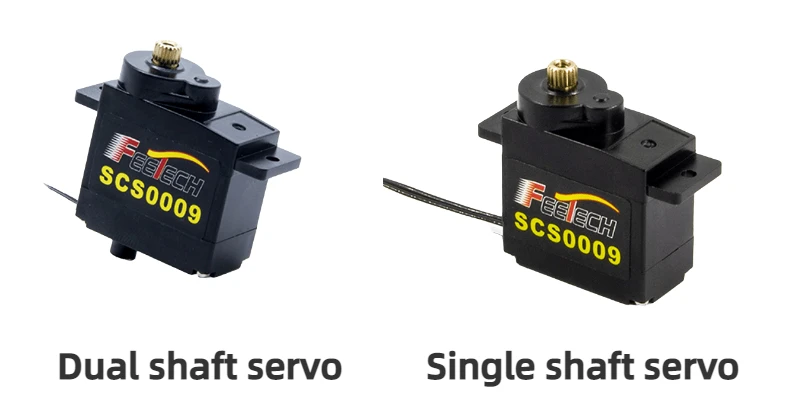

10PCS Feetech SCS009 2.5kg 9g Micro Servo Metal Gear Single Shaft Servo for RC Helicopter Smart Robot Humanoid DIY and STEAM Education Competition
Features
Serial Bus Servo 9g
Stall Torque: 2.3kg.cm/18.09oz.in(6V)
Dimensions: 23.2 × 12.5 × 22 mm
Weight: 9 g
Operating Speed : 0.12sec/60degree (4.8V)
0.10sec/60degree (6V)
Stall Torque : 2.3kg.cm/18.09oz.in(4.8V)
Operating Voltage : 4.8V~6V
Control System : Digital
Direction : CCW
Operating Angle : 300degree
Required Pulse : 900us-2100us
Bearing Type : None
Gear Type : Metal
Motor Type : Core motor
Connector Wire Length : 20 cm
Feedback: Load, Speed, Input Voltage
Packing List:
10pcs SCS009 servo
