Description
This machine belongs to the small grain screening machine, which is used to remove impurities such as grain leaves, bran, dust, plastic parts and degassed grains. The removal rate of impurities and inorganic substances is 90% and 92% respectively. Linear vibrating screen can also screen and classify powder and granular materials. It is widely used in plastics, abrasives, chemical industry, medicine, building materials, grain, carbon, fertilizer and other industries.
Working principle
The linear vibrating screen is driven by a vibrating motor. When the vibrating motor rotates synchronously and reversely, the exciting force produced by the eccentric block cancels each other in the direction parallel to the axis of the motor, and superimposes a combined force in the direction perpendicular to the axis of the motor, so the trajectory of the screen machine is a straight line. The motor shaft has an inclination angle relative to the screen surface.
Under the combined action of the exciting force and the gravity of the material, the material is thrown up and jumped forward in a straight line motion on the screen surface, so as to achieve the purpose of screening and grading the material. It can be used to realize automatic operation in pipeline. The utility model has the characteristics of low energy consumption, high efficiency, simple structure, easy maintenance and fully enclosed structure without dust spillover. Can be screened to 100 meshes (dry material), can screen out different granularity of materials.

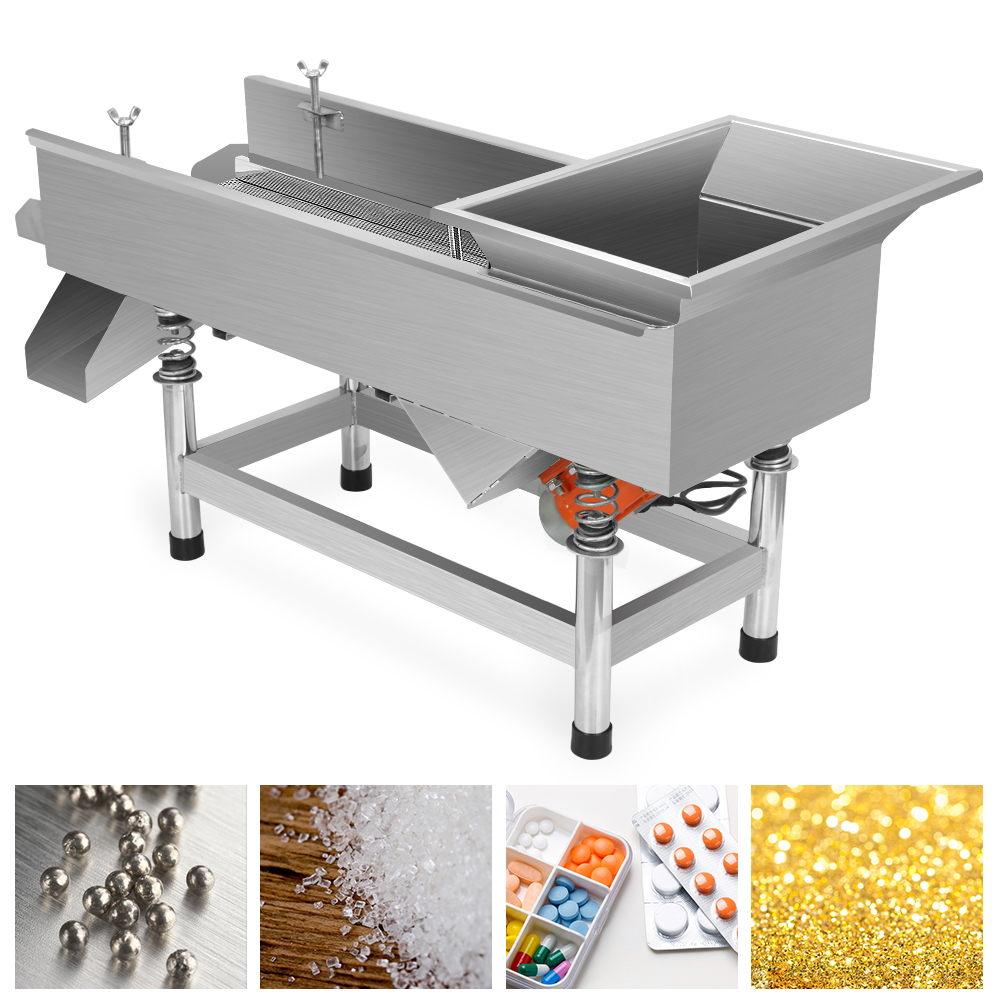

Linear Vibrating Screen
Linear vibrating screen uses vibrating motor as vibration source to make material thrown up on screen and move forward in a straight line. Material evenly enters the inlet and outlet of screen machine from feeder. Through multi-layer screen, several sieves of different sieves are produced and discharged from their respective outlets. The utility model has the advantages of low energy consumption, high output, simple structure, easy maintenance, no dust overflow and automatic discharge, and is more suitable for pipeline operation.
Specifications
Voltage: 110V
Power: 80W,60HZ
Rotating Speed: 3000 r / min
Production:150-200kg/h
The type of the material in and out: Hopper into
Screeners Size: 6 Mesh(L: 750mm W: 250mm)
Usage: wheat, corn etc.
Gross weight: 25kg
Product size: 37.8×15.7×19.5"
Features
1. Screen machine design, exquisite and easy to assemble, one person can operate the screen machine.
2. Compared with other relevant brand manufacturers, Dudu has a larger screening area and a high-efficiency processing capacity.
3. Unique screen structure design, convenient and rapid replacement of screen (only 1-3 minutes), in addition, this design allows the use of various screens (plastic plate, stainless steel punching plate, stainless steel wire mesh, copper wire mesh, nickel-plated wire mesh, etc.).
4. It's bracket fully supports the screen, so the screen can have a longer life, and reduce the use of fine mesh consumables, silting for a long time of production process can reduce many costs.
Advantages
1. Easy to remove.
2. Dust removal impurity efficiency significantly.
3. Low energy consumption, easy to use and reliable.
Package Content
1× Sha
Note:
Screen sizes are customizable. If you need specific size, please feel free to contact us for quote. Thank you.
