Detailed:

UT216 series true RMS digital clamp meter is a new-generation practical electrotechnical measurement meter

which has the features of high reliability, high safety, automatic range and handheld type,

has full-range overload protection and unique appearance design, is more excellent in performance, and is an ideal tool for detection,

maintenance and repair of various universities and colleges, smelting, communication, manufacturing, petroleum, national defense, electrical, power and circuit equipment.



Feature:

1.600A DC/AC current measurement
2.True RMS response for ACV and ACA
3.99.99mF capacitance measurement
4.Non-contact voltage detection with LED indication
5.Flashlight for working at dark environment

6.NCV,VFC function,



Specification:

Specifications Range Best Accuracy
Model   UT216C
AC Current (A) 60A/600A ±(2.5%+5)
AC Current Frequency (Hz)   40Hz ~ 400Hz
DC Current (A) 60A/600A ±(2.5%+5)
AC Voltage (V) 6V/60V/600V/750V ±(1.2%+5)
AC Current Frequency (Hz)   40Hz ~400Hz
DC Voltage (V) 600mV/6V/60V/600V/1000V ±(0.8%+1)
Resistance (Ω) 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1%+2)
Capacitance (°F) 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/60mF ±(4.0%+5)
Frequency (Hz) 10Hz~10MHz ±(0.1%+4)
Temperature (°C) -40°C ～ 1000°C ±(2.0%+5)
Temperature (°F) -40°F ～ 1832°F ±(2.0%+10)
Features
Display Count   6000
Auto Range   √
Jaw Capacity   30mm
True RMS   √
Diode Around 3.0V √
VFC   √
NCV   √
Data Hold   √
Relative Mode   √
MAX/MIN   √
Inrush Current    √
LCD Backlight   √
Analogue Bar Graph   61
Flashlight   √
Auto Power Off Around 15 minutes √
Continuity Buzzer   √
Low Battery Indication ≤3.6V √
Input Protection   √
Input Impedance for DCV ≥10MΩ √
General Characteristics
Power AAA 1.5V x 3（NO Battery）
LCD Size 38mm x 24mm
Product Color Red and Grey
Product Net Weight 231.7g
Product Size 220mm x 75mm x 40mm

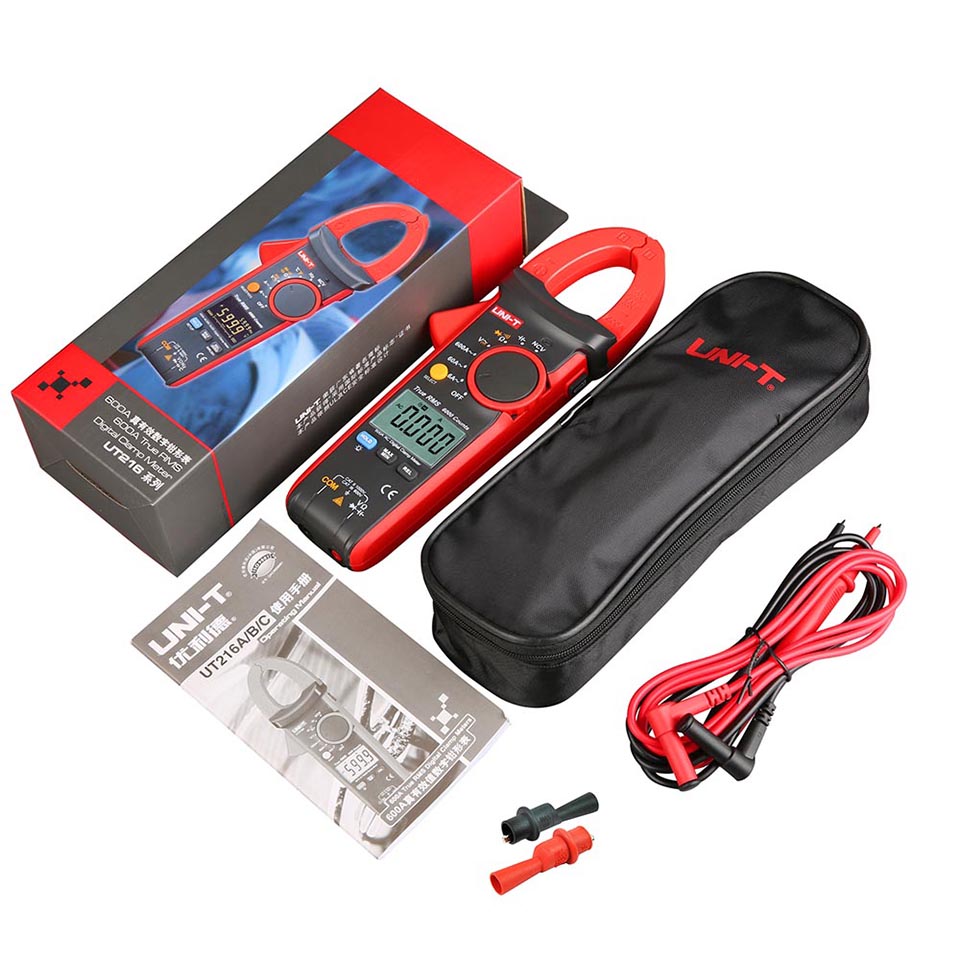

Package Included:

1 x UT216C Clamp Meters

1 x pair Test Lead

1 x temperature probe

1 x pair alligator clip (pluss)

1 x English Manual
