Before purhcase please read description carefully, we ship item according buyer choose. thank you.

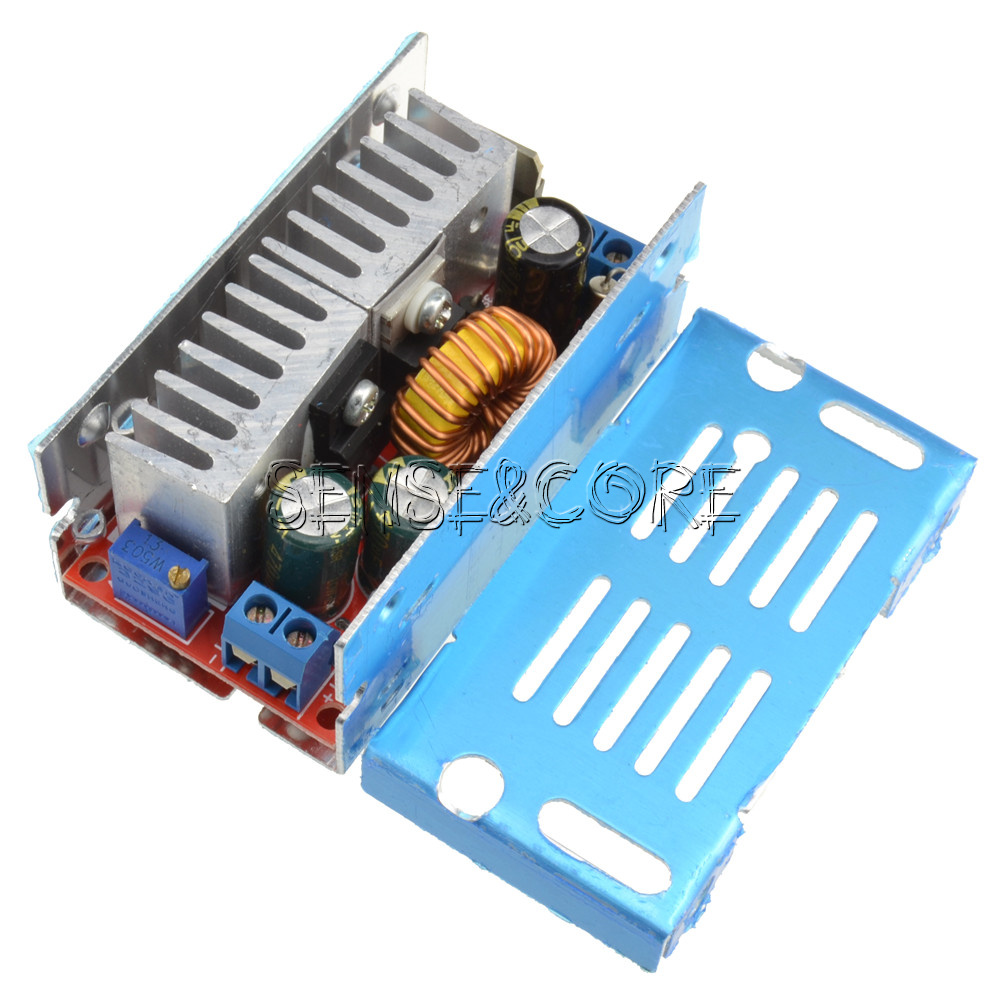

DC5-40V to 1.25-36V 8A
This power module is a DC step-down switching power supply, the input voltage should always be greater than the output voltage and at least 1.25V voltage difference, input power = output power + loss (energy conservation principle)
The new version reserves 12V fan regulator tube installation interface, standard fuse tube, power output indicator, can be directly converted into a single-turn potentiometer with a handle, the performance is ultra-stable, rated current 8A, all new models are delivered with aluminum casing; maximum power 160W DC -The input of the DC step-down module is protected against reverse connection, overvoltage, overcurrent, and overtemperature, and the circuit design is high-efficiency and low-ripple.
Parameter Description:
Type: Non-isolated Buck Module (BUCK)
Weight: 90g
Input voltage: 5-40V (please leave a margin for the limit of 40V)
Output voltage: 1.25-36V continuously adjustable
Output current: Rated 8A (The current size is related to the pressure difference and temperature. When the current is large, the chip overheats and automatically reduces the current. The natural heat dissipation current can work stably at 5-6A at normal ambient temperature, and the enhanced heat dissipation can work for a long time to 8A)
Output power: natural cooling power 80W, enhanced cooling can reach 160W
Working temperature: -40~+85 degrees
Working frequency: 180KHz
Conversion efficiency: up to 95% (efficiency is related to input, output voltage, current, and voltage difference)
Short circuit protection: yes (there is a risk of short circuit, please try not to short circuit)
Over-temperature protection: yes (automatically reduce output after over-temperature)
Input reverse connection protection: yes (please do not reverse connection for a long time)
Transient pulse overvoltage protection: yes (overvoltage protection voltage 40.5V)
Aluminum shell size: 70MM*39MM*31MM
Weight: 90g
Input voltage: 5-40V (please leave a margin for the limit of 40V)
Output voltage: 1.25-36V continuously adjustable
Output current: Rated 8A (The current size is related to the pressure difference and temperature. When the current is large, the chip overheats and automatically reduces the current. The natural heat dissipation current can work stably at 5-6A at normal ambient temperature, and the enhanced heat dissipation can work for a long time to 8A)
Output power: natural cooling power 80W, enhanced cooling can reach 160W
Working temperature: -40~+85 degrees
Working frequency: 180KHz
Conversion efficiency: up to 95% (efficiency is related to input, output voltage, current, and voltage difference)
Short circuit protection: yes (there is a risk of short circuit, please try not to short circuit)
Over-temperature protection: yes (automatically reduce output after over-temperature)
Input reverse connection protection: yes (please do not reverse connection for a long time)
Transient pulse overvoltage protection: yes (overvoltage protection voltage 40.5V)
Aluminum shell size: 70MM*39MM*31MM
Application scenarios:
This module can be used in step-down fields where the input voltage is higher than the output voltage, such as batteries, power transformers, DIY adjustable regulated power supplies, 24V car pen power supplies, low-power motor speed regulation, car LED light strip power supplies, and industrial equipment. Buck, 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, etc.
This module can be used in step-down fields where the input voltage is higher than the output voltage, such as batteries, power transformers, DIY adjustable regulated power supplies, 24V car pen power supplies, low-power motor speed regulation, car LED light strip power supplies, and industrial equipment. Buck, 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, etc.
Package list
1* 160W high power and high efficiency on-board stabilized power supply
1* 160W high power and high efficiency on-board stabilized power supply

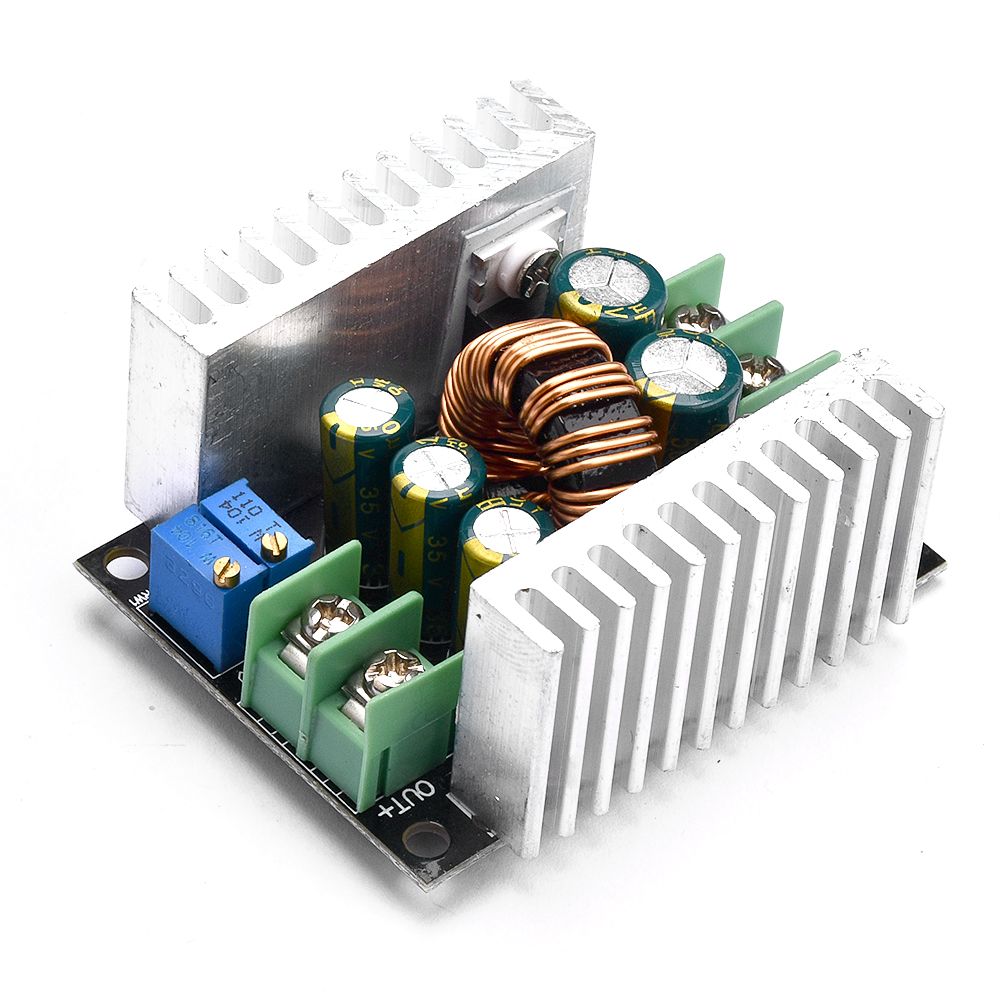

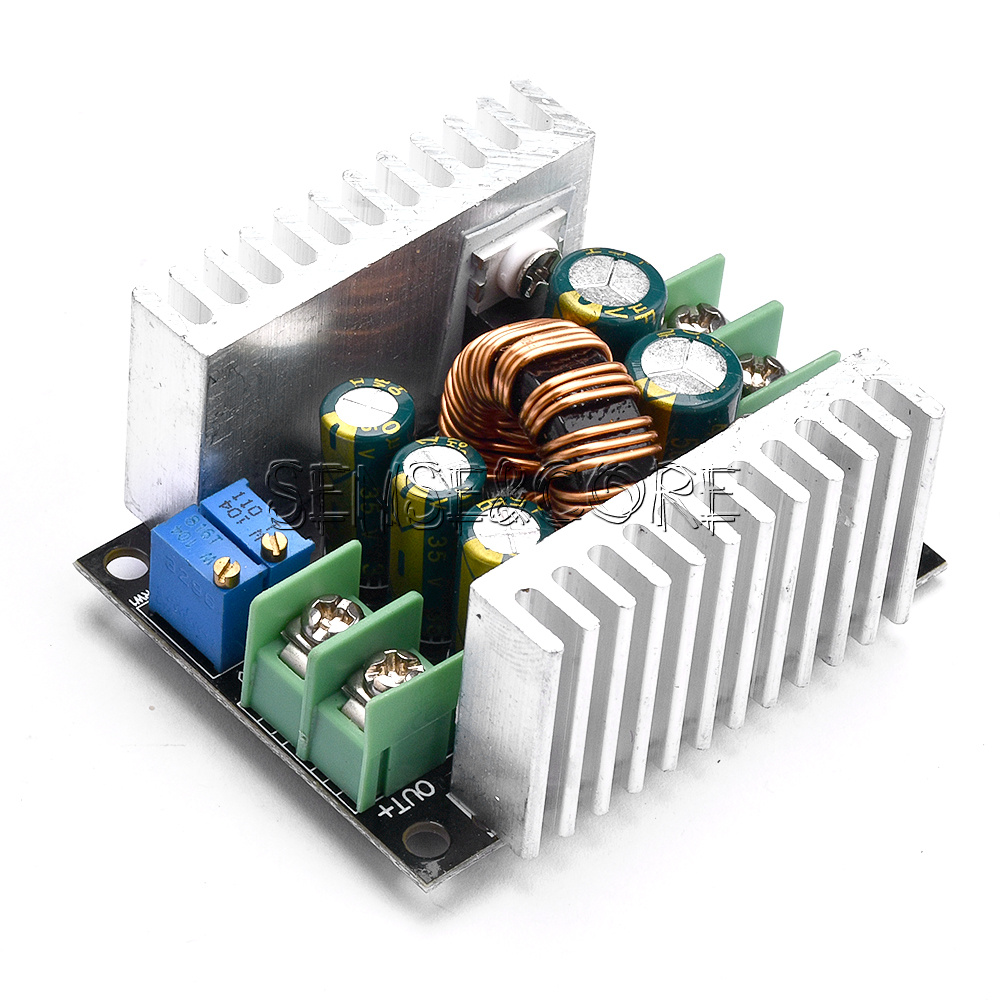

DC8-55V to 1-36V 10A
Description:
200W DC-DC high voltage power synchronous buck module
8-60V wide voltage input, 1-36V stepless adjustable output
The maximum peak output current 15A
Perfect ultra-efficient circuit design up to 94% Low Ripple
Parameter:
Name: 200W adjustable synchronous buck module
Type: Non-isolated step-down module (BUCK)
Aluminum housing Size: 70 x 38 x 31mm / 27.5"x15" x12"
Input voltage: 8-55V (limit 60V, please leave allowance)
Output voltage: 1-36V continuously adjustable (the default output 12V)
Output Current: Normal 10A , MAX15A
Output power: natural cooling ventilated long-term power 100W
To enhance heat dissipation up to 200W
Such as long working hours, please note left margin and make the heat rise
Operating temperature: -10 to +85 degrees
Operating frequency: 180KHz
Conversion efficiency: up to 94%
Overcurrent protection: Yes (the output current exceeds (15A) current maximum sample protection only)
Reverse polarity protection: (reverse does not burn)
Wiring: high current terminals, solderless, IN + input is positive, IN- is the input negative, OUT + positive output, OUT- output negative
Package Included:
1 x Module
200W DC-DC high voltage power synchronous buck module
8-60V wide voltage input, 1-36V stepless adjustable output
The maximum peak output current 15A
Perfect ultra-efficient circuit design up to 94% Low Ripple
Parameter:
Name: 200W adjustable synchronous buck module
Type: Non-isolated step-down module (BUCK)
Aluminum housing Size: 70 x 38 x 31mm / 27.5"x15" x12"
Input voltage: 8-55V (limit 60V, please leave allowance)
Output voltage: 1-36V continuously adjustable (the default output 12V)
Output Current: Normal 10A , MAX15A
Output power: natural cooling ventilated long-term power 100W
To enhance heat dissipation up to 200W
Such as long working hours, please note left margin and make the heat rise
Operating temperature: -10 to +85 degrees
Operating frequency: 180KHz
Conversion efficiency: up to 94%
Overcurrent protection: Yes (the output current exceeds (15A) current maximum sample protection only)
Reverse polarity protection: (reverse does not burn)
Wiring: high current terminals, solderless, IN + input is positive, IN- is the input negative, OUT + positive output, OUT- output negative
Package Included:
1 x Module

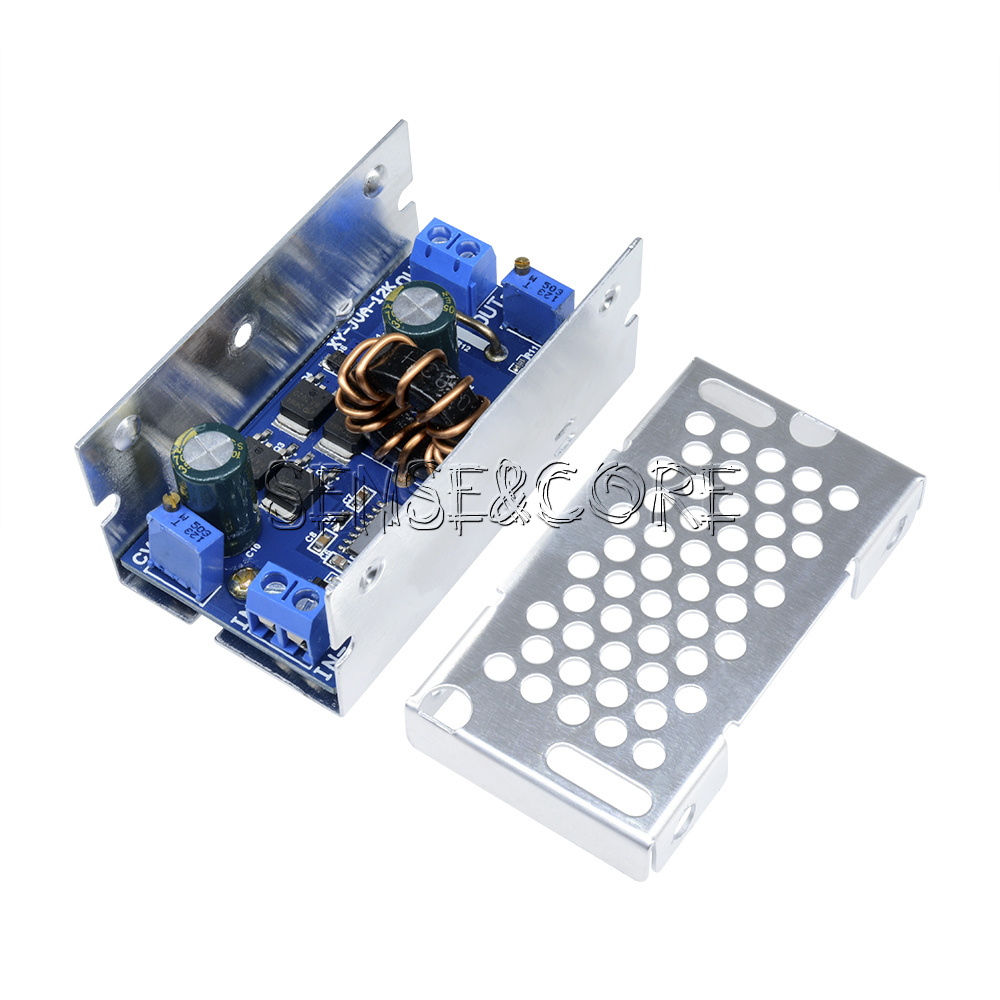

DC4-32V to 1.2-32V 12A
1. Three ways to use the module
a. as a general step-down module with overcurrent protection capability;
b. As a variety of voltage lithium batteries, batteries, nickel-cadmium nickel-metal hydride batteries (battery pack) charger used for solar panels, wind turbines and other occasions;
c. used as a high power LED constant current drive module;
a. as a general step-down module with overcurrent protection capability;
b. As a variety of voltage lithium batteries, batteries, nickel-cadmium nickel-metal hydride batteries (battery pack) charger used for solar panels, wind turbines and other occasions;
c. used as a high power LED constant current drive module;
2. Module parameters
Module name: 12A synchronous rectifier buck module, constant voltage constant current
Module nature: non-isolated step-down module (BUCK) synchronous rectification
Input voltage: 4-32V (limit 35V) Please keep the voltage margin.
Output voltage: 1.2-32V continuously adjustable (default output of about 18V, if the power to the module and found that the left and right rotary voltage potentiometer output voltage has not changed, you first turn the voltage potentiometer counterclockwise rotation of more than 15 laps)
Input and output minimum pressure difference: 0.8V
Output current: 0-12A long time natural heat within 8A, the temperature does not exceed 60 degrees. Please reduce power when the ambient temperature is high.
Output constant current range: 0-12A
Operating temperature: -40 ~ +85 degrees
Operating frequency: 150KHz
Conversion efficiency: up to 98% (efficiency and input, output voltage, current, pressure related)
Short circuit protection: Yes (limit current is current constant current value)
Input Reverse Protection: None (if required, enter the string in the input diode)
Output anti-backlash protection: none (if necessary, in the output string into the diode, for charging applications, please add the anti-diode between the output of the module and the battery, otherwise it will damage the module.)
Size (including shell): long, wide, high, 70mm * 40mm * 30mm.
Weight: 54g (including shell).
Module name: 12A synchronous rectifier buck module, constant voltage constant current
Module nature: non-isolated step-down module (BUCK) synchronous rectification
Input voltage: 4-32V (limit 35V) Please keep the voltage margin.
Output voltage: 1.2-32V continuously adjustable (default output of about 18V, if the power to the module and found that the left and right rotary voltage potentiometer output voltage has not changed, you first turn the voltage potentiometer counterclockwise rotation of more than 15 laps)
Input and output minimum pressure difference: 0.8V
Output current: 0-12A long time natural heat within 8A, the temperature does not exceed 60 degrees. Please reduce power when the ambient temperature is high.
Output constant current range: 0-12A
Operating temperature: -40 ~ +85 degrees
Operating frequency: 150KHz
Conversion efficiency: up to 98% (efficiency and input, output voltage, current, pressure related)
Short circuit protection: Yes (limit current is current constant current value)
Input Reverse Protection: None (if required, enter the string in the input diode)
Output anti-backlash protection: none (if necessary, in the output string into the diode, for charging applications, please add the anti-diode between the output of the module and the battery, otherwise it will damage the module.)
Size (including shell): long, wide, high, 70mm * 40mm * 30mm.
Weight: 54g (including shell).
3. Application
a, DIY a power supply, with constant current function, not afraid of the use of the process will be short-circuit, you can protect the load.
b, for your electronic equipment power supply.
c, for a variety of battery charging, according to different voltage and capacity of the battery set the charging voltage and charging current.
d, with solar panel power for a variety of battery charging, with constant current function, to prevent the battery overcharge, the effective protection of the battery.
e, drive high-power LED, free serial and parallel combination.
f, as a car power supply for your mobile phone, laptop or a variety of digital products.
a, DIY a power supply, with constant current function, not afraid of the use of the process will be short-circuit, you can protect the load.
b, for your electronic equipment power supply.
c, for a variety of battery charging, according to different voltage and capacity of the battery set the charging voltage and charging current.
d, with solar panel power for a variety of battery charging, with constant current function, to prevent the battery overcharge, the effective protection of the battery.
e, drive high-power LED, free serial and parallel combination.
f, as a car power supply for your mobile phone, laptop or a variety of digital products.
4.Set the voltage and current method
1, set the output voltage: according to the battery you want to charge the float voltage, or string, parallel to the LED voltage, adjust the constant voltage potentiometer (CV), the output voltage is set to the required voltage. (Without load)
2, set a constant current value: the first CC potentiometer counterclockwise 20 laps or so, with a multimeter 20A current file short-circuit output, adjust the CC potentiometer to you need to set the current value.
Note: constant current set when the voltage is higher than 1.2V, otherwise the constant current function will be invalid.
1, set the output voltage: according to the battery you want to charge the float voltage, or string, parallel to the LED voltage, adjust the constant voltage potentiometer (CV), the output voltage is set to the required voltage. (Without load)
2, set a constant current value: the first CC potentiometer counterclockwise 20 laps or so, with a multimeter 20A current file short-circuit output, adjust the CC potentiometer to you need to set the current value.
Note: constant current set when the voltage is higher than 1.2V, otherwise the constant current function will be invalid.
pay attention
1. Please use this product, the module input and output are not together, this will cause the module's current sampling resistor is bypassed, so that the module can not adjust the output current size, then the case of large load easily Burn the module.
2. A customer reflects the module output voltage can not be adjusted, when you encounter this problem, please counterclockwise rotation of the CV potentiometer more than 20 laps, and then use the module can be normal adjustment of the voltage. Because the module factory, the default output voltage of about 18V. We are not responsible for the return of such questions and freight, thank you for your understanding.
1. Please use this product, the module input and output are not together, this will cause the module's current sampling resistor is bypassed, so that the module can not adjust the output current size, then the case of large load easily Burn the module.
2. A customer reflects the module output voltage can not be adjusted, when you encounter this problem, please counterclockwise rotation of the CV potentiometer more than 20 laps, and then use the module can be normal adjustment of the voltage. Because the module factory, the default output voltage of about 18V. We are not responsible for the return of such questions and freight, thank you for your understanding.
Note : Long work to keep within 150W, the limit should not exceed 200W, otherwise it will burn !
Package Included:
1 x 12A Step down Module

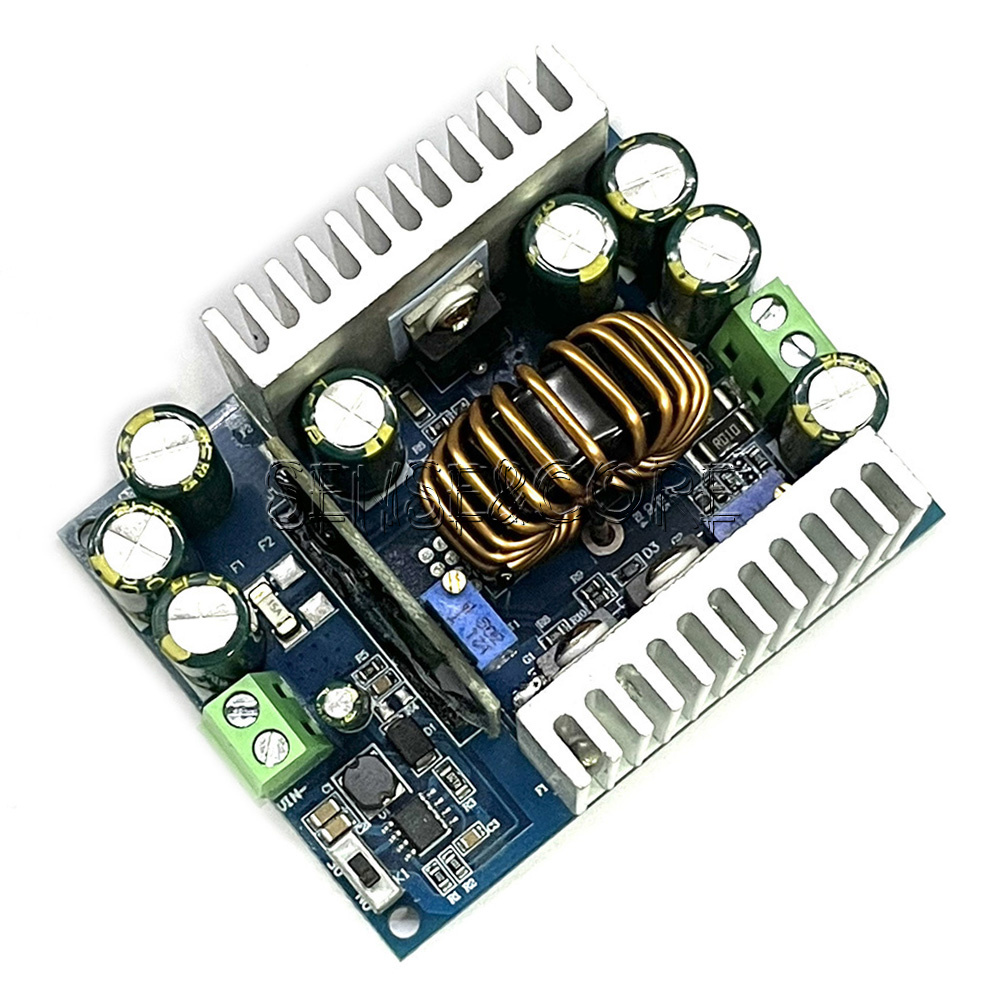

DC6-40V to 1.2-36V 20A
Features:
With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current.
The efficiency can be up to 96%, measured at 20A, converting 24V to 12V.
It is designed with 75V/80A large current dual MOS tube.
Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output.
Wiring is convenient with these large current 30A screw terminals.
The buck module has 2 heat sink that could enhance heat dissipation.
When there is a big difference between input and output voltage, please decrease power and current.
Specifications:
Specifications:
Input Voltage: 6V to 40V DC(10V to 40V is suggested)
Output Voltage: 1.2V to 36V DC
Output Current: 20A(max.), 15A(suggested)
Efficiency: 95%(24V to 12V, 20A)
Output Ripple: ≤50mV
Wiring Method: Terminal
Short Circuit Protection: Self-recovery(cannot short circuit for long time)
Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06"
VO+: Output positive
VO-: Output negative
+IN: Input positive
-IN: Input negative
CV: Output voltage adjustment
CC: Output current adjustment
EN: Enable, low voltage level shut off output; suspension, high voltage level is effective
When input and output is common grounded, no-load CV output constant voltage,CC output constant current
Package Include:
VO+: Output positive
VO-: Output negative
+IN: Input positive
-IN: Input negative
CV: Output voltage adjustment
CC: Output current adjustment
EN: Enable, low voltage level shut off output; suspension, high voltage level is effective
When input and output is common grounded, no-load CV output constant voltage,CC output constant current
Package Include:
1 x 300W 20A Constant Current Adjustable Buck Converter Step-Down Voltage Module
DC7V-60V to 1.25-35V 10A
Features:
1. Adjustable, the output voltage can be adjusted by adjusting the potentiometer.
2. Made of high-quality materials, durable and practical, with a conversion efficiency of up to 94% (MAX).
3. The application is simple, the operation is convenient, and the wiring terminals are solderless.
4. With protection function, short circuit protection, reverse connection protection.
5. It has a wide range of applications, suitable for various application fields such as electric tools, electronics, industrial automation, communication equipment, etc.
Parameter:
Input voltage: DC7V-60V (limited to 60V, please reserve)
Output voltage: DC1.25-35V adjustable (default output 12V)
Conversion efficiency: 94% (MAX) (efficiency is related to input, output voltage difference, and output current)
Protection: Short circuit protection, reverse connection protection (reverse connection without burning the board)
Output current: Normal 10A, 15A (MAX)
Output power: Natural heat dissipation of 100W, enhanced heat dissipation of 120W. If working for a long time, please pay attention to the left edge and heat it up.
Working temperature: -10 ℃ to+85 ℃
Working frequency: 180KHz
Product size: approximately 70mm * 39mm * 30mm
Wiring method: The wiring terminals are solderless, with IN as the input and OUT as the output
Special note: The larger the input and output pressure difference of the module, the more severe the heating, the lower the efficiency, and the worse the load capacity.
Note:
1. This power module belongs to a DC buck switching power supply, and the input voltage should always be greater than the output voltage and have a minimum voltage difference of 1V. Input power=output power+loss (energy conservation principle)
2. The marked current is the maximum current under specific conditions (measured 12 drops by 5V). The actual output current is not fixed and is related to the input output voltage difference and temperature.
Package include:
Module * 1

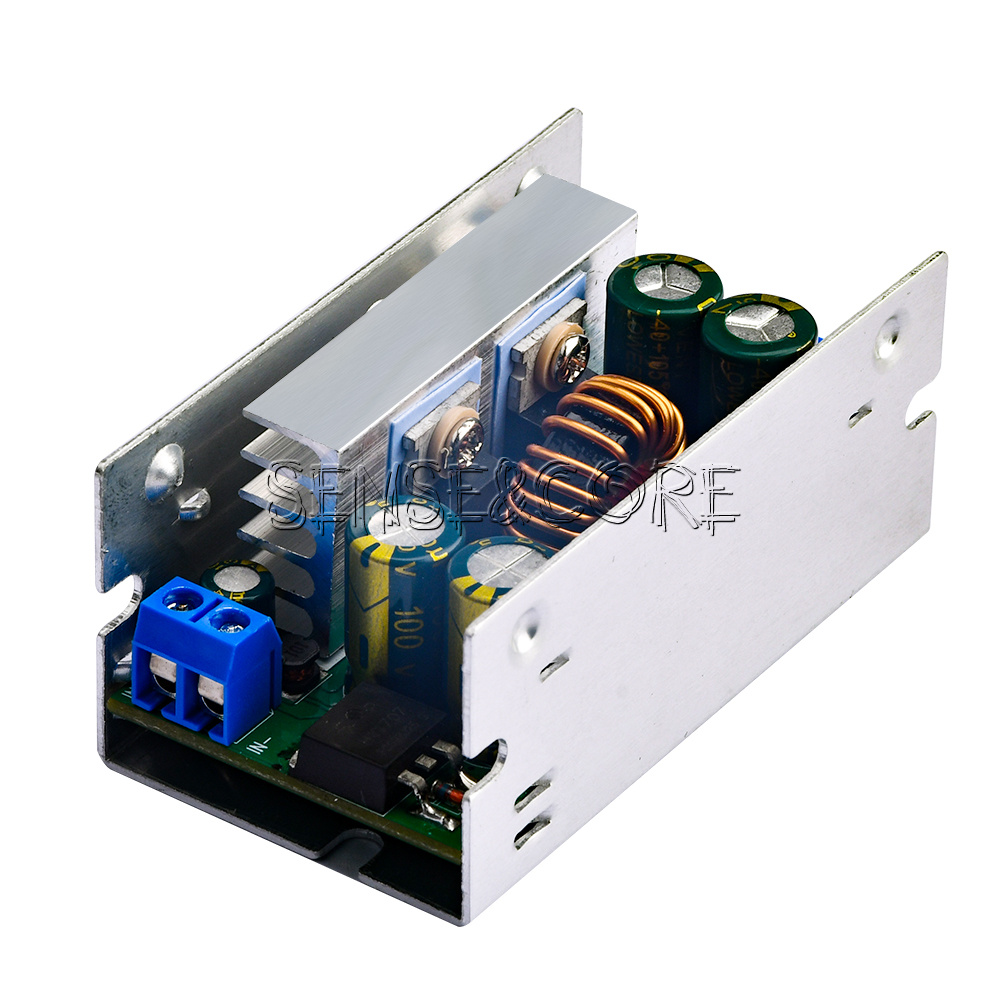

DC12-95V to 1.5-90V 18A
Product Feature:
1. The module adopts a step rectification scheme, with extremely high efficiency, with a maximum efficiency of 96%
2. The output voltage and current are continuously adjustable
3. The maximum input voltage can reach 95V, and the maximum output voltage is 90V
4. Input anti reverse connection, positive and negative reverse connection without burning
5. There is a soft start switch
Module parameters:
Module name: 500w step-down constant voltage constant current adjustable power module
Module nature: Non isolated step-down module
Input voltage: 12-95V
Output voltage range: 1.5-90V (can only reduce voltage, cannot increase voltage, output voltage can only be lower than input voltage)
Input output pressure difference: 2V
Output constant current: 0.3-18A (continuously adjustable)
Output rated current: 15A
Rated output power: 400w
Input overvoltage protection: None (overpressure prohibited)
Working temperature: -10~+65 degrees Celsius
Working frequency: 120KHz
Conversion efficiency: up to 96% (efficiency is related to input and output voltage, current, and voltage difference)
Short circuit protection: Yes (constant current protection)
Input reverse protection: Yes (MOS transistor reverse connection)
Output anti backflow: None (charging the battery, connecting the output to an inductive load, such as adding anti backflow diodes when connecting to the motor)
Precautions:
1. If the input voltage exceeds 36V, first turn the ON/OFF switch to OFF, connect the wire, and then turn the switch to ON (to prevent ignition during wiring)
2. This power supply is a step-down power supply, and the output voltage can only be lower than the input voltage
3. Under natural heat dissipation, the power should not exceed 400W and the current should not exceed 15A. There is a power limit. If the output voltage is high and the input output voltage difference is large, please reduce the current and use it
4. If the current exceeds 15A and the power exceeds 400W, please add a fan for heat dissipation
Voltage and current adjustment method: (using a tool multimeter and a flat screwdriver)
Voltage regulation: turn the blue Potentiometer on the power panel according to the voltage you need, and turn the voltage up clockwise and down counterclockwise;
Output current regulation: turn the multimeter or Ammeter to 20A or 10A current gear, adjust the power supply voltage to 5V, turn the constant current Potentiometer counterclockwise for about 10 turns, adjust the current to the minimum, use the multimeter for short circuit output, and then adjust the Potentiometer clockwise to adjust the current to the required current value;
The current detection of the module is a low-end detection. Please do not directly short circuit the input negative pole and output negative pole with wires, as the short circuit negative pole power supply may not have constant current, resulting in damage to the power supply and electrical equipment that requires constant current.
The module is a step-down power supply that can only reduce voltage but cannot increase it. The input voltage must be higher than the output voltage.
Shipping list:
Module X1
Am 19.03.2024 hat der Verkäufer die folgenden Angaben hinzugefügt:
Am 03.06.2025 hat der Verkäufer die folgenden Angaben hinzugefügt:
Am 07.07.2025 hat der Verkäufer die folgenden Angaben hinzugefügt:
