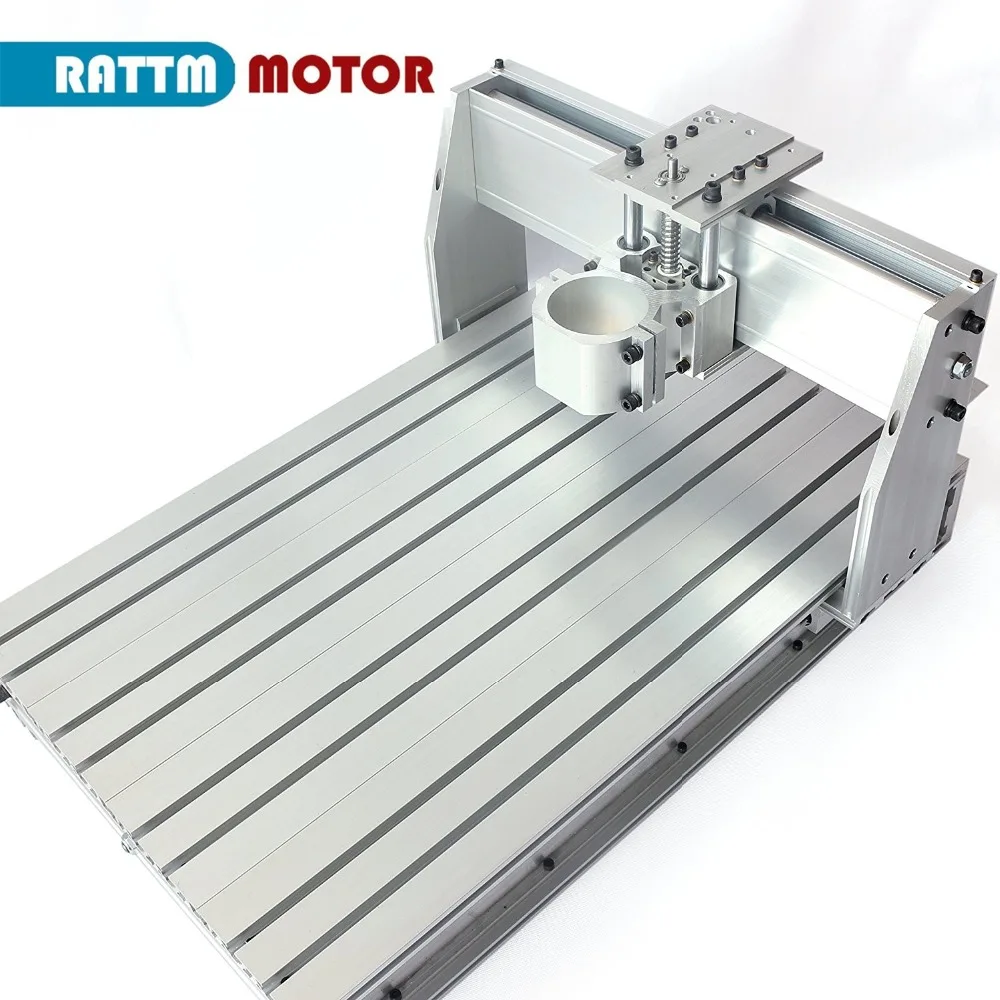

6090 CNC Router Frame Engraving Machine Desktop 1605 Ballscrew Kit + 80mm Clamp
Package:

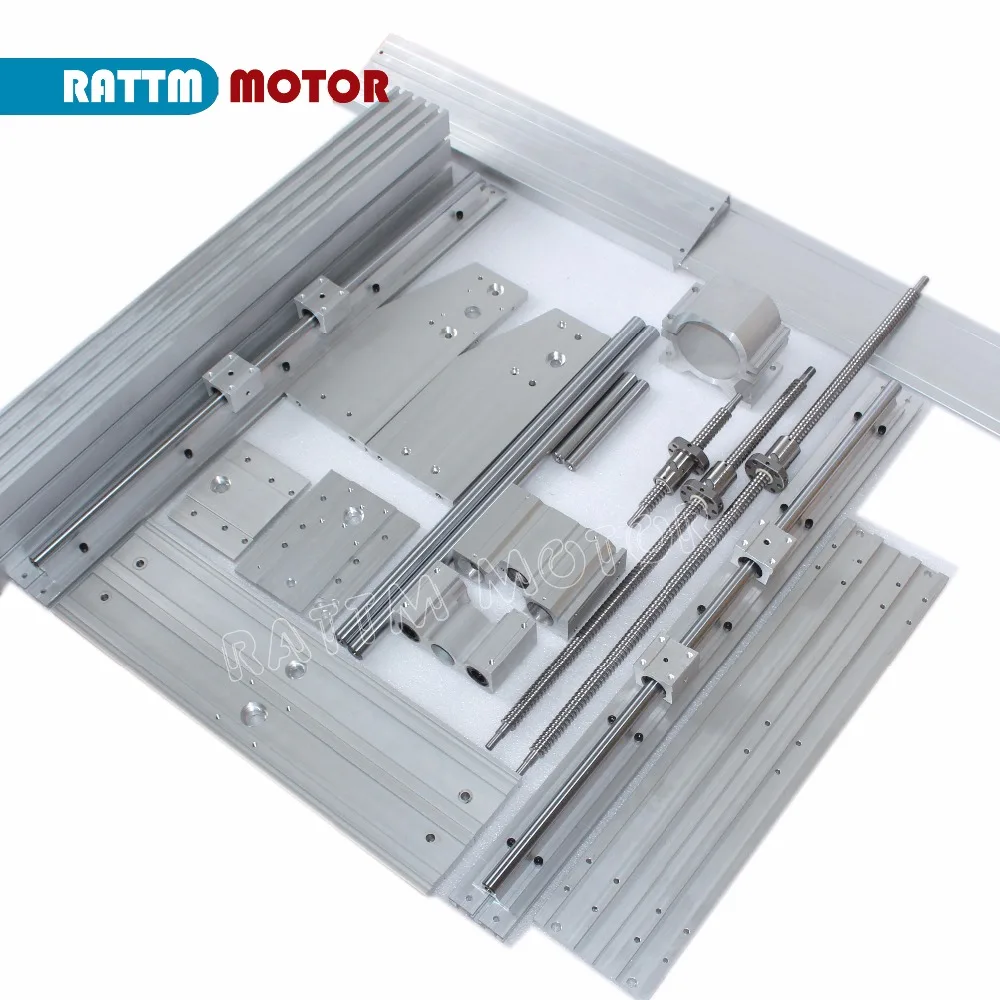

- 1 x New 6090 CNC Router Milling Machine Aluminum Frame Kit ( with 80mm clamp )
(Note:without stepper motor & spindle motor & control box & cable chain carrier)
Technical Parameters
1) Machine weight: 49kg (including packaging)
2) The maximum stroke of XYZ three-axis is X=580mm/22.8", Y=900mm/35.4", Z=85mm/3.3"
3) Table size: 32.67x45.27x7.87"(830*1150*200mm)
4) Max workpiece thickness: ≤4.13"(105mm)
5) Transmission unit: X-axis= 20mm linear shaft; Y-axis=16mm linear shaft; Z-aixs=16mm linear shaft.The X/Y/Z axis are all new SFU1605 ball screws,and good quanlity coupler.
6) Rack material: 6061-T5 aluminium alloy,high strength, through the CNC machining center precision machining, all of the surface after anodic oxidation treatment.
7) Rail type: Chromeplate shaft+Linear Bearings(Surface hardening 61HRC)
8) Repeat positioning Accuracy: 0.05mm

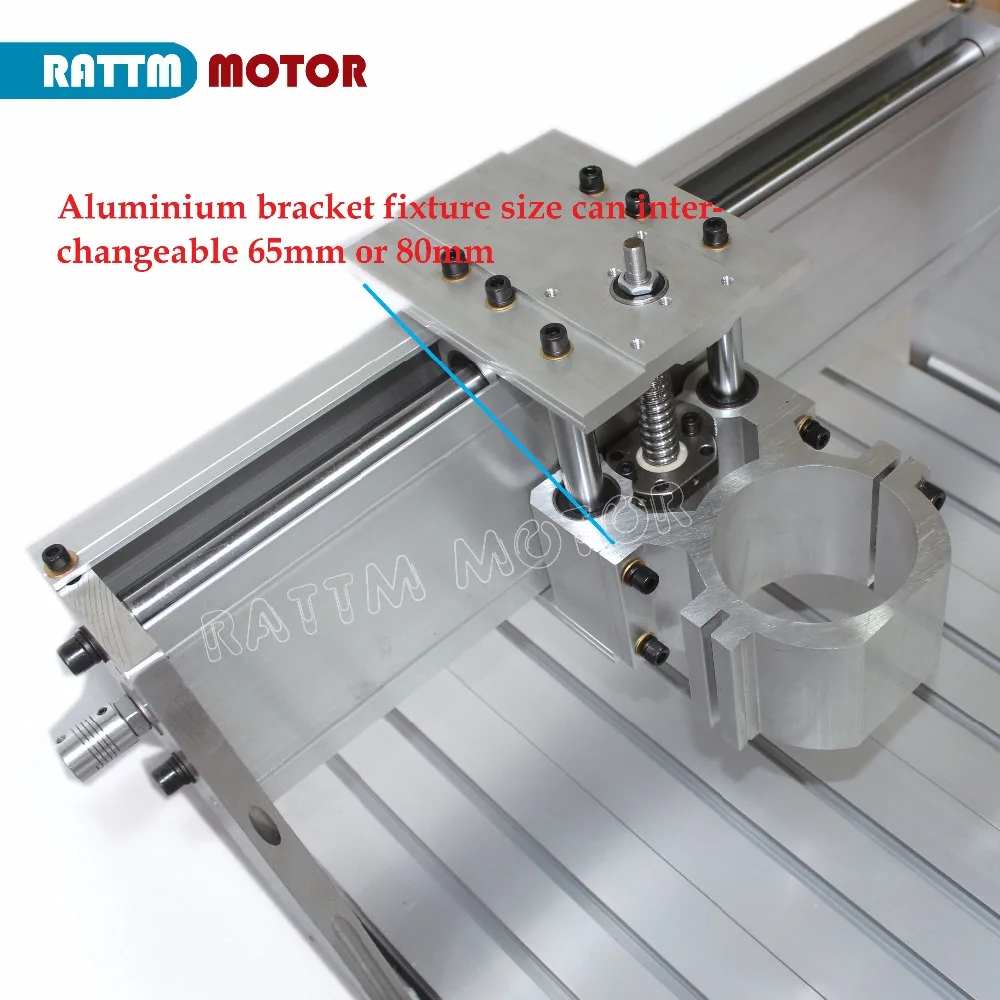

9) Spindle Fixture diameter: 65mm and 80mm can interchangeable(default is 80mm,if need 65mm pls leave us message when you order,if need extra 65mm clamp it need extra cost)
10) Suitable for motor: Nema23 stepper motor
Main application:
Engrave for Wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal.
1) Simple operation and installation.
2) More steady and strong equiped with aluminum alloy frame materials.
3) X Y and Z axis carving make more precise and and three-dimensional effect.
4) Can control the engraving more precise
5) Engrave almost anything on almost any surface
6) Cover plates reducing pollution for the screws and shafts.
7) The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.
8) The chrome shafts is not easy to deform,suitable for long time use.

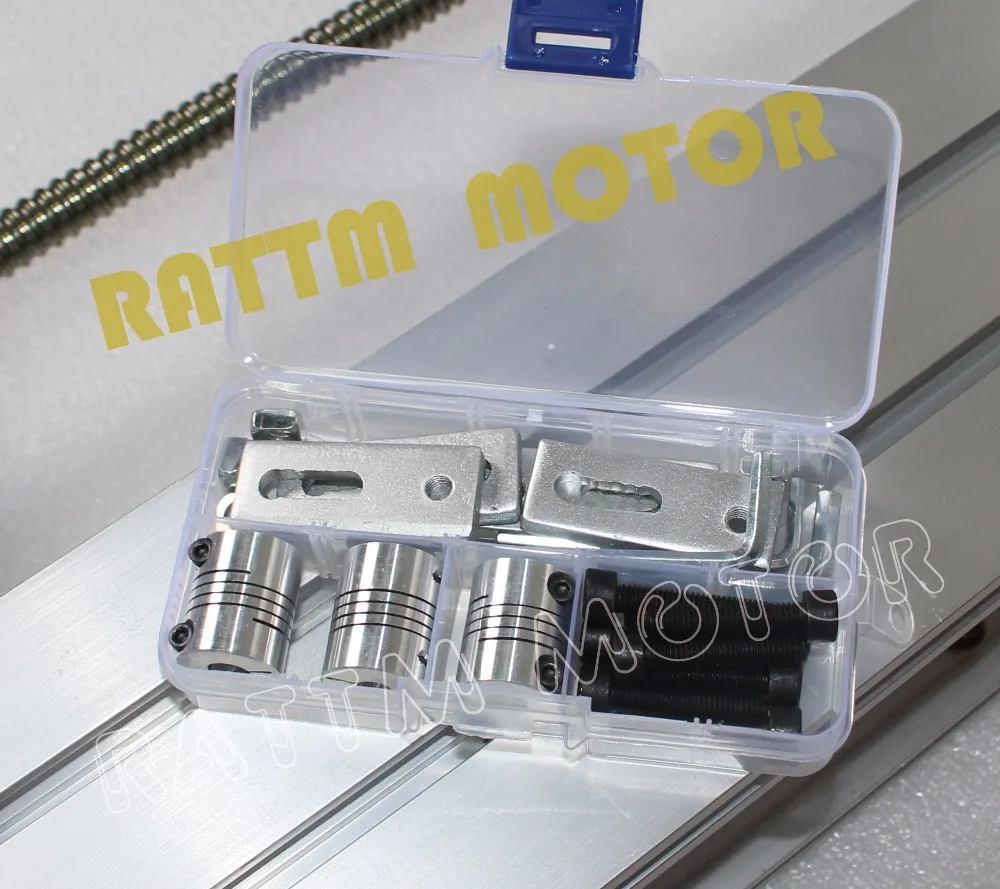

9) Flexible coupling can be used for high torque transmission.
10) This item already be equiped NEW SFU1605 ball screws. Anti-blackflash,high precision,long life circle.
11) Spindle Fixture can interchangeable 65mm or 80mm .

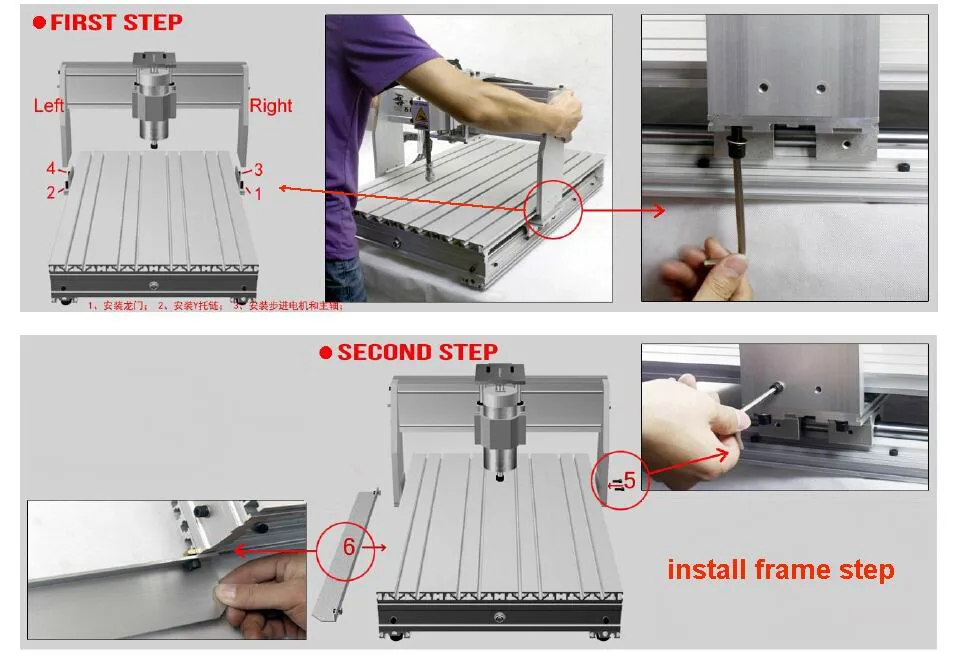

6090 machine frame install step:
