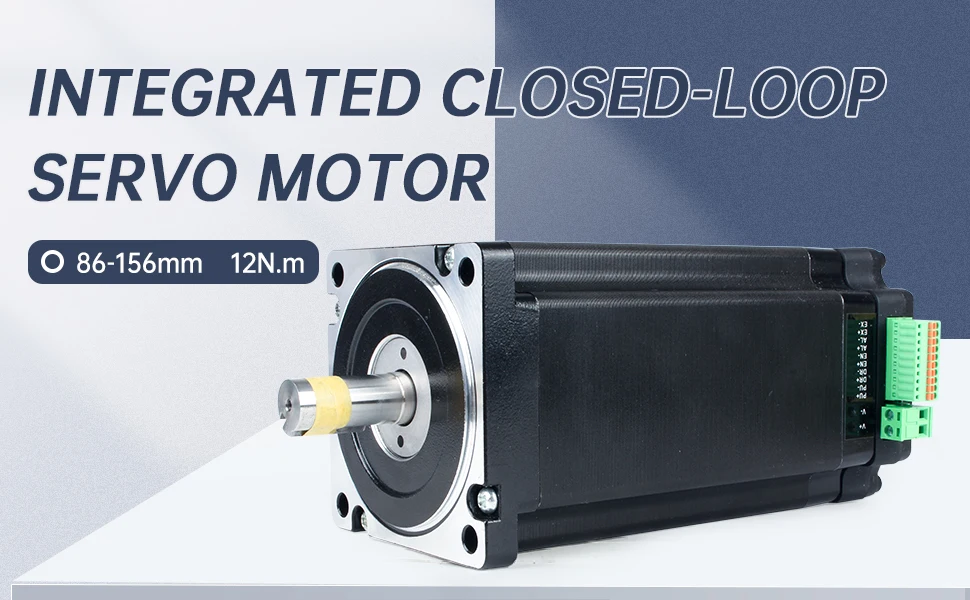

4.5N.m 8.5N.m 12N.m Integrated Nema34 Closed Loop Stepper Motor Driver DC24-60V



Package include:

  • 1 x Nema34 4.5N.m,8.5N.m or 12N.m Integrated Closed loop Stepper Motor


Product Description



About this item

  • Specifications: Type: Nema34 Integrated Closed loop Stepper Motor; Rated Torque: 4.5N.m; Encoder line: 1000; Motor size: 86x86x80mm; Shaft Diameter: 14mm; Input: DC24-60V; Current: 6A; Max. frequency: 300KHZ; Weight: 5.3LB
  • Specifications: Type: Nema34 Integrated Closed loop Stepper Motor; Rated Torque: 8.5N.m; Encoder line: 1000; Motor size: 86x86x118mm; Shaft Diameter: 14mm; Input: DC24-60V; Current: 6A; Max. frequency: 300KHZ; Weight: 8.4LB
  • Specifications: Type: Nema34 Integrated Closed loop Stepper Motor; Rated Torque: 12N.m; Encoder line: 1000; Motor size: 86x86x156mm; Shaft Diameter: 14mm; Input: DC24-60V; Current: 6A; Max. frequency: 300KHZ; Weight: 12.23LB
  • Integrated design: The integrated closed-loop stepper motor integrates the driver and motor body together, simplifying the system structure and reducing the difficulty of installation and maintenance
  • Communication function: It is a new motor-driven integrated stepper motor drive system with communication function; Communication method: TTL; Communication interface: MicroUSB; Working mode: pulse and direction
  • High performance control: Adopting closed-loop control technology, precise control of the motor is achieved by feeding back the position and speed information of the motor, improving the stability and accuracy of the system. The closed-loop motor effectively reduces the out of step phenomenon of the stepper motor, improves the positioning accuracy of the system, and its torque is also larger than that of ordinary stepper motors
  • Widely used: including CNC machines, industrial automation, and robotics technology,t hey are applied in joint drives, end effectors and other parts to achieve high-precision and high-speed motion control; Automated production line: used for equipment such as conveyor belts; Medical device field and other precision manufacturing equipment, etc


This is an integrated closed-loop motor that perfectly combines drive and stepper motor technology. It not only saves installation space but also simplifies wiring, making it suitable for various fields such as industrial automation, robotics, medical equipment, etc


Specifications

Rated torque: 4.5N.m

Motor size: 86x86x80mm

Motor shaft diameter: 14mm

Motor shaft length: 30mm

Input voltage: 24-60VDC (Recommend 36VDC)

Phase current: 6A

Phase resistance: 0.5Ω

phase inductance: 3.5mH

Max. frequency: 300KHz

Moment of inertia: 1950G.cm²

Encoder type: 1000 line encoder

Communication method: TTL

Communication interface: MicroUSB

Working mode: pulse+direction

Weight: 2.41KG 5.31LB



Specifications

Rated torque: 8.5N.m

Motor size: 86x86x118mm

Motor shaft diameter: 14mm

Motor shaft length: 30mm

Input voltage: 24-60VDC (Recommend 36VDC)

Phase current: 6A

Phase resistance: 0.6Ω

phase inductance: 2.5mH

Max. frequency: 300KHz

Moment of inertia: 2800G.cm²

Encoder type: 1000 line encoder

Communication method: TTL

Communication interface: MicroUSB

Working mode: pulse+direction

Weight: 3.82KG 8.4LB


Specifications

Rated torque: 12N.m

Motor size: 86x86x156mm

Motor shaft diameter: 14mm

Motor shaft length: 30mm

Input voltage: 24-60VDC (Recommend 36VDC)

Phase current: 6A

Phase resistance: 0.7Ω

phase inductance: 3.2mH

Max. frequency: 300KHz

Moment of inertia: 4950G.cm²

Encoder type: 1000 line encoder

Communication method: TTL

Communication interface: MicroUSB

Working mode: pulse+direction

Weight: 5.55KG 12.23LB
