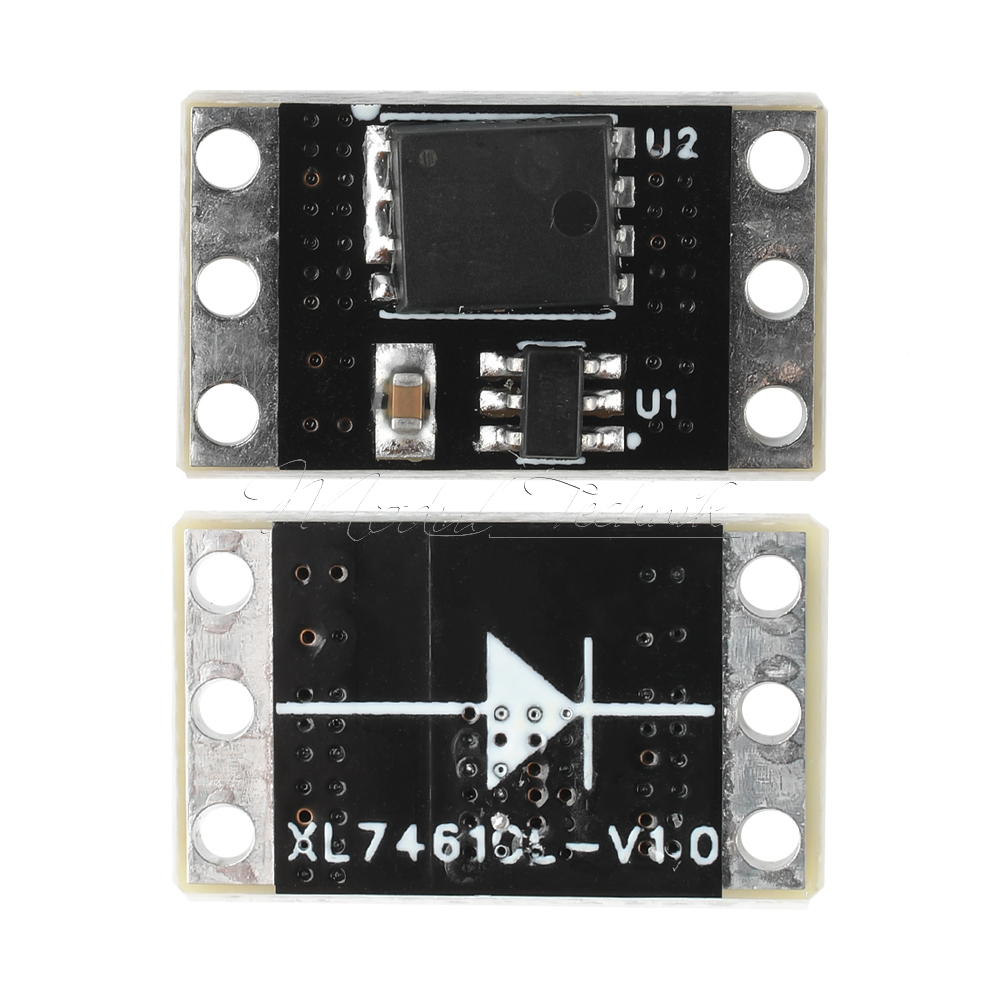

Features:

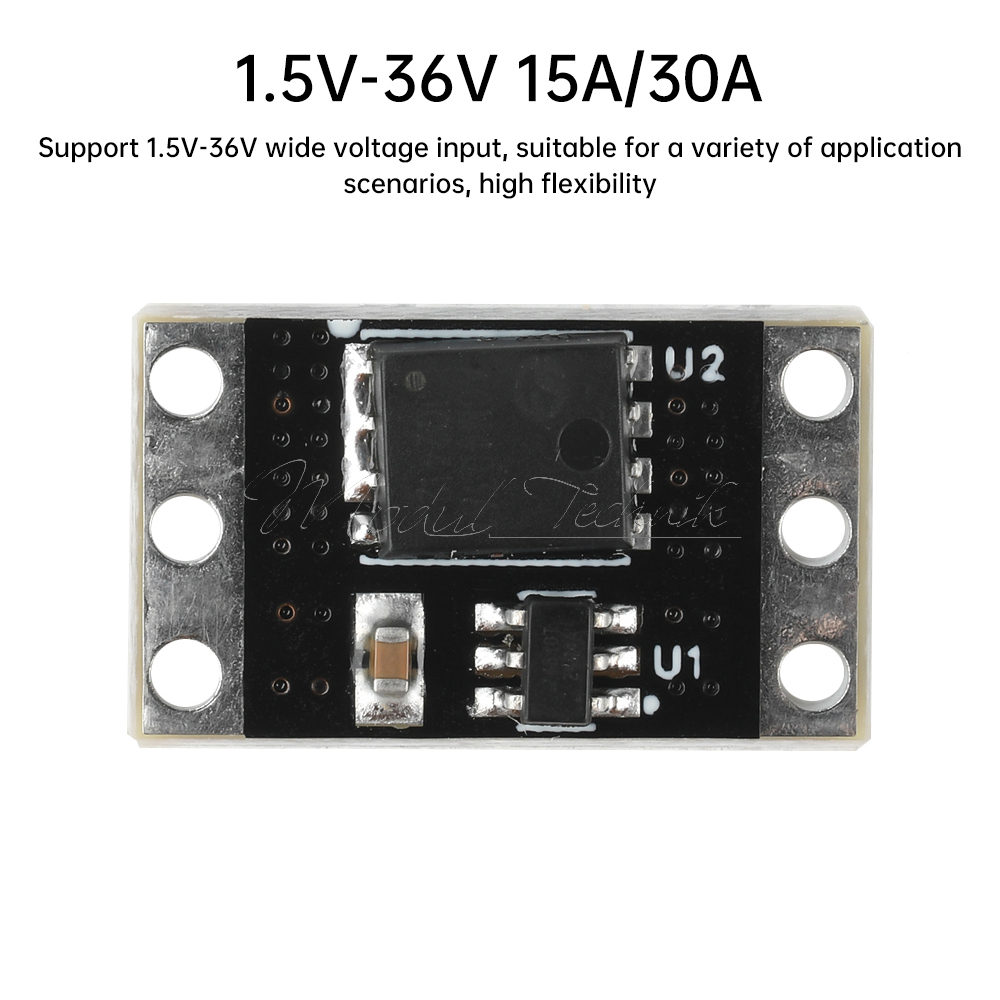

1.Support 1.5V-36V wide voltage input, adapt to a variety of application scenarios, strong flexibility

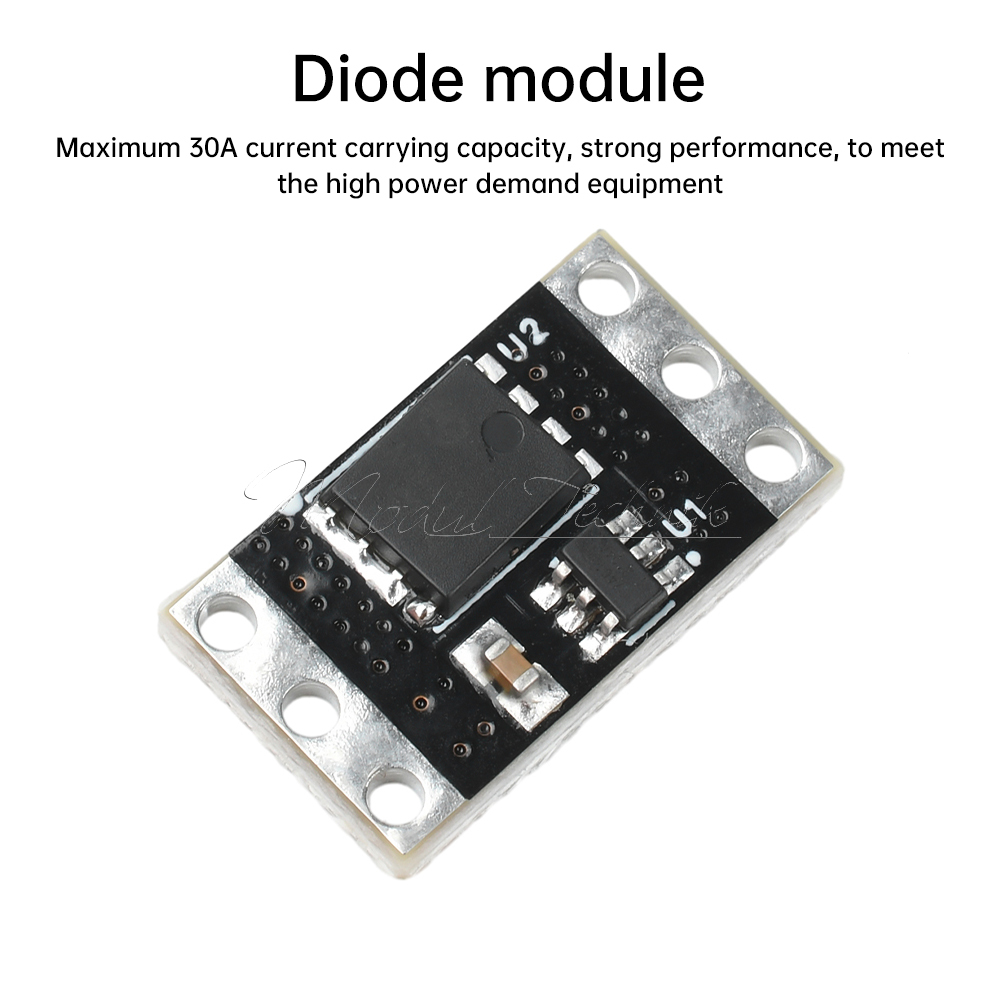

2.Maximum 30A current carrying capacity, strong performance, to meet the high power demand equipment
3. Modular design, easy to install, high reliability, simplify the complexity of circuit design
4. Ideal diode characteristics, reverse leakage current is very low, to protect the stable operation of the system
5. Selection of high-quality materials quality assurance, beautiful arrangement of components

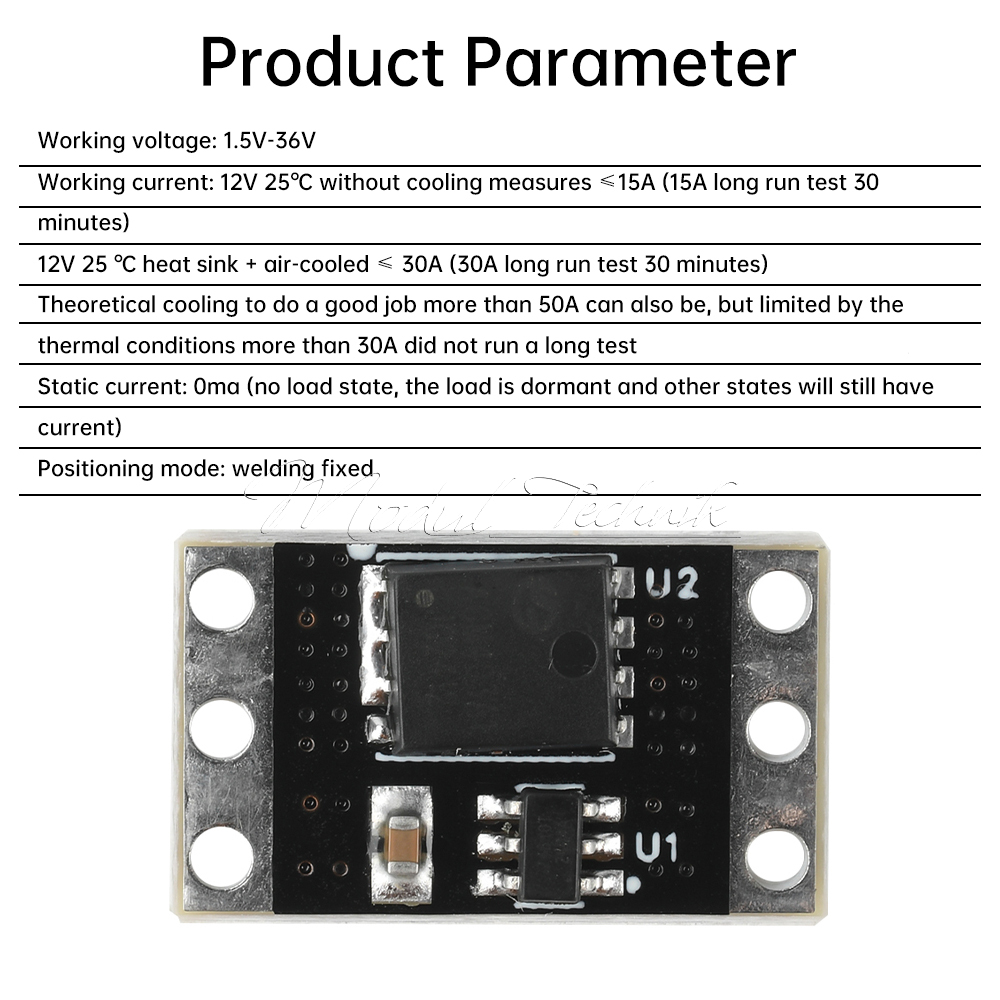

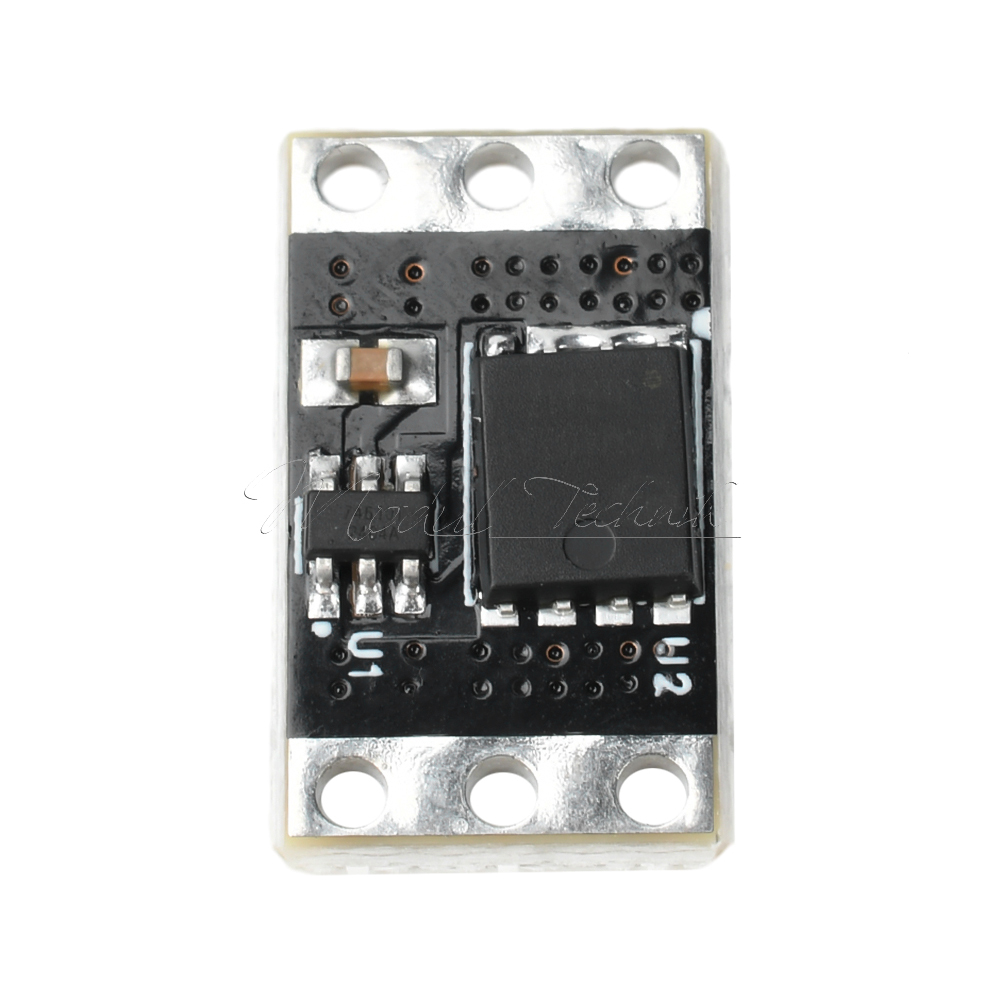

Product parameters:
Operating voltage: 1.5V-36V
Operating current: 12V 25℃ without heat sink measures ≤ 15A (15A long run test 30 minutes)
12V 25 ℃ heat sink + air-cooled ≤ 30A (30A long run test 30 minutes)
Theoretical heat dissipation to do a good job more than 50A can also be, but limited by the heat dissipation conditions more than 30A did not run a long test
Static current: 0ma (no load state, the load is dormant and other states will still have current)
Positioning mode: welding fixed

Parameter:

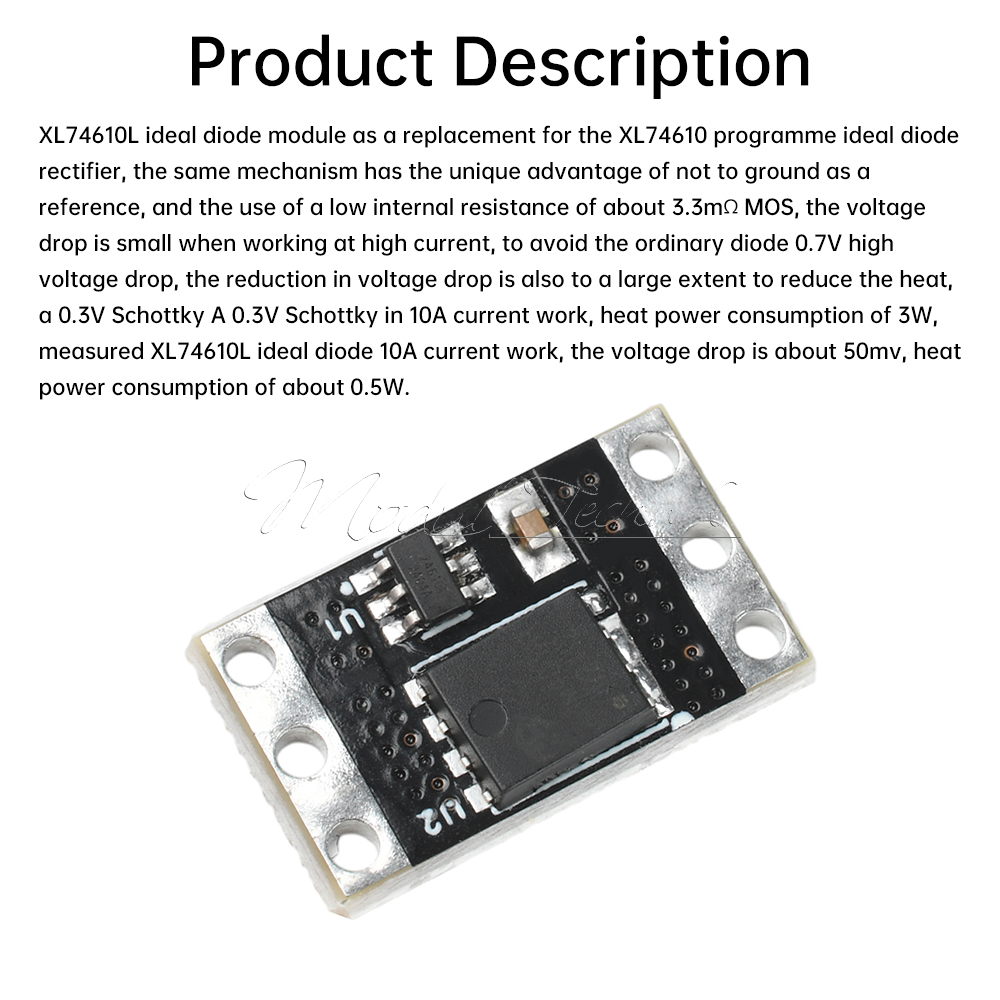

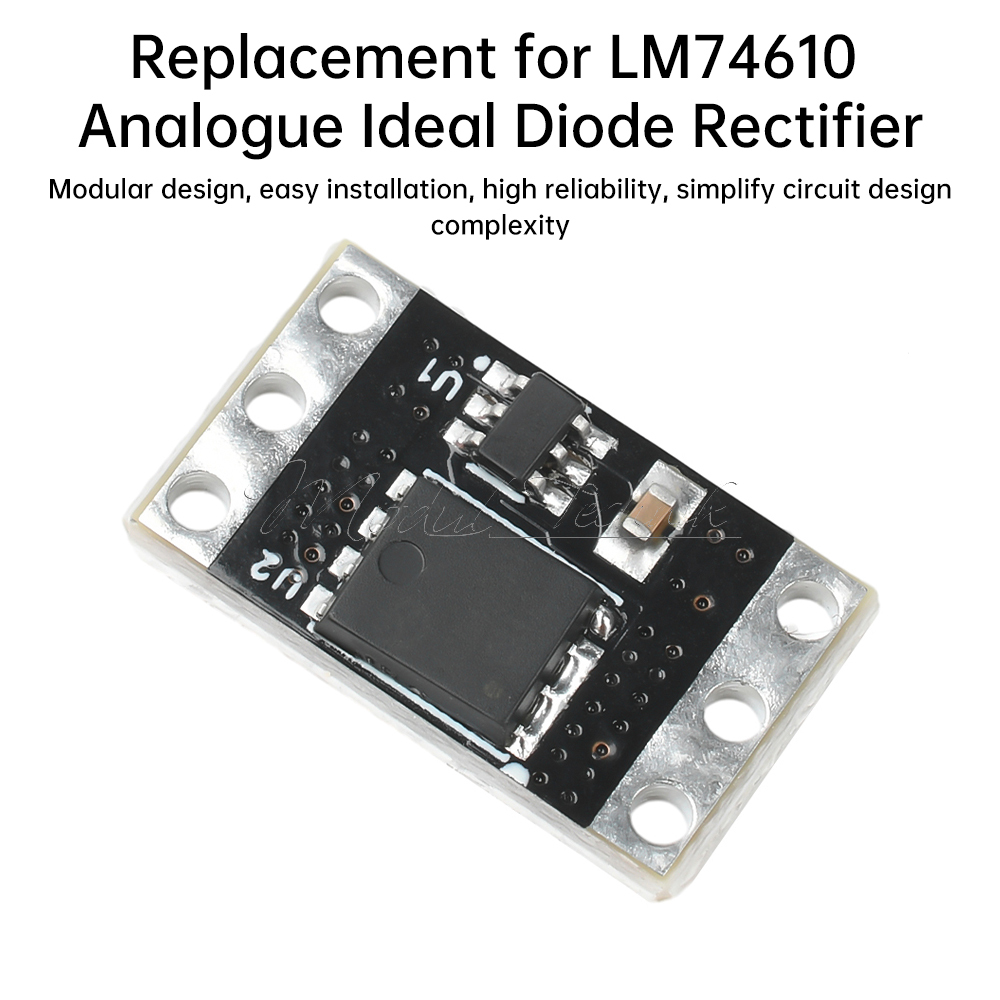

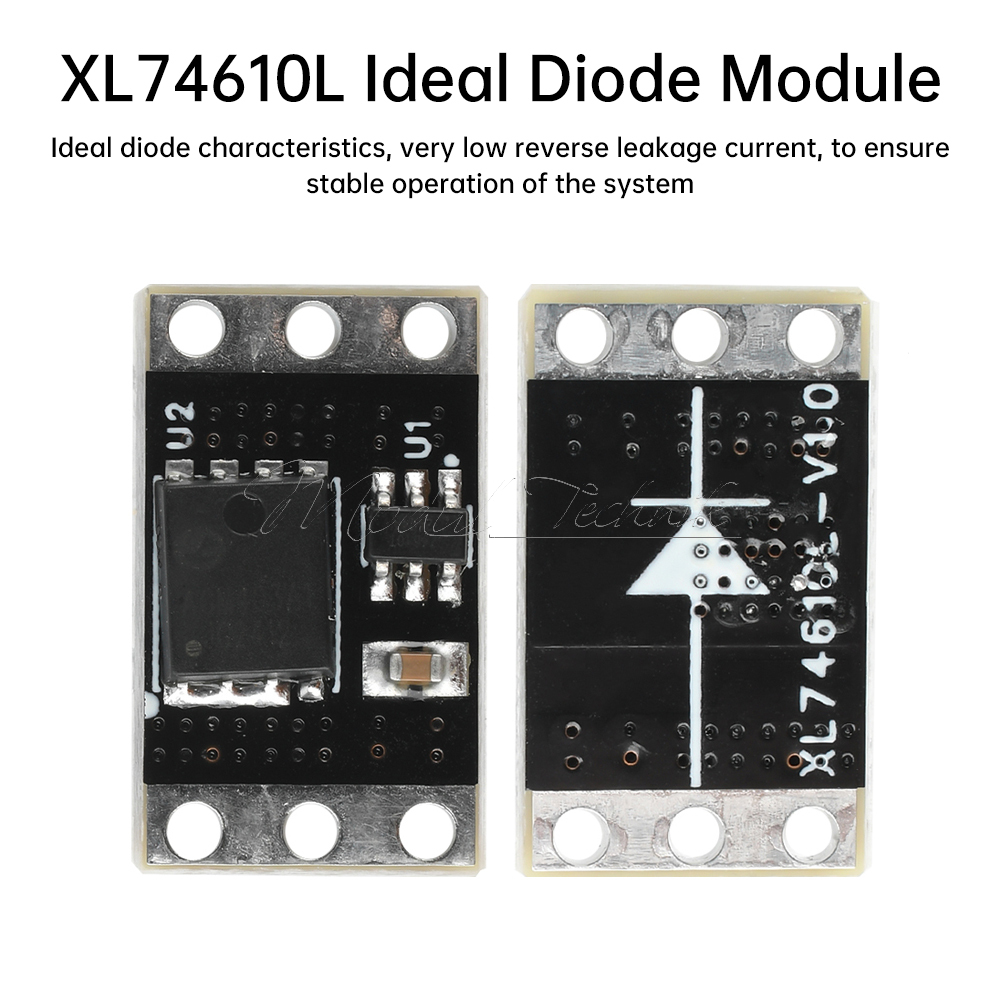

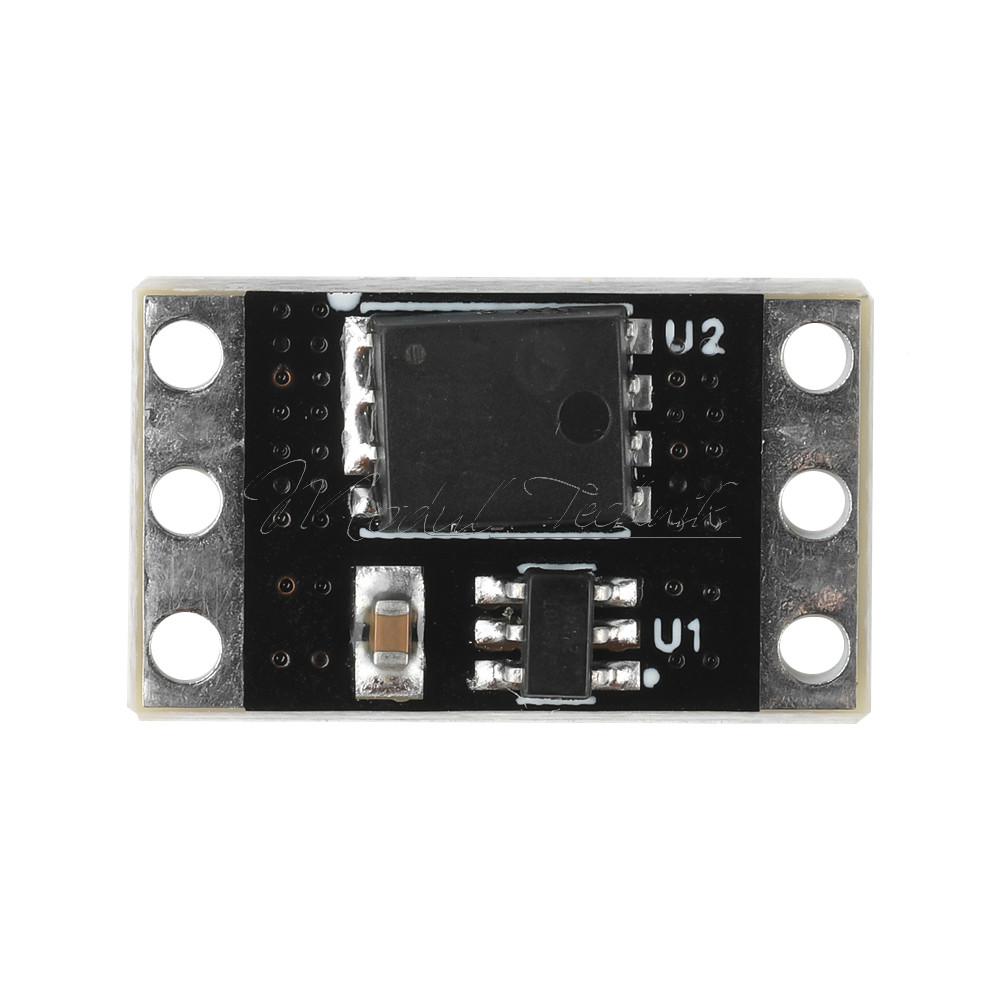

XL74610L ideal diode module for the replacement of the XL74610 program ideal diode rectifier, the same mechanism's unique advantage is not to ground as a reference, and the use of a low internal resistance of about 3.3mΩ MOS, the voltage drop is small when working with high currents, to avoid the ordinary diode 0.7V high voltage drop, the reduction in voltage drop is also to a large extent to reduce the heat, a 0.3V Schottky A 0.3V Schottky in 10A current work, heat power consumption of 3W, measured XL74610L ideal diode 10A current work, the voltage drop is about 50mv, heat power consumption of about 0.5W!

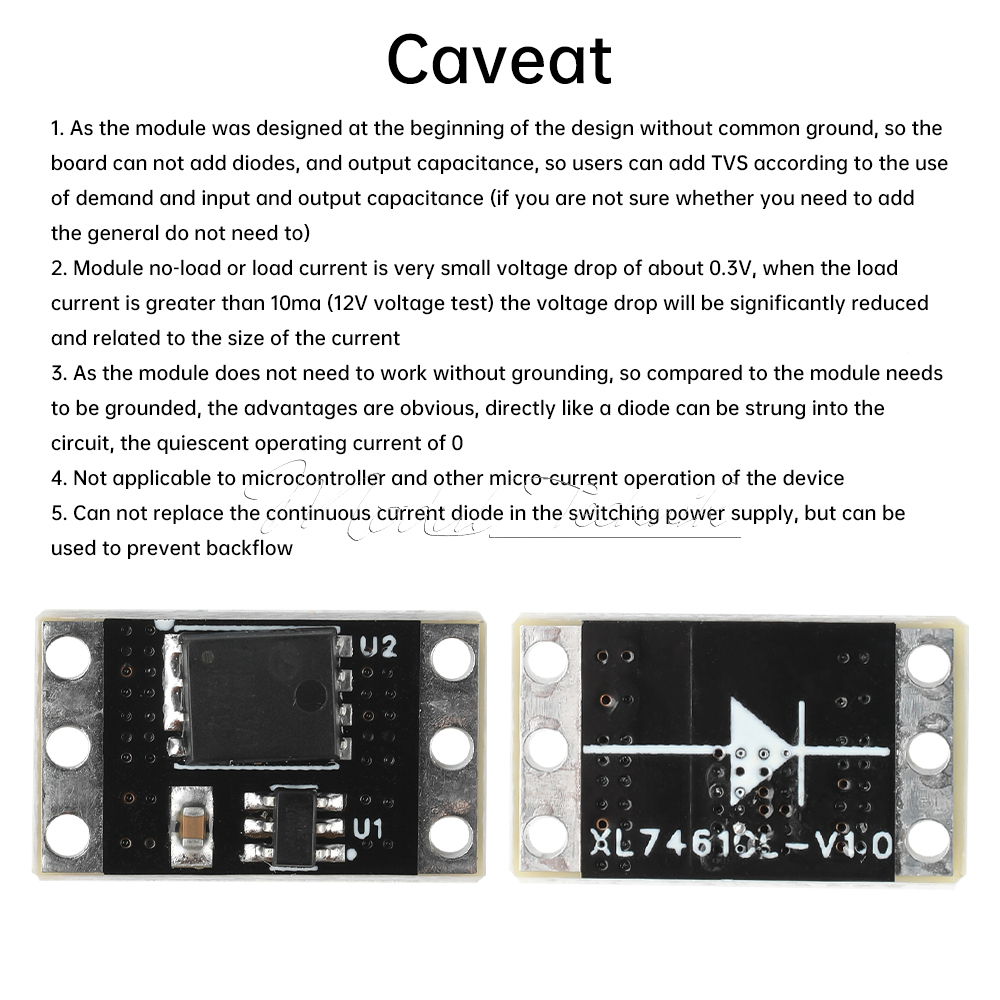

Cautions:
1. As the module was designed at the beginning of the design without common ground, so the board can not add diodes, and output capacitance, so the user can add TVS according to the use of demand, as well as input and output capacitance (if you're not sure if you need to add the general do not need to)
2. Module no-load or load current is very small voltage drop of about 0.3V, when the load current is greater than 10ma (12V voltage test) the voltage drop will be significantly reduced and related to the size of the current
3. As the module does not need to work without grounding, so compared to the module needs to be grounded, the advantages of its obvious, directly like a diode can be strung into the circuit, the quiescent operating current of 0
4. Not applicable to microcontroller and other micro-current operation of the device
5. Can not replace the switching power supply in the renewable current diode, but can be used to prevent backfilling

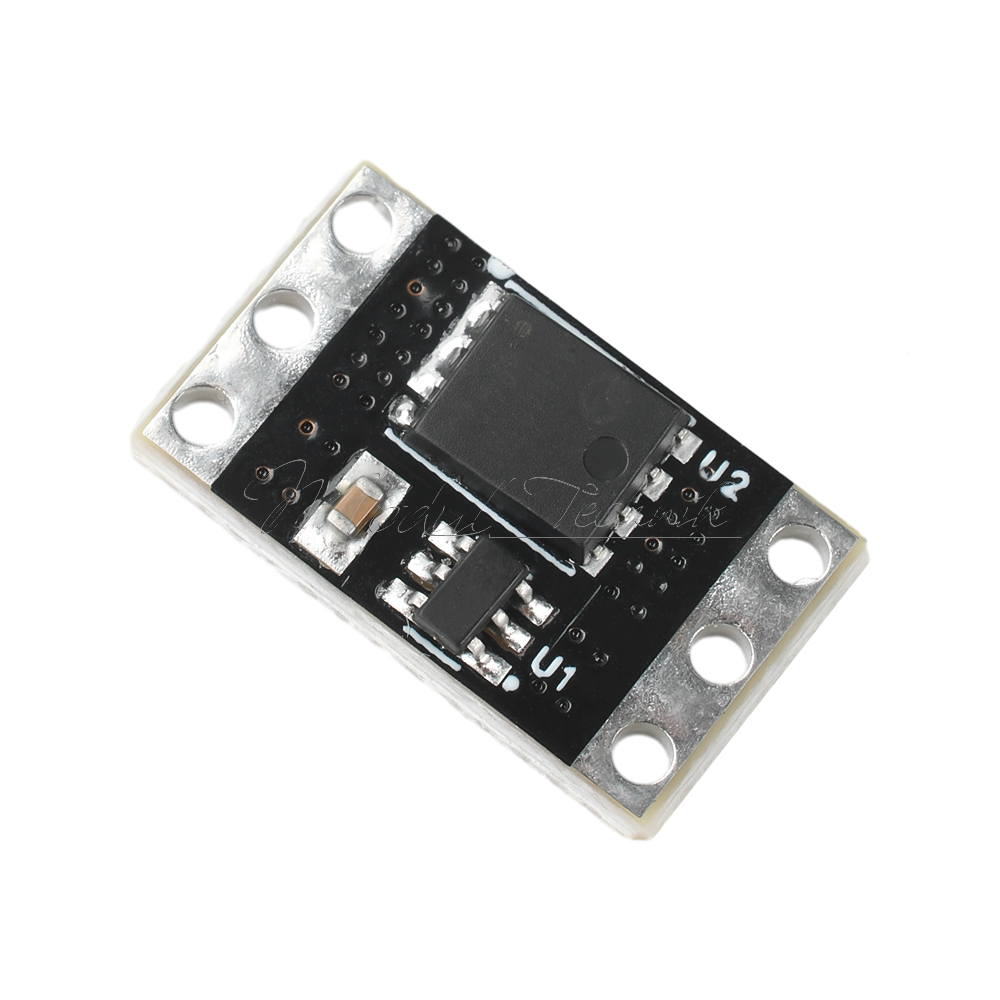

Package include:

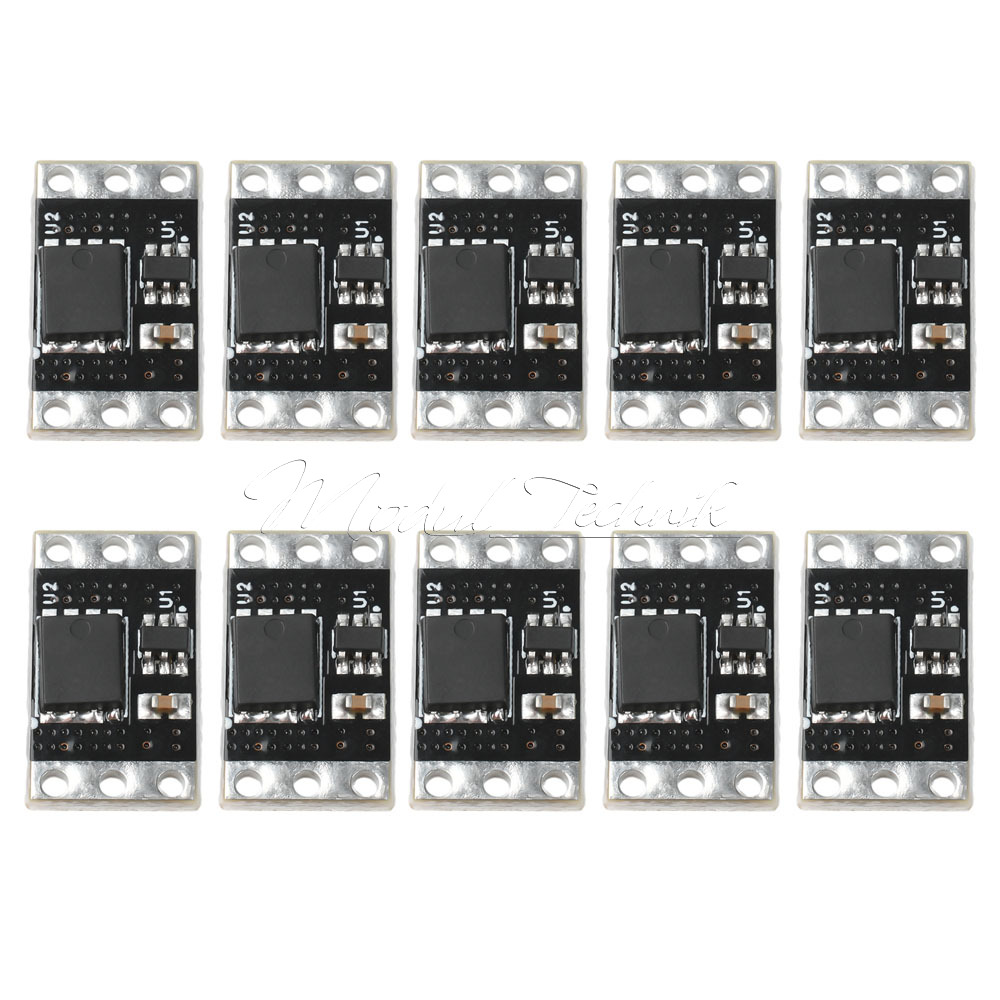

1-10*Diode module
