USB to RJ45 Ethernet Interface Module CH397A Module RISC-V Processor Type-C USB
1. Highly integrated single chip solution with built-in RISC-V processor and USB/Ethernet controller.
2. Support multiple protocols, compatible with USB2.1 and IEEE802.3 standards, adapting to multiple types of devices.
3. Auto-negotiation of 10M/100M rate, support for IPv4/IPv6 packet verification and flow control.
4. Low power consumption design, support sleep mode and remote wake-up function, transmission distance up to 120 meters.
5. Miniaturized PCB design, streamlined peripheral circuitry, strong ESD protection.
Single-chip USB2.0/2.1 to 10/100M Fast Ethernet, integrated USB PHY and Ethernet MAC and Ethernet PHY support CDC-ECM protocol and CDC-NCM protocol and RNDIS protocol, driver-free installation or optional vendor driver support 10Mbps and 100MbpS rate, compatible with IEEE802.3 10BASE-T/100BASE-TX supports 10M/100M auto-negotiation.
Built-in TX/RX packet buffer
Supports IPv4/IPv6 packet checksum, supports IPv4TCP/UD?HEA!.... .1.61F/uP packet checksum generation and checking support IEEE802.3x flow control and half-duplex conflict pressure fallback flow control
Supports IEEE 802.3QV LAN tagging
Supports hibernation mode and low-power sleep mode, network low-power configuration, and dynamic power management Supports remote wake-up via events such as magic packets and network wake-up packets
Supports UTP CAT5E, CAT6 twisted pair, supports 120 meters transmission distance
Support AutO-MDIX exchange TX/RX, automatic identification of positive and negative signal lines
Optional external SPI Flash, can update the user configuration
Support LED blinking frequency and duty cycle configuration
Built-in LD0, single power supply
Built-in 50Ω impedance matching resistor, built-in crystal oscillator capacitance, compact peripheral circuitry
Processor IP, controller and transceiver IP are all self-developed and tightly integrated for high efficiency and low cost.
6KV enhanced ESD performance, ClaSS3A

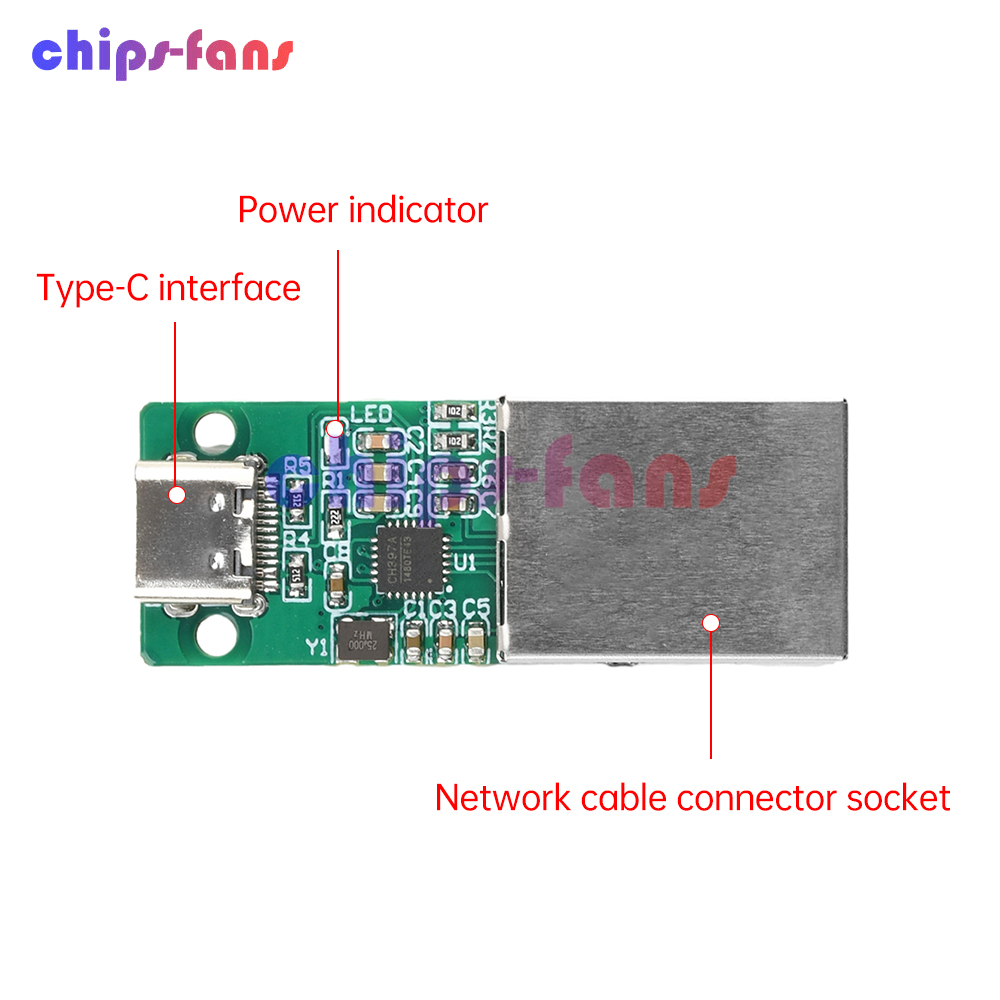

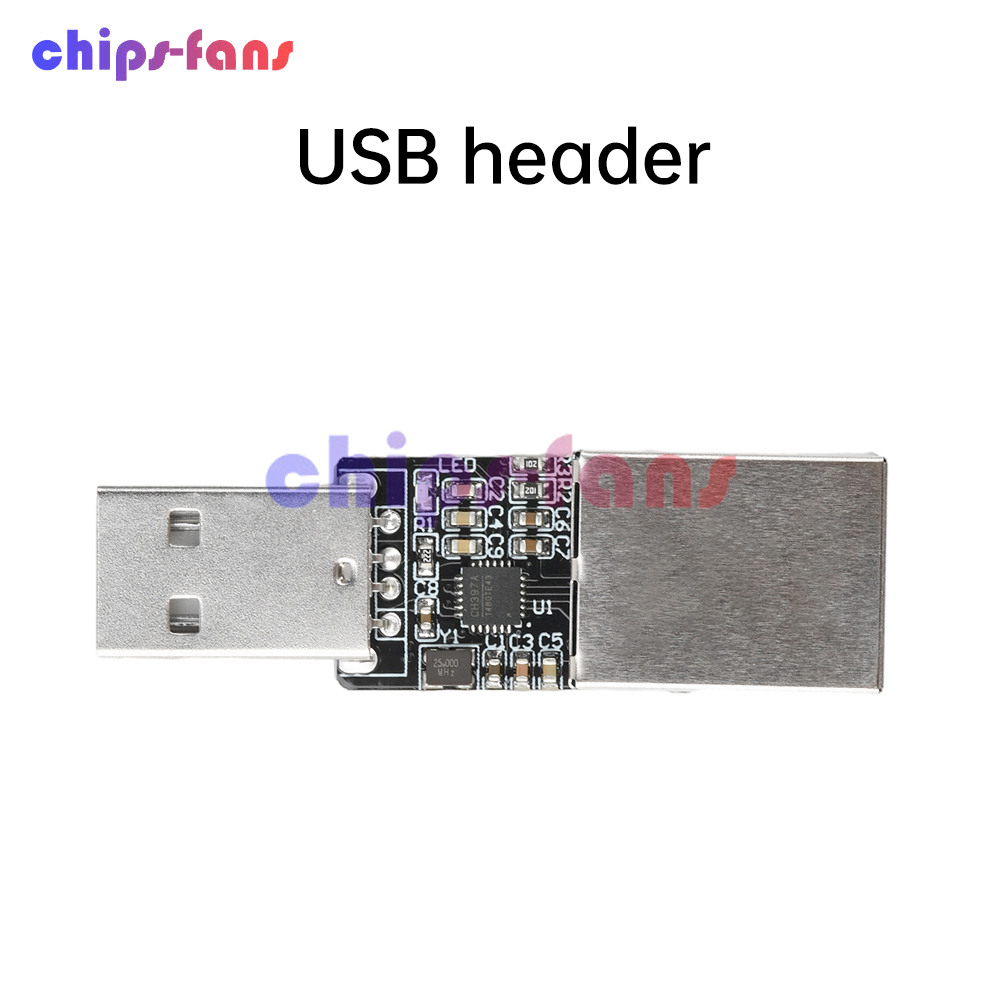

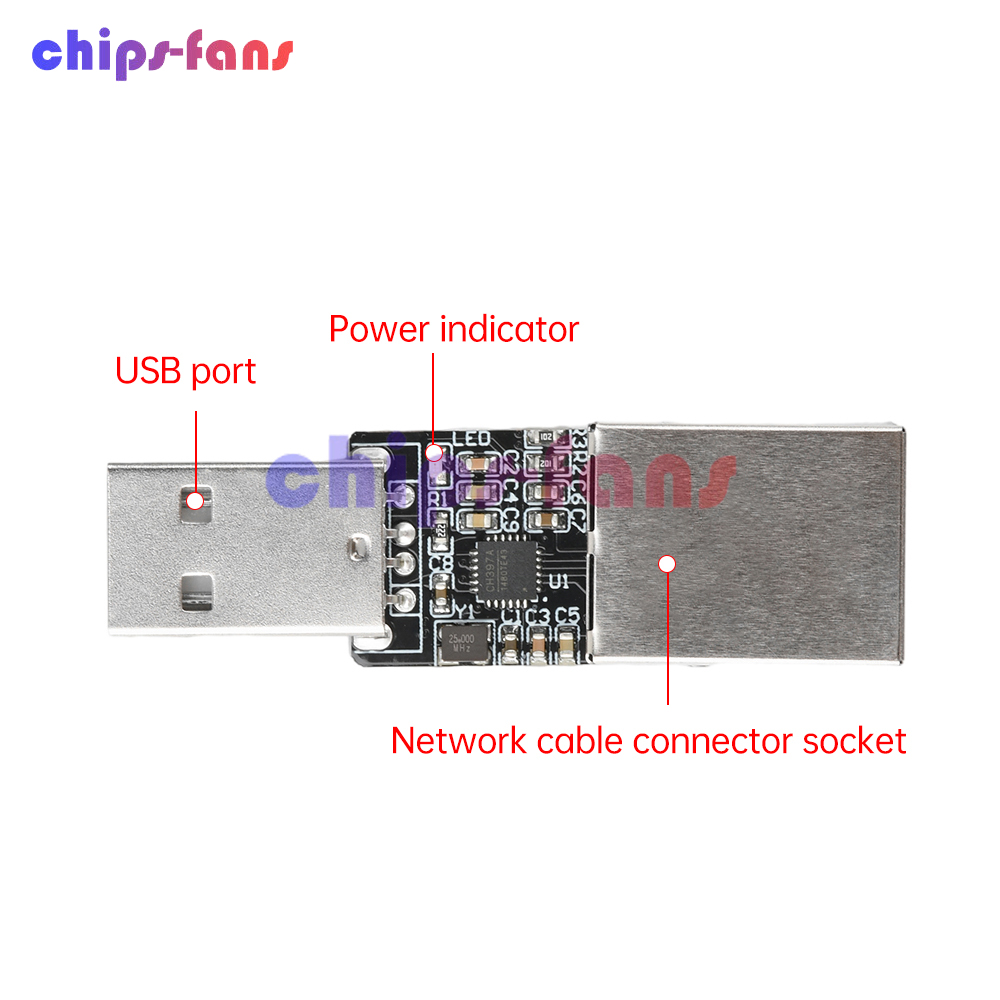

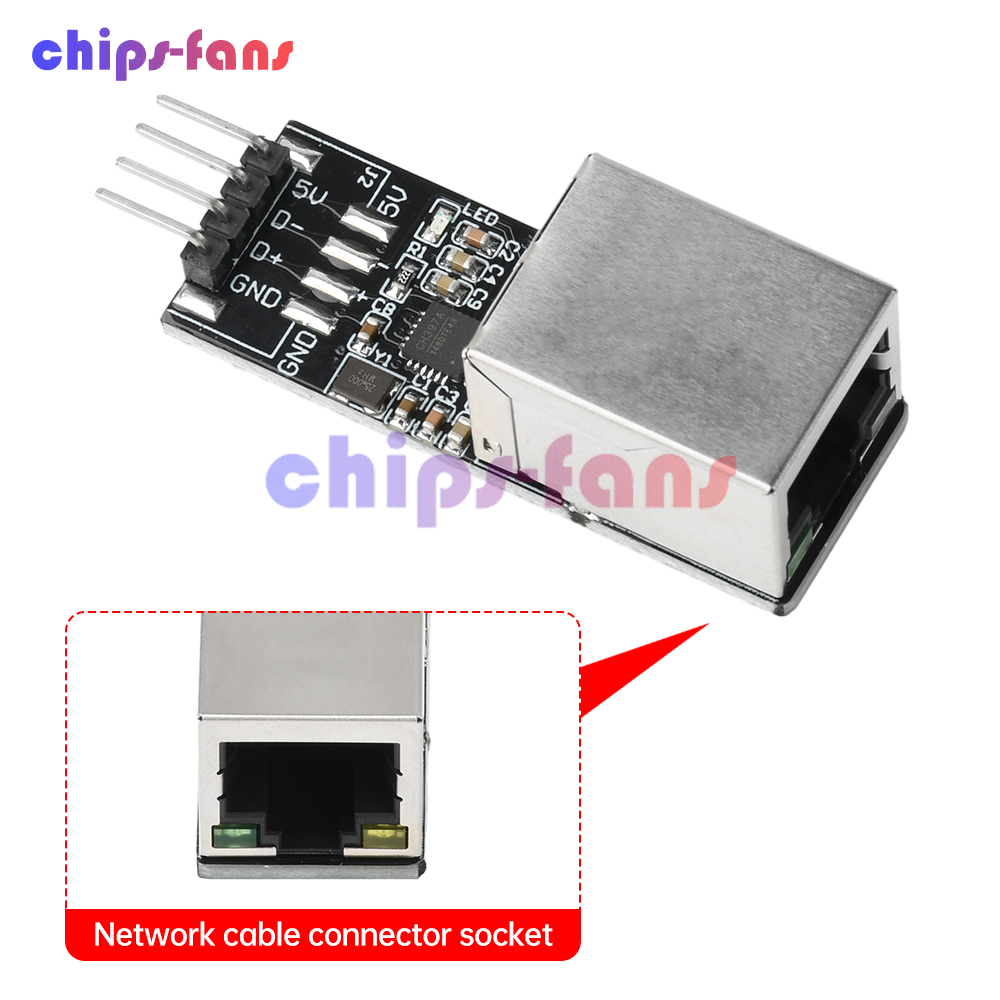

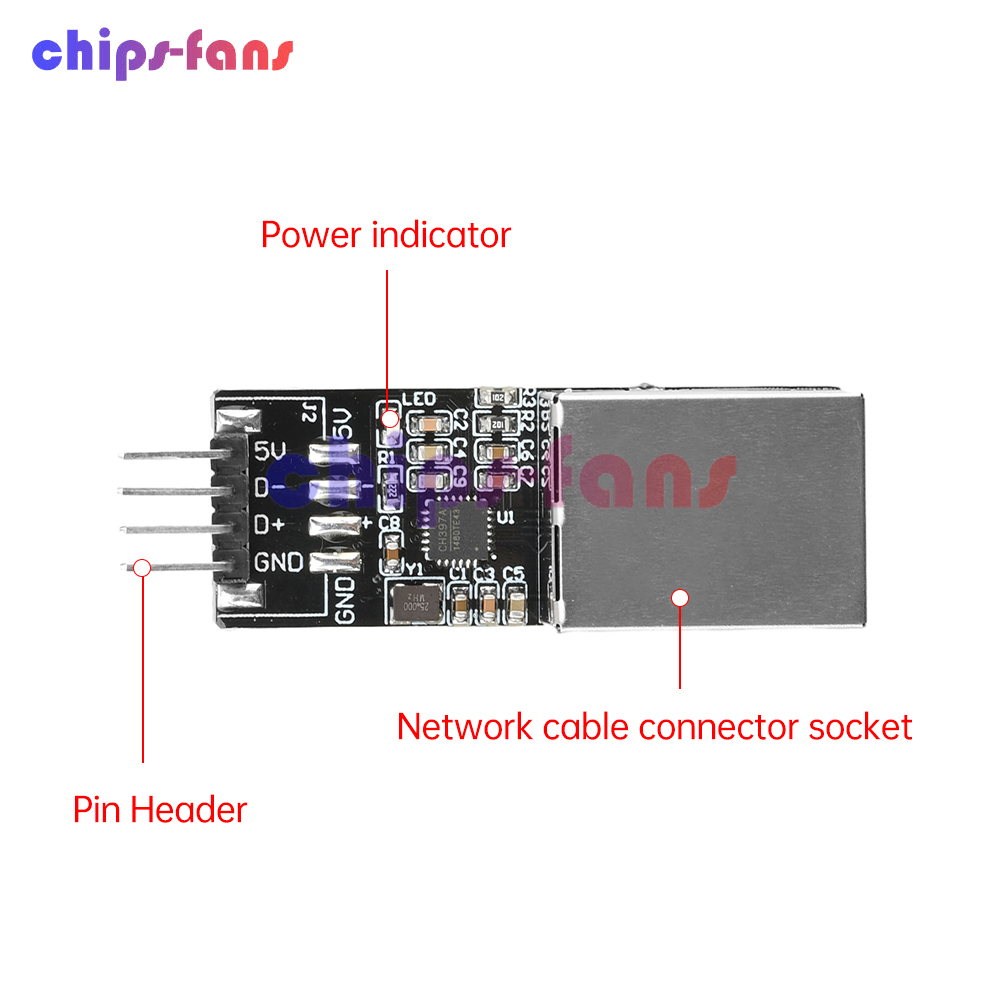

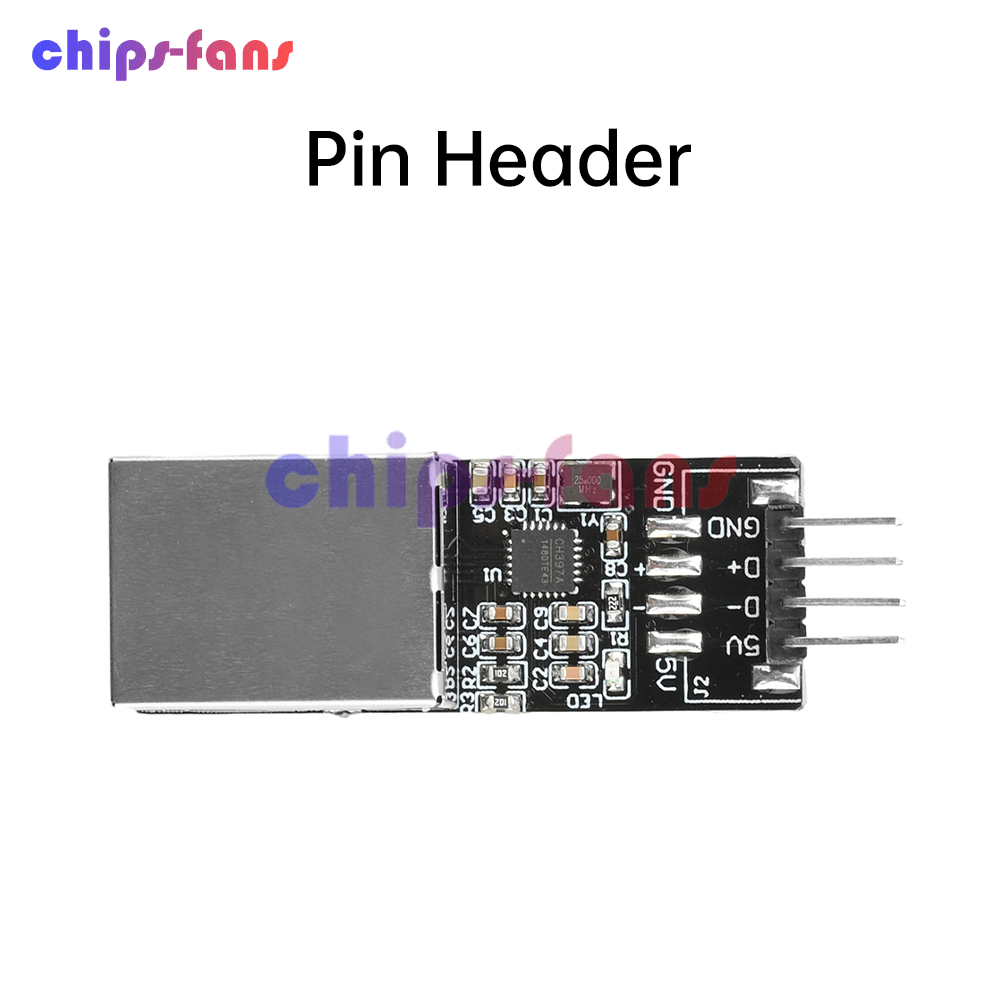

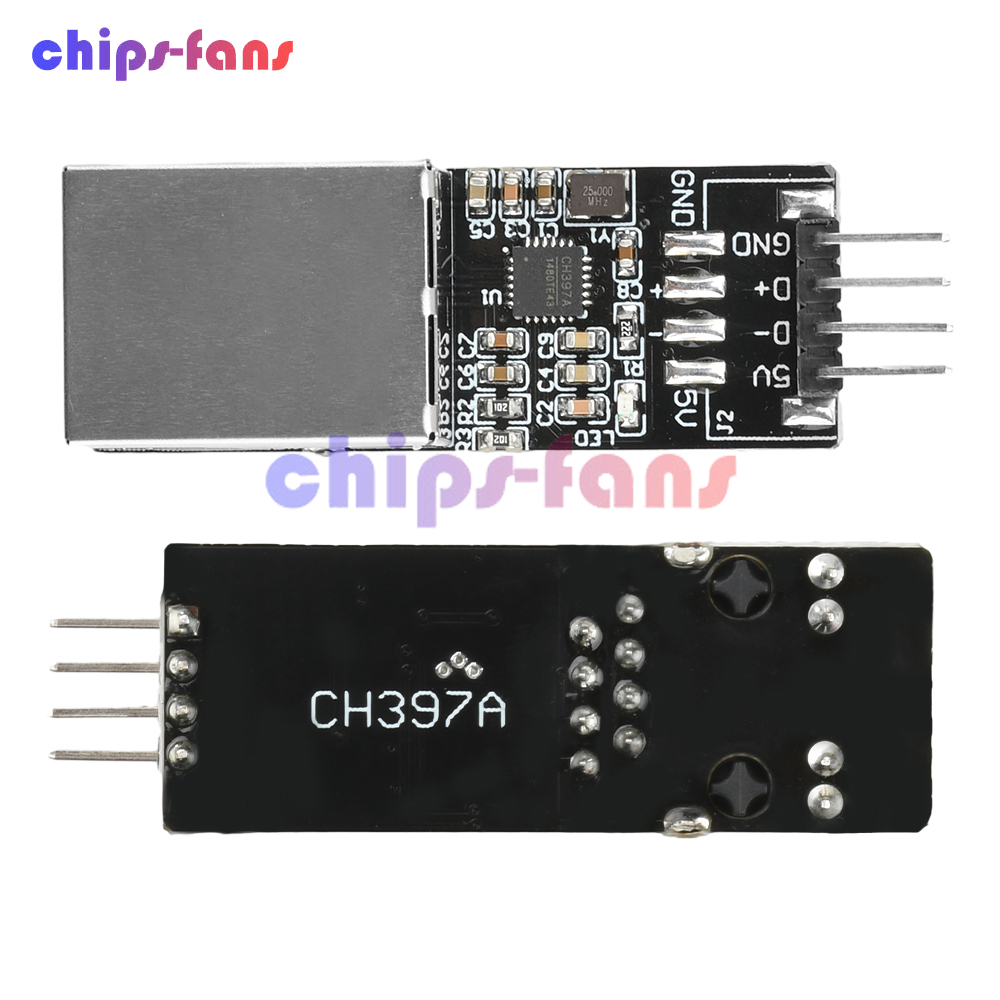

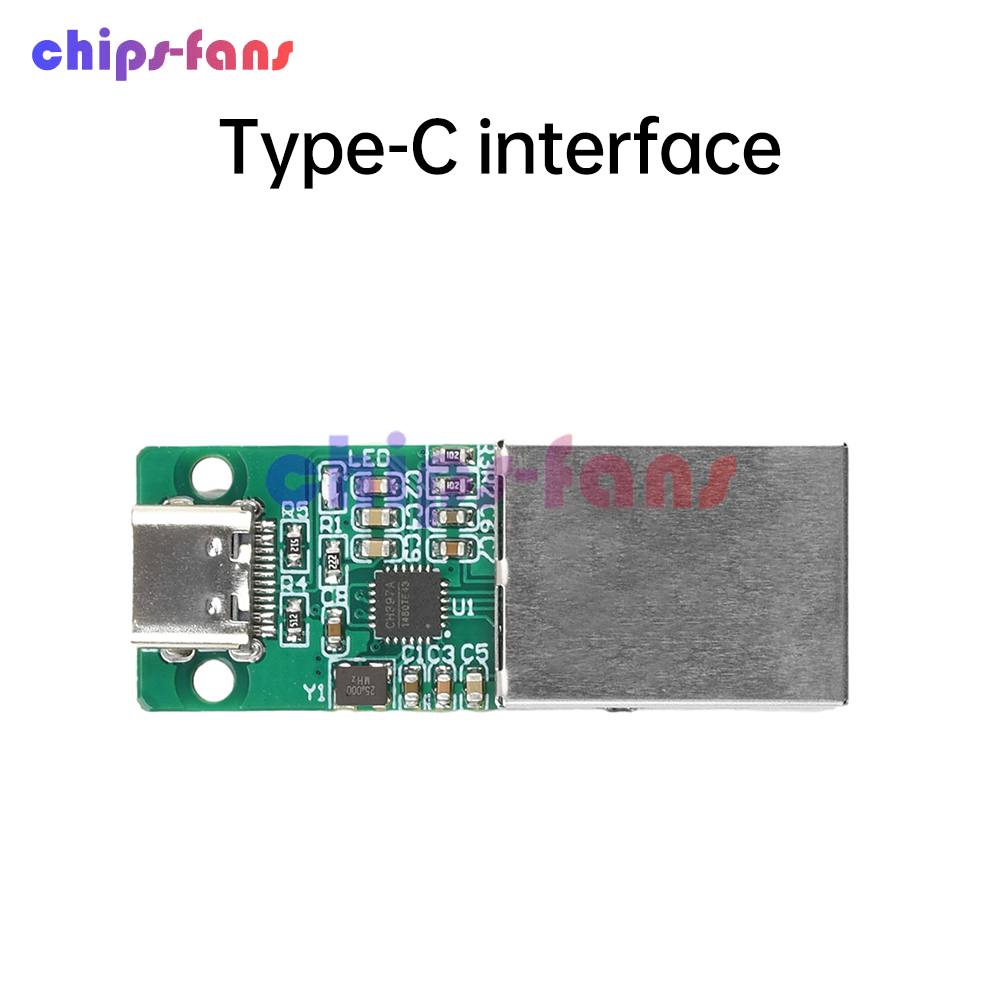

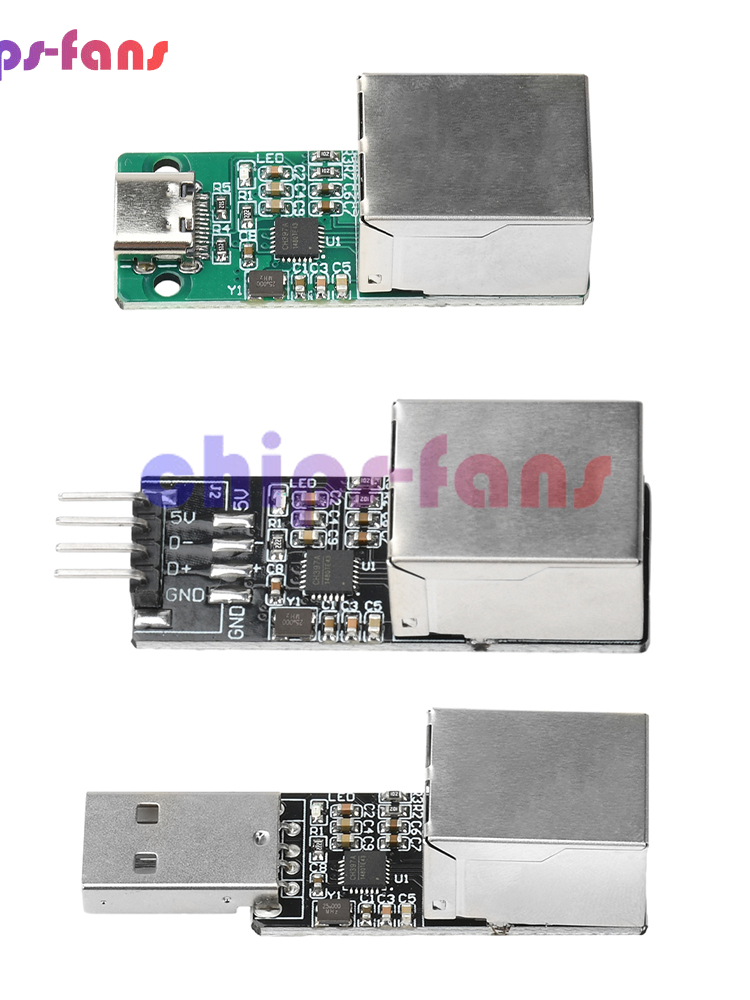

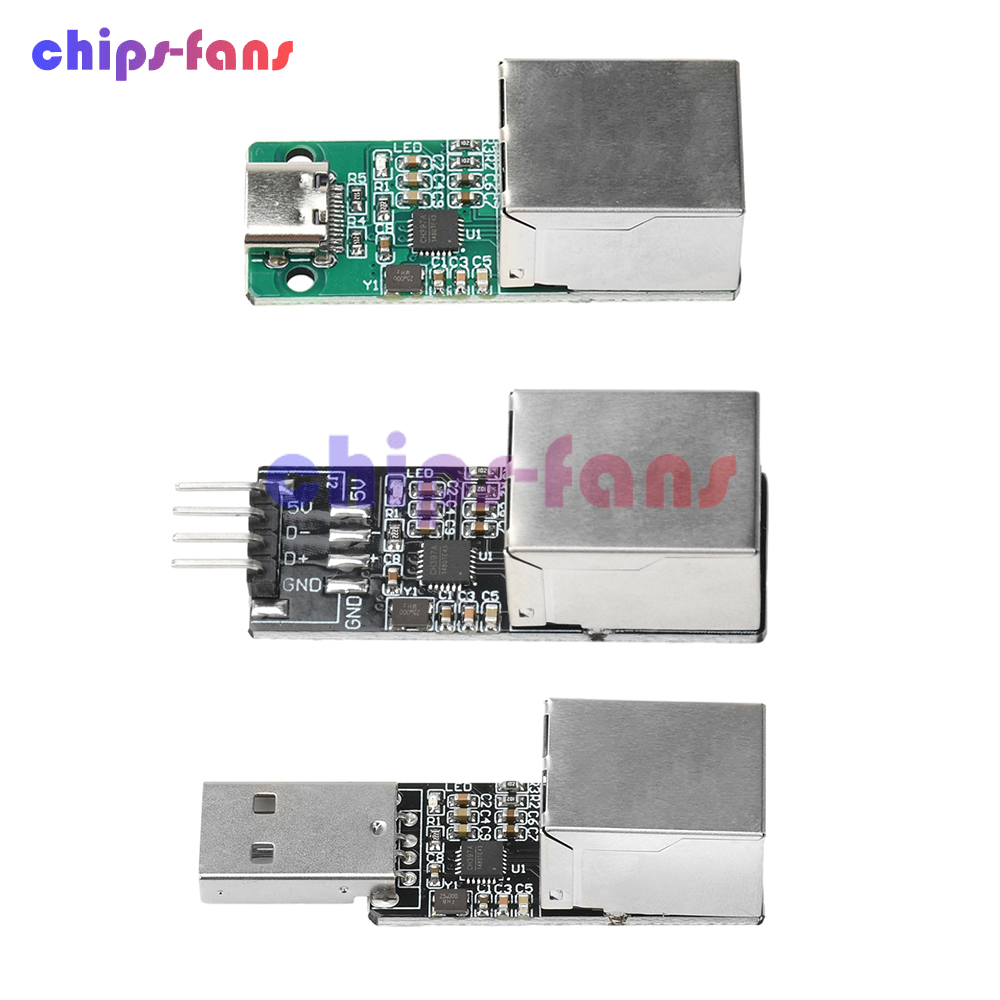

Style: Type C to RJ45, Pin to RJ45, USB to RJ45

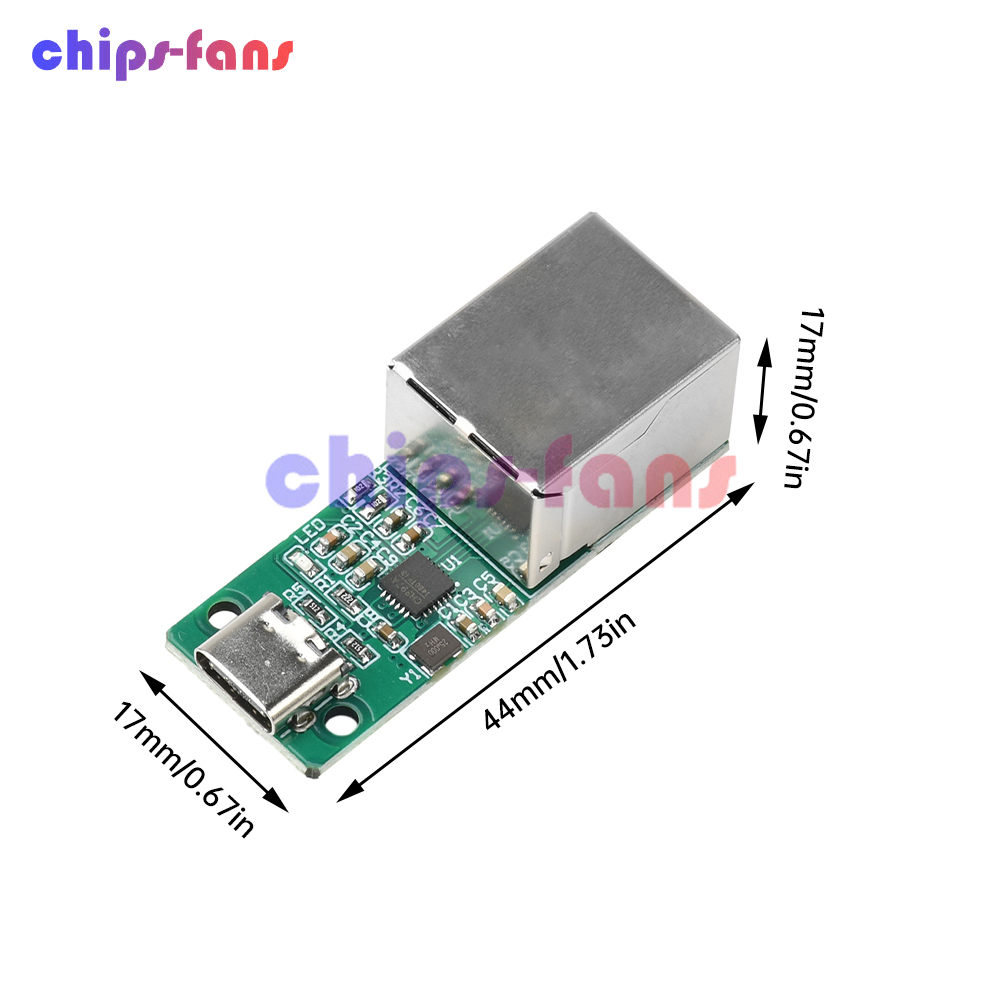

PCB size: 37mm * 16mm (manual measurement, if there is an error of 1-3mm)
1. Install the driver;
2. Connect the module to the computer USB; one end of the cable is plugged into the module, one end is plugged into the router;
3. Select the module Internet network connection, can be normal Internet as normal, and vice versa abnormal.
1 x Module
