LSI LSI00346 9300-4i SGL SAS 4Port 12Gb/s PCI-Express 3.0 HBA Controller Card

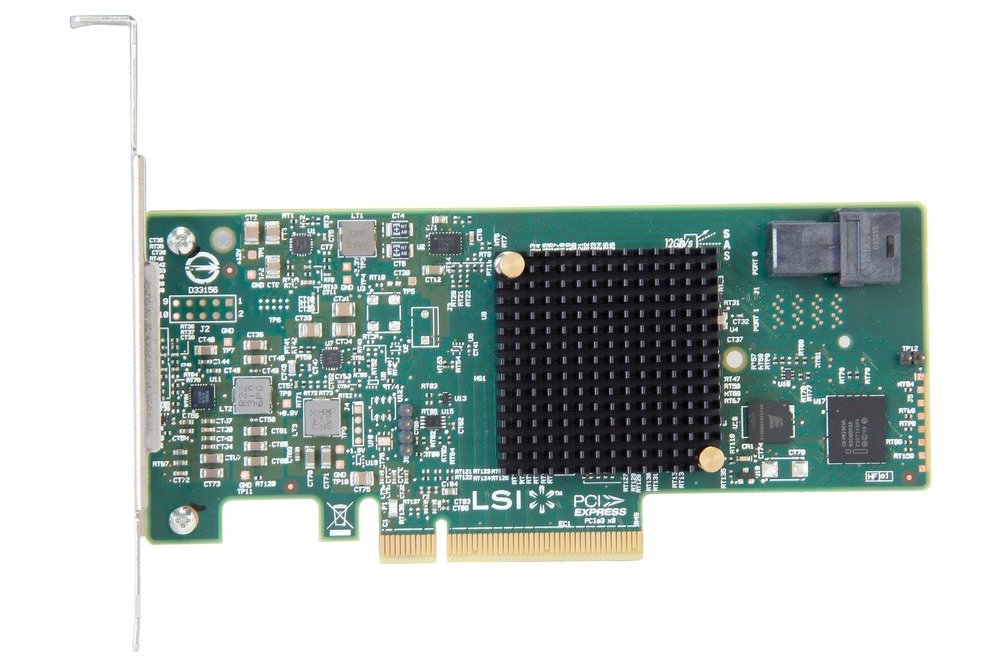

LSI H52547300 9300-4i SGL

Highlights

  • Connect up to 1024 SAS and SATA devices with 4 internal SAS and SATA ports
  • Provide up to 12Gb/s SAS and up to 6Gb/s SATA performance across 8 lanes of PCIe® 3.0 connectivity
  • Low-profile form factor
  • Supports SSDs, HDDs, and tape drives
  • LSI 3 Year Limited Warranty

Get every ounce of SAS storage performance for compact servers

For applications demanding high levels of storage connectivity and performance, 8 and 4-port 12Gb/s SAS HBAs connect servers and appliances to internal and external storage, achieving over 1 million IOPS.

The SAS 9300 8 and 4-port, 12Gb/s SAS host bus adapter family provides increased connectivity and maximum performance for high-end servers and appliances within internal storage, or connecting to large scale storage enclosures.

The SAS 9300 HBA family is based on the SAS 3008 IO controller, integrating the latest enhancements in SAS and PCI Express® technology. Each host bus adapter also supports 8 or 4 SAS ports operating at 12Gb/s data transfer rates, and can reach over 1 million IOPs. The 9300 adapter family supports 8 PCI Express lanes that comply with the latest PCI Express 3.0 specifications. In addition, these adapters are backwards compatible with previous SAS and PCIe generations through automatic negotiation, and provide SAS data transfer rates of 12, 6, and 3 Gb/s per lane, and SATA data transfer rates of 6 and 3Gb/s per lane. Avago Technologies provides a broad suite of industry standard operating system drivers.

Includes

  • (1) SAS 9300-4i Host Bus Adapter
  • (1) Quick Install Guide
  • (1) LP Bracket
  • LSI 3 Year Limited Warranty

Specs

RAID Controller

  • No

Internal Connectivity

  • (1) Mini-SAS HD SFF-8643

Card Interface

  • PCIe

PCIe Bus Interface

  • PCI Express 3.0 x8

PCIe Form Factor

  • PCIe x8 half height, full length
  • Compatible with PCIe x8 slots or larger

Chipset / Controller

  • LSI SAS3004

Mac OS Compatibility

  • Not compatible with macOS

PC OS Compatibility

  • Windows 8.1 32-bit Edition
  • Windows 8.1 64-bit Edition
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows 10 32-bit Edition
  • Windows 10 64-bit Edition
  • Windows Server 2016

Other OS Compatibility

  • Linux (SuSE , Red Hat)
  • Solaris
  • VMware
  • FreeBSD

Operating Voltage

  • +12V +/-8%, 3.3V +/-9%

Dimensions

  • Height: 6.6 cm (2.6 in)
  • Length: 15.2 cm (6.0 in)

Alarm / Buzzer

  • Yes

Country of Origin

  • Taiwan

TAA Compliance

  • Yes

Ambient Temperature

  • Operating: 41°F to 131°F (5°C to 55°C)

Humidity

  • Operating: 5% to 90% non-condensing
