Wi-Fi HaLow Router Gateway HT-H7608, Long-Range IoT Solution, IEEE 802.11ah, 32Mbps Speed, 1km Coverage, USB Type-C, Easy OTA Upgrade

Product Overview: The Heltec HT-H7608 Wi-Fi HaLow Gateway Router is an innovative device designed to provide seamless and reliable long-distance wireless communication for a wide range of IoT applications. Utilizing Wi-Fi HaLow (IEEE 802.11ah) technology, it operates in the sub-1 GHz band, offering superior signal penetration and a significantly extended coverage area compared to traditional Wi-Fi.

Features & Benefits:
Long Range & High Speed: The HT-H7608 supports up to 1km transmission distance and delivers up to 32 Mbps at close range, ensuring reliable and high-speed connectivity for IoT devices.
Dual-Band Connectivity: With support for both Wi-Fi HaLow and 2.4GHz Wi-Fi, it allows flexibility in connecting devices across various networks.
Easy Setup & OTA Upgrade: Effortlessly configure the gateway and perform OTA firmware updates via a simple Web UI interface.

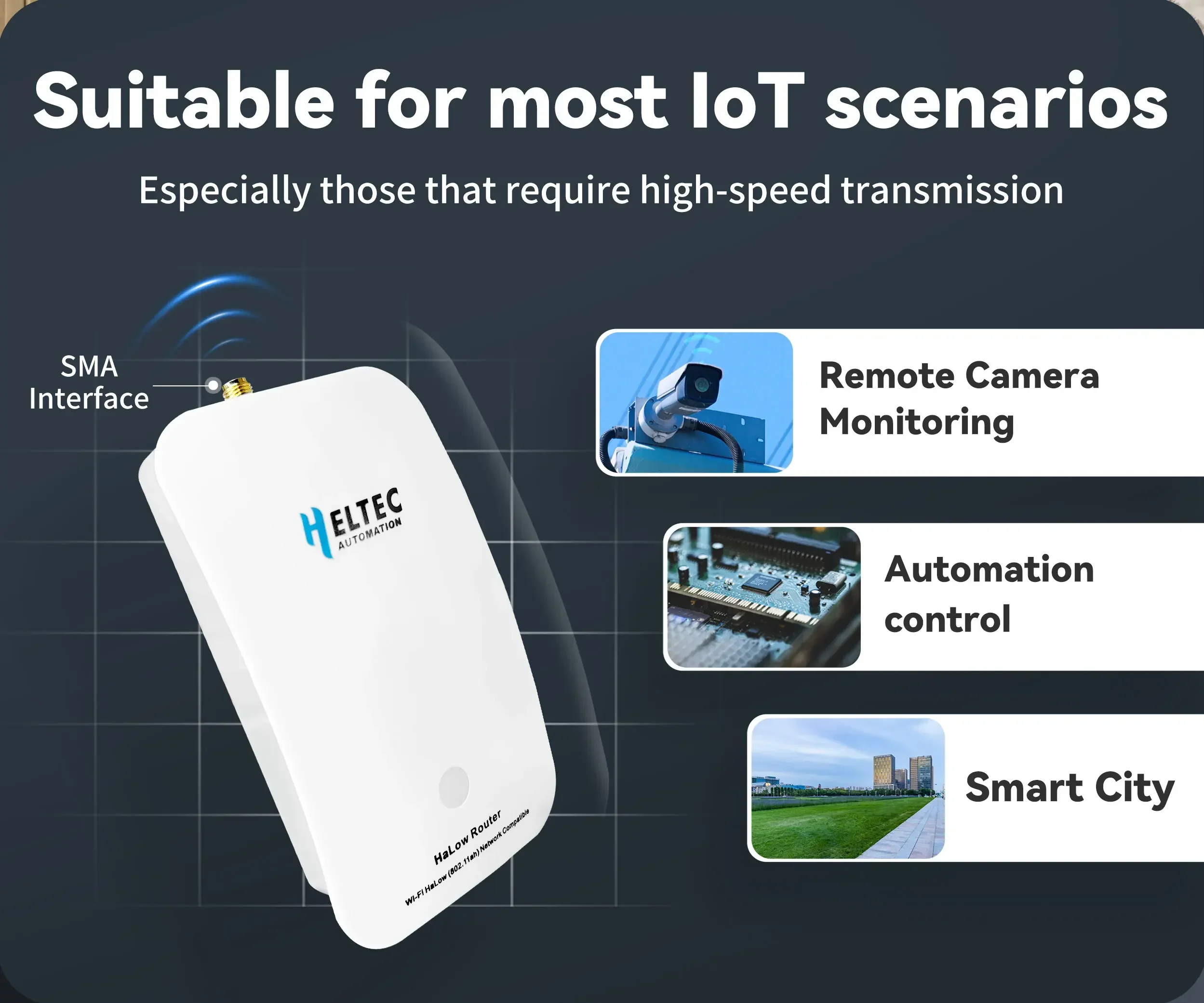

Versatile Applications: Ideal for smart agriculture, intelligent manufacturing, remote sensing, and other IoT solutions. The device supports a wide range of industries, including logistics, offshore operations, and more.
Robust Security: Equipped with WPA3 for enhanced encryption and secure communication, ensuring privacy and data integrity.

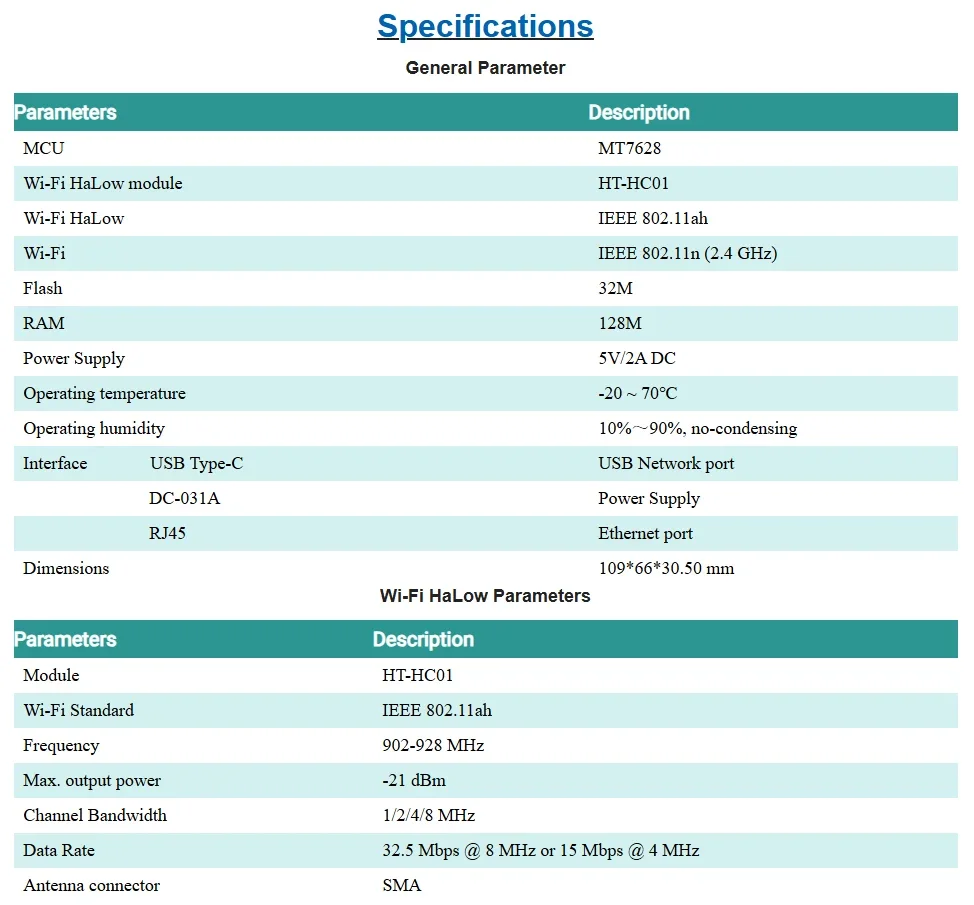

Technical Specifications:
Wi-Fi Standard: IEEE 802.11ah (Wi-Fi HaLow)
Operating Frequency: 902-928 MHz
Maximum Output Power: -21 dBm
Data Rate: 32.5 Mbps at 8 MHz or 15 Mbps at 4 MHz
Operating Temperature: -40°C to 85°C
Power Supply: 5V/2A DC via USB Type-C

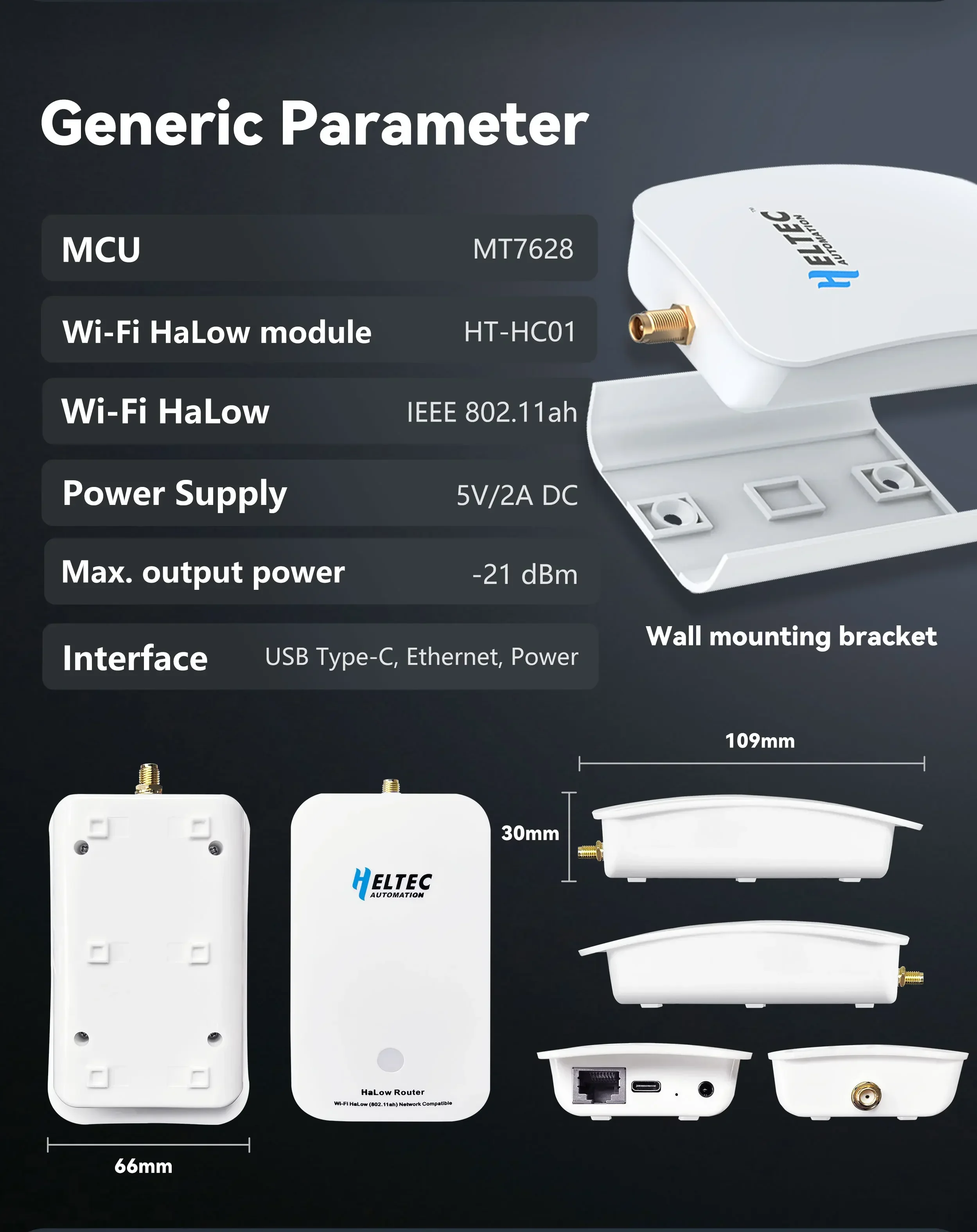

Dimensions: 109x66x30.50 mm

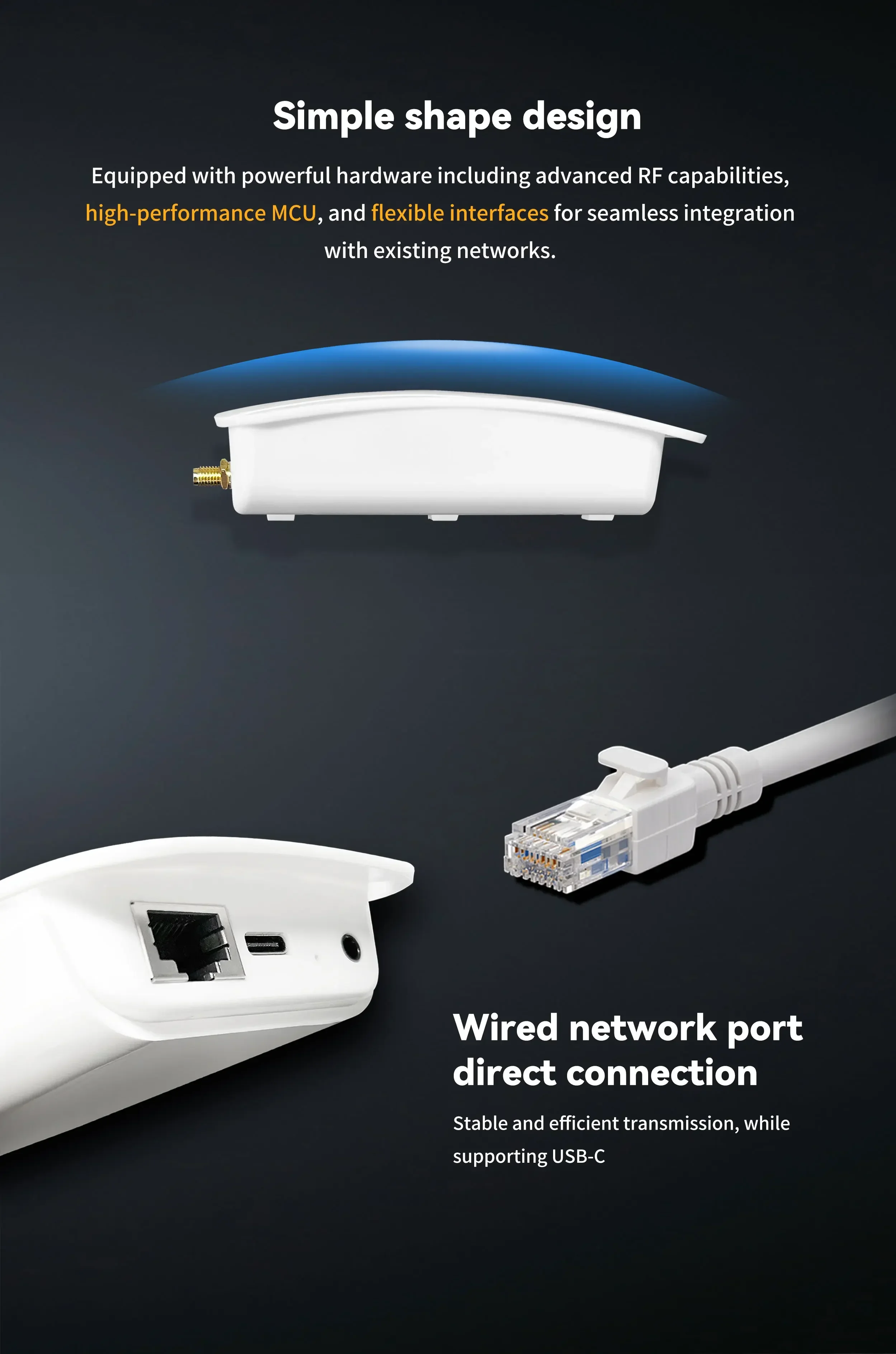

Interface: USB Type-C, Ethernet (RJ45)

Usage Suggestions: The HT-H7608 is designed for applications in remote or challenging environments, including agricultural fields, smart city infrastructures, and industrial facilities. Its ability to handle a high number of connected devices simultaneously makes it an ideal solution for large-scale IoT deployments.

Main Features
Wi-Fi and Ethernet supported, WiFi HaLow and 2.4GHz dual-band design.

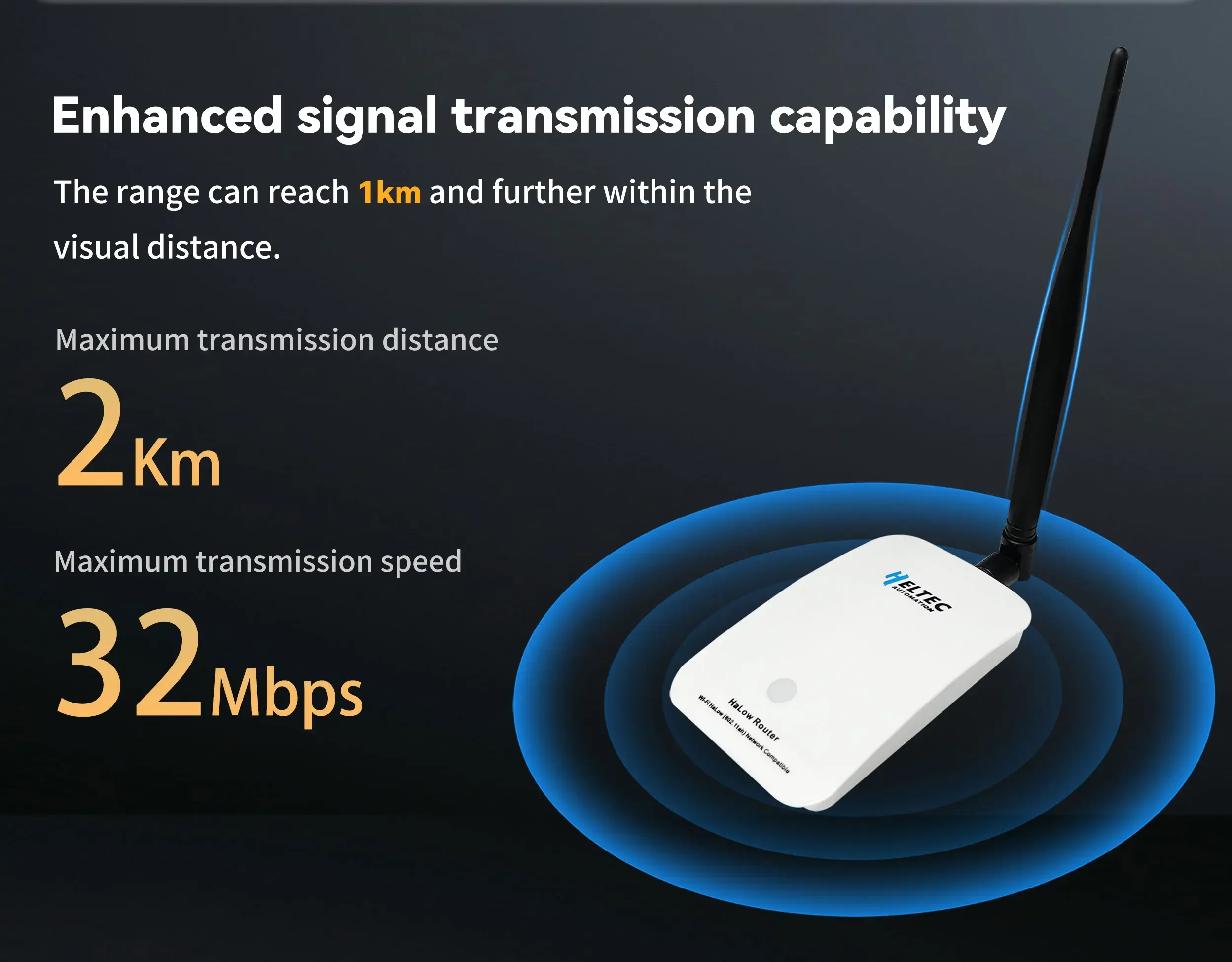

Long-range transmission capability, the range can reach 1km and further within the visual distance.
Supports access to a large number of devices, more than 4 times that of traditional Wi-Fi access points.
High transmission speed, it maintains 150Kbps at the limit distance and 32Mbps at close distances.

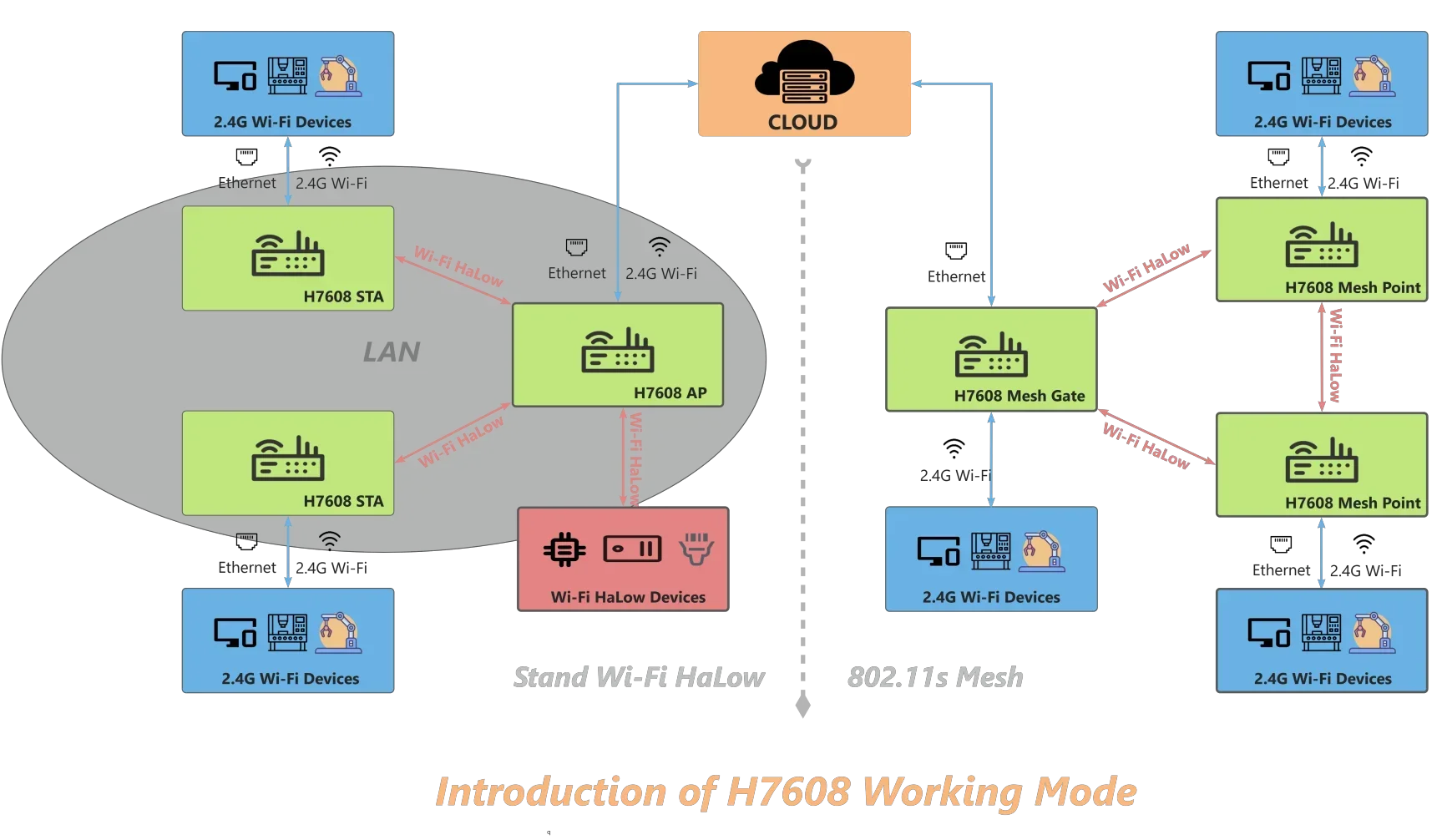

Flexible networking methods, including AP, STA, Mesh, etc.
Easy setup and OTA upgrade via the Web UI.
Light and stylish wall-mounted, simple to install.
-40°C to 85°C maximum operating temperature range.

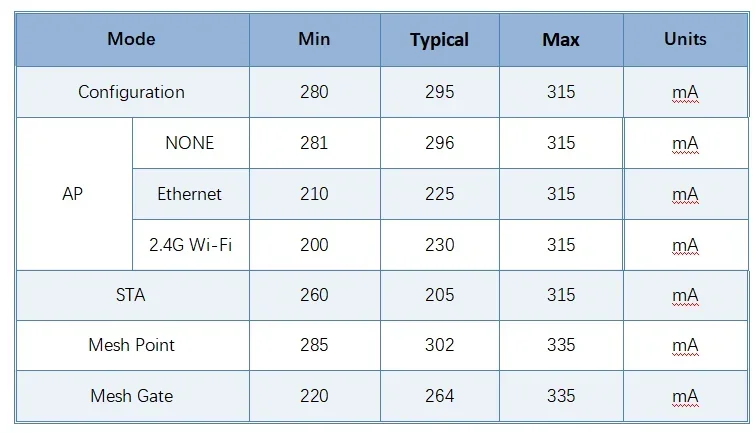

Power Consumption

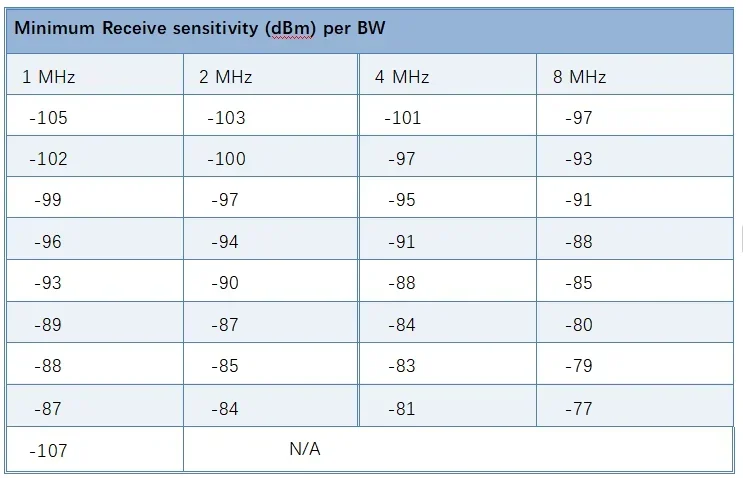

Receiver Sensitivities

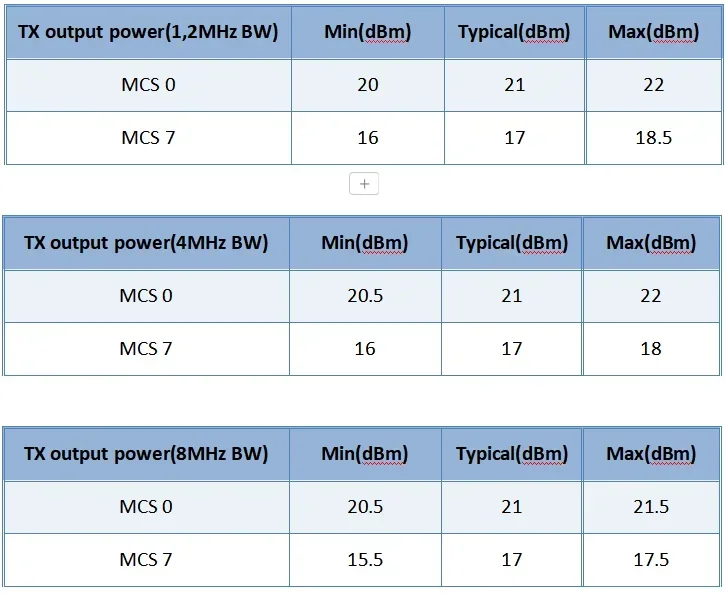

Transmitter Power

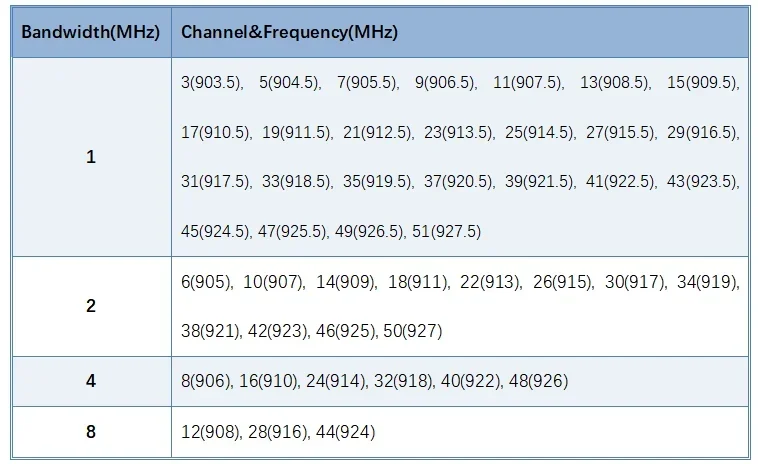

Channel&Bandwidth

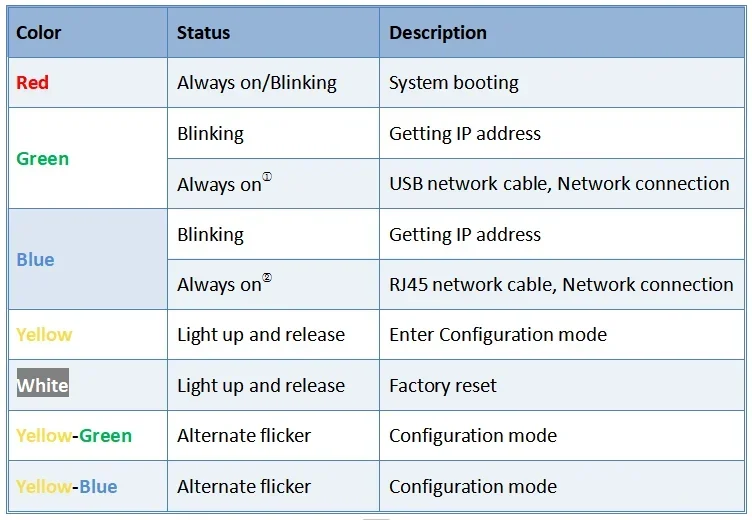

RGB Status Indicator Description

Packing list
The default packing list without selecting any accessories is as follows:

HT-H7608 x 1
Suction Cup Glue Rod Antenna x 1
5V 1A Power Adapter x 1
