Wi-Fi HaLow Raspberry Pi HAT with 5MP Camera for Remote Video Transmission – 1-2km Range, 32Mbps Speed, IEEE 802.11ah Compatible

Product Overview:
The Pi-CamLow is a Raspberry Pi HAT designed for high-performance, long-range wireless communication using Wi-Fi HaLow technology. This module is equipped with a 5MP camera that supports 2592x1944 resolution images and video at 30FPS@24MHz. Whether for remote video surveillance, smart home applications, or low-power IoT projects, the Pi-CamLow is the ideal solution for high-speed wireless data transmission in complex environments.

Key Features & Advantages:
Wi-Fi HaLow Technology: Utilizes IEEE 802.11ah to enable long-range communication (up to 1-2km) with speeds up to 32.5Mbps@8.
Integrated 5MP Camera: Supports high-definition imaging at 2592x1944 resolution, ideal for both dynamic and static images.

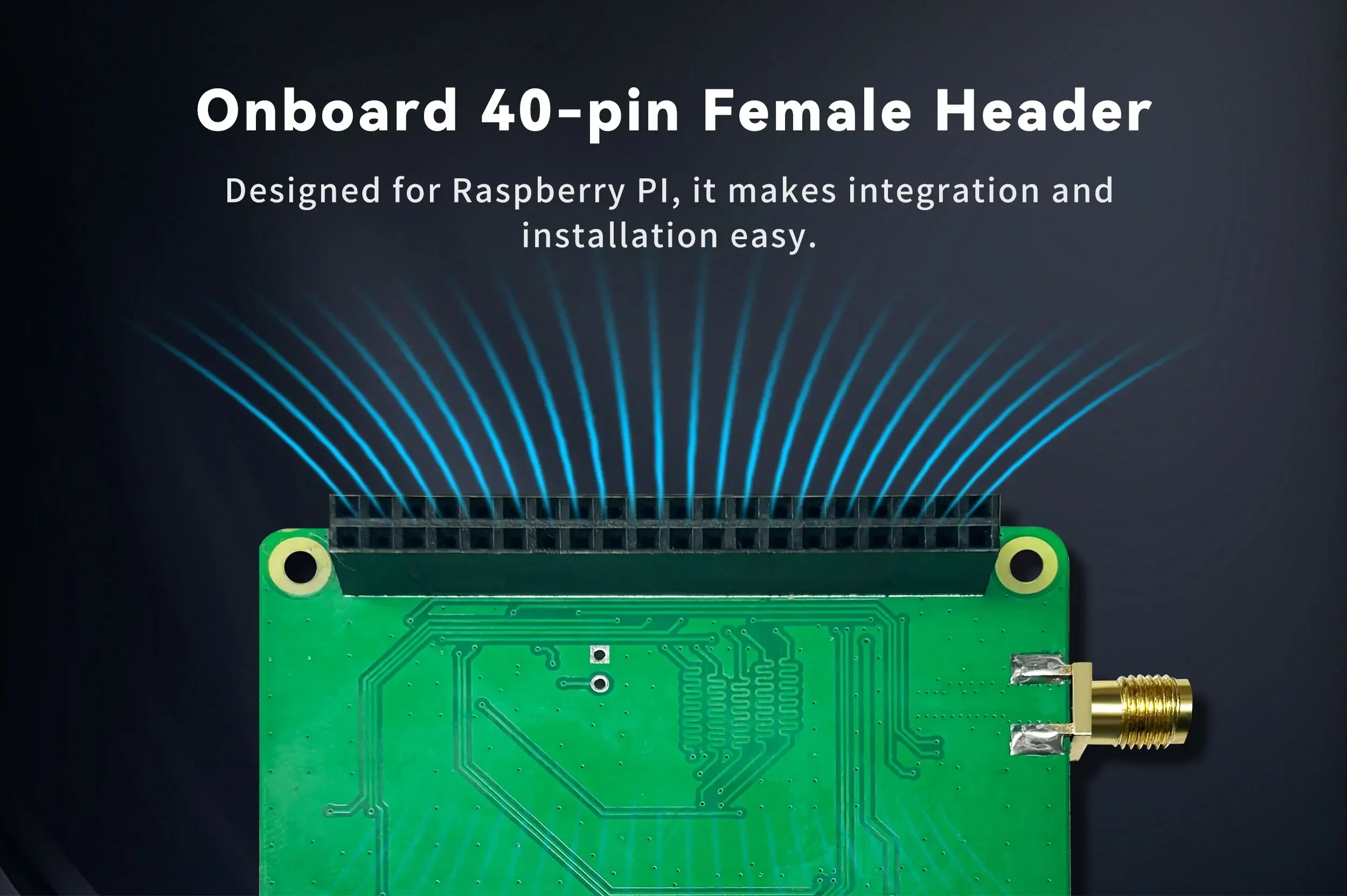

Raspberry Pi Compatible: Specifically designed as a HAT with a 40-pin Female Header for easy integration with Raspberry Pi, including Raspberry Pi 4B.
Low Power Consumption: Designed to consume minimal power, making it perfect for IoT applications that require extended range and long battery life.
Advanced Video Features: Supports 30FPS video transmission with auto-exposure and auto-gain controls for clear images in various lighting conditions.
Versatile Applications: Ideal for remote camera monitoring, smart city setups, industrial IoT, and rural internet access.

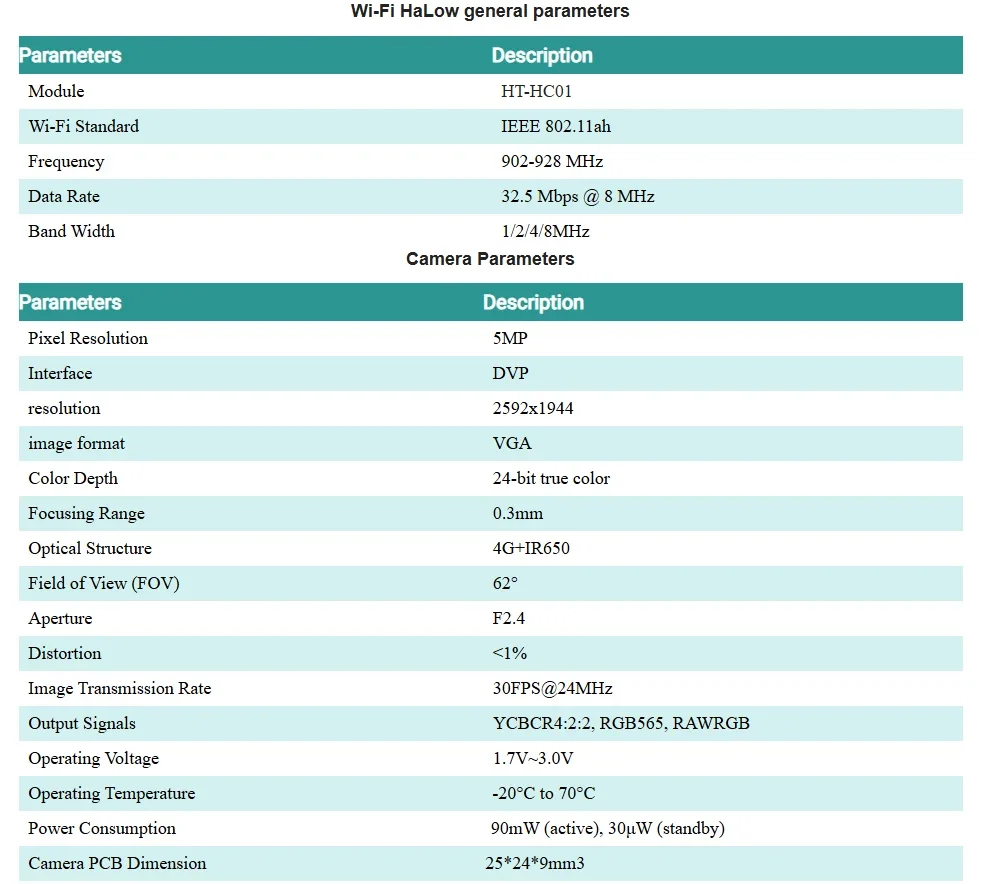

Technical Specifications:

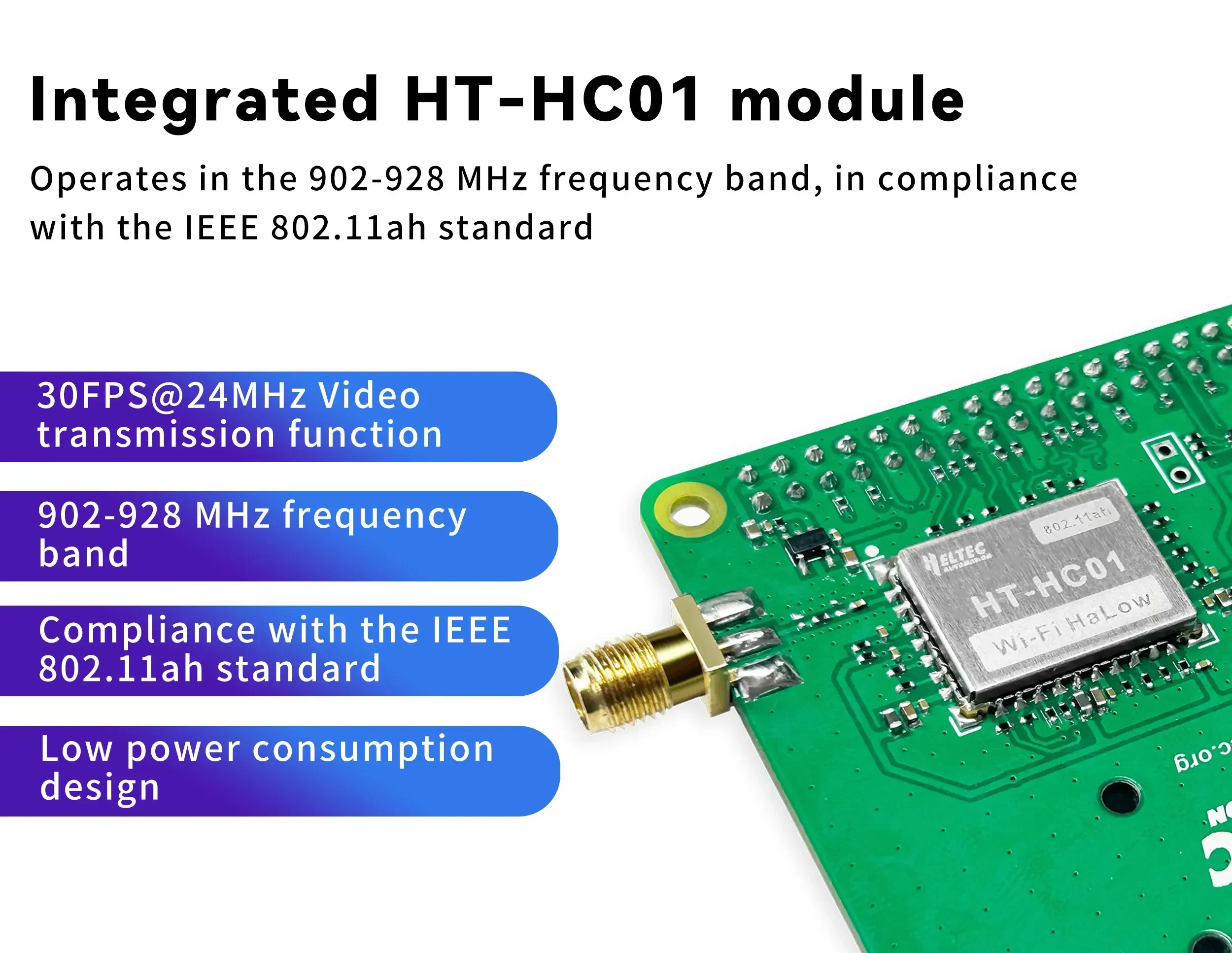

Wi-Fi HaLow Module: HT-HC01, operating in the 902-928 MHz frequency band, compliant with IEEE 802.11ah.

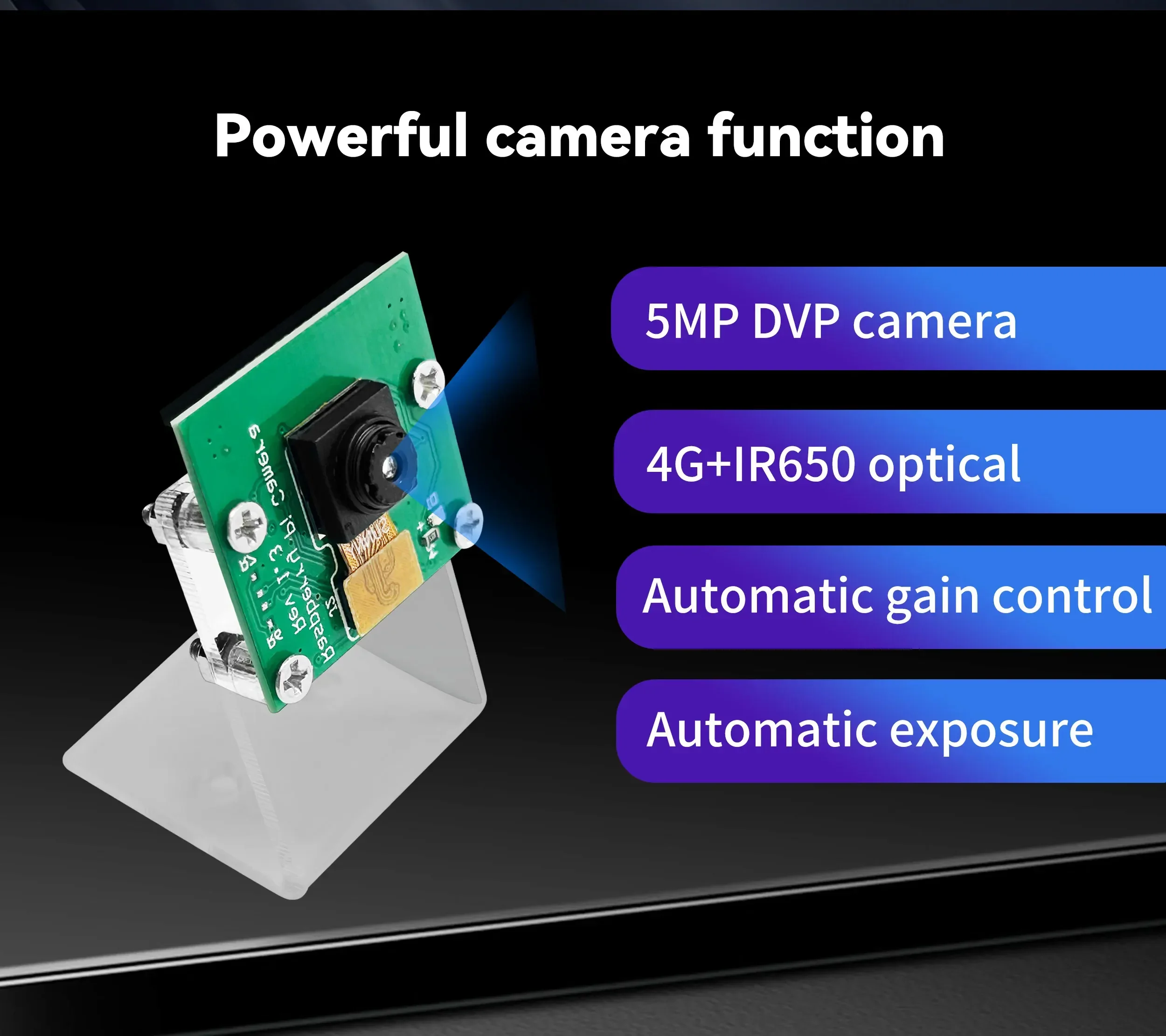

Camera: 5MP DVP camera, supports 2592×1944 resolution, 30FPS@24MHz video.

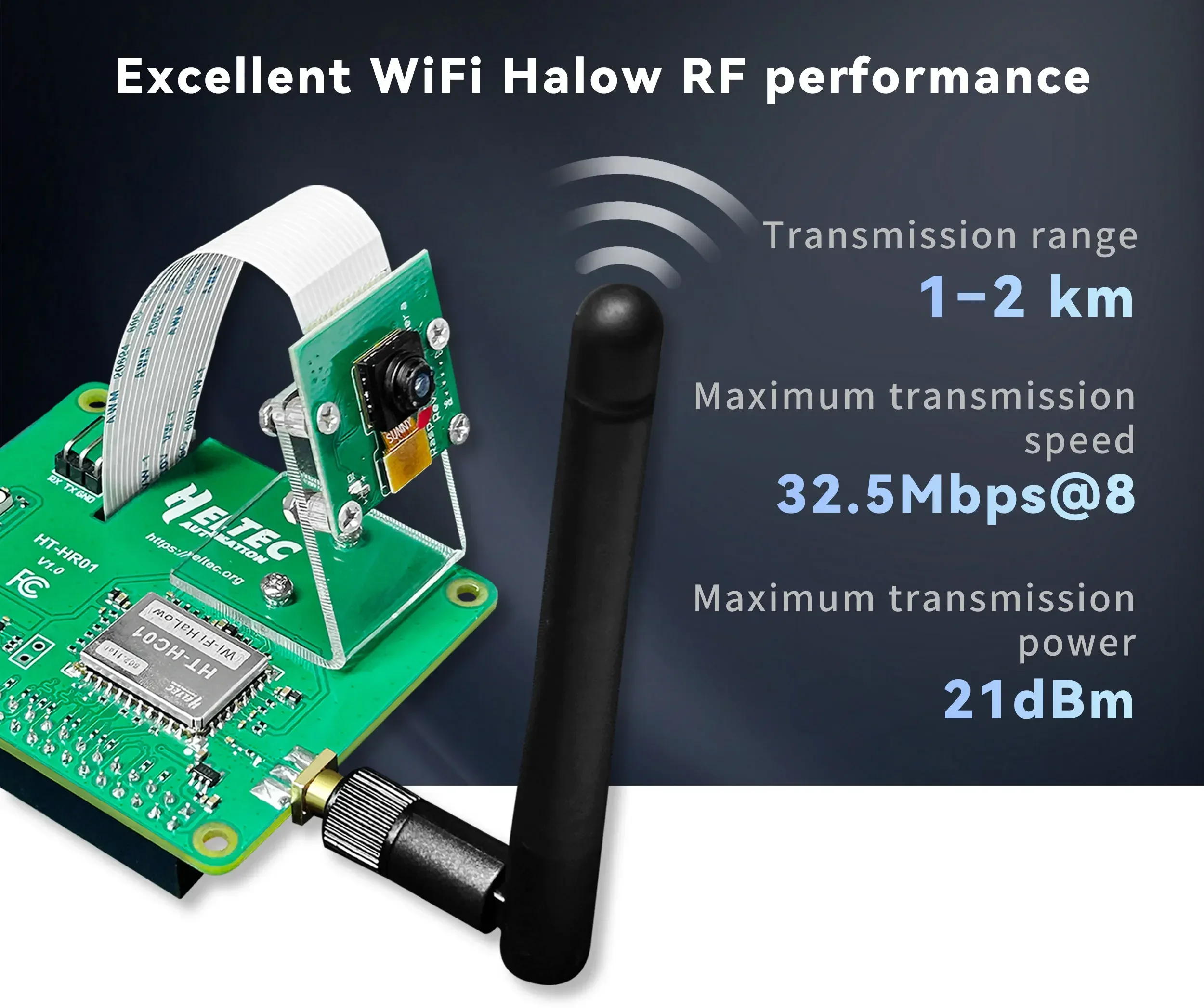

Transmission Speed: 32.5Mbps @8M, with long-distance transmission capabilities (1-2km range).
Power Supply: 5V via Raspberry Pi.
Temperature Range: -20 to +70°C, optimized for camera operation.
Humidity Range: 10%–90%, non-condensing.
Dimensions: 65mm x 56mm.

Use Suggestions:
Remote Surveillance: Perfect for long-range video transmission, ideal for smart home monitoring and security cameras.
IoT Networks: Suitable for low-power, long-range communications for sensors, remote devices, and video capture.

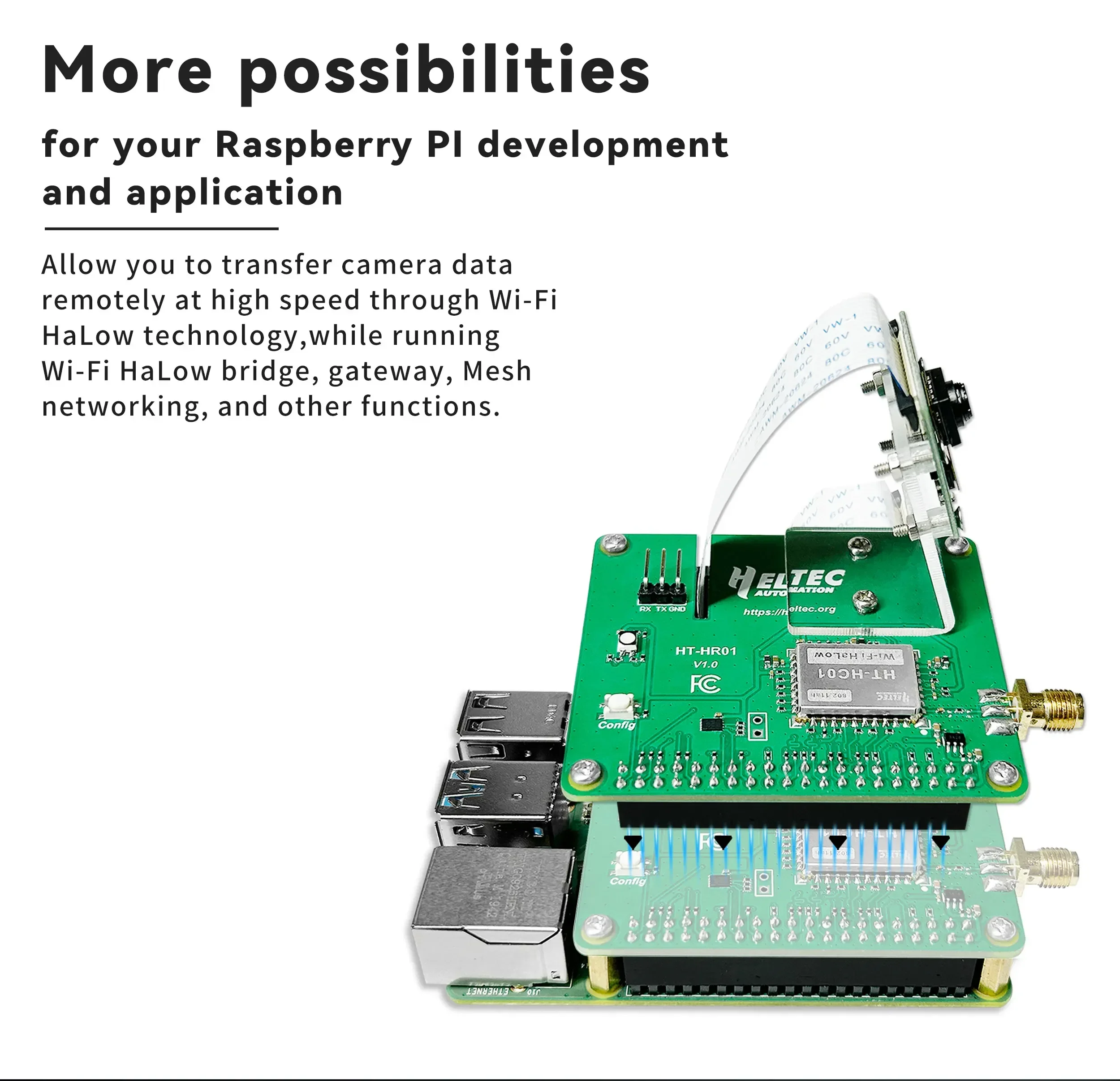

Raspberry Pi Extensions: Provides a powerful, wireless camera and monitoring solution for various Pi-based projects.

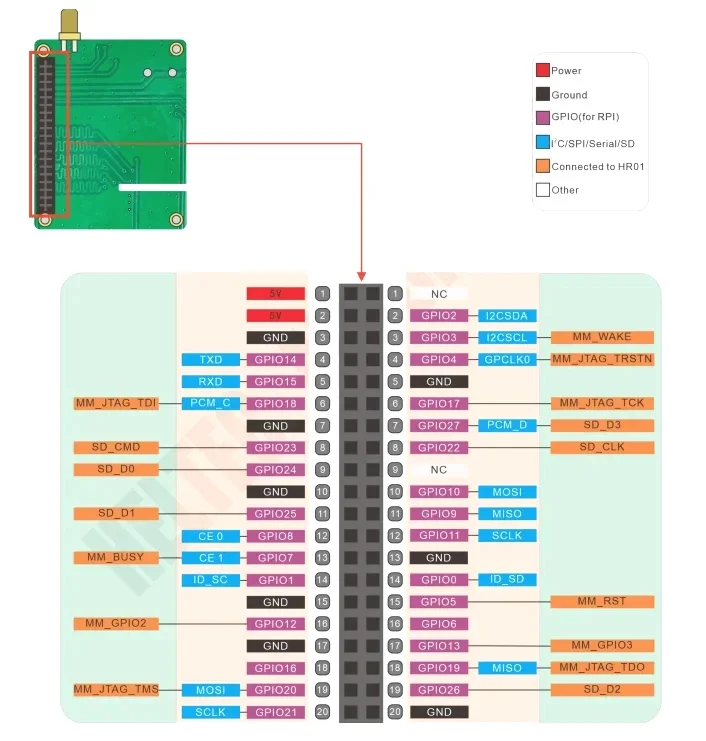

Pin description
The pins on this HAT are fully compatible with the Raspberry Pi, so you only need to know the pin mapping between the module's functional pins and the Raspberry Pi pins.

Get Started

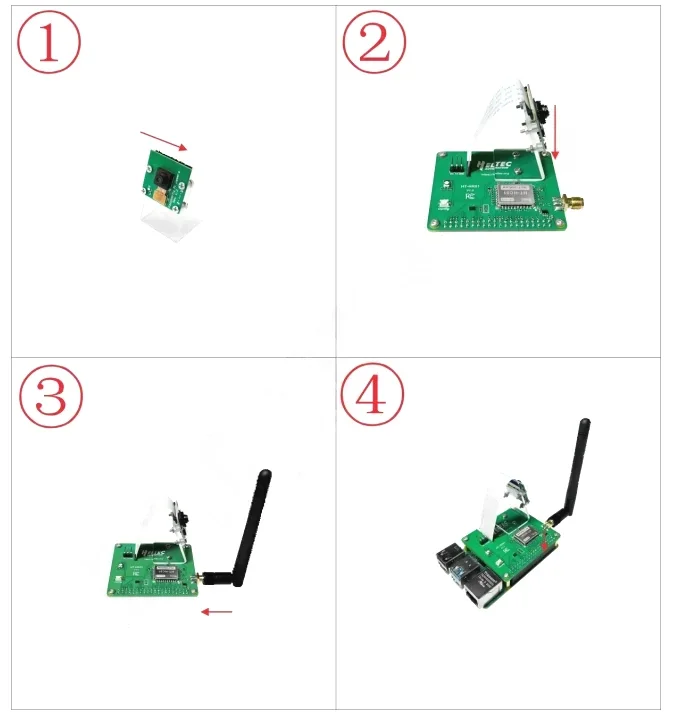

Hardware connection

Firmware instructions and getting Started guide
Please refer to the Pi-CamLow usage guide(Please refer to the Pi-CamLow usage guide)

Hardware Dimensions

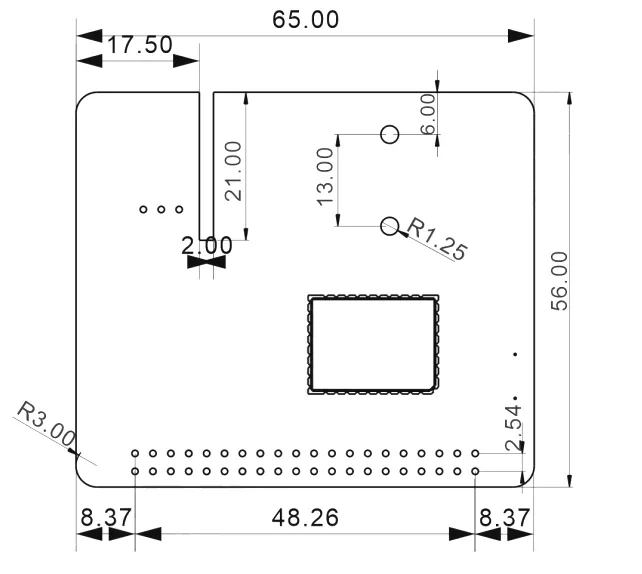

PCB dimensions (unit: mm)

Packing list
The default packing list without selecting any accessories is as follows:

Camera x 1
Wifi HaLow Stick Antenna x 1
Bracket x 1

FAQ

What are the precautions for I2C and SPI?

Each IO pin is preconfigured with IO_MUX functionality, which means you can use any GPIO as I2C or SPI pins.
You just need to define these pins in your code. However, it's important to note that once a pin is used, it may affect other functions associated with that pin.

What are the connection options for HT-HC32?

Include Wi-Fi, Bluetooth, and Wi-Fi HaLow, with an onboard 2.4 GHz patch antenna for Wi-Fi and Bluetooth, as well as a reserved IPEX (U.FL) interface for the HT-HC01 Wi-Fi HaLow module.
