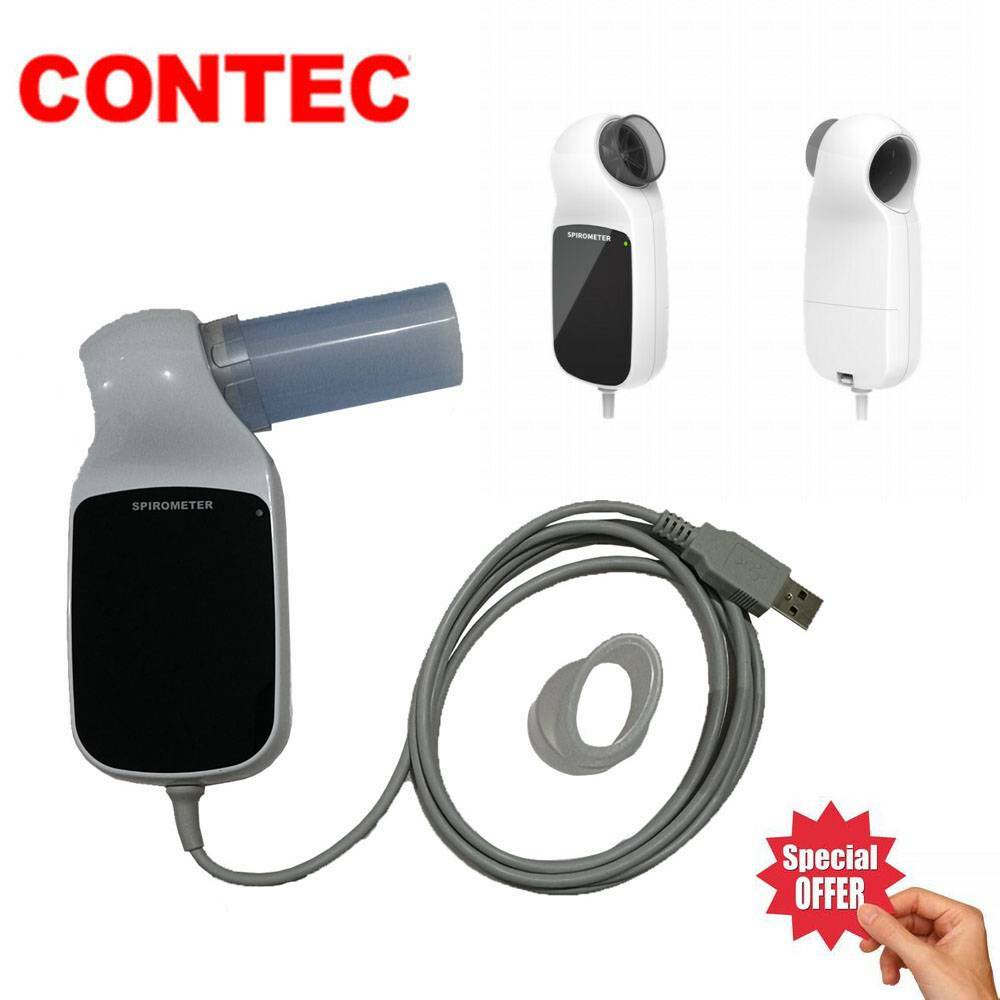

SPM-A SPIROMETER


Brief introduction

1.Introduction

SPM-A SPIROMETER is a hand-held equipment for testing lung conditions, which is used to test patient’s respiratory function status and assist to early detect respiratory diseases (such as asthma, COPD), the nature and extend of pulmonary dysfunction.


Functions

1)Test the functions related to FVC, VC and MVV, measure and display more than 40 parameters, and display the optimal value from many measurements. Besides, the tester condition can be reflected by the ratio of the measured value and the predicted value.

2)Real-time display of respiration waveform: flow-volume loop and volume-time curve.

3)Display of test time and environment temperature.

4)Comparison of several group of test data and waveform and display of the optimal value.

5)Display of trend chart, provides the trend of each parameter within a period of time.

6)BTPS self-correction function, compensates the impact arisen from environment difference.

7)Lung function assessment function, more intuitive to reflect patient’s lung condition in current phase.

8)Calibration function, ensures the test accuracy.

9)Wired data transmission, stable and fast in transmission speed.

10)Power and test indicator.


Performance

Volume range: 0 ~ 10 L (FVC)

Volume accuracy: : ± 3 % or ± 0.05 L (whichever is greater)

Flow range: 0 ~ 16 L/s

Flow accuracy: ± 5 % or ± 0.2 L/s (whichever is greater)

Operating environment:

Atmospheric pressure: 700 ~ 1060 hPa

Temperature: + 10 ~ + 40℃

Relative humidity: ≤ 80 %

Storage environment:

Atmospheric pressure: 500 ~ 1060 hPa

Temperature: -40 ~ 55 ℃

Relative humidity: ≤ 95 %

Working current: 80 mA

Power supply: USB-powered mode

Safety class: class Ⅱ, type BF applied part

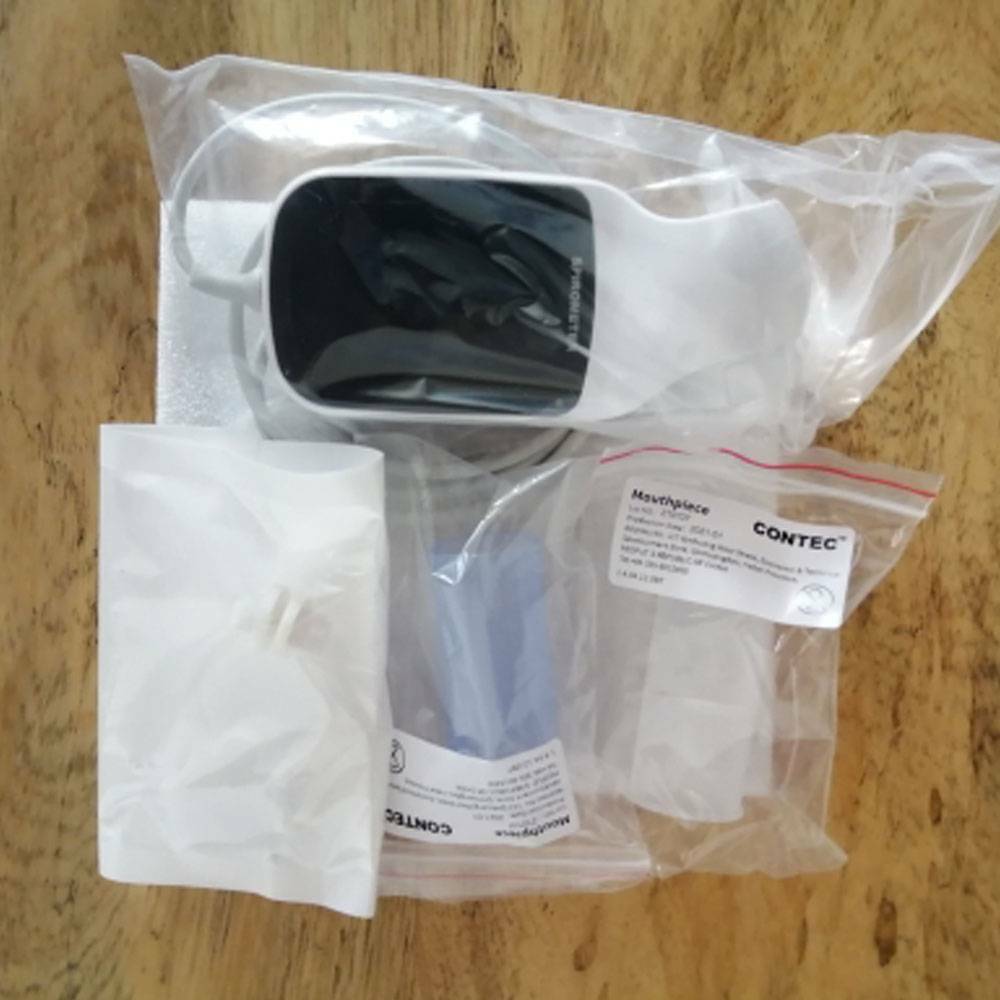

Accessories

Standard accessories:

One User Manual

One mouthpiece(disposable accessory)

One nose clip


Physical characteristic

Dimension: 138 mm (L) × 63 mm (W) × 47 mm (H)

Weight: 150 g
