Application
for Yamaha Kodiak 400 2000-2006
for Yamaha Grizzly 400 2007-2008

Part Number

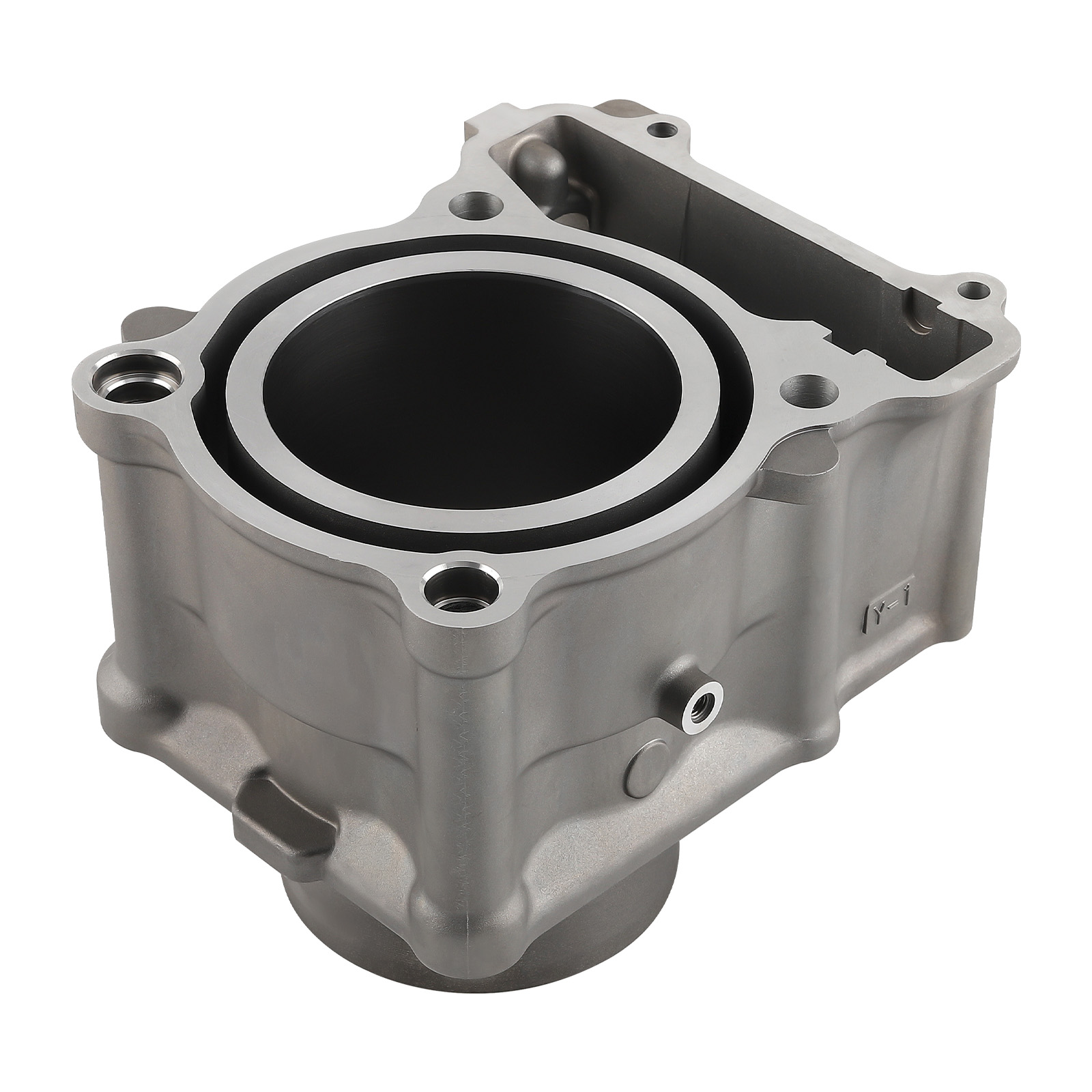

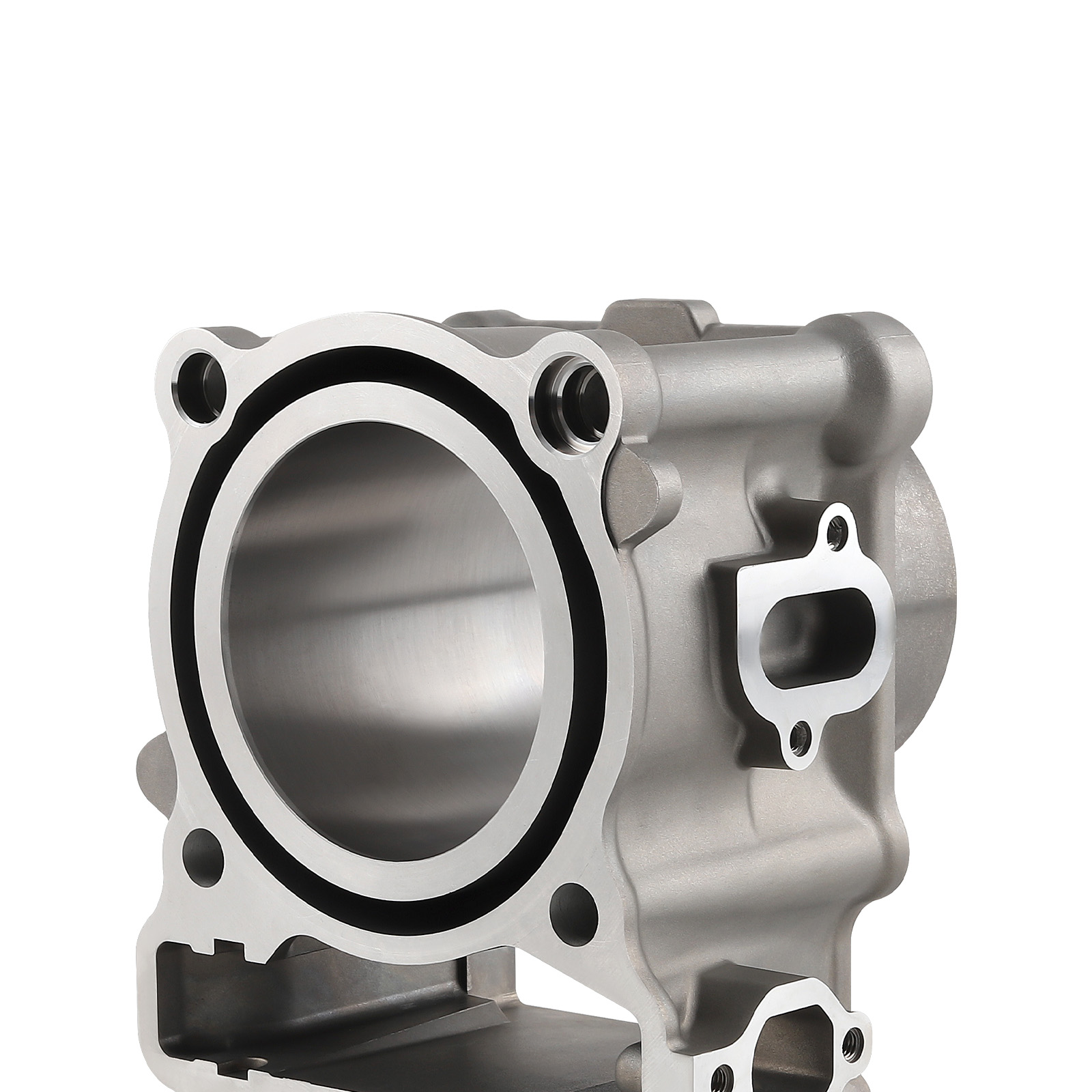

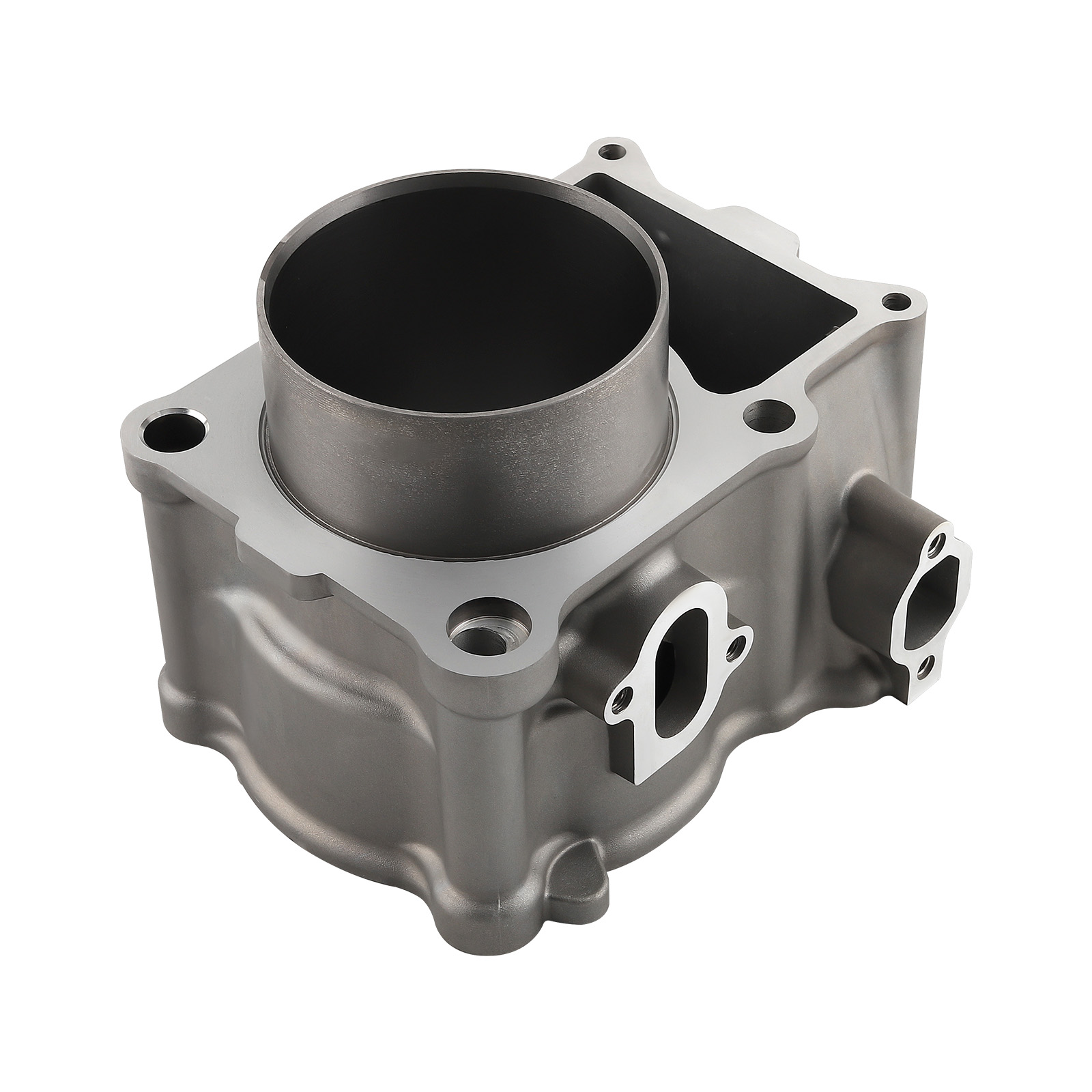

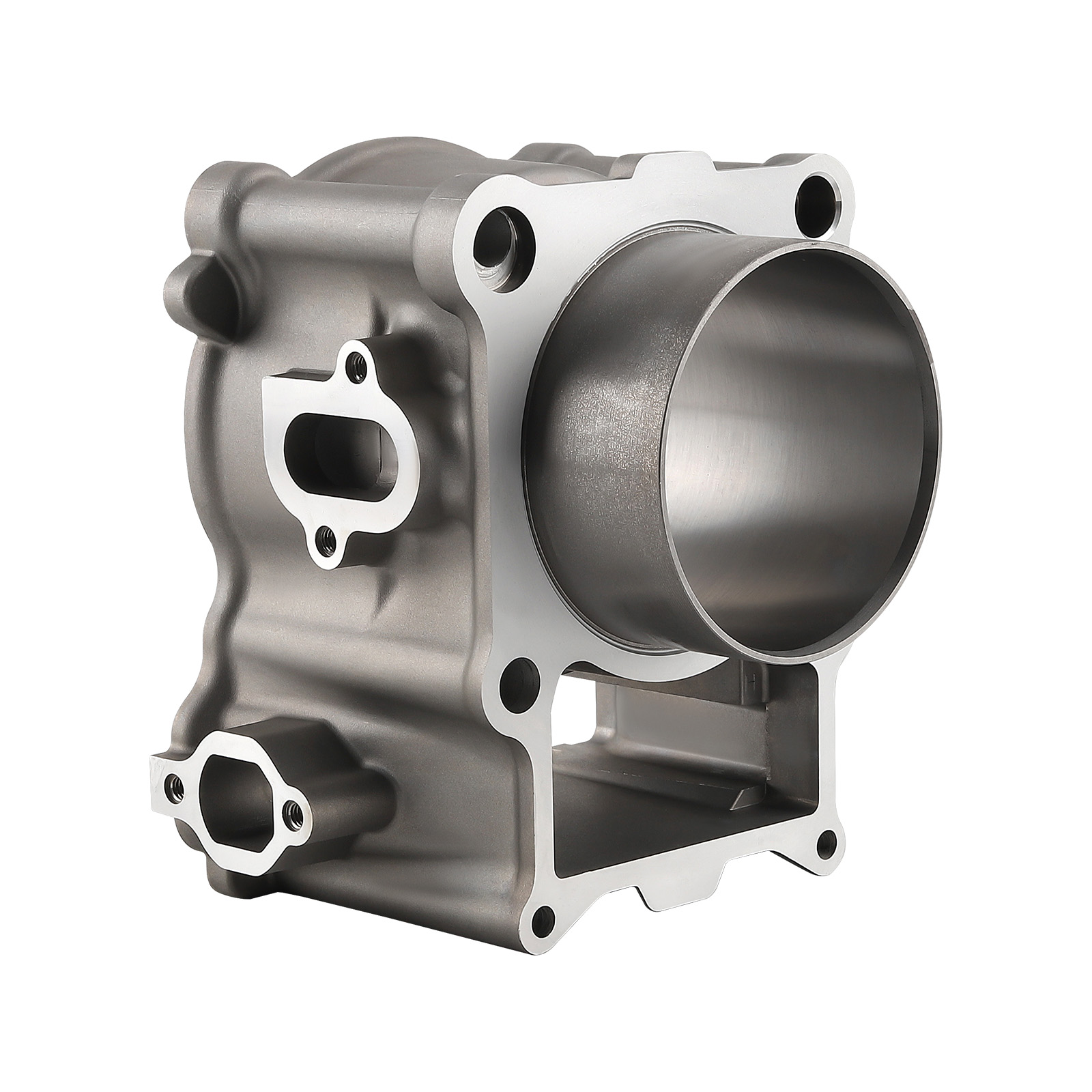

Cylinder: 5GH-11310-00-00

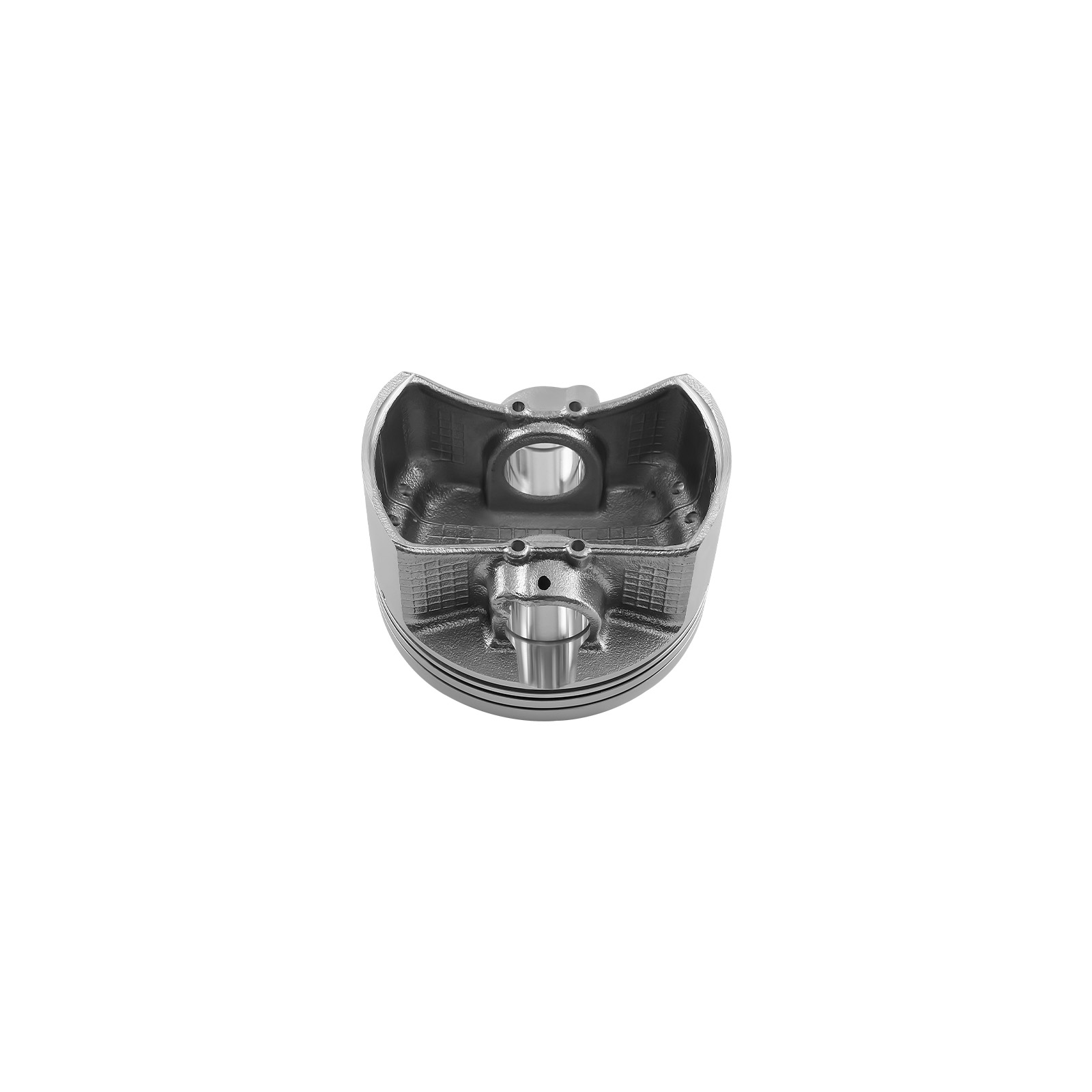

Piston: 5GH-11631-00-00
Piston Ring Set: 5GH-11603-00-00
Wristpin: 3LD-11633-00-00
Circlip(2): 93450-22027-00
Head Gasket: 5GH-11181-00-00
Base Gasket: 5GH-11351-00-00
Chain Tensioner Gasket: 3GD-12213-00-00
Cylinder Head O-Ring: 93210-89447-00
Radiator Hose O-Ring: 93210-33786-00
Clutch O-Ring: 93210-18322-00

Specification
Material: Aluminum
Type: Cylinder Piston Top End Kit
Vehicle Type: ATV
Bore Diameter: 84.5mm
Displacement (ml): 400cc
Engine Type: 4-Stroke
Piston Diameter: 84.50mm
Piston Height: 52.30mm
Piston Pin Diameter: 20mm
Piston Pin Height: 58mm
Fitment Type: Direct Replacement

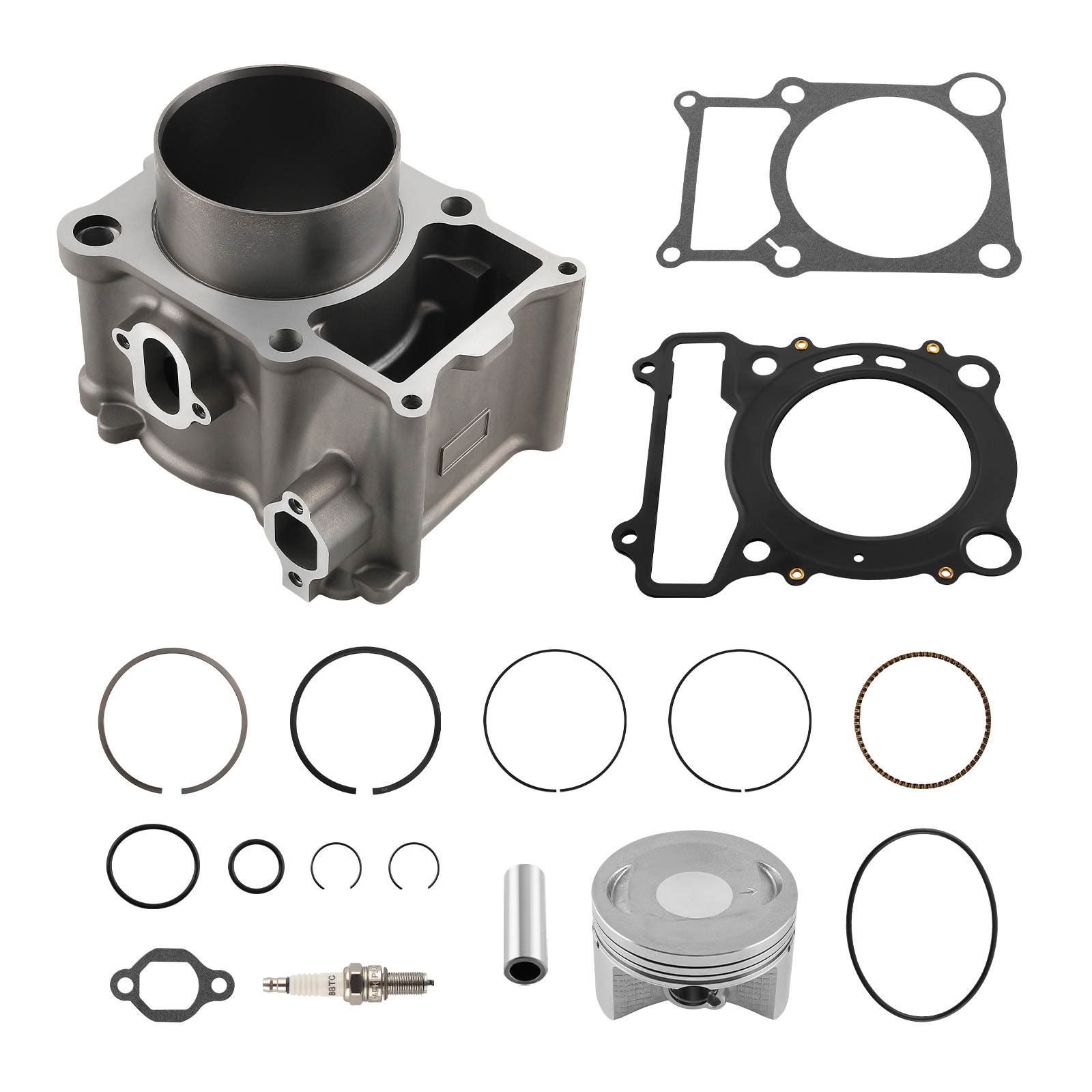

Package Included
1x Cylinder
1x Piston
1x Piston Ring Set
1x Wristpin
1x Circlip(2)
1x Cylinder Head Gasket
1x Cylinder Base Gasket
1x Chain Tensioner Gasket
1x Cylinder Head O-Ring
1x Radiator Hose O-Ring
1x Clutch O-Ring
1x Spark Plug
(As Pictures Shown)

Note:
- Please confirm the model number before purchase
- Not Included installation instructions, Professional installation required
