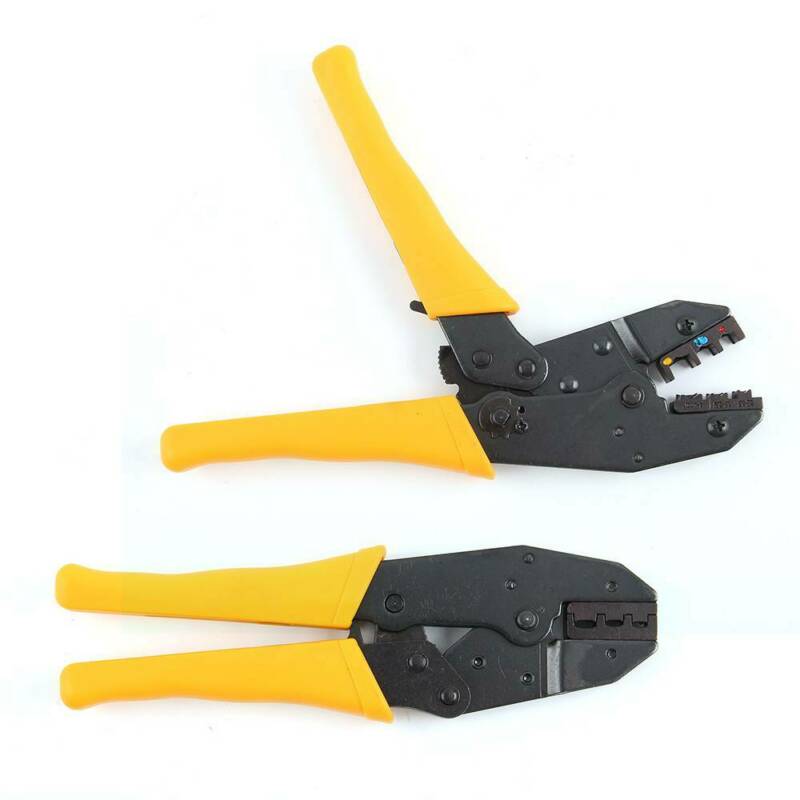

Insulated Cable Connector Terminal Ratchet Wire Crimper

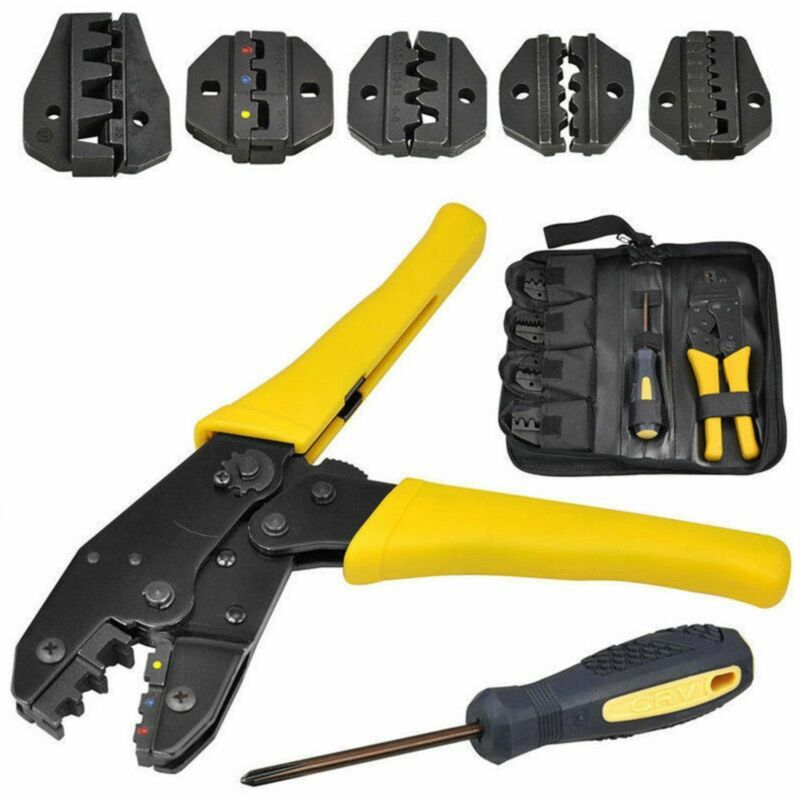

PACKAGE:

• 1 x Ratchet Crimping Tool
• 1 x Screwdriver
• 1 x A35WF (10-35mm²)
• 1 x A26TW (2x0.5-a6mm²)
• 1 x A10 (1.5-6mm²)
• 1 x A03B (1.5-6mm²)
• 1 x A30J (0.5-6mm²)

FEATURES:

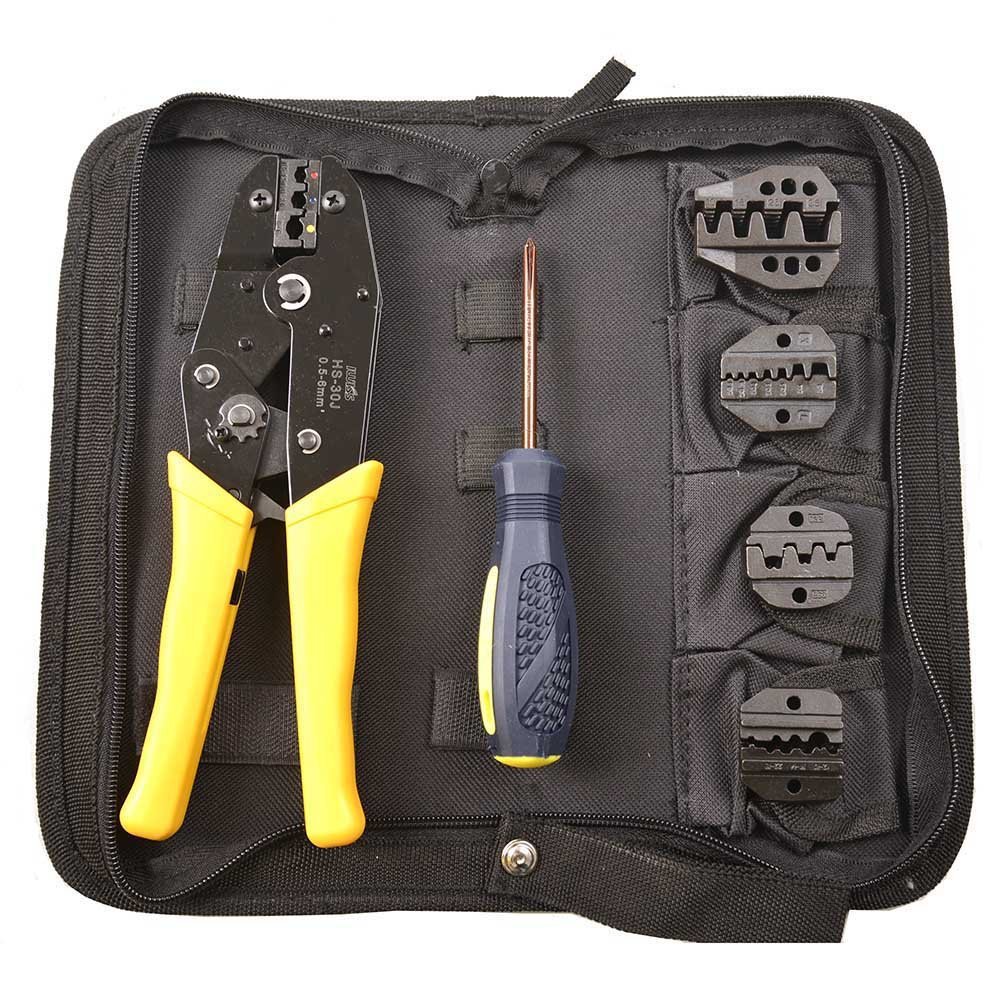

• This crimp tool offers many application variations and is always perfectly stowed away with its 5 different inserts and a screwdriver into the pouch.
• Crimping tool with release function
• Comfort handles for relaxed working

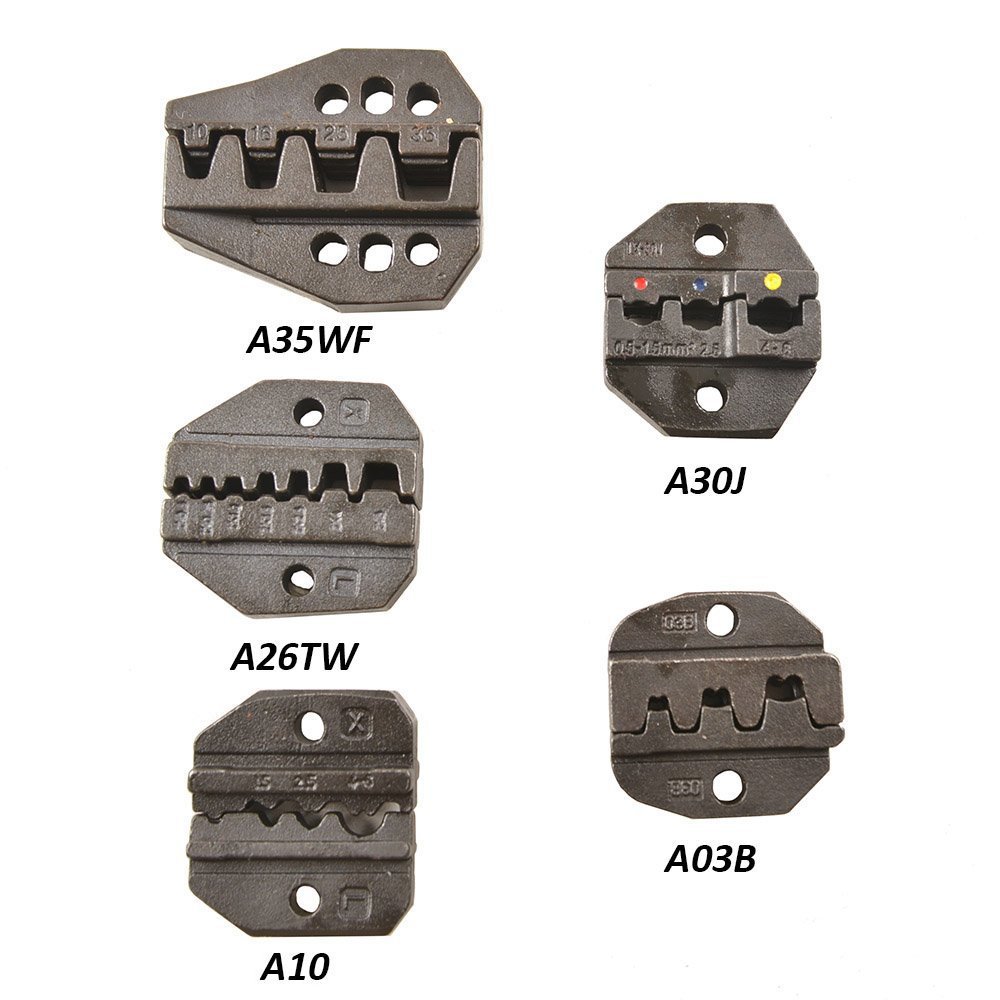

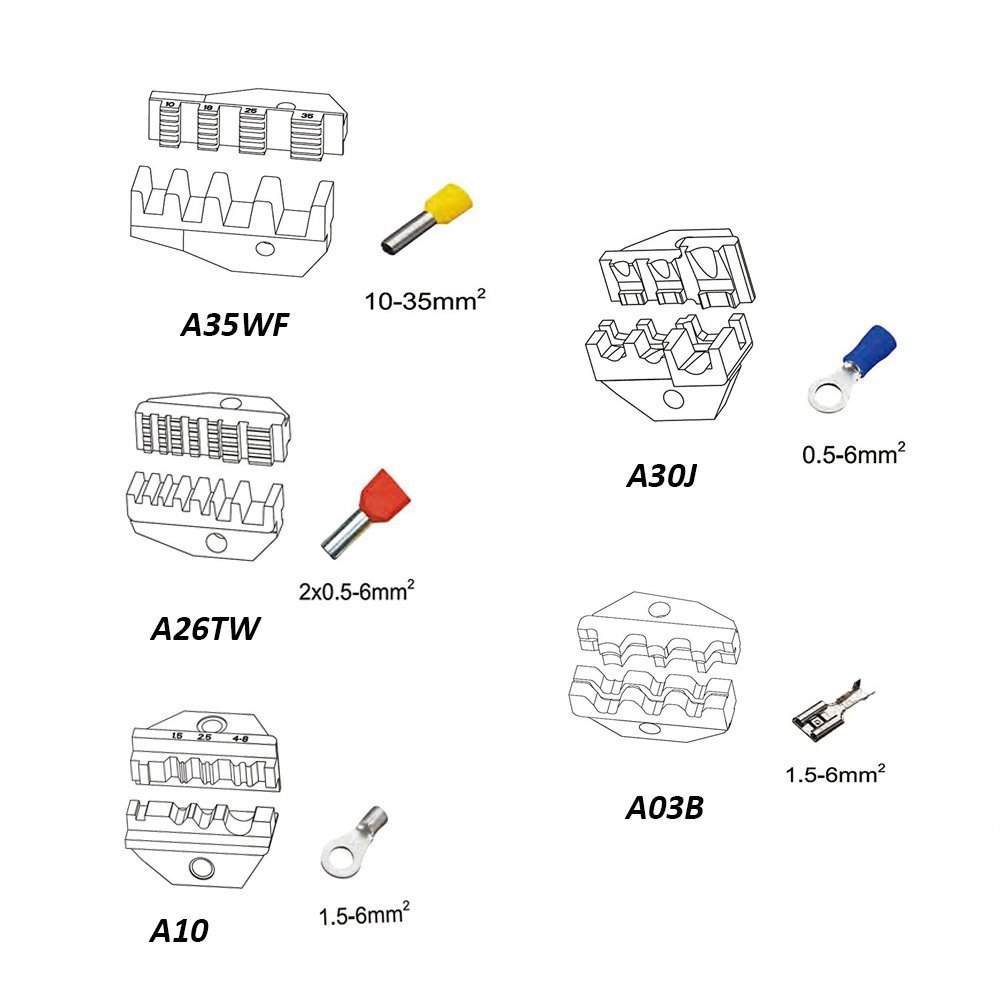

• In addition, 5 interchangeable tips:
• A03BC (for 0.5 - 6 mm ²):
• for non-insulated tabs and receptacles
• A26TW (for 2 * 0.5 - 6 mm ²):
• for insulated and non-insulated ferrules
• A10 (for 1.5 - 6.0 mm ²):
• for non-insulated terminals
• A30J (for 0.5 - 6.0 mm ²):
• for insulated terminals
• A35WF (for 10 - 35 mm ²):
• for non-insulated ferrules
• With the supplied screwdriver (6mm diameter), these inserts easily switch back and fix with a screw

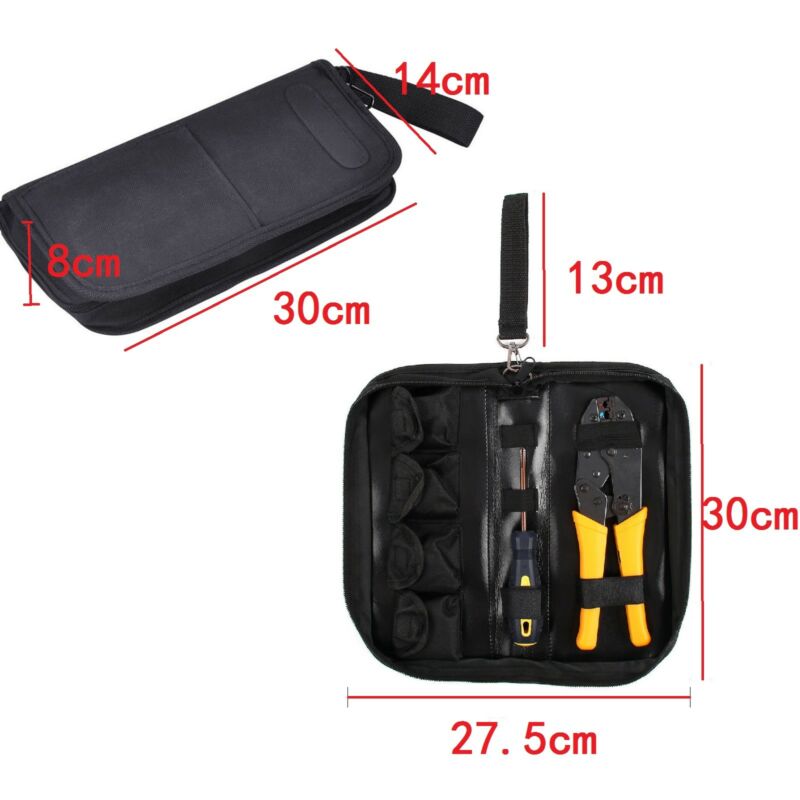

• 4-sealable bag with extra pockets for inserts
• Crimping pliers and screwdrivers are also fixed perfectly in your pocket
• There is a tab on the back pocket with sticky closure, with which the whole can be attached to a belt
• Robust and high-quality processing
• Lightweight for easy transport

SPECIFICATIONS:

• Crimping range: 0.5-6mm²
• Jaw installation width: 11mm
• Product material: High carbon steel
• Handle material: PVC
• Structure: Ratchet crimping pliers
• Advantages: the jaws can be replaced
