Front Disc Brake Rotor for Chevrolet Sonic 2012-2020, Cruze 2010-2019, Volt 2016-2019, Bolt EV 2017-2022, Cruze Limited 2016, Bolt EUV 2022
Click Thumbnails to Enlarge
Product Description

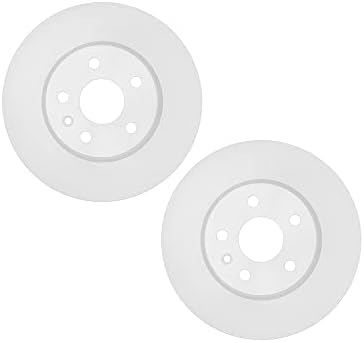

Raybestos Element3 Coated Brake Rotor
Harmonize Code:8708.30.5030
Salability Restrictions:No
UNSPSC Code:25171715
Nominal Thickness:1.024 IN, 26 MM
Mounting Bolt Hole Quantity:5
Mounting Bolt Hole Diameter:14.15 MM, 0.557 IN
Mounting Bolt Hole Circle Diameter:105 MM, 4.134 IN
Material:Cast Iron
Inside Diameter:166 MM, 6.535 IN
Discard Thickness:23 MM, 0.906 IN
Directional or Non-Directional Brake Surface:No
Conventional Or Drum-In-Hat Type Rotor:Conventional
Center Hole Diameter:60.2 MM, 2.37 IN
ABS Tone Ring Included:No
Outside Diameter:10.866 IN, 276 MM
Overall Height:1.791 IN, 45.5 MM
Solid Or Vented Type Rotor:Vented
Stud/Lug Hole Quantity:5
Surface Type:Smooth
Compatible with the following vehicles
| make | model | year | mfrlabel | position | submodel | cc | cylinders | liters | notes |
|---|---|---|---|---|---|---|---|---|---|
| Chevrolet | Sonic | 2013-2014 | Element3; Coated Rotor | Front | LS | ||||
| Chevrolet | Sonic | 2013-2014 | Element3; Coated Rotor | Front | LT | ||||
| Chevrolet | Sonic | 2013-2014 | Element3; Coated Rotor | Front | LTZ | ||||
| Chevrolet | Cruze | 2011-2019 | Element3; Coated Rotor | Front | |||||
| Chevrolet | Sonic | 2012-2020 | Element3; Coated Rotor | Front | |||||
| Chevrolet | Cruze | 2014-2015 | Element3; Coated Rotor | Front | 1796 | 4 | 1.8 | ||
| Chevrolet | Cruze | 2014-2015 | Element3; Coated Rotor | Front | 1364 | 4 | 1.4 | ||
| Chevrolet | Volt | 2016-2019 | Element3; Coated Rotor | Front | |||||
| Chevrolet | Cruze | 2010 | Element3; Coated Rotor | Front | w/ 15" Brakes | ||||
| Chevrolet | Bolt EV | 2017-2022 | Element3; Coated Rotor | Front | |||||
| Chevrolet | Cruze Limited | 2016 | Element3; Coated Rotor | Front | |||||
| Chevrolet | Bolt EUV | 2022 | Element3; Coated Rotor | Front | |||||
| Chevrolet | Sonic | 2013-2014 | Raybestos Brakes Element3 Coated Disc Brake Rotor | Front | LS | ||||
| Chevrolet | Sonic | 2013-2014 | Raybestos Brakes Element3 Coated Disc Brake Rotor | Front | LT | ||||
| Chevrolet | Sonic | 2013-2014 | Raybestos Brakes Element3 Coated Disc Brake Rotor | Front | LTZ | ||||
| Chevrolet | Cruze | 2010-2019 | Raybestos Brakes Element3 Coated Disc Brake Rotor | Front | |||||
| Chevrolet | Sonic | 2012-2020 | Raybestos Brakes Element3 Coated Disc Brake Rotor | Front | |||||
| Chevrolet | Cruze | 2014-2015 | Raybestos Brakes Element3 Coated Disc Brake Rotor | Front | 1796 | 4 | 1.8 | ||
| Chevrolet | Cruze | 2014-2015 | Raybestos Brakes Element3 Coated Disc Brake Rotor | Front | 1364 | 4 | 1.4 | ||
| Chevrolet | Volt | 2016-2019 | Raybestos Brakes Element3 Coated Disc Brake Rotor | Front | |||||
| Chevrolet | Bolt EV | 2017-2022 | Raybestos Brakes Element3 Coated Disc Brake Rotor | Front | |||||
| Chevrolet | Cruze Limited | 2016 | Raybestos Brakes Element3 Coated Disc Brake Rotor | Front | |||||
| Chevrolet | Bolt EUV | 2022 | Raybestos Brakes Element3 Coated Disc Brake Rotor | Front |
