MaXpeedingrods Coilovers 24 Way Adjustable Damper For Mazda Miata MX5 MX-5 89-05

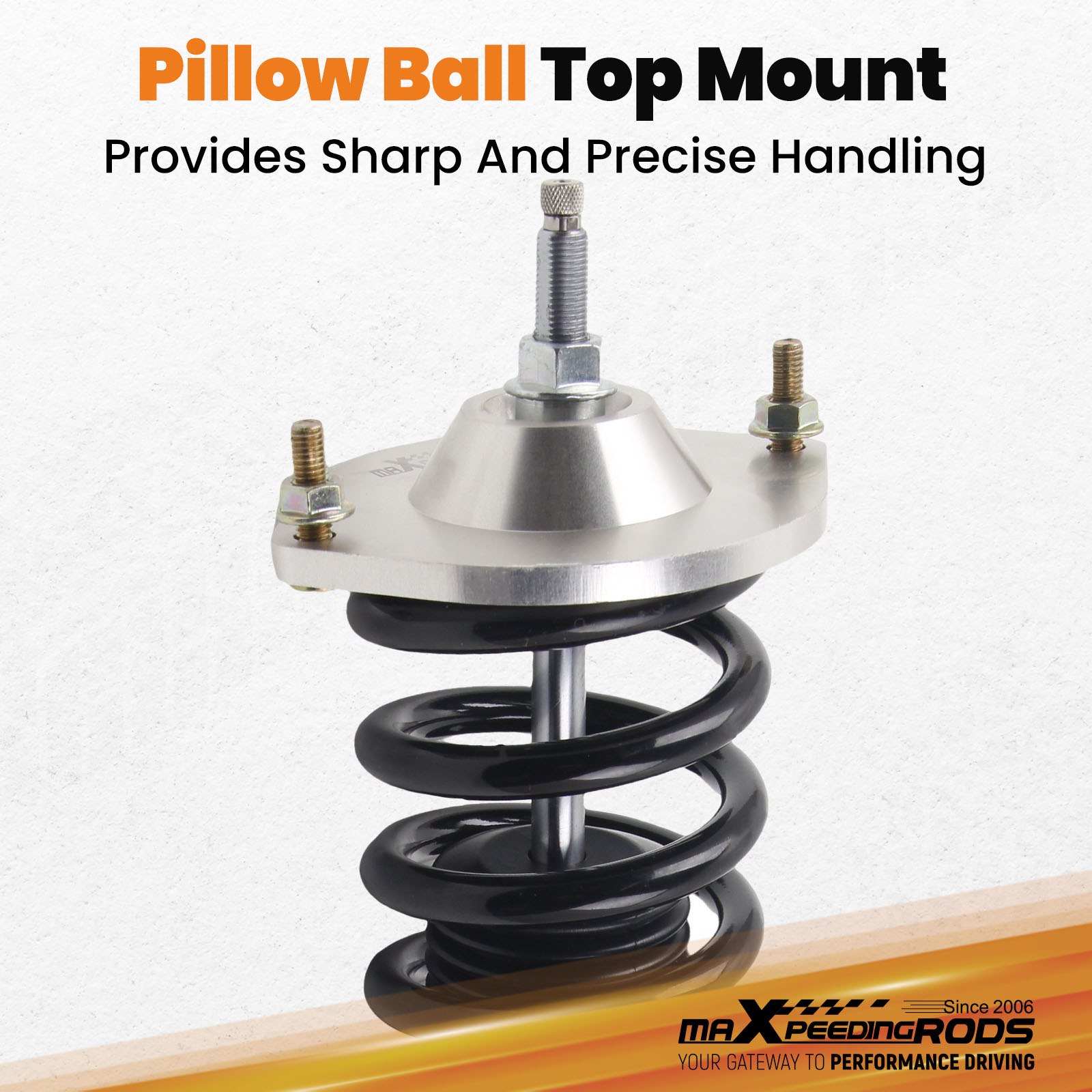

Aluminum top mounts with Pillow ball

Aluminum top mounts with Pillow ball provide bind free operation and precise feed-back to the driver.

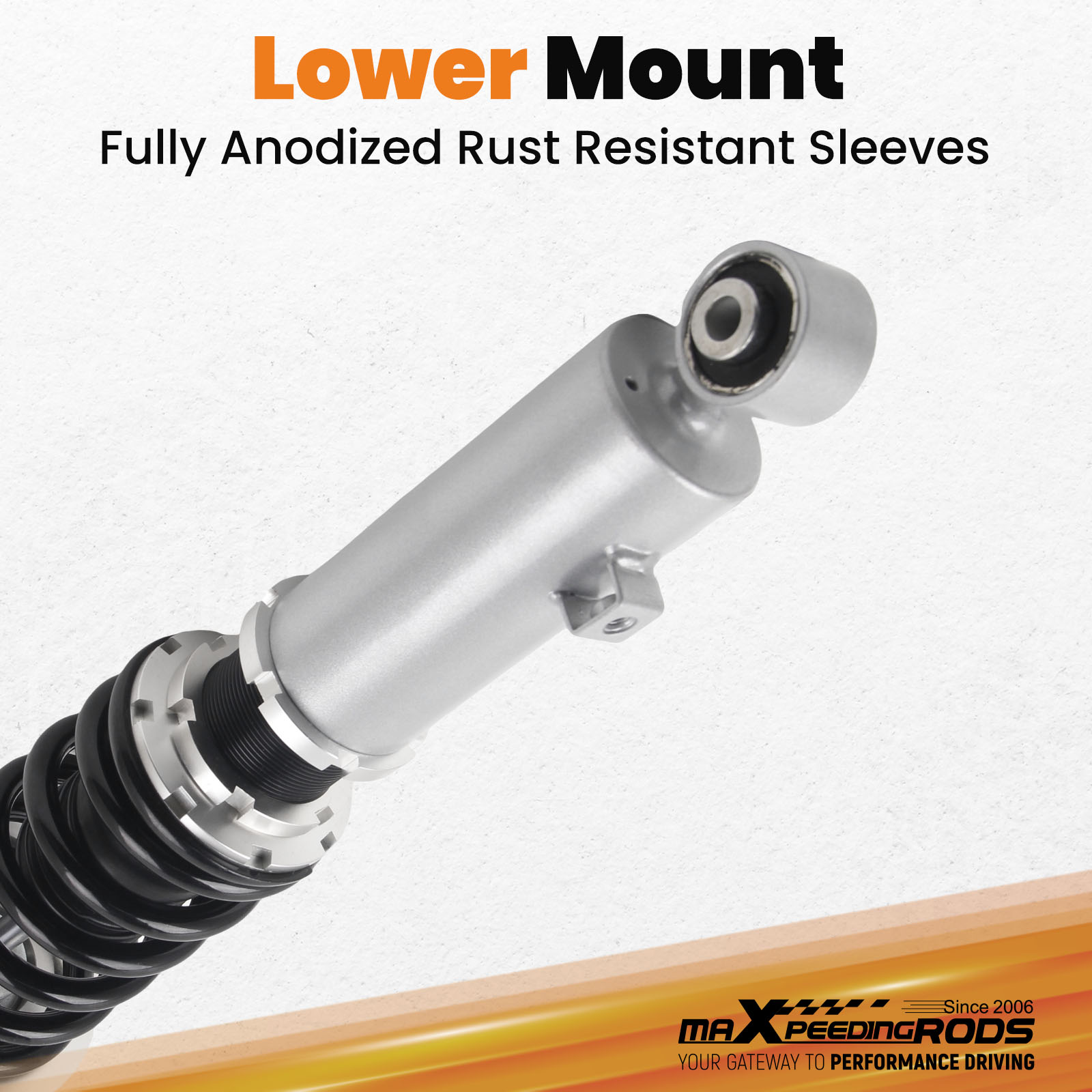

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection.

Drops From 1 to 3 Inch From Factory Ride Height

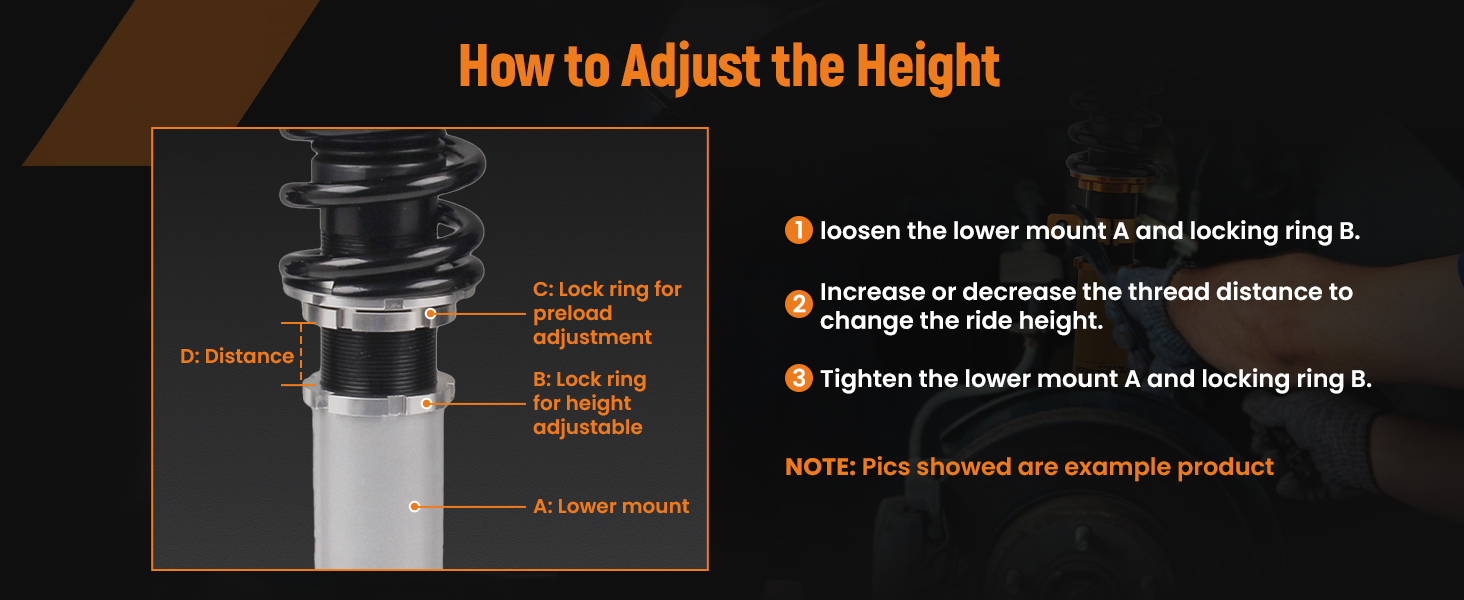

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

Durable Cold Wound Steel & Heat Treated Coils

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications


Damper adjustable Yes
Height adjustable Yes, Lowering 1-3 inch
Front Spring length 180 mm
Rear Spring length 160 mm
Front spring length 7 kg/mm (392 lbs/in)
Rear spring length 6 kg/mm (336 lbs/in)
Package Including 2 Front + 2 Rear
Warranty 2 Years

Key Features

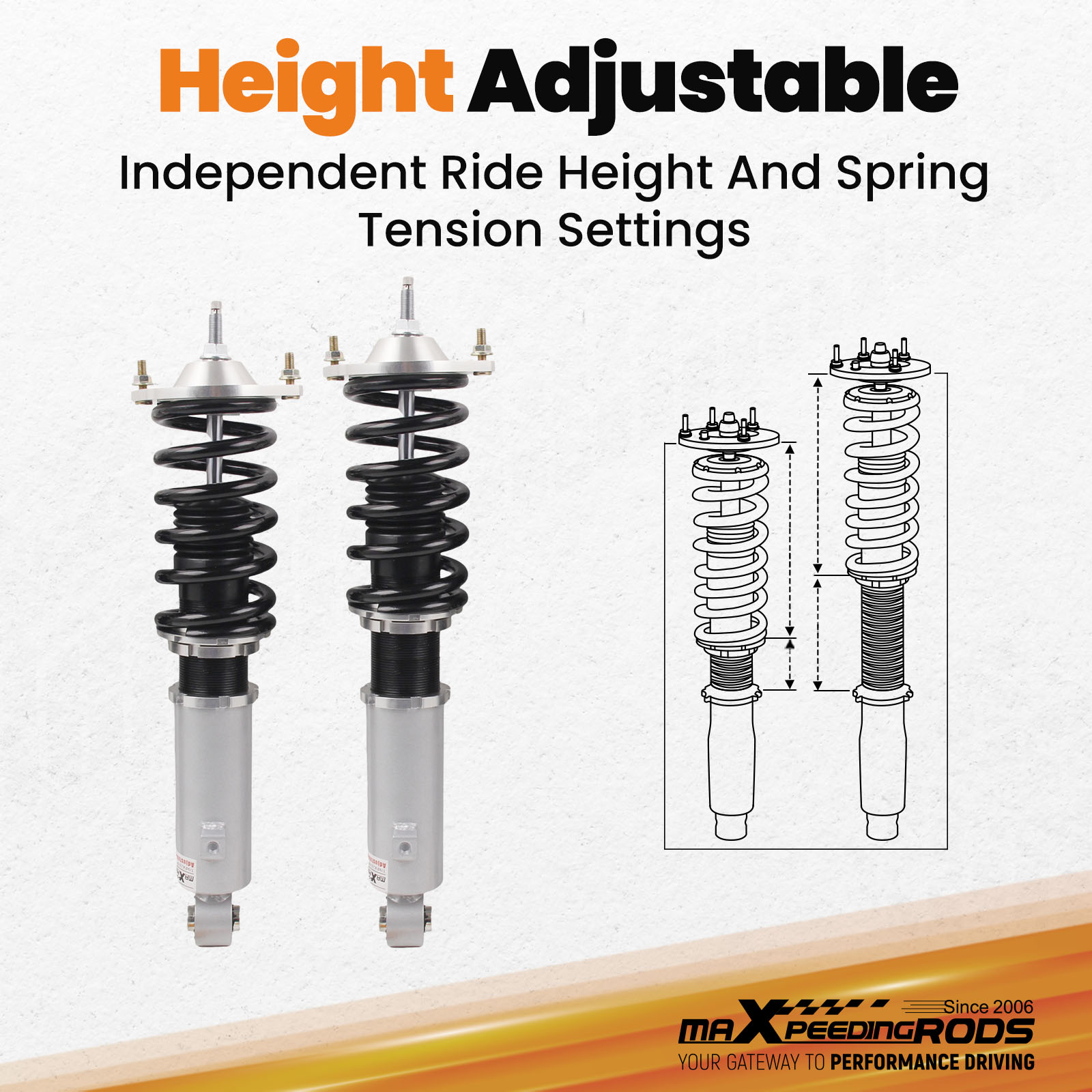

- Independent ride height adjustable: Easily adjust the height of your ride! This coilover also allows for height and preload adjustments. This means you can reach optimal suspension tuning while maintaining a stable, comfortable ride at all times.

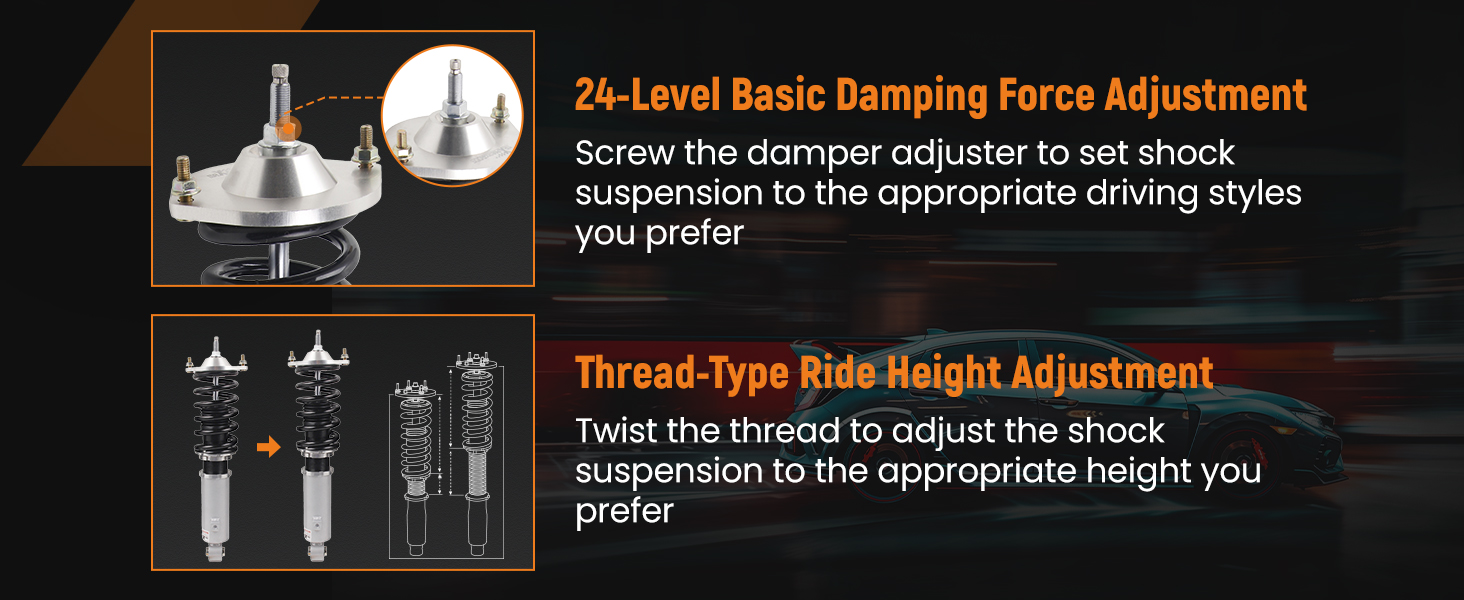

- 24 Levels Damping Force Adjustable: Provides an extensive range of adjustability, making it easy to customize for various purposes and achieve desired ride comfort.

- High Durability Bearing and Thrust Seat: Utilizes top-quality components for durability and noise reduction, ensuring long-lasting performance and silent operation.

- Reinforced Rubber Bushing Upper Mount: Specifically designed for each vehicle, enhances silence and comfort. Adjustable camber angle for certain strut mechanism suspension cars. Full Length Adjustable Type: Allows ride height adjustment without affecting suspension stroke, maintaining comfort while customizing height.

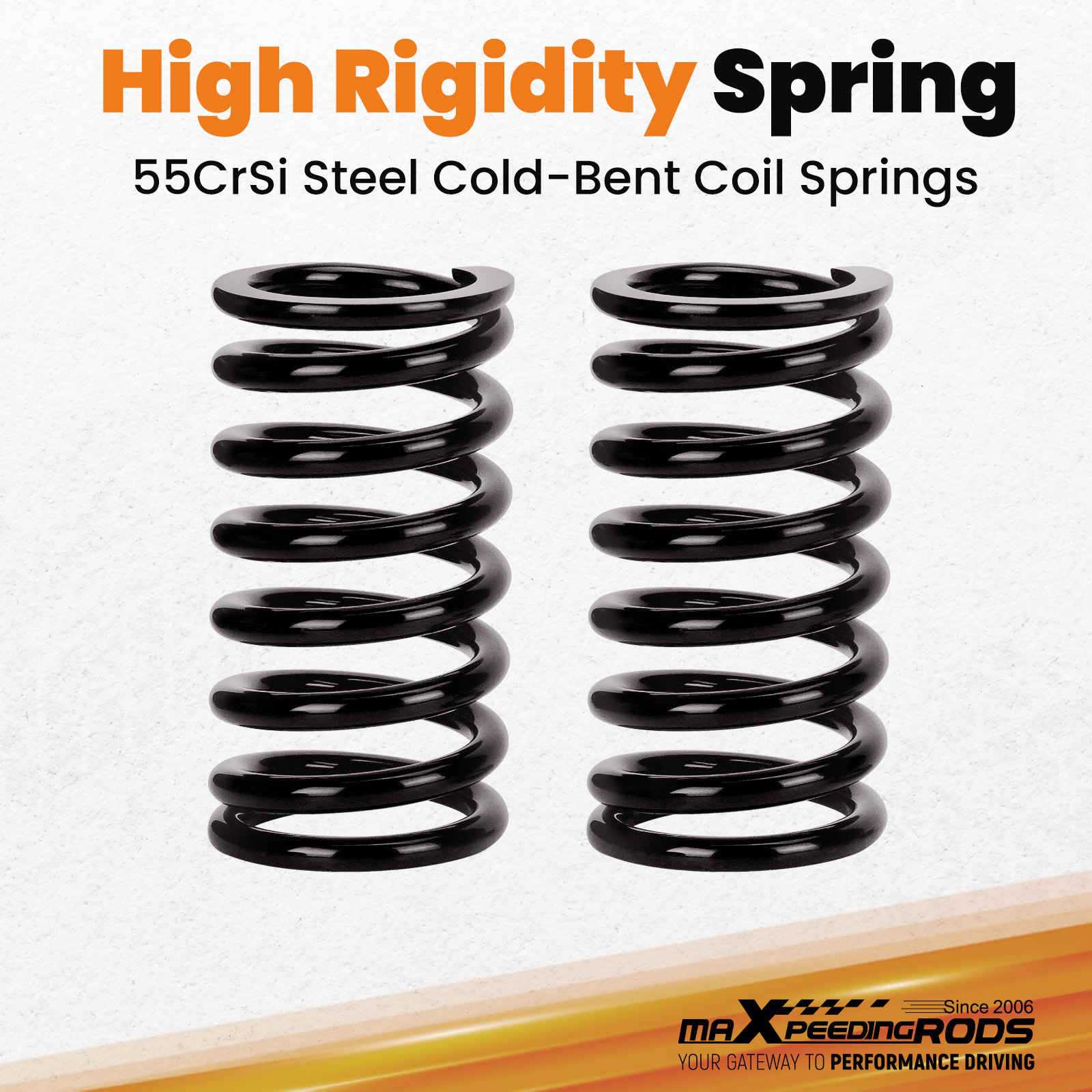

- 55CrSi Steel Cold-bent Spring: Features extreme lightweight and high durability with world-class tensile strength, reducing metal fatigue and enhancing performance.

- Balanced Comfort & Performance: Strikes a harmonious blend between sporty handling dynamics and daily drivability.

Application


For MAZDA MX-5 I (NA) (09/1989-04/1998)
For Mazda Miata MX-5 NA (1.6L,1.8L) 1989-1997

For MAZDA MX-5 II (NB) 1998-2005
For Mazda Miata MX-5 NB (1.6L,1.8L) 1998- 2005
For Mazda Miata Base Convertible 2D 1999-2005
For Mazda Miata LE Convertible 2D 1993
For Mazda Miata STO Convertible 2D 1997
For Mazda Miata 10th Anniversary Convertible 2D 1999
For Mazda Miata LS Convertible 2D 2000-2005


Specification


- Front top mount: Pillow ball
- Rear top mount: Pillow ball
- Damping adjustable: Available, 24 levels of rebound damping force
- Height adjustable: Yes
- Spring Rate Front: 7 kg/mm (392 lbs/in)
- Spring Rate Rear: 6 kg/mm (336 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 70.5 mm
- Spring length Front: 180 mm
- Spring length Rear: 160 mm
- Spring Preload advised: 7-10 mm
- Color: Grey body with black spring

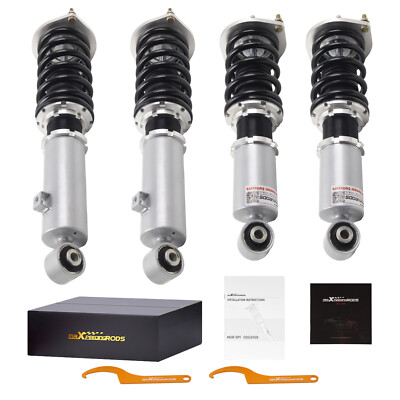

Package included


2x Front coil-overs
2x Rear coil-overs
2x C spanners
1x Allen wrench


★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.

Height Adjustable Lowering Kit; 24 Clicks of Rebound Damping Force Adjustment; Independent Ride Height And Spring Tension Settings; High Rigidity 55CrSi Steel Cold-bent Springs; Anodized Shock Body With Anti-Corrosion Coating; Full 1 Year Limited Warranty From Date Of Purchase.
