Description:
This tool set removes broken spark plugs from 2004 and newer Triton 3 valve per cylinder engines, (a common problem). The set includes a unique porcelain pusher tool and a tapered left-hand thread remover for removing the broken spark plug without leaving the porcelain in the engine cylinder.

Function:

Porcelain pusher is used to press the porcelain piece, without breaking the porcelain, farther into the plug tip. This provides space for the left hand thread remover to bite into the stainless steel plug tip so it can then be pulled.

Compatibility:
for Ford Lincoln Triton 3 Valve 5.4L Engines.

Specific:
Material:Metal
Replacement number: 65600

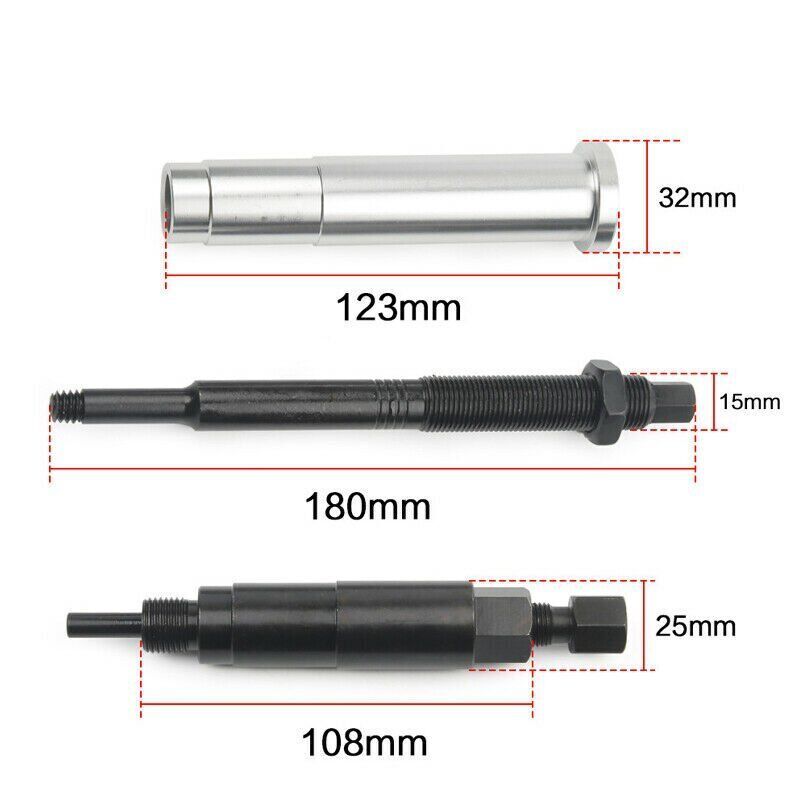

Available Individually:

58980    Gasket (x4)
65610    Puller Housing
65620    Puller Screw
65660    Left Hand Hex Nut
65670    Porcelain Pusher Assembly

Package include:
1x Spark Plug Remover Tool

Tool Use Guideline:

Remove pusher assembly using 3/4 inches socket.
Pusher screw hex should touch body hex.
Blow out any porcelain pieces and then insert puller housing.
Insert puller screw and turn counterclockwise until tight. Make sure to engage as many threads as possible. It will turn hard. Use 7/16 inches socket.
Put nylon gasket and left hand nut on puller screw. Tighten against puller housing. Using 15/16 inches socket.
Turn nut counterclockwise to pull the broken spark plug tip from the hole. Use 15/16 inches socket. Blow out any porcelain before inserting new spark plug.
When all of the porcelain comes out with the plug and only the tip is left in the hole, the pusher assembly steps can be skipped.
