Description

BRAND NEW IN BOX

ğ

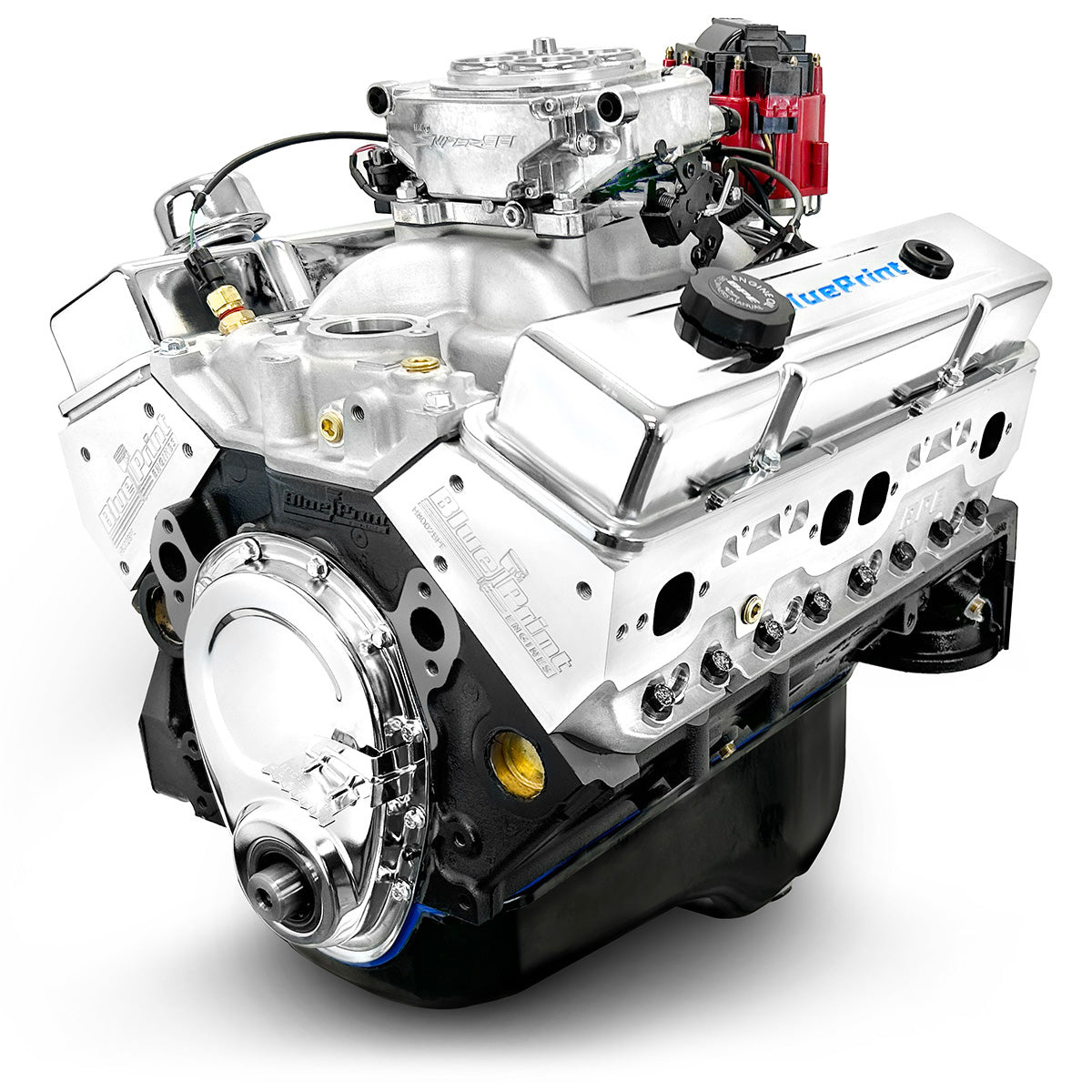

Fitment: For GM Small Block Specs: Horsepower & Torque: 341 Horsepower / 371 FT. LBS. Torque Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads Compression Ratio: 9.2:1 Camshaft: Hydraulic Roller Cam - .477 Intake / .471 Exhaust Lift and 202 Intake / 212 Exhaust Duration @ .050-115° LSA Pistons: Hypereutectic Crankshaft: Cast Crank - 3.480" Stroke and 5.700" Rods Description:

Description:

Horsepower & Torque: 341 Horsepower / 371 FT. LBS. Torque

Compression Ratio: 9.2:1

Aluminum Heads

Hydraulic Roller Cam

Cast Crankshaft

Hypereutectic Pistons

Block:

NEW BluePrint Cast Iron Block

Manufactured and Machined in the USA!

4-Bolt Main

4.000" Bore

1-Piece Rear Main Seal

Mech Fuel Pump Provision: Yes

Passenger Side Dipstick

Drilled and Tapped for Clutch Linkage

Rotating Assembly:

Steel Crankshaft

3.480" Stroke

Forged 5.700" Connecting Rods

Hypereutectic Pistons

Internally Balanced Front - Externally Balanced Rear

Cylinder Heads:

BluePrint Aluminum Cylinder Heads - H8002K

64cc Chamber

2.02" Intake / 1.60" Exhaust Valves

195cc Intake / 75cc Exhaust Runners

Cam Specs:

Cam Type: Roller

.477 Intake / .471 Exhaust Lift

202 Intake / 212 Exhaust Duration

@ .050-115 Degree Lobe Separation

Ignition Timing:

32 Degrees Total at 3500 RPM

Also Includes:

Valve Covers

Rear Sump Oil Pan

Timing Cover

Aluminum Intake

HEI Distributor

Holley Sniper II EFI

Notes:

This engine is an excellent cruiser and daily driver engine.  This engine makes up to 18 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel

The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.

Engine Accessory Specifications:

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

Part Number: BP350CTF

Fuel Delivery Type: Fuel Injected

Spark Plug: BPP7938 NGK 7938 BKR5E (.750 inch reach, 14mm thread, 5/8 hex, plug)

Spark Plug Gap: .035"

Harmonic Balancer: (Not included) recommend BPP350 - Non-Weighted, 8" Diameter

Flexplate/Flywheel: (Not Included) Recommend Late 350 Weighted

Stall Converter: Stock

Intake Manifold:  Dual Plane, Satin Aluminum BPP350VINT

Fuel Recommendation: 87 Octane

Timing (Initial/Total Advance): Initial Timing 10-16° and Total Timing 32°

Firing Order: 1,8,4,3,6,5,7,2
