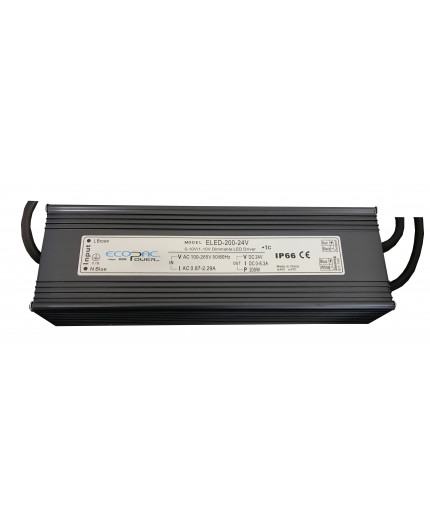

24Vdc, 200W, 0-10V / Potentiometer / 10V PWM dimmable LED driver ELED-200-24V

Model: ELED-200-24V
Output DC voltage: 24V
Rated current: 8.33A
Voltage accuracy: ±0.5V
Rated power: 200W
Input Voltage Range: 100-265VAC
Frequency Range: 47-63HZ
Power Factor ( Typ.): PF ≥ 0.98/220V
Built-in PFC function (PFC>0.98)
Full Load Efficiency(Typ.): 88%
AC Current(Typ.): 1.054A/220VAC
Leakage current: <0.25mA/220VAC
Short Circuit: Hiccup mode, recovers automatically after fault condition is removed.
Over voltage: ≤280VAC Over temperature: 100°C±10°C shut down o/p voltage, re-power on to recover
Working TEMP.: -40~+60°C
Working Humidity: 20~95%RH,non-condensing
Storage TEMP., Humidity: ±0.03%/°C(0-50°C)
Vibration: 10~500Hz,5G 12min./1 cycle, period for 72min.each along X,Y,Z axes.
Safety standards: EN61347-2-13, IP66
Withstand voltage: I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance: I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25°C/70%RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 ( ≥ 50%load) EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8, 11, EN61547,A light industry level
Dimensions: 255*80*53mm (L*W*H)
Packing: 1.8Kg
