Feature

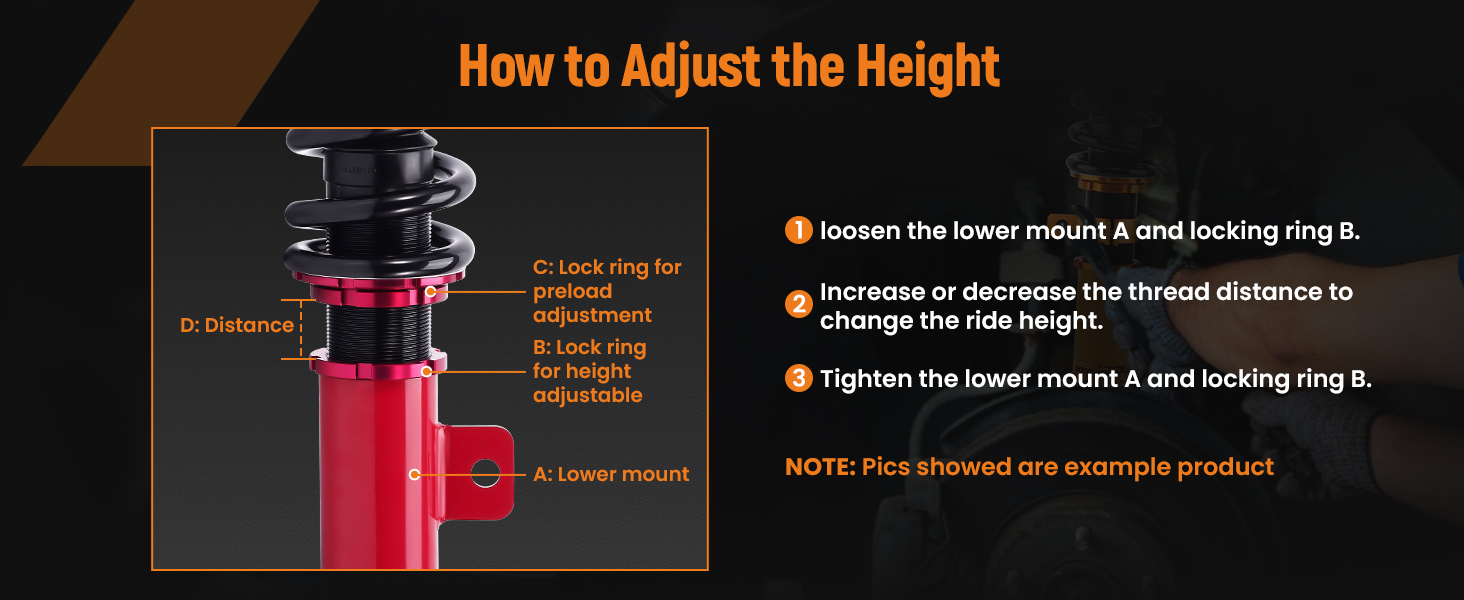

Ride Height Adjustable - Drops From 1 to 3 Inch From Factory Ride Height

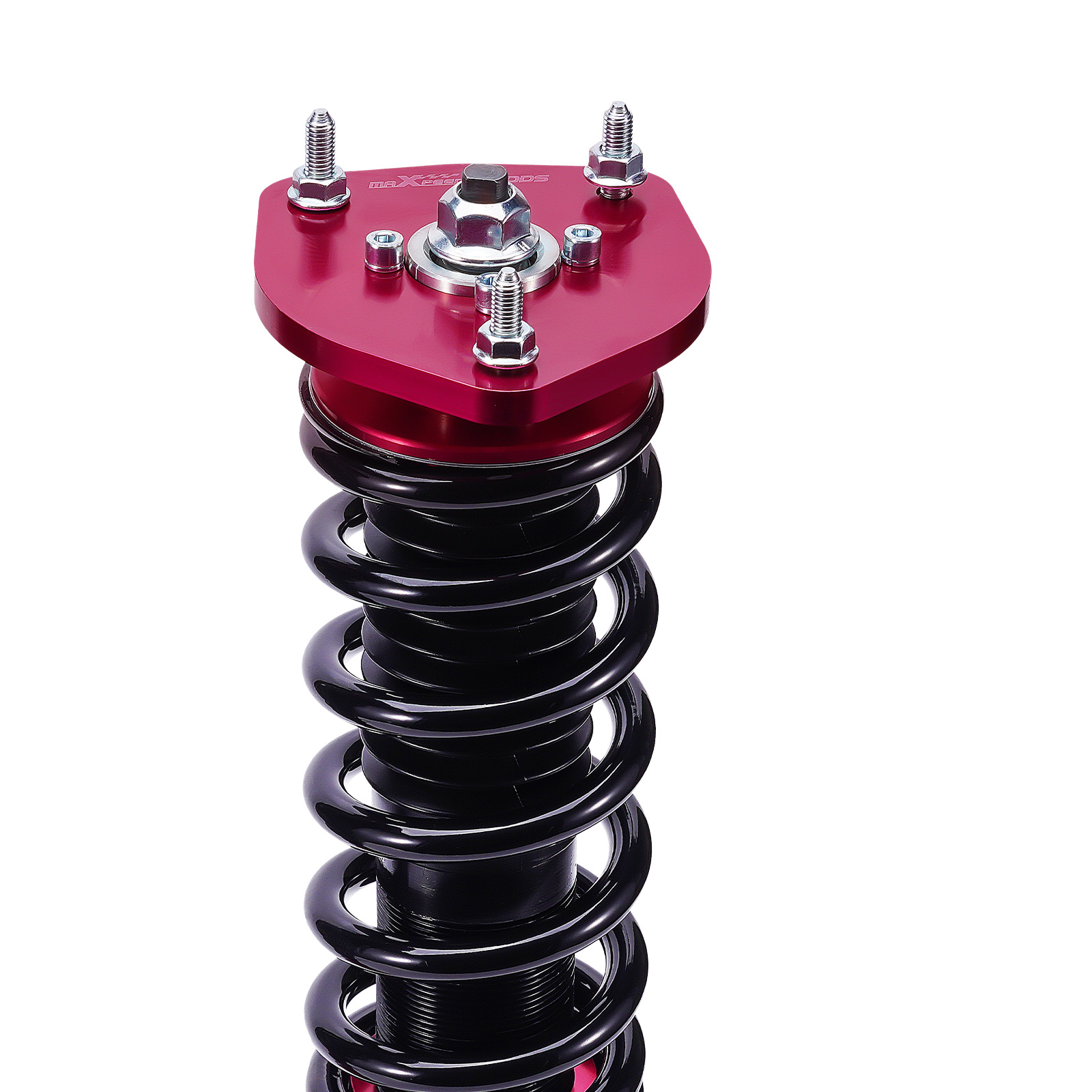

Aluminum Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering
High-precision Pillow Ball Top Mount with Premium-Grade Sealed Spherical Bearings.

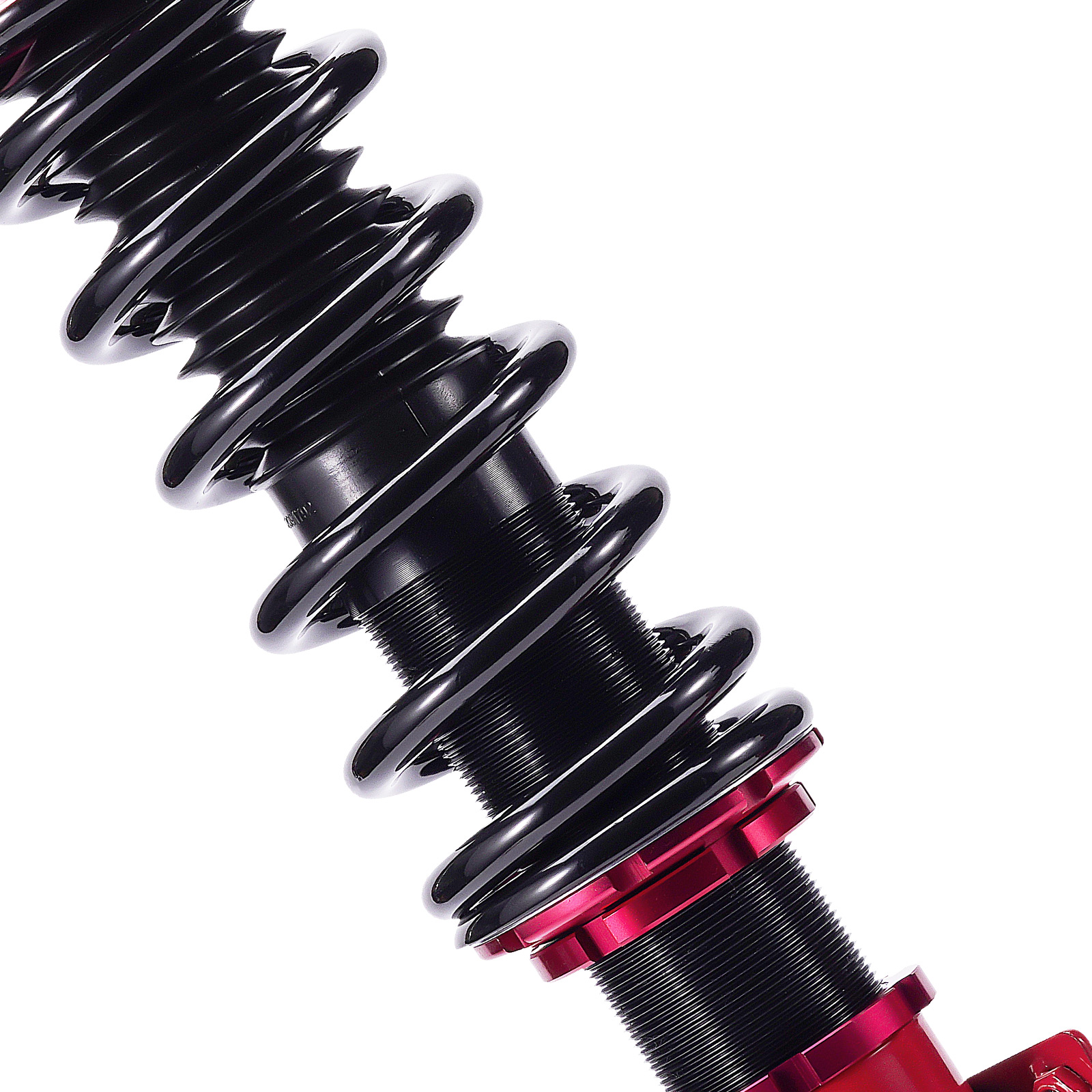

High Rigidity 55CrSi Steel Cold-bent Coil Springs
Weight Saving Aluminum Components And Carbon Steel Lower Mount Brackets

Optimal Pre-Set Soft and Hard Settings - No Manual Damping Adjustment Required
Anodized Shock Body With Anti-Corrosion Coating
Adjustment spanner wrenches and pictured hardware are included
Full 1 Year Limited Warranty From Date of Purchase

Application

For Toyota Camry (ACV30/MCV30) 2002-2006

For Lexus ES300 / ES330 / ES350 (XV30) 2002-2006

Specification

- Front top mount: Pillow ball with camber plate
- Rear top mount: Pillow ball
- Damping adjustable: No. Optimal preset damping (no adjustment required)
- Camber adjustable: Available, front only
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring Rate Front: 8 kg/mm (448 lbs/in)
- Spring Rate Rear: 6 kg/mm (336 lbs/in)

- Front Damper Body Diameter: Φ55mm (2.17")
- Rear Damper Body Diameter: Φ55mm (2.17")
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 70.5 mm
- Spring length Front: 230 mm
- Spring length Rear: 230 mm
- Spring Preload advised: 7-10 mm
- Color: Red body with black spring

- Package size : 70*50*20 cm
- Weight: 33050 g

Package included

1 x Set of Coilover Spring Kit (2 Front + 2 Rear)
1 x Pair of wrenches for height adjustment

★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.
