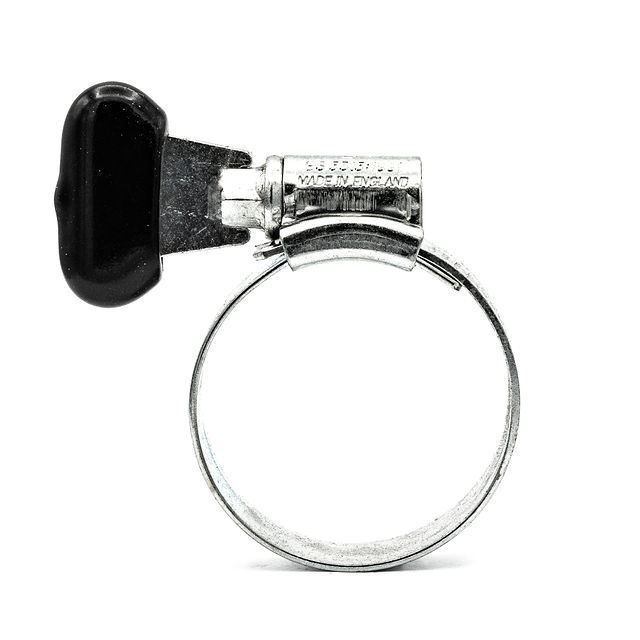

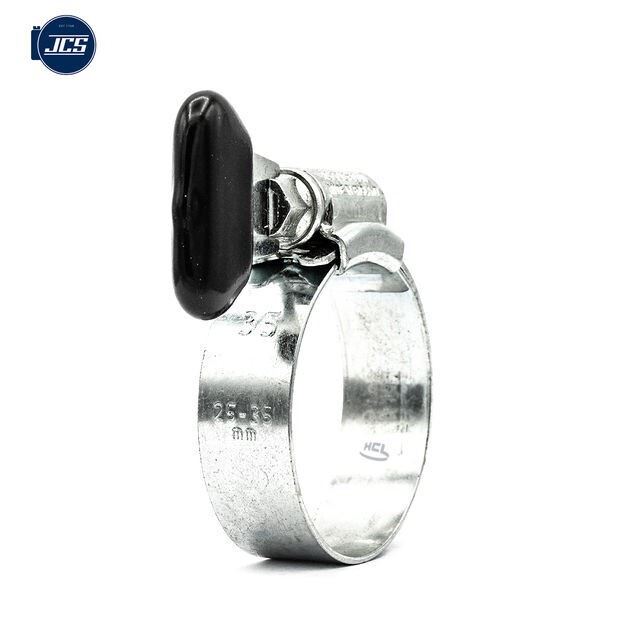

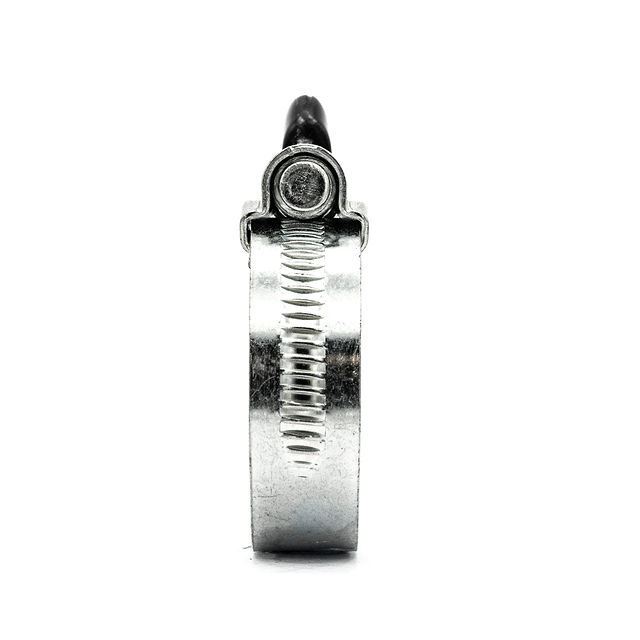

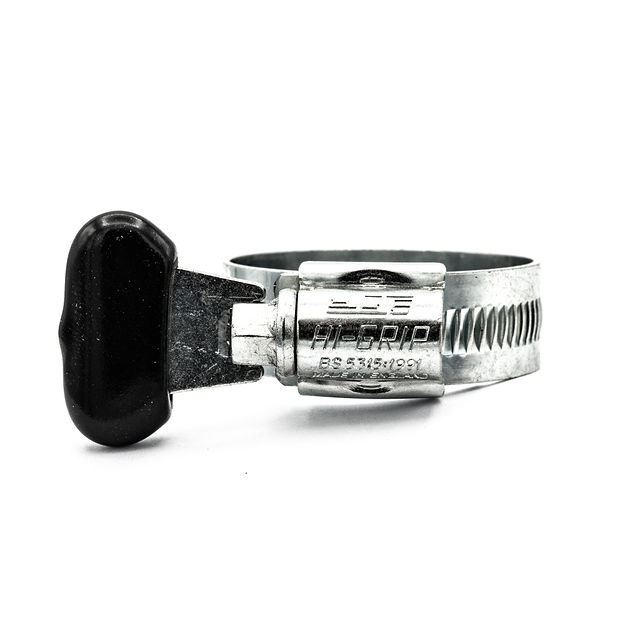

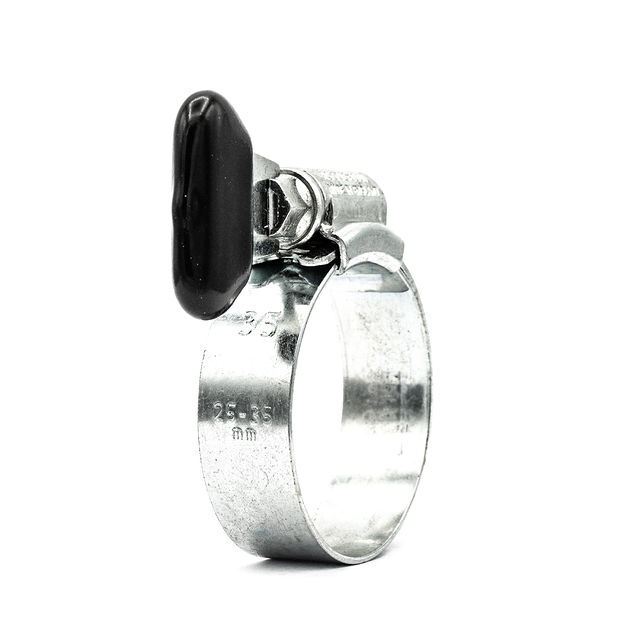

Specifically designed for frequently removed hoses, the unique dovetail locking and side lugs of the wing plate ensure excellent sealing and longevity. The soft plastic wing plate cover is kinder to unprotected fingers. JCS Hi-Grip general purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, have BSI Kitemark and NATO approval, and exceeds all operational requirements of the relevant DIN and SAE standards. Standard (W1) Hose clips are used for a wide variety of domestic, automotive and industrial applications, the standard Hi-Grip hose clip is made from heavily zinc plated mild steel with additional protection from a passivation layer.
- Bevelled Edges Protect Hose
- Exceeds BS5315
* Please note - if ordering the sample product, then you do so on the understanding that you will not be sent the smallest size in this range and the 99p sample is just that, a sample of a clamp unrelated to this product range. Don't order the sample if you need a specific size and product!

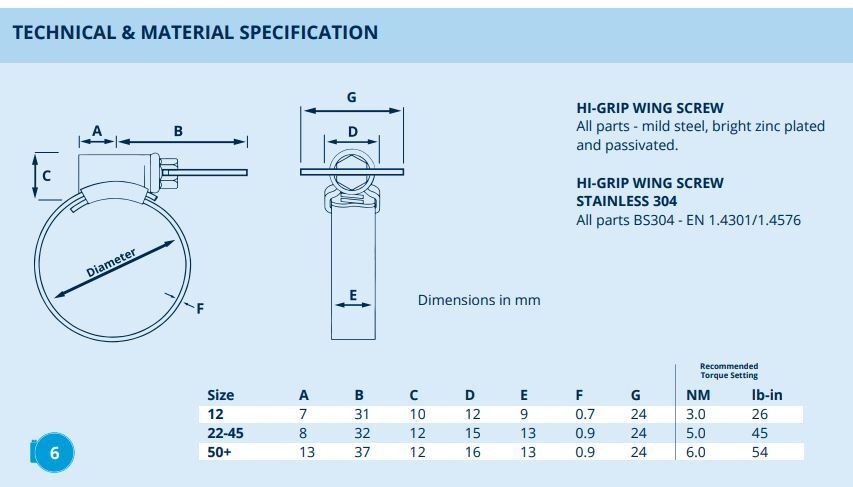

Diameter Range (A) mm 9.5 - 90.0
Diameter Range (A) inch 0.37 - 3.54
Band Width (B) mm - inch 9.0 - 0.35
Band Thickness (C) mm - inch 9.0 - 0.028
Torque Setting Nm – lb inch 3 - 26
Screw mm A/F 7.0
Band/Housing Material Mild steel, bright zinc plated and passivated.
Brand Hi-Grip
Manufactured By JCS
Manufactured according to BS5315
Country of Manufacture United Kingdom
Hazardous Goods No
RoHS Compliant Yes
