Description:

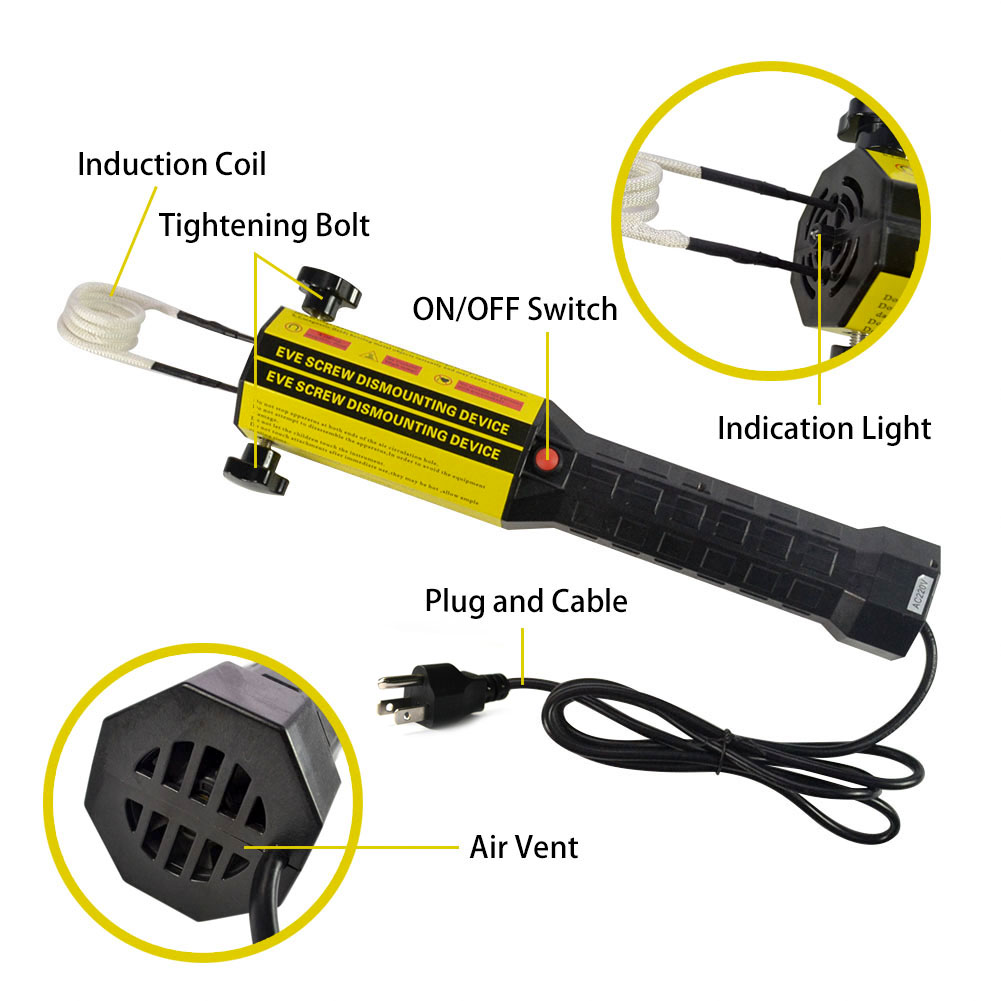

This Magnetic Induction Heater is a key piece of equipment used in all forms of induction heating. It is a hand-held one with slip-resist ergonomic housing. Besides, it is faster and safer than the traditional torch. Collateral damages normally associated with torches can also be eliminated. A bright LED light exists at the end to light up your work load.
Features:
No Torch Needed – Remove Corroded Parts Safely
A completely torch-free way to loosen rusted, seized, or corroded metal hardware. No open flame, no fire risk.
Loosen Almost Any Stuck Part
Works on seized bearings, gears, pulleys, lug nuts, fuel tank straps, inline fittings, and PDR (paint‑less dent repair).
Induction Heating – Metal Only
Uses high‑frequency magnetic fields to heat only the metal — fast, precise, and safe for surrounding parts.

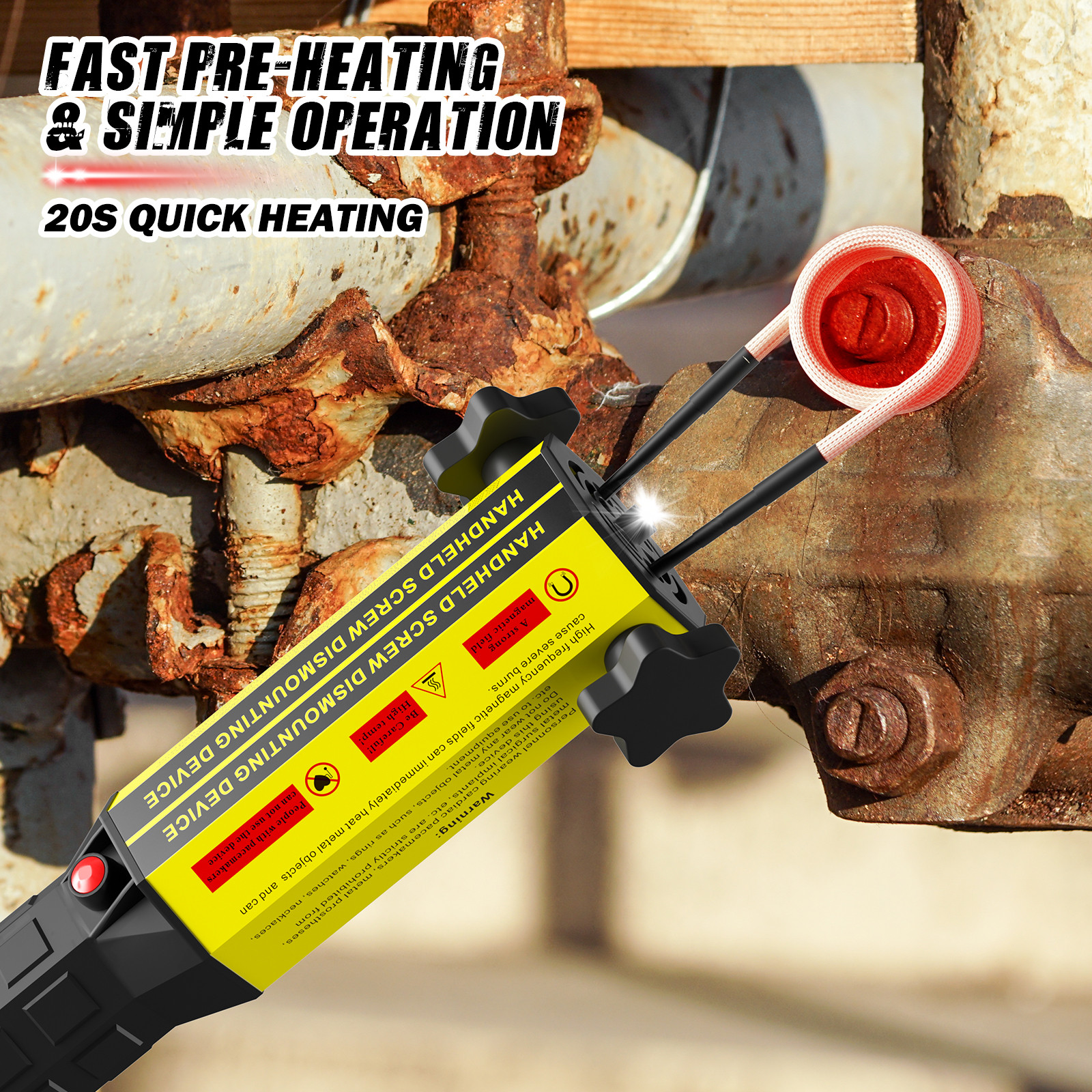

Heat & Expand – No Flame Damage
Quickly heats and expands frozen, rusted, or thread‑locked nuts. Breaks them loose without burning wires, hoses, or paint.
Cleaning:
1. Make sure the unit is off and unplugged;
2. Use a dry, clean, non-abrasive cloth or paper towel to remove grease, oil and any dirt from the inverter tool and electrical cord;
3. Return them to the storage case.
Cautions:
1. Read and understand all safety warnings and cautions in this manual before operating the apparatus.
2. Keep your work area clean and well illuminated.
3. Do not overreach, keep proper footing and balance at all times, proper footing and balance enable better control.
4. Do not use it at moist surroundings or immerse it in water.
Specifications:
Voltage: 110V
Power: 1300W
Illumination: LED Light
Operating Temperature: -40-140℉ (-40~+60 °C )
Relative Humidity: <95% RH
Atmospheric Pressure: 86KPa~100KPa
Rated current: 4.5A
The maximum output current: 150A
Operating frequency: 50~60Hz
Heating temperature: 1472℉ (800℃)
Achieve 800 ℃ takes: 5~40 seconds
Overheating protection temperature: 176℉ (80℃)
Heating Bolt Diameter: Φ0.19in-1.57in(Φ5-40mm)

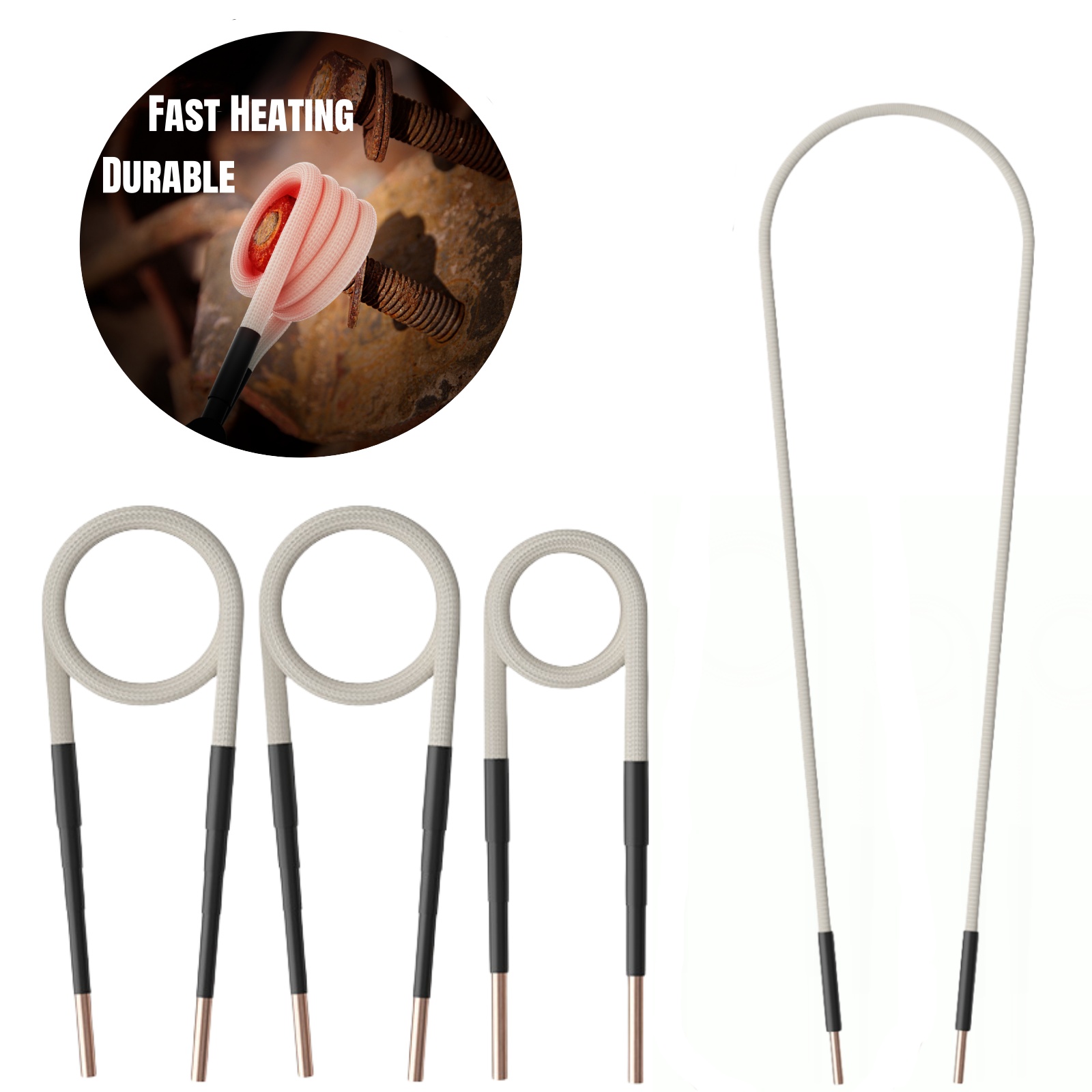

Induction Coil Dia.: 1xΦ20mm(0.79in), 1xΦ25mm(0.98in), 1xΦ30mm(1.18in) & 1x Spare Adjustable Coil
Gross Weight: 7lbs (3.1kg)
Package Size: 17.7x12.8x5.3in (45x32.5x13.5cm)

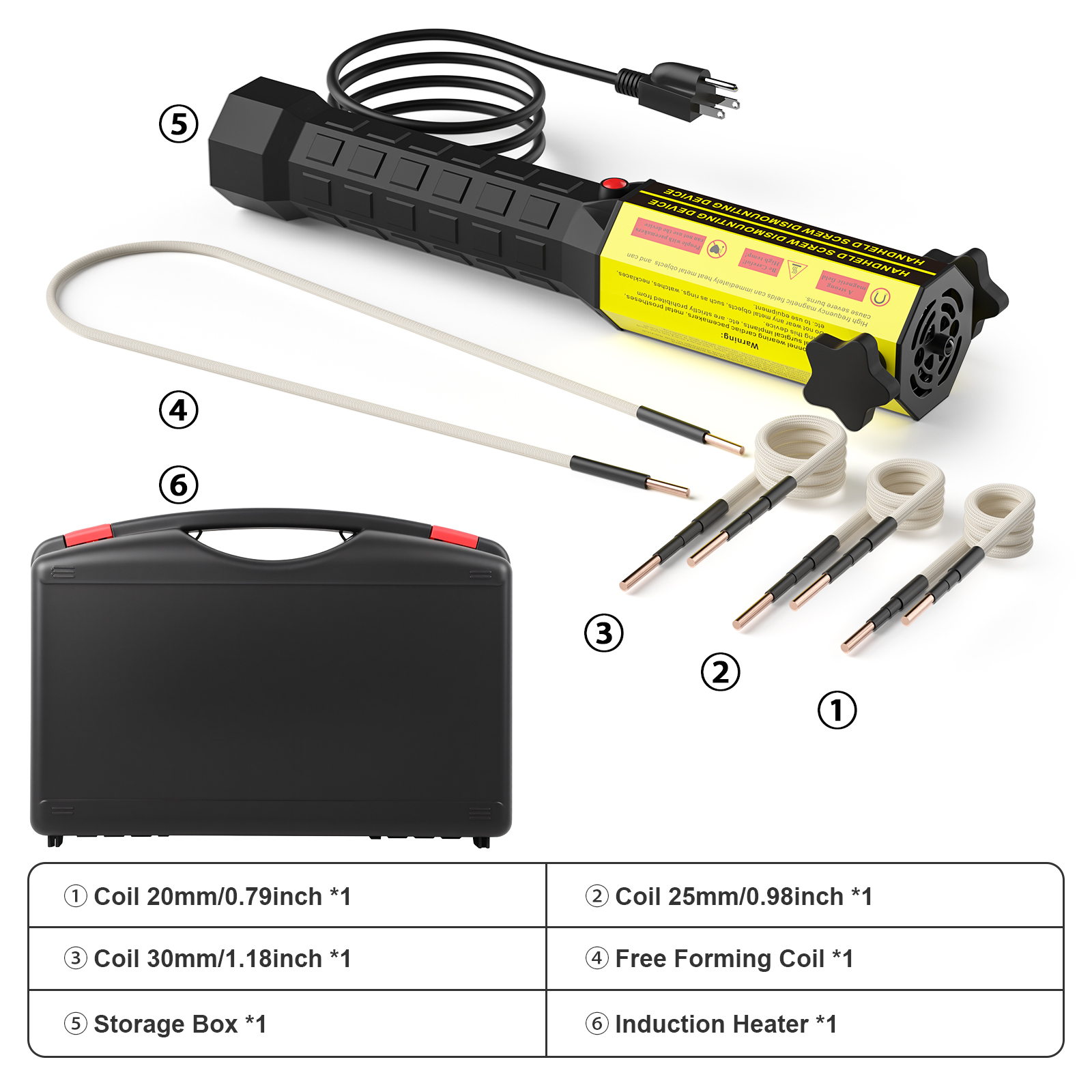

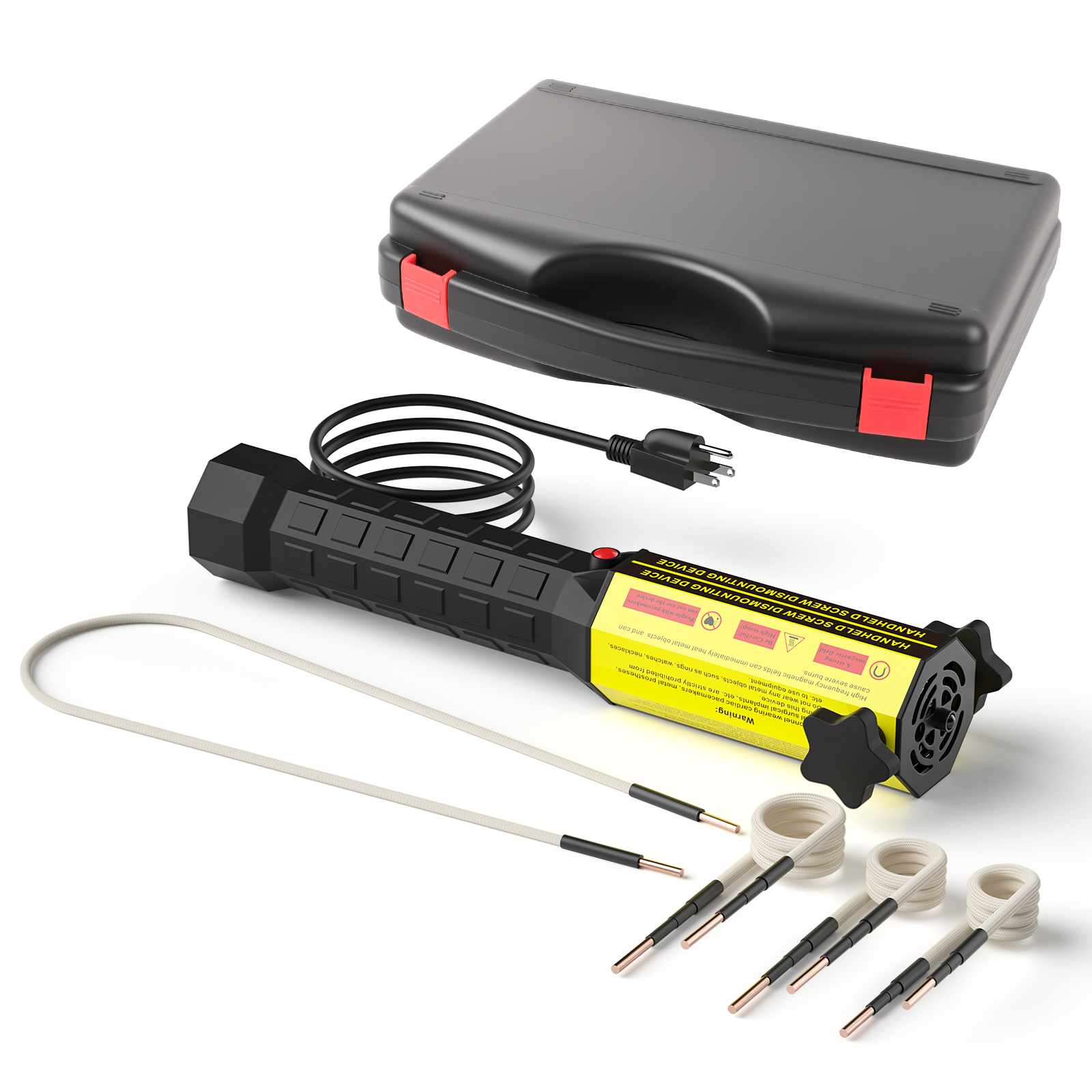

Package Includes:
1 x Magnetic Induction Heater
4 x Induction Coil (3+1)
1 x Tool Box
1 x User Manual
