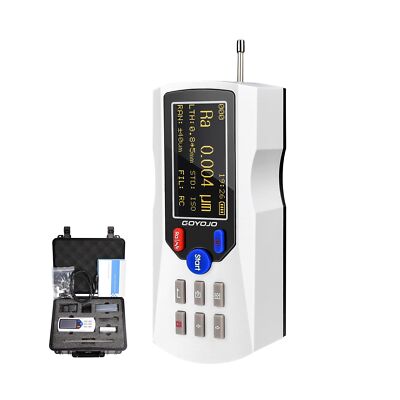

Manufacturer model: MAKIT-1031
- Versatile Parameter Measurement: The GOYOJO Surface Roughness Gauge, offers the capability to measure Multiple surface roughness parameters, including Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rku, Rsm, and Rmr. This wide range of parameters makes it suitable for various industrial applications.
- Precision Measuring Sensor: GOYOJO Surface Roughness Tester is equipped with a highly sophisticated inductance sensor that offers exceptional precision. It has a measuring range of Ra: 0.025-12.5m and can achieve a remarkable measuring precision of 0.001m with a minimal measuring force of 0.4mN.
- Advanced Digital Signal Processing : The exclusive DSP technology processes and calculates measurement results efficiently, providing accurate and reliable data. The results are displayed on the LCD, making it easy for users to read and interpret the information.
- Ample Data Storage: With a large data memory capacity, GOYOJO Profilometer can store up to 200 groups of original data and corresponding waveforms. This feature is valuable for record-keeping and data analysis purposes. At the same time, the USB interface allows for external data transfer and connectivity.
- Convenient Portability: GOYOJO Surface Roughness Meter is designed with user-friendliness in mind. It is compact and lightweight, with dimensions of 5.51 x 2.05 x 1.89 inches and a weight of 0.97 pounds, making it easy to handle and transport. Additionally, it can be powered by a rechargeable lithium-ion battery or an external power adapter, offering flexibility in power sources.
- Multiple Applications: GOYOJO Surface Roughness Tester stands out with its exceptional 0.001m precision, making it an ideal choice for a diverse range of applications, including manufacturing quality control, engineering assessments, automotive industry, scientific research, and electronics manufacturing. Its digital convenience, durability, and high accuracy make it a reliable tool for users seeking precise and efficient surface quality assessments across various industries.
Description
Principle:
When measuring surface roughness, the GOYOJO Surface Roughness Tester places the sensor on the surface and then uniformly slides it along the surface using the internal mechanism. The sensor captures surface roughness with its sharp built-in probe. This roughness causes displacement in the probe, leading to a change in the induction quantity of the induction coil, thereby generating an analog signal proportional to the surface roughness at the output of the phase-sensitive rectifier.
Specifications:
Display Resolution: 0.001μm
Measurement Range:
Ra: 0.025-12.5μm
Display Range:
Ra, Rq: 0.005-16μm
Rz, Ry, Rt, Rp, Rv, Rmax, R3z: 0.02-160μm
RS, RSm: 1mm
Rr: 0-100% (9%Rt)
Rsk: 0-100%
Range Options: ±20μm, ±40μm, ±80μm
Filters: RC, PC-RC, GAUSS, D-P
Sampling Lengths: 0.25mm, 0.8mm, 2.5mm
Maximum Drive Travel: 17.5mm (0.7 inches)
Minimum Drive Travel: 1.3mm (0.052 inches)
Indication Error: ≤10%
Variability in Indication: ≤6%
Display: 128X640 LED Dot Matrix (Self-illuminating)
External Input/Output Interface: USB
Power Source: Built-in rechargeable lithium-ion battery or external power adapter
Dimensions: 140 x 52 x 48(5.51 x 2.05 x 1.89 inches)
Weight: 440g(0.97 pounds)
Sensor Performance Specifications:
Detection Principle: Inductive
Probe Contact Force: 4mN (0.4gf)
Probe Angle: 90°
Probe Tip Radius: 5μm
Guide Longitudinal Radius: 45mm
Probe Tip Material: Diamond
Package Contents:
Main Unit of the Tester* 1
RS100 Standard Sensor* 1
Multi-line Sample Plate* 1
Power Adapter* 1
Sensor Sleeve* 1
Test Pad* 1
Warranty Card* 1
Instruction Manual* 1
Certificate of Compliance* 1
