Chemical Anchor Resin Capsules Spin-In Epoxy Acrylate ETA Approved

58mm, 10mm, 12mm, 16mm, 20mm, 24mm, 30mm Spin in Chemical Resin (Epoxy Acrylate) Capsules ETA Approved (reliable testing/ performance data)

Fixaball sells all diameters of Epoxy Acrylate, Chemical Anchor Resin Capsules.

Advantages of using Chemical Anchor Capsules:

  • They offer an easy fixing for many types of application. Use one capsule per hole, with no need for mixing, no waste and no mess.
  • They are quick-setting to offer a fast and simple fixing for stud and re-bar.
  • They are suitable for smaller jobs with fewer fixings and for overhead anchoring or close edge fixing.
  • They ensure that no load stress is imparted into the base material, and are therefore ideally suited for high load
  • Ideal for anchoring structural steel columns, beams, and for machinery hold down. They are also suitable for installing handrails, balustrades and safety barriers.

They work on the basic principle of having a base resin and a hardener, or catalyst that mix (hence the term, “chemical anchor”). This happens when the all-thread studding/ bar/ rod is twisted into the pre-drilled hole. The capsule breaks and the aggregate and hardener mix to create a substance harder that the material you are fixing to. You can see the hardener inside the capsule; you must return any capsules that do not flow. It means that the hardener and resin has already mixed.



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your 'size' and 'quantity' selection from the drop down menus at the top of the page.



Diameters Available

Capsule Diameter Anchor Hole Diameter Anchor Length Qty Per Box
8mm 10 80mm 10
10mm 12 80mm 10
12mm 14 95mm 10
16mm 18 95mm 10
20mm 25 175mm 6
24mm 28 210mm 6
30mm 35 265mm 5



Fixaball - Specialist Fixings and Fasteners

ETA Approved Chemical Anchor Resin Capsules

 Diameter of Chemical Resin Capsule

Size of Studding (mm)

Hole Diameter (mm)

Hole Depth (mm)

Effective Anchoring Depth (mm)

M8

8

10

80

80

M10

10

12

90

90

M12

12

14

110

110

M14

14

16

120

120

M16

16

18

125

125

M20

20

25

170

170

M24

24

28

210

210

M27

27

32

250

250

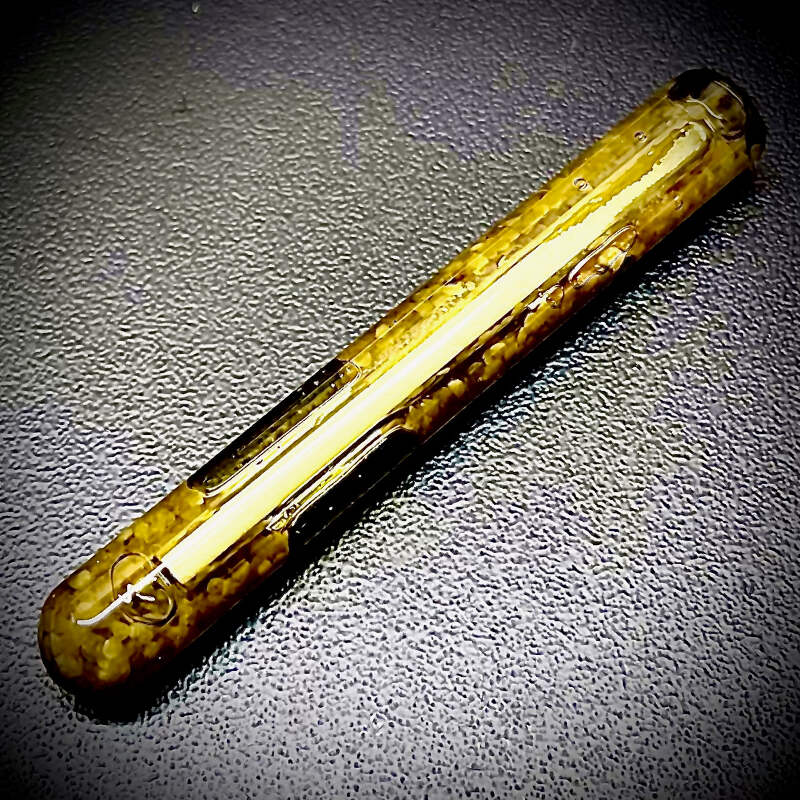

Image is for illustrative purposes only.
