This offer is about
19" (48 cm) touch terminal for kiosks, cash registers, POS and information systems, 1280×1024, format 5:4
Would you like to set up an individual cash register, an information terminal or an industrial operating device and already have a suitable computer?
This touch terminal offers a practical and economical basis for this. The 19-inch touchscreen monitor (screen diagonal of 48cm) is already integrated into a new, stable housing. There is additional space in the housing for installing an existing mini PC, industrial PC or other compact computer.

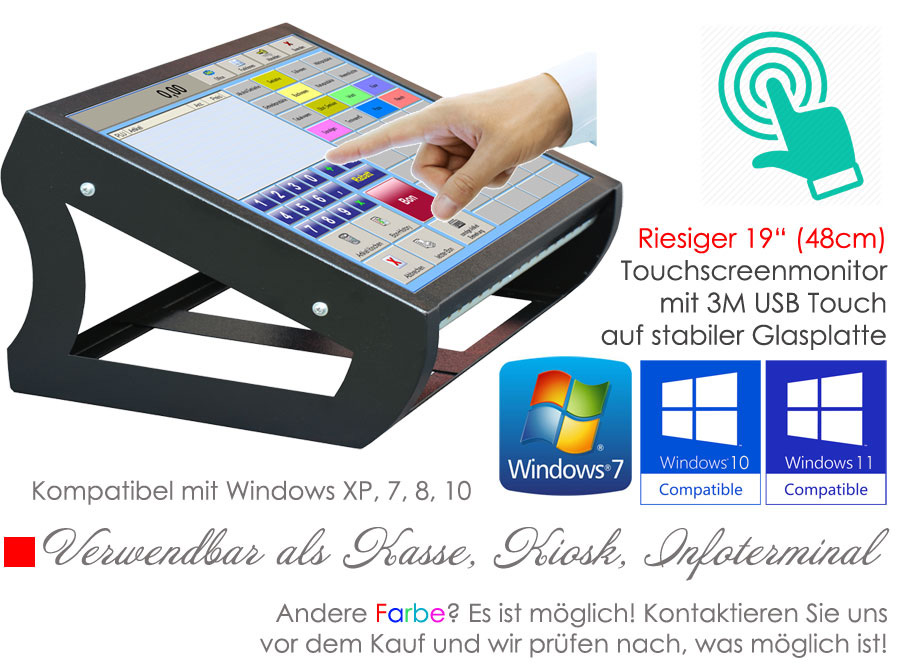

The solution consists of a brand new housing, an open frame monitor with USB ELO touchscreen and a 3M touchscreen controller. Thanks to the 3M controller, the touchscreen works with Windows 98, Windows Me, Windows 2000, Windows XP as well as Windows 7, 8, 10 and 11.
This makes the device particularly suitable for system integrators, vending machine manufacturers, software houses, specialist retailers and technically experienced users who do not need a completely preconfigured cash register system.
Your advantages:
19-inch touchscreen monitor already mounted in the housing (screen diagonal: 48 cm)
Space to install your own computer
Ideal for individual cash register and terminal projects
No commitment to a specific PC manufacturer
Existing hardware can continue to be used
Saves the time-consuming construction of your own terminal housing
Particularly interesting for individual pieces, prototypes and small series
Service-friendly design with easily accessible interior
Possible areas of application:
The touch terminal is suitable, among other things, for:
POS and cash register systems; Catering and retail checkouts
Customer information systems
Visitor and reception terminals
Order and pickup terminals
Time recording and access control
Machine and system operation
Production data collection
Digital signage applications
Self-service solutions and individual industrial projects
Technical equipment:
Screen diagonal: 19 inches (48cm) with touchscreen operation
maximum resolution: 1280 × 1024 pixels
Image format: 5:4
Video connector: VGA 15-pin

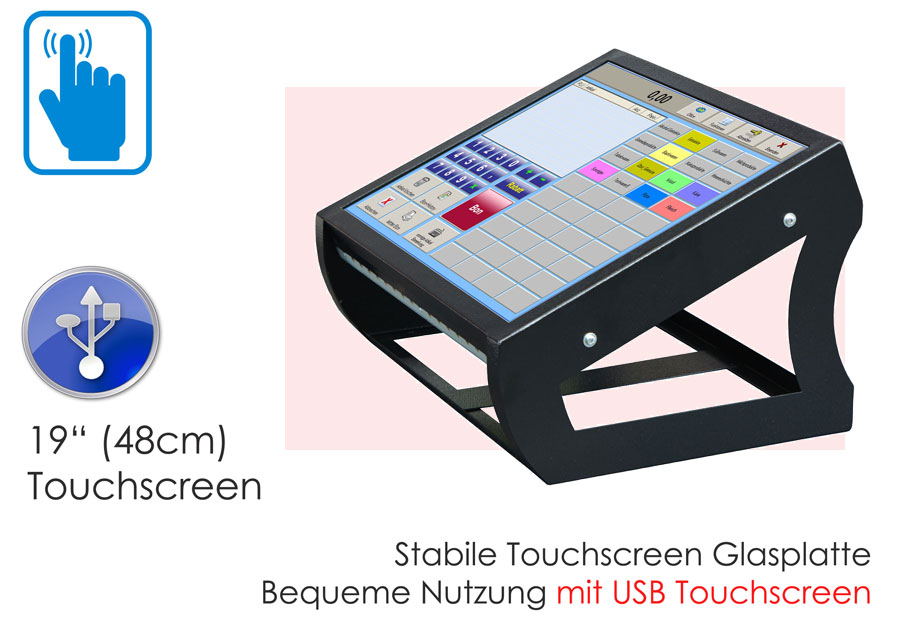

Touch connection: USB
stable terminal housing
Internal installation space for your own computer
suitable for compact mini PC and industrial PC solutions
Important NOTE:
No computer is included.
The offer is aimed specifically at buyers who already own a suitable PC or who would like to choose a computer for their project themselves. This means that processor performance, RAM, operating system and interfaces can be individually adapted to the existing cash register software or application.
Before purchasing, please compare the dimensions of your computer with the available installation space in the case. If there are special requirements for connections, fastening or cable routing, we recommend checking the technical implementation before purchasing.
The housing is brand new. This means that the entire system looks very high-quality and well-maintained.
Monitor: Industrial monitor from Novomatic with AUO display matrix in 5:4 format and a resolution of up to 1280 × 1024 pixels. A suitable 12 V power supply is included.
Thanks to the 12 V power supply, the monitor can also be operated on suitable mobile power sources, for example on a battery or in a car or boat.
The monitor and thus also the cash register or kiosk system built from it can be used standing or lying down. The different installation options are shown in the pictures.
With a suitable wall bracket, installation as a wall terminal is also possible.

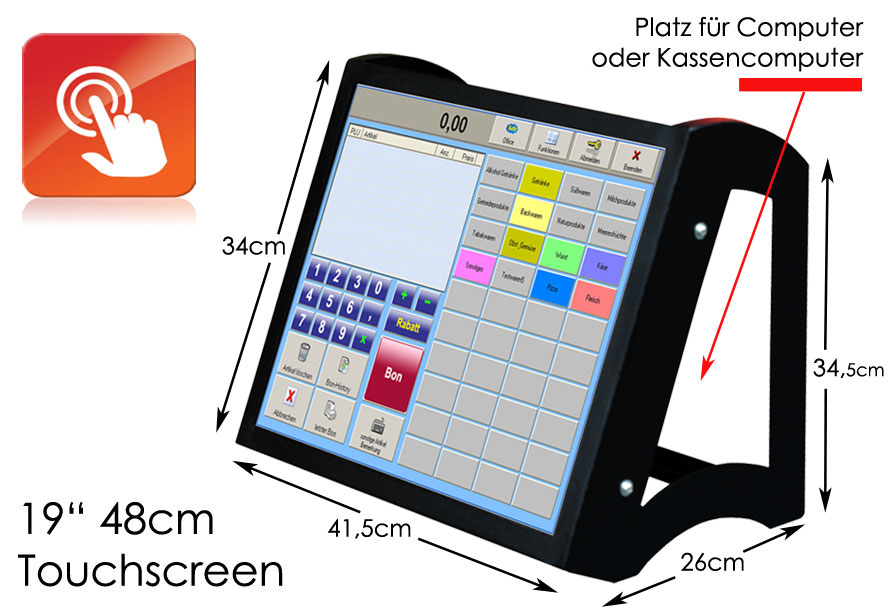

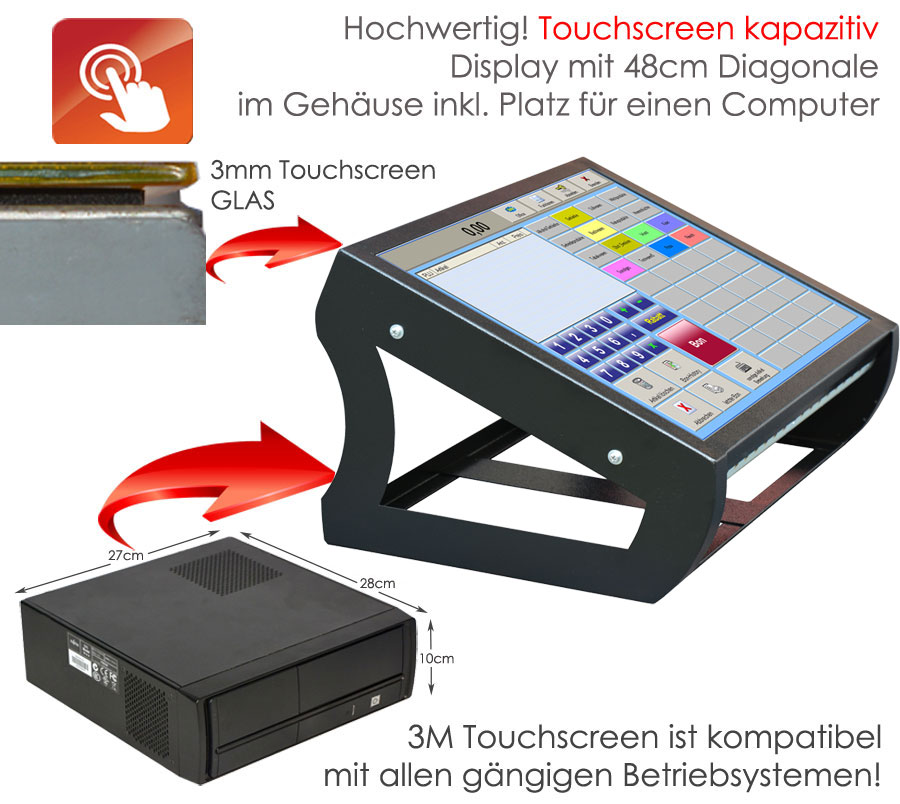

To install a computer, there is space available for devices with a maximum of the following dimensions: 27 × 28 × 10 cm.
Scope of delivery: 1x terminal with 19" (48cm)
monitor with ELO touchscreen and 3M touch controller;
Item condition: Monitor is used, in good condition, technically OK; The case is new.
* * *
