Alto TrueMix 500 - 5-Channel Analog Mixer with USB - Spring Sale

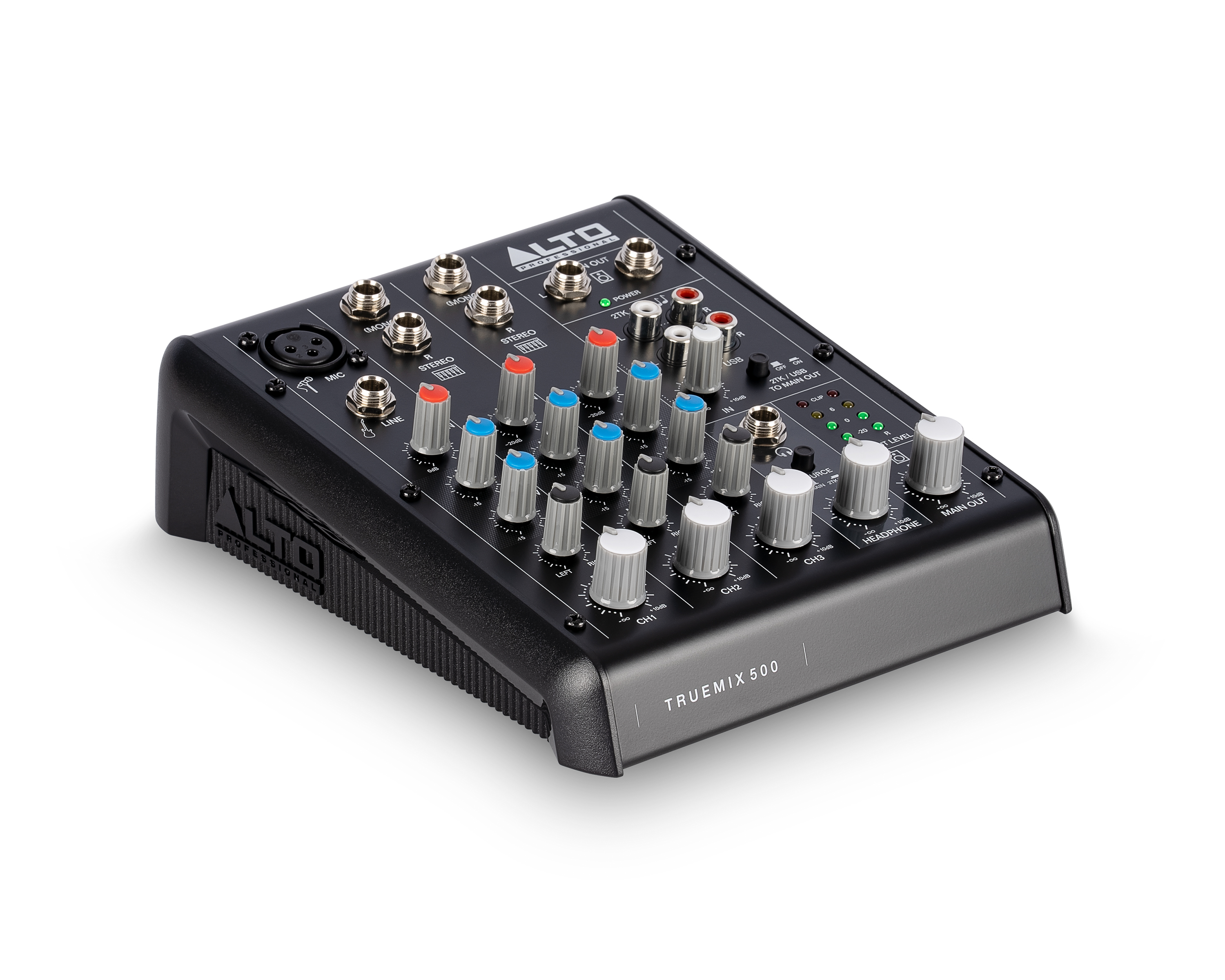

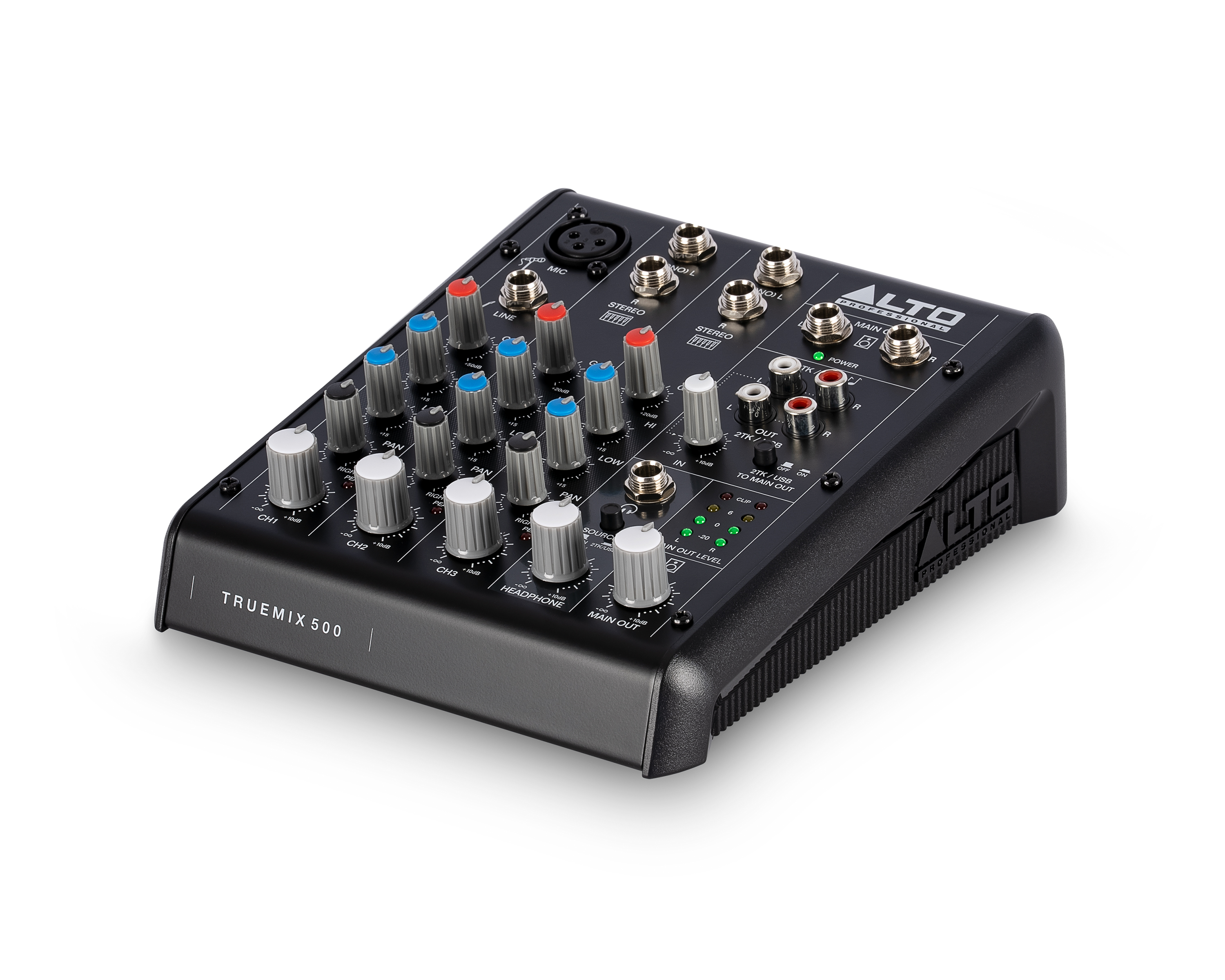

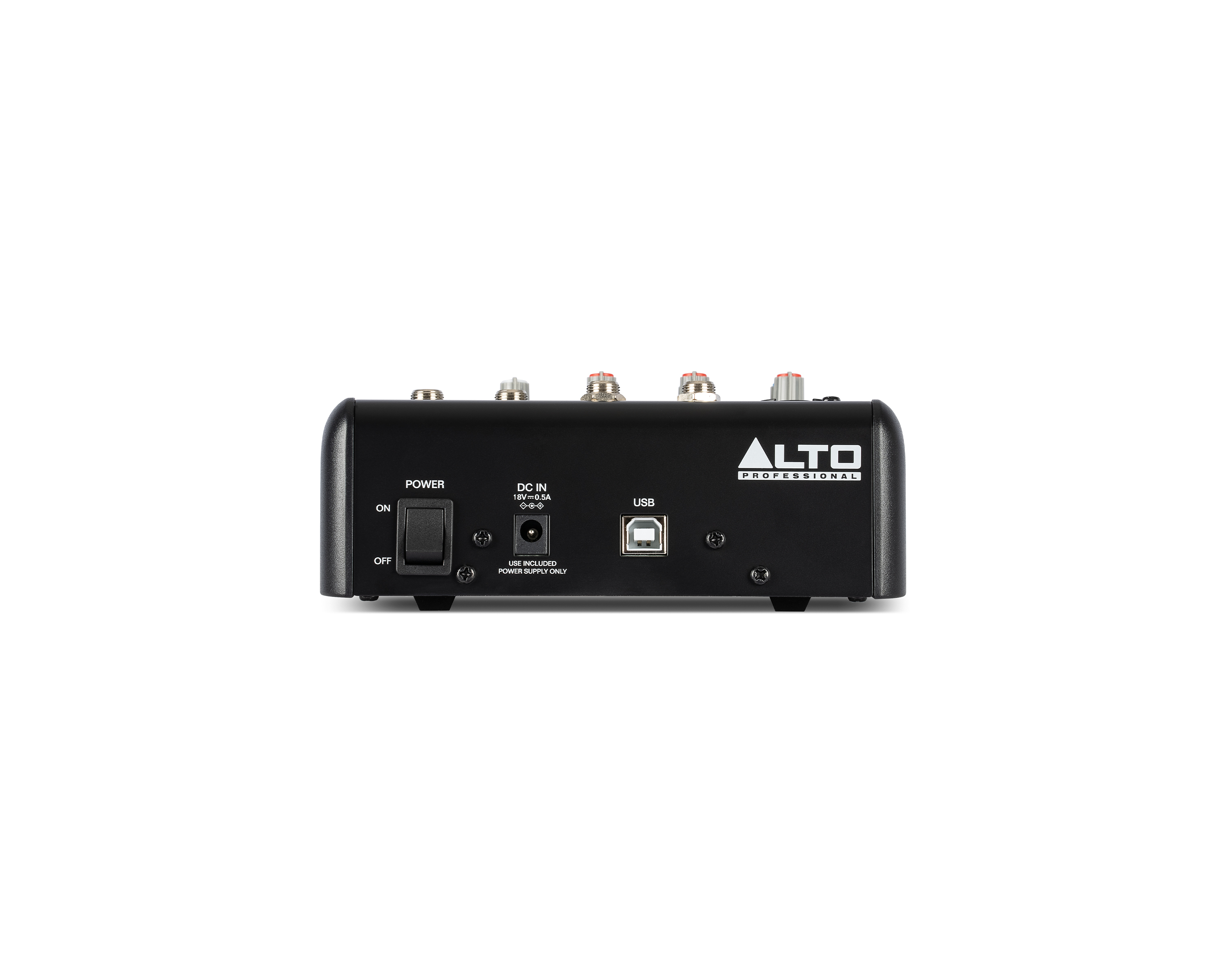

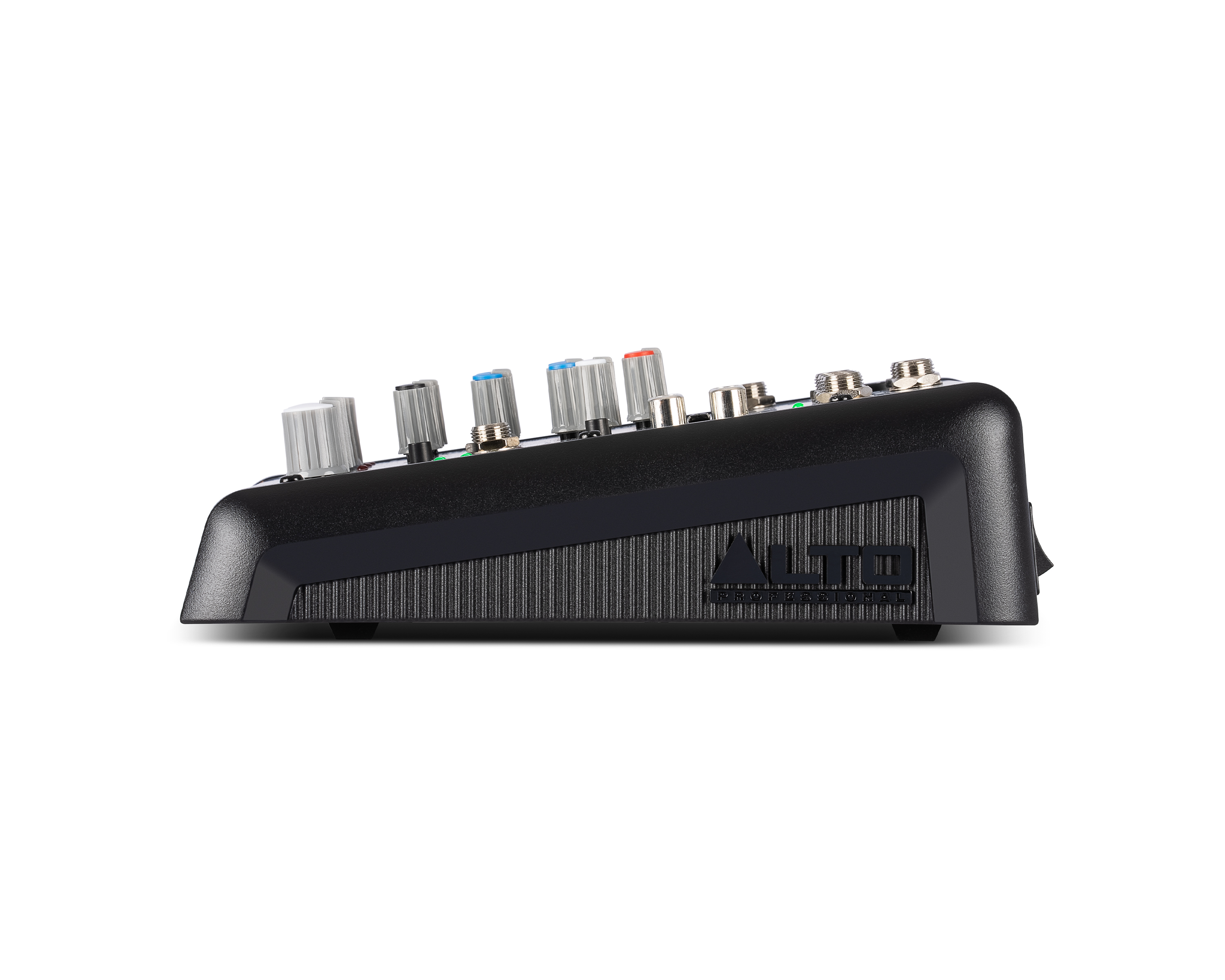

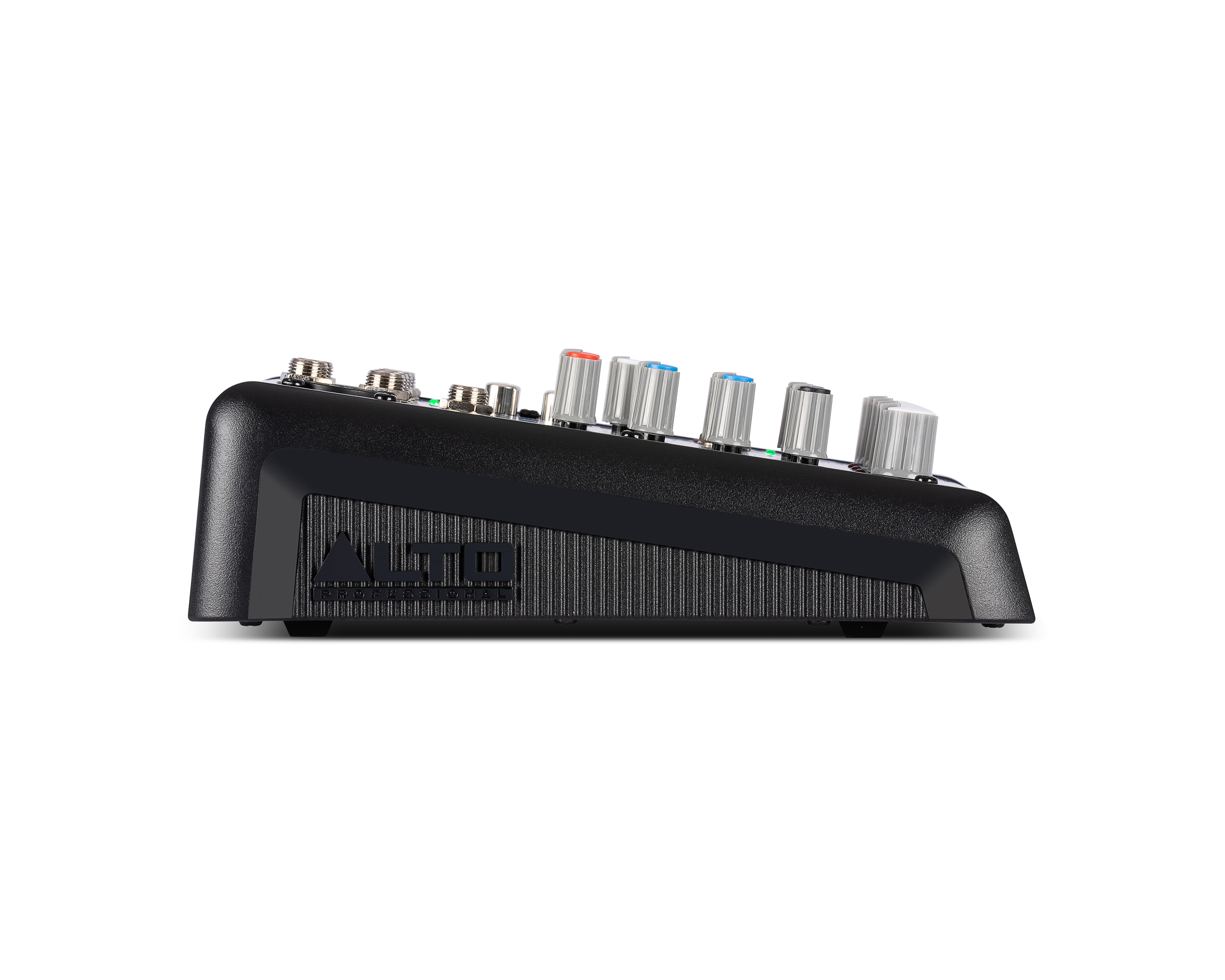

CLICK ON THE IMAGE TO ENLARGE
DESCRIPTION
Simple-to-Use Analog Audio Mixing for Any Application
The Alto Professional TrueMix 500 is a portable mixer with a built-in stereo USB audio interface that delivers all the essential features you need for home recording, livestreaming, podcasting, or performing. There are five analog inputs with high-headroom circuitry for minimal noise and clipping in your signal. The Mic Input Channel offers an XLR input that’s great for connecting a microphone. This channel also has a balanced ¼” line input for connecting instruments and other line-level signals. There are also two Stereo Input Channels, each with dual balanced ¼” TRS inputs. These inputs are perfect for your line level audio sources. All channels feature a two-band EQ with color coded knobs that make it easy to dial in your perfect sound when operating in low-light situations. Connecting the TrueMix 500 to your computer is also lightning fast, with plug and play connectivity on Windows and macOS. The TrueMix 500 is your perfect companion for no-nonsense audio mixing and recording on the go.
Key Features
- USB I/O for audio playback and stereo recording
- 1/4” Main, Tape, and Headphone outputs
- Mic input channel with 18V phantom power and balanced line input
- Two stereo input channels with balanced 1/4” TRS jacks
- Two-band EQ on all channels
- 2-track inputs w/ assignable routing: Main Mix or Headphone Out
- Alto TrueMix 500
- Power Adapter
- USB Cable
- Registration Card
- Quickstart Guide
- Safety & Warranty Manual
|
Frequency Response |
All inputs: 20 Hz – 22 kHz (±1 dB) |
|
THD+N (Total Harmonic Distortion) |
All inputs: < 0.005% (@ 4 dBu, 1 kHz) |
|
|
|
|
Gain Range |
Mic inputs (Channel 1): 0 – 44 dB |
|
|
Line input (Channel 1): 12 – 30 dBu |
|
|
Line inputs (Channels 2/3): 0 dBu |
|
Max Voltage Gain |
74 dB (Mic Input to Main Out and 2TK Output) |
|
|
80 dB (Mic Input to Phones Output) |
|
|
30 dB (Line Input to Main Out) |
|
SNR |
(Signal-to-Noise ratio) |
|
Impedance |
Mic inputs: 3.9 kΩ |
|
|
All other inputs: > 10 kΩ |
|
|
2TK output: 1 kΩ |
|
|
All other outputs: 120 Ω |
|
Crosstalk |
Adjacent inputs: < -80 dB @ 1 kHz |
|
|
Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channel 1, panned hard left or right) |
|
Equalization |
High: ±15 dB @ 12 kHz |
|
|
Low: ±15 dB @ 80 Hz |
|
Connectors |
(2) 1/4” (6.35 mm) TRS outputs |
|
|
(2) 1/4” (6.35 mm) TRS stereo L/R inputs |
|
|
(1) 1/4" (6.35 mm) TRS headphone output |
|
|
(1) 1/4" (6.35 mm) TRS mono input |
|
|
(1) XLR input |
|
|
(1) Stereo RCA L/R input |
|
|
(1) Stereo RCA L/R output |
|
|
(1) USB type-B input |
|
|
(1) DC power input |
|
Controls |
(1) Power switch |
|
|
(1) Power switch |
|
|
(6) Volume control knobs (1 per input and output) |
|
|
(3) Gain control knobs (1 per channel) |
|
|
(3) EQ Hi control knobs (1 per channel) |
|
|
(3) EQ Low control knobs (1 per channel) |
|
|
(3) Stereo pan control Knobs (1 per channel) |
|
|
(2) Locking switch buttons |
|
Indicators |
(1) Power LED, (3) Peak LEDs, (8) Main Out meter LEDs |
|
Main Mix |
Main output: (2) 1/4" (6.35 mm) balanced TRS, +22 dBu max output |
|
|
2TK output: (2) unbalanced RCA, 0 dBu max output |
|
|
Headphone output: (1) stereo 1/4" (6.35 mm) TRS, 160 mW @ 32 Ω |
|
Power |
Connection: DC |
|
|
Voltage: 18V, 500 mA |
|
|
Consumption: 9 W |
|
Dimensions |
6.3" x 7.6" x 2.6" |
|
(width x depth x height) |
159.5 mm x 193 mm x 66 mm |
|
Weight |
2.0 lbs. 0.9 kg |
