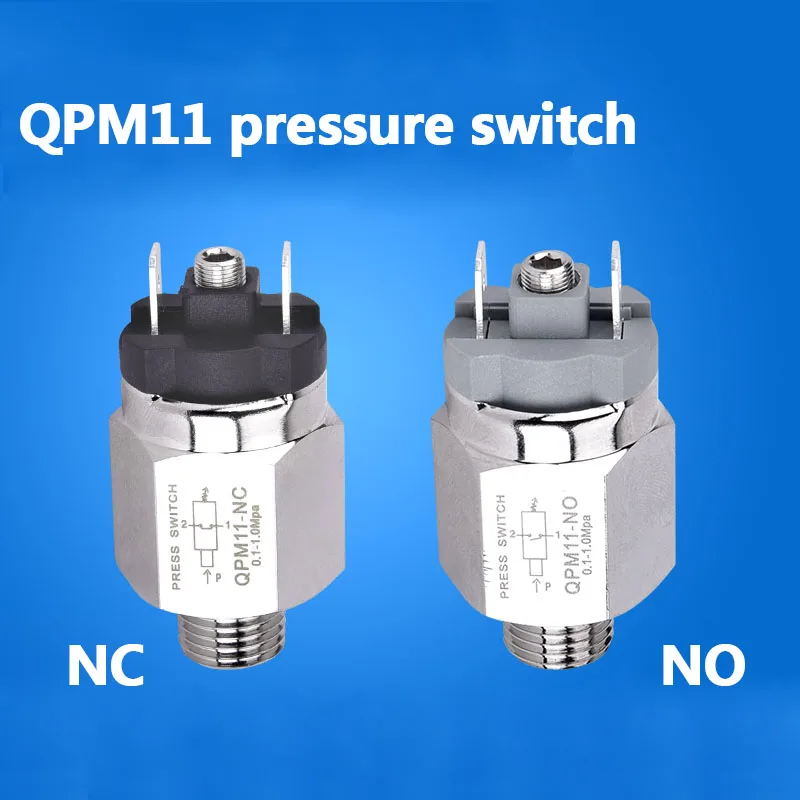

Model: QPM11-NC QPM11-NO
Name: diaphragm adjustable pressure switch
Maximum number of pulses: 200 weeks /min
Use medium: compressed air, water
Protection level (with a sheath): IP54
Environment and medium temperature: -5~60 C
Maximum endurance: 1.0Mpa
Rated current: 500 MA (0.5A)
Rated power: 250 watts
Mechanical life: 1 million weeks
Form of work: adjustable pressure
Rated voltage: < (AC220V/AC110V/DC24V/DC12V))
Pressure range: 0.1~0.7Mpa
Product introduction:
Adjust the pressure size, please twist the two terminals in the middle of the six corners.

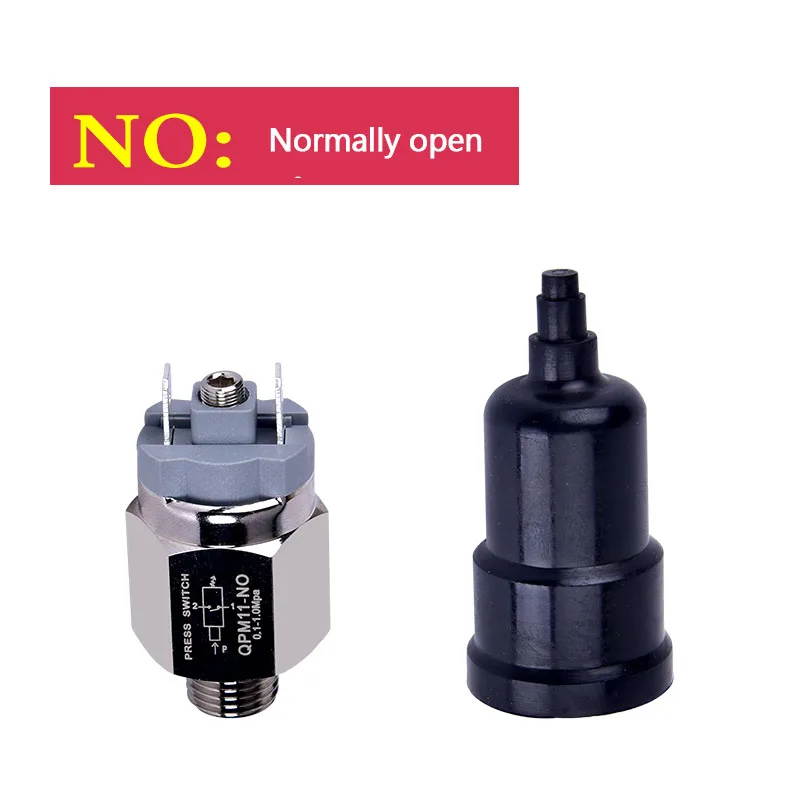

QPM11-NO (Normally Open): When the pressure is not set, the switch contacts are disconnected; when the set value is reached, the switch contacts are closed. The line is in power-on state.

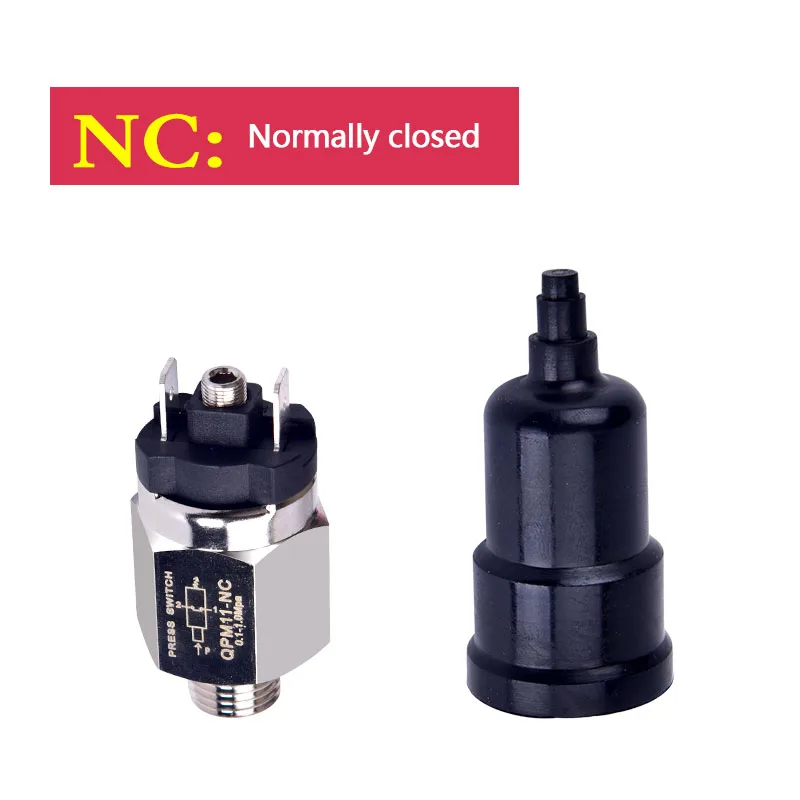

QPM11-NC (Normally Closed): When the pressure is not set, the switch contacts are closed; when the set value is reached, the switch contacts are disconnected and the line is off.
Adjustable pressure range: 0.1 - 1Mpa (1 - 10kgf/cm2)
